Home / 10 - 19" Touch Screens / iiyama T1732MSC-B2S 17" Touch Monitor
iiyama

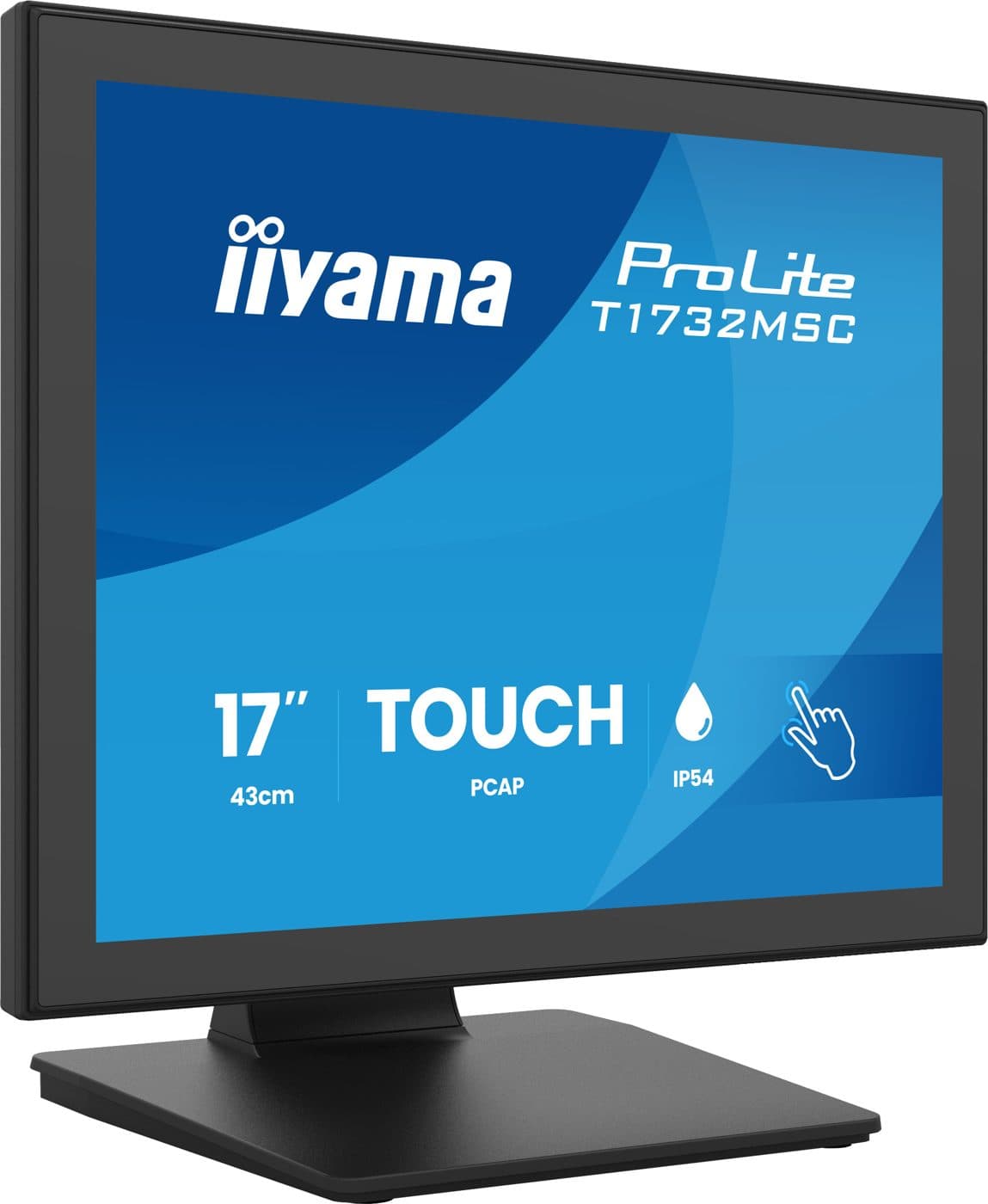

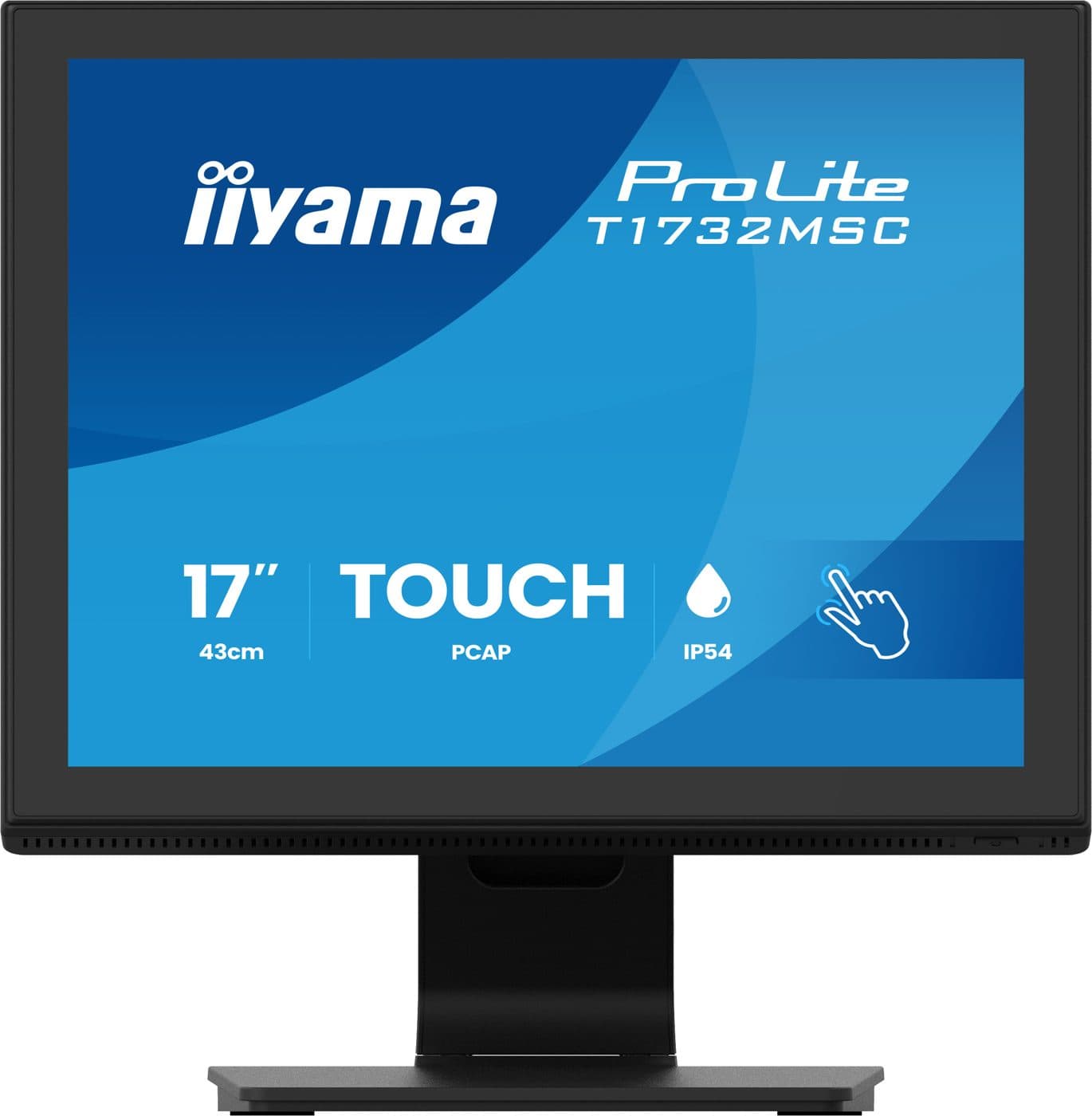

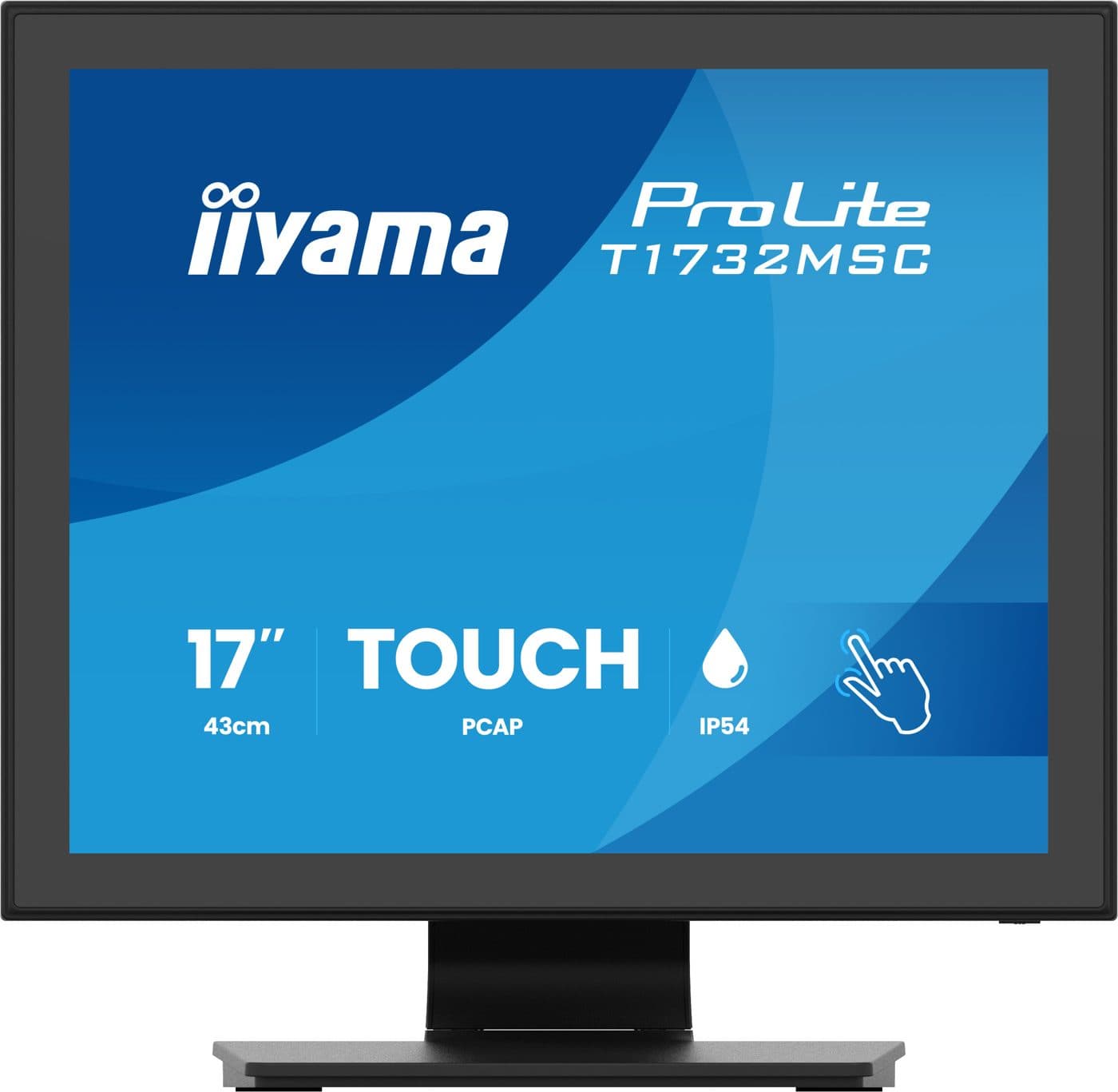

iiyama T1732MSC-B2S 17" Touch Monitor

£279.12inc. VAT
£232.60 ex. VAT
Out of stock
1
  • Visa
  • Mastercard
  • American Express
  • PayPal

Or 3 interest-free payments of £93.04 with PayPal Pay in 3.

Independently reviewed on Trustpilot

Seen it cheaper? We price-match genuine like-for-like quotes. How it works

Bought in the UK, backed in the UKWhy it matters →
  • Sourced through UK distribution
  • UK manufacturer warranty
  • UK-based engineers
  • No import duty or customs charges
  • GBP pricing, UK VAT invoices
Return within 14 days
3-year manufacturer warranty
Installation services available
Key specifications
DesignEdge to edge glass
Diagonal17", 43cm
PanelTN
Native resolution1280 x 1024 (1.3 megapixel)
Aspect ratio5:4
Panel brightness250 cd/m²
Brightness225 cd/m² with touch
Light transmittance90%
All 53 specifications
Talk to an Expert

Description

ProLite T1732MSC-B2S 17" Projective Capacitive 10pt touchscreen The T1732MSC-B2S 17" multi-touch screen is based on projected capacitive technology which thanks to a glass overlay covering the screen guarantees high durability, scratch-resistance and perfect picture performance. The touch function remains unaffected even if the glass is scratched. The flexible stand can be positioned at several angels creating a comfortable and ergonomic user experience and the integrated cable management system hides all the cables and electrical wires giving a neat and cable-free workspace. Menu buttons are located on the side of the screen which can be locked to prevent tampering and includes a handy function to deactivate the touchscreen for cleaning. In addition the edge-to-edge glass design creates an eye-catching finish with high light transmission guaranteeing perfect picture clarity and brillian

Also in this range:15" model 19" model 21.5" model Full specifications Datasheet Compare alternatives

Technical specifications

Choose a section to view its specifications.

Display (10)
Panel
TN
Native resolution
1280 x 1024 (1.3 megapixel)
Aspect ratio
5:4
Panel brightness
250 cd/m²
Brightness
225 cd/m² with touch
Static contrast
1000:1 with touch
Touch technology
projective capacitive
Touch points
10 (HID, only with supported OS)
Touch method
stylus, finger, glove (latex)
Touch interface
USB
Connectivity (7)
Colour support
16.7mln
Supported operating systems
All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Analog signal input
VGA x1
Digital signal input
HDMI x1DisplayPort x1
Audio input
Mini jack x1
Audio output
Speakers 2 x 1W
OSD languages
EN, DE, FR, ES, IT, CN, JP
Power & Physical (3)
VESA mounting
100 x 100mm
Product dimensions W x H x D
387 x 378 x 240mm
Weight (without box)
4.9kg
General (33)
Design
Edge to edge glass
Diagonal
17", 43cm
Light transmittance
90%
Response time (BTB)
5ms
Viewing zone
horizontal/vertical: 170°/160°, right/left: 85°/85°, up/down: 80°/80°
Horizontal Sync
31 - 80kHz
Viewable area W x H
338 x 270.5mm, 13.3 x 10.6"
Pixel pitch
0.264mm
Bezel colour and finish
black, matte
HDCP
yes
Water and dust protection
IP54 (front)
OSD key lock
yes
Control buttons
Menu, Scroll up/ Brightness, Scroll down/ Mute, Select, Power
User controls
contrast, brightness, auto adjust, H.position, V.position, H.size, fine, OSD H.position, OSD V.position, OSD timeout, reset, input select, OSD language, colour temperature, volume, mute
Convenience
Kensington-lock™ prepared
Plug&Play
DDC2B
Tilt angle
90° up; 5° down
Cable management system
yes
Cables
power, USB, HDMI, Audio, DP
Guides
quick start guide, safety guide
Other
Touch Panel Driver Disk (CD-ROM)
Power supply unit
internal
Power supply
AC 100 - 240V, 50/60Hz
Power usage
20W typical, 1.5W stand by, 0.3W off mode
Regulations
CE, EAC, RoHS support, ErP, WEEE, cULus, VCCI, REACH, UKCA
Energy efficiency class (Regulation (EU) 2017/1369)
E
REACH SVHC
above 0.1%: Lead
EAN code
4948570127726
User manual
T15_17_1932MSC-x2S_AG-usermanual-e.pdf
Technical specification
ProLite T1732MSC-B2S - gb_en.pdf
Drawing
T1732MSC-B1S_Drawing.pdf
EU Energy Label
T1732MSC-B2S EU Energy Label (2604060).pdf
UK Energy Label
T1732MSC-B2S UK Energy Label (2604060).pdf
