Home / Ceiling Mounts / Chief LCM3X3U Fusion 3x3 Micro-Adjustable Large Ceiling Mounted Video Wall - Landscape, 9 Displays
Chief

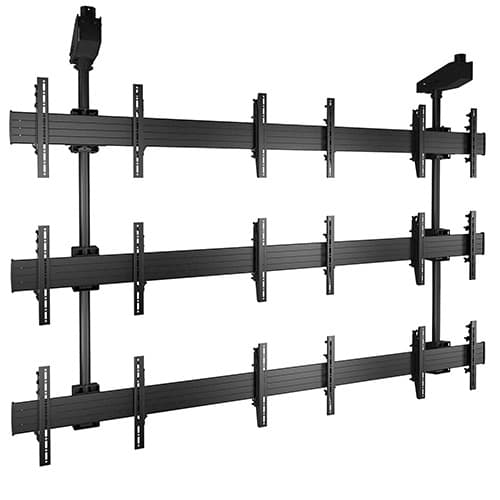

Chief LCM3X3U Fusion 3x3 Micro-Adjustable Large Ceiling Mounted Video Wall - Landscape, 9 Displays
£5,386.80inc. VAT
£4,489.00 ex. VAT
Out of stock
1
Seen it cheaper? We price-match genuine like-for-like quotes. How it works
Bought in the UK, backed in the UKWhy it matters →
- Sourced through UK distribution
- UK manufacturer warranty
- UK-based engineers
- No import duty or customs charges
- GBP pricing, UK VAT invoices
10 Years Warranty Included
Key specifications
Maximum screen height68.58 cm
Manual height adjustment1" (25 mm) increments at structural intersections
Plumb adjustmentMicro-adjustment up to 0.75" (19 mm)
Shipping dimensions284.5 x 59.7 x 35.6 cm
Shipping weight106.6 kg
Typical screen size1067 - 1168 mm
Weight capacity per display38.6 kg
AdjustabilityHeight Adjustable, Micro-Adjustable
Description
Chief's Fusion large ceiling-mounted video wall structure suspends the array from above, for atriums, concourses and retail spaces where no wall is available behind the displays. The 3x3 landscape array carries nine displays of 42" to 46", each supported to 38.6 kg.
Also in this range:LCM2X2U LCM2X1U LCM3X2U LCM1X2U Full specifications Datasheet Compare alternatives
Alignment is handled at the structure rather than at each bracket: height adjusts in 25 mm increments at the structural intersections, plumb micro-adjusts by up to 19 mm, and ControlZone levelling is available at every column intersection to close the seams across the array.
The structure takes displays up to 686 mm tall and ships at 106.6 kg. It needs a ceiling plate and extension columns, which are not included: Chief's 1.5" NPT plates and columns fit, as do the newer CPA pinned plates and columns. Fusion universal back covers can be added to tidy the rear of the array.
Supplied by TopAV. Manufacturer part number LCM3X3U.
Key features
3x3 landscape array
Holds nine displays in three columns of three, in landscape orientation.
Weight capacity
38.6 kg per display position.
ControlZone levelling
Height adjusts in 25 mm increments at the structural intersections; plumb micro-adjusts by up to 19 mm.
Ceiling hardware not included
Requires a separate ceiling plate and extension columns - 1.5" NPT or CPA pinned.
Maximum screen height
Accepts displays up to 686 mm tall.
Certification
UL Listed and TAA compliant.
Technical specifications
Display
Maximum screen height68.58 cm
Typical screen size1067 - 1168 mm
Weight capacity per display38.6 kg
Number of displays9
Power & Physical
Manual height adjustment1" (25 mm) increments at structural intersections
Shipping dimensions284.5 x 59.7 x 35.6 cm
Shipping weight106.6 kg
ColourBlack
Certifications & Warranty
CertificationsTAA, UL Listed
General
Plumb adjustmentMicro-adjustment up to 0.75" (19 mm)
AdjustabilityHeight Adjustable, Micro-Adjustable
Structural micro-adjustmentMicro-Adjustments of 2" at structural intersection points
ApplicationCeiling
Array configuration3x3
OrientationLandscape
TAA compliantYes
