Chief LCM2X1U Fusion Large Ceiling Mounted 2x1 Menu Board Mount - Landscape

Name: Chief LCM2X1U Fusion Large Ceiling Mounted 2x1 Menu Board Mount - Landscape
Brand: Chief
SKU: LCM2X1U
Price: 1004.95 GBP
Availability: OutOfStock

£1,004.95inc. VAT

£837.46 ex. VAT

Out of stock

Visa
Mastercard
American Express
PayPal

Or 3 interest-free payments of £334.99 with PayPal Pay in 3.

Independently reviewed on Trustpilot

Seen it cheaper? We price-match genuine like-for-like quotes. How it works

Bought in the UK, backed in the UKWhy it matters →

Sourced through UK distribution
UK manufacturer warranty
UK-based engineers
No import duty or customs charges
GBP pricing, UK VAT invoices

Call 020 3815 8642

Return within 14 days

Installation services available Purchase orders: education customers only

10 Years Warranty Included

Key specifications

Array configuration2x1

Number of displays2

OrientationLandscape

ApplicationCeiling

ColourBlack

Solution typeUniversal

Typical screen size40-55 in

Weight capacity56.7 kg

All 18 specifications

Description

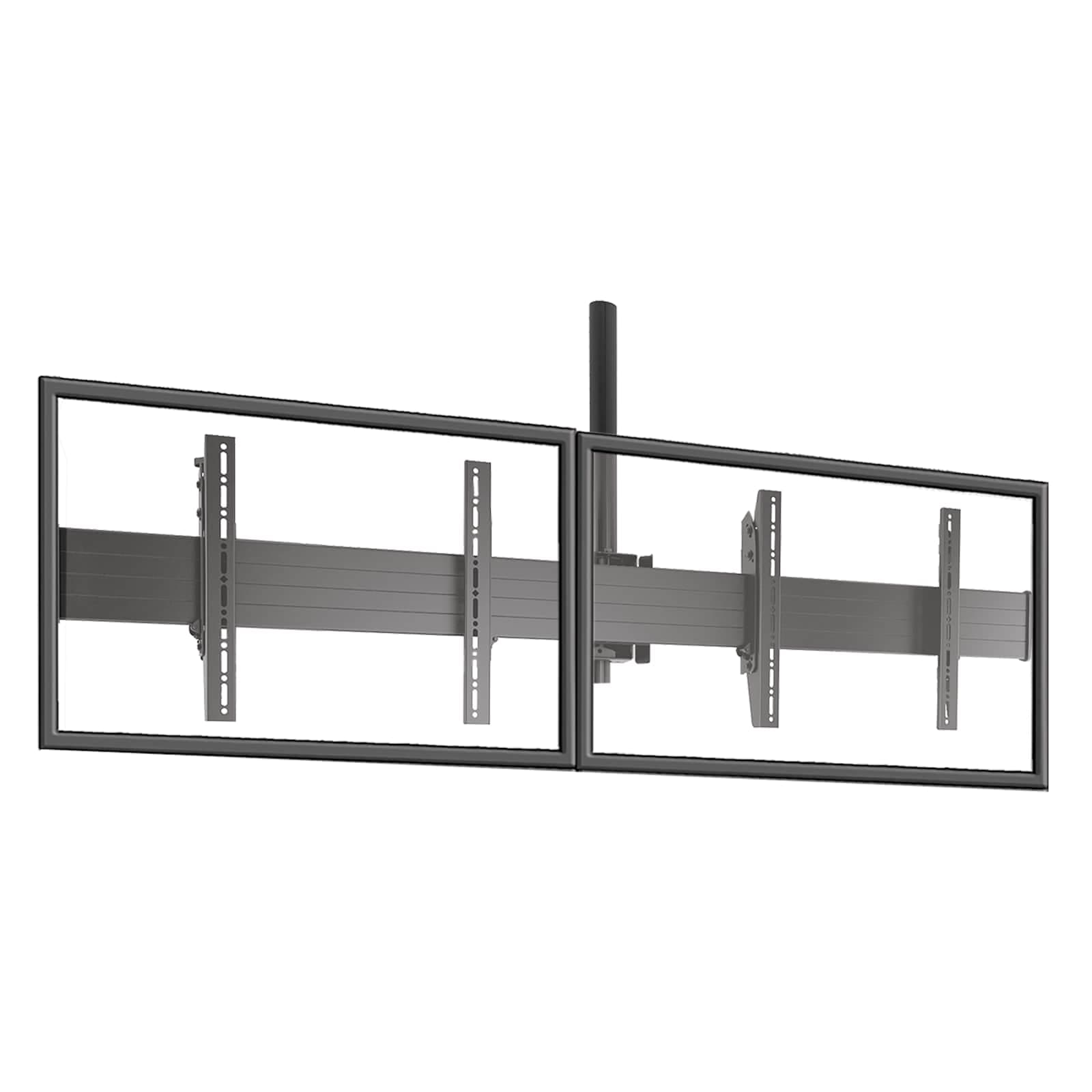

The Chief LCM2X1U hangs two landscape displays side by side from a single ceiling column, giving a two-panel menu board where there is no wall to work with - over a counter, a service desk or an open concourse.

Also in this range:LCM2X2U LCM3X3U LCM3X2U LCM1X2U Full specifications Datasheet Compare alternatives

Universal interface brackets accept any mounting width by 100 to 400 mm in height, cover screens from 40 to 55 in and are rated to 125 lb (56.7 kg). Displays tilt from +5 to -20 degrees for viewing from below, and post-installation levelling roll of plus or minus 3 degrees squares the pair against an uneven ceiling.

A ceiling plate and extension column are required and ordered separately. The mount is UL Listed and ships at 21.3 kg. Chief does not publish a TAA compliance claim for this model.

Supplied by TopAV. Manufacturer part number LCM2X1U.

Call 020 3815 8642

Key features

Two landscape displays

2 wide by 1 high landscape menu board suspended from one ceiling column.

56.7 kg capacity

Rated weight capacity of 125 lb (56.7 kg).

40-55 in displays

Typical screen size range 40 in to 55 in (1016 mm to 1397 mm).

Flexible VESA range

Accepts any mounting width by 100 to 400 mm in height.

Tilt and levelling roll

Tilts +5 to -20 degrees with plus or minus 3 degrees of post-installation levelling roll.

Column ordered separately

Requires a Chief ceiling plate and extension column, sold separately.

Technical specifications

Choose a section to view its specifications.

Display (2)

Number of displays: 2
Typical screen size: 40-55 in

Power & Physical (5)

Colour: Black
Weight capacity: 56.7 kg
VESA mounting pattern: Any width x 100 - 400 mm
Shipping dimensions: 190.5 x 29.2 x 19.1 cm
Shipping weight: 21.3 kg

Certifications & Warranty (1)

Certifications: UL Listed

General (10)

Array configuration: 2x1
Orientation: Landscape
Application: Ceiling
Solution type: Universal
Tilt: +5 / -20 degrees
Post-installation levelling roll: +/- 3 degrees
Adjustability: Tilt, height adjustable
TAA compliant: No
Special features: Multi-display
Mount type: Ceiling menu board mount

Call 020 3815 8642

Documents

Chief LCM2X1U installation manual (PDF) published by Legrand AV - LCM2X1U LCM2X1UP Installation Manual.
