Home / Ceiling Mounts / Chief LCM1X2U Fusion Large Ceiling Mounted 1 x 2 Stacker

Chief

Chief LCM1X2U Fusion Large Ceiling Mounted 1 x 2 Stacker

Name: Chief LCM1X2U Fusion Large Ceiling Mounted 1 x 2 Stacker
Brand: Chief
SKU: LCM1X2U
Price: 590.40 GBP
Availability: OutOfStock

£590.40inc. VAT

£492.00 ex. VAT

Out of stock

Seen it cheaper? We price-match genuine like-for-like quotes. How it works

Bought in the UK, backed in the UKWhy it matters →

Sourced through UK distribution
UK manufacturer warranty
UK-based engineers
No import duty or customs charges
GBP pricing, UK VAT invoices

Return within 14 days

Installation services available Purchase orders: education customers only

10 Years Warranty Included

Key specifications

Weight capacity56.7 kg

Typical screen size40 - 55 in

VESA mounting pattern200 x 100mm - 616 x 400mm

Number of displays2

Array configuration1x2

AdjustabilityTilt

ApplicationCeiling

Overall dimensions420 x 680 x 255 mm

All 16 specifications

Description

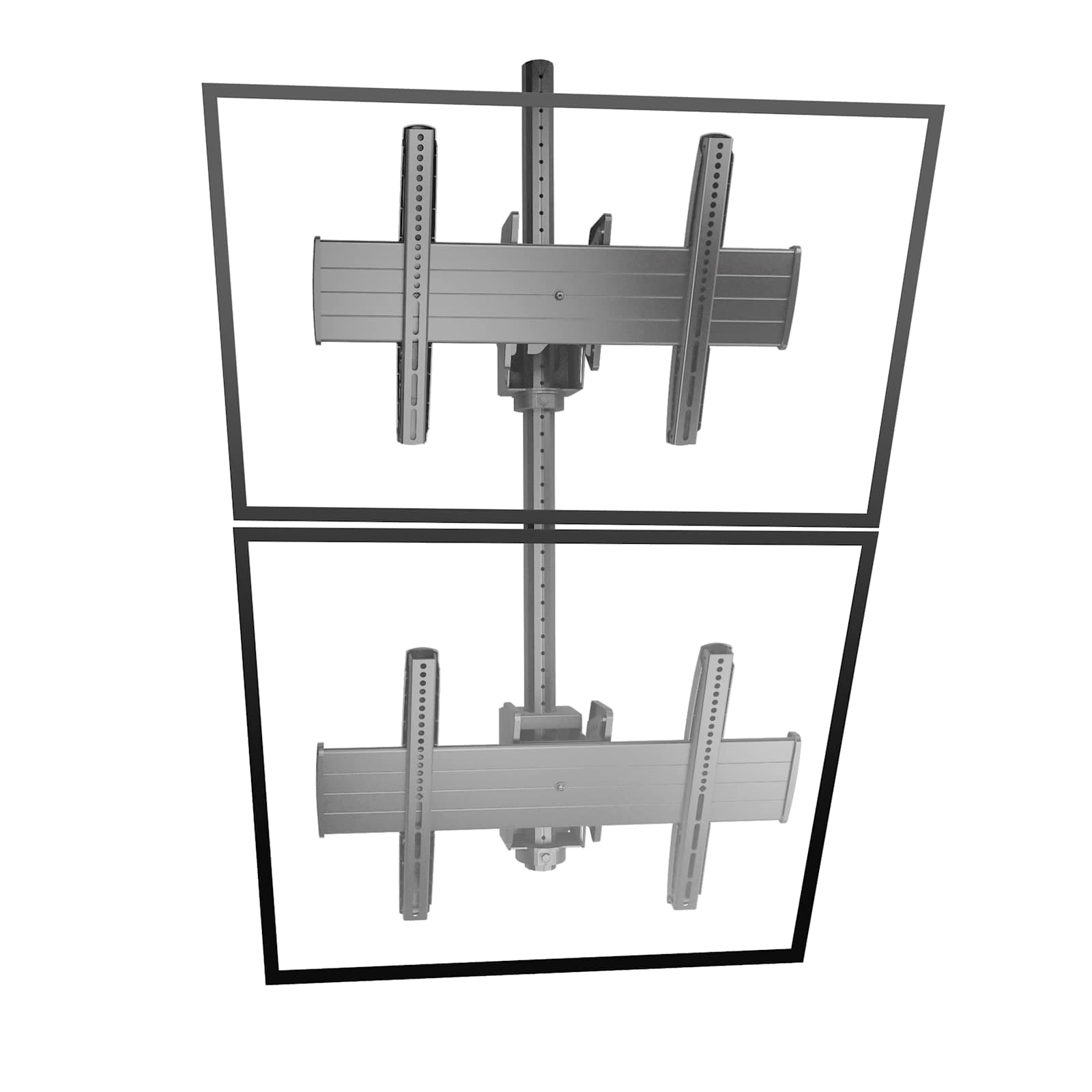

The LCM1X2U hangs two displays vertically from a single ceiling drop, which is how menu boards and departure boards are usually built where there is no wall to work with. It is supplied as a bundle: two Fusion flat panel ceiling mounts plus a CPA048P 1.2 m pre-drilled column.

Also in this range:LCM2X2U LCM2X1U LCM3X3U LCM3X2U Full specifications Datasheet Compare alternatives

The assembly measures 420 mm high by 680 mm wide by 255 mm deep, carries up to 56.7 kg and takes VESA patterns from 200 x 100 mm to 616 x 400 mm on 40 to 55 inch screens. Both heads tilt, so the two screens can be angled independently towards the viewer below.

For a longer drop, order a CPA264 to join a 1.5 inch NPT extension column, or a CPA263 for Chief's pinned connection columns. Chief Fusion universal back covers can be added to conceal the rear of the displays and any components. TAA compliant. Supplied by TopAV. Manufacturer part number LCM1X2U.

Key features

Weight capacity

Rated to 56.7 kg (125 lb).

Screen size range

For two displays from 40 to 55 inches, stacked one above the other.

VESA range

200 x 100 mm to 616 x 400 mm.

Supplied as a bundle

Two Fusion flat panel ceiling mounts plus a CPA048P 1.2 m pre-drilled column.

Independent tilt

Each head tilts so both screens can be angled towards the viewer.

Extendable drop

Add a CPA264 for 1.5 inch NPT extension columns or a CPA263 for Chief pinned columns.

Technical specifications

Display

Typical screen size40 - 55 in

Number of displays2

Power & Physical

Weight capacity56.7 kg

VESA mounting pattern200 x 100mm - 616 x 400mm

Overall dimensions420 x 680 x 255 mm

Depth25.9 cm

Height41.9 cm

Width68.1 cm

ColourBlack

Shipping weight21.8 kg

Certifications & Warranty

CertificationsTAA

General

Array configuration1x2

AdjustabilityTilt

ApplicationCeiling

OrientationLandscape

TAA compliantYes

Documents

Chief MCM1X2U and LCM1X2U installation manual (PDF, Legrand AV). Attached in place of the cutsheet, which Legrand generates in the browser rather than hosting.
