Chief LCM2X2U Fusion Micro-Adjustable Large Ceiling Mounted 2x2 Video Wall Mount

Name: Chief LCM2X2U Fusion Micro-Adjustable Large Ceiling Mounted 2x2 Video Wall Mount
Brand: Chief
SKU: LCM2X2U
Price: 3361.20 GBP
Availability: OutOfStock

£3,361.20inc. VAT

£2,801.00 ex. VAT

Out of stock

Seen it cheaper? We price-match genuine like-for-like quotes. How it works

Bought in the UK, backed in the UKWhy it matters →

Sourced through UK distribution
UK manufacturer warranty
UK-based engineers
No import duty or customs charges
GBP pricing, UK VAT invoices

Call 01342 580255

Return within 14 days

Installation services available Purchase orders: education customers only

10 Years Warranty Included

Key specifications

Array configuration2x2

Number of displays4

OrientationLandscape

ApplicationCeiling

ColourBlack

Solution typeUniversal

Typical screen size42-50 in

Weight capacity56.7 kg

All 18 specifications

Description

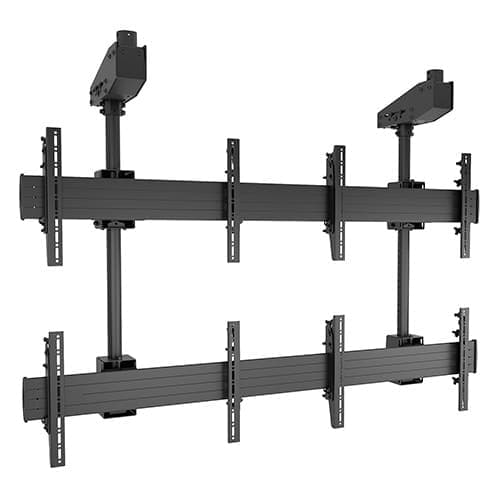

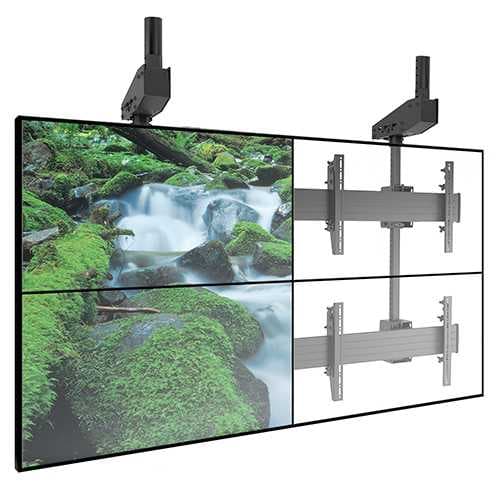

Chief's Fusion large ceiling mounted video wall solution builds a four-screen 2x2 array in spaces where there is no suitable wall - atriums, retail concourses and open-plan reception areas. Two ceiling columns carry a pair of horizontal rails, and the displays hang on universal interface brackets that suit screens in the 42 to 50 in range.

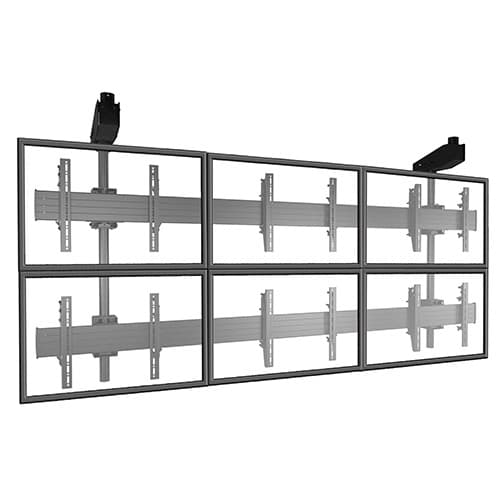

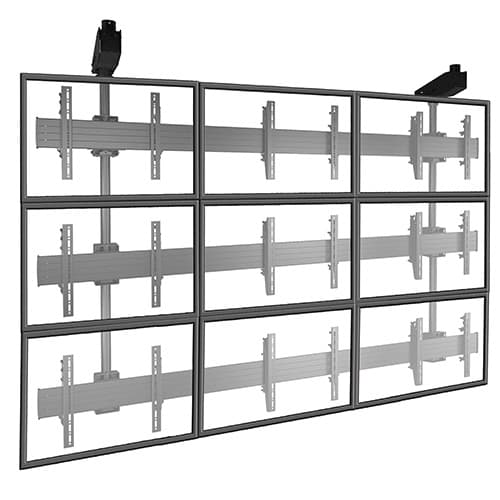

Also in this range:LCM2X1U LCM3X3U LCM3X2U LCM1X2U Full specifications Datasheet Compare alternatives

Alignment is handled without tools. Independent knobs set height and plumb, ControlZone levelling gives micro-height adjustment at every column intersection, and plumb can be trimmed by up to 19 mm, so the seams between the four panels can be closed off after the array is hung. Height adjusts in 25 mm increments at the structural intersections.

The mount is supplied without a ceiling plate or extension column - order those separately. It is compatible with traditional 1.5 in NPT plates and columns as well as Chief's CPA pinned system. Additional 2x2 sections can be added side by side to extend the wall.

Supplied by TopAV. Manufacturer part number LCM2X2U.

Call 01342 580255

Key features

Four-screen 2x2 array

Two ceiling columns and paired horizontal rails support a 2 wide by 2 high landscape video wall.

Rated to 56.7 kg per display

Weight capacity of 125 lb (56.7 kg) for each display position in the array.

42-50 in displays

Typical screen size range is 42 in to 50 in (1067 mm to 1270 mm).

Tool-free micro-adjustment

Independent knobs set height and plumb; plumb micro-adjusts up to 19 mm and height in 25 mm increments at structural intersections.

ControlZone levelling

Micro-height and levelling adjustment is available at every column intersection point.

Ceiling plate ordered separately

Works with 1.5 in NPT ceiling plates and columns and with CPA pinned plates and columns.

Technical specifications

Display

Number of displays4

Typical screen size42-50 in

Power & Physical

ColourBlack

Weight capacity56.7 kg

Manual height adjustment25 mm increments at structural intersections

Shipping dimensions193 x 47 x 40.6 cm

Shipping weight69 kg

Certifications & Warranty

CertificationsUL Listed, TAA

General

Array configuration2x2

OrientationLandscape

ApplicationCeiling

Solution typeUniversal

Plumb adjustmentMicro-adjustment up to 19 mm

Lateral micro-adjustment2 in at structural intersection points

AdjustabilityHeight adjustable, micro-adjustable

TAA compliantYes

Special featuresMulti-display

Mount typeCeiling video wall mount

Call 01342 580255

Documents

Chief LCM2X2U installation manual (PDF) published by Legrand AV - LCM2X2 3X2 3X3 Installation Manual.
