Home / Floor-to-Wall Stands / Chief LBM3X3U Fusion 3x3 Micro-Adjustable Large Bolt-Down Freestanding Video Wall - Landscape, 9 Displays
Chief

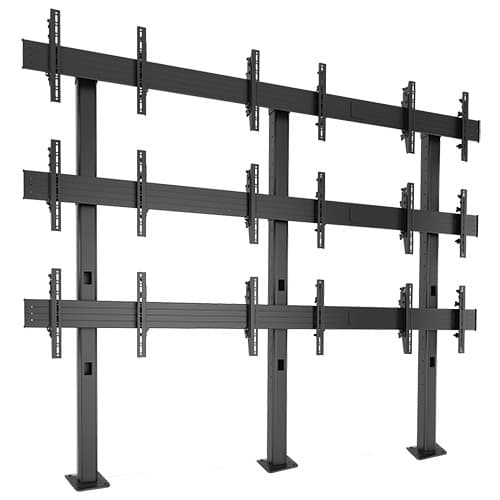

Chief LBM3X3U Fusion 3x3 Micro-Adjustable Large Bolt-Down Freestanding Video Wall - Landscape, 9 Displays
£5,898.00inc. VAT
£4,915.00 ex. VAT
Out of stock
1
Seen it cheaper? We price-match genuine like-for-like quotes. How it works
Bought in the UK, backed in the UKWhy it matters →
- Sourced through UK distribution
- UK manufacturer warranty
- UK-based engineers
- No import duty or customs charges
- GBP pricing, UK VAT invoices
10 Years Warranty Included
Key specifications
Typical screen size1067 - 1168 mm
Display centre height range (bottom to top row)416 - 2092 mm
Depth24 cm
Height230.9 cm
Lateral shiftYes
Manual height adjustmentMicro-adjustment up to 0.75" (19 mm) per screen
Overall dimensions (H x W x D)2309 x 2766 x 239 mm
Plumb adjustmentMicro-adjustment up to 0.75" (19 mm)
Description
Chief's Fusion large bolt-down freestanding stand builds a permanent video wall on the floor rather than the wall, which suits glazed frontages, retail floors and lobbies where fixing into the structure behind is not an option. The 3x3 landscape array carries nine displays of 42" to 46", each supported to 45.4 kg.
Also in this range:LBM1X2U LBM3X2U LBM2X2U LBM1X3U Full specifications Datasheet Compare alternatives
Alignment is the point of the Fusion system. Every display position offers independent height, plumb and lateral shift adjustment, with micro-adjustment of up to 19 mm per screen, so a fitter can close the seams across the whole array without dismounting anything. Cable management is integrated into the columns.
Assembled, the structure measures 2309 mm high by 2766 mm wide by 239 mm deep and bolts to the floor through its column base plates, putting display centres between 416 mm and 2092 mm from floor level. FCAX interface brackets extend it beyond the standard screen range - confirm any non-standard display against Chief MountFinder before ordering.
Supplied by TopAV. Manufacturer part number LBM3X3U.
Key features
3x3 landscape array
Holds nine displays in three columns of three, in landscape orientation.
Weight capacity
45.4 kg per display position.
Micro-adjustment
Independent height, plumb and lateral shift, with up to 19 mm of micro-adjustment per screen.
Bolt-down structure
Floor-fixed columns with bolt-down base plates; 2309 x 2766 x 239 mm assembled.
Cable management
Cable routing integrated into the vertical columns.
Certification
UL Listed and TAA compliant.
Technical specifications
Display
Typical screen size1067 - 1168 mm
Display centre height range (bottom to top row)416 - 2092 mm
Weight capacity per display45.4 kg
Number of displays9
Power & Physical
Depth24 cm
Height230.9 cm
Manual height adjustmentMicro-adjustment up to 0.75" (19 mm) per screen
Overall dimensions (H x W x D)2309 x 2766 x 239 mm
Shipping weight128.4 kg
Width276.6 cm
ColourBlack
Certifications & Warranty
CertificationsTAA, UL Listed
General
Lateral shiftYes
Plumb adjustmentMicro-adjustment up to 0.75" (19 mm)
AdjustabilityMicro-Adjustable
ApplicationBolt-Down
Array configuration3x3
OrientationLandscape
TAA compliantYes
Documents
Delivery & returns
Estimated delivery 14 Sept - 18 Sept. UK mainland delivery only. Some large or made-to-order items carry longer lead times, shown on the product page.
Unused items in original packaging can be returned within 14 days of delivery — see the returns policy for how business and consumer returns differ. Faulty items are covered under manufacturer warranty and by your statutory rights.
Bought in the UK, backed in the UK
This item is sourced through UK distribution and ships to you from within the UK, so the order never crosses a customs border.
The manufacturer warranty is honoured here in the UK. If something fails, you deal with us, not with an overseas seller in another time zone.
Our own UK-based engineers install, commission and support what we sell, and can attend site when a system needs hands on it.
Delivered within the UK mainland, so there is no import duty, customs charge or courier handling fee waiting for you on delivery.
Prices are in pounds sterling with proper UK VAT invoices, and purchase orders are accepted from approved education accounts: no currency conversion and no surprises at the door.
Payment & security
Pay securely by card. Education customers can apply for a 30-day purchase order account.
Schools, colleges, sixth forms, universities and multi-academy trusts can order on invoice, with no card payment required. Purchase orders and credit terms are for education customers only.
All transactions are processed over an encrypted, secure checkout.
