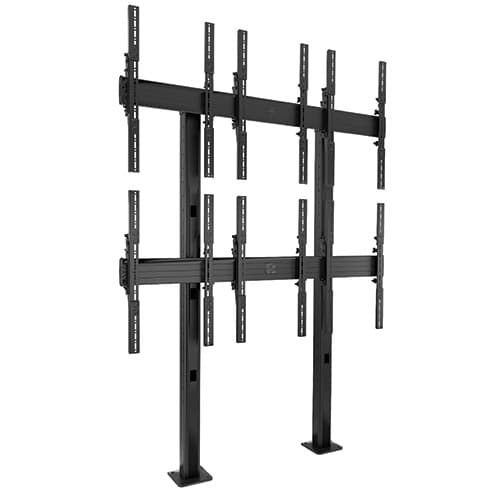

Chief LBM3X2U Fusion 3x2 Micro-Adjustable Large Bolt-Down Freestanding Video Wall - Landscape, 6 Displays

Name: Chief LBM3X2U Fusion 3x2 Micro-Adjustable Large Bolt-Down Freestanding Video Wall - Landscape, 6 Displays
Brand: Chief
SKU: LBM3X2U
Price: 4880.84 GBP
Availability: OutOfStock

£4,880.84inc. VAT

£4,067.37 ex. VAT

Out of stock

Visa
Mastercard
American Express
PayPal

Independently reviewed on Trustpilot

Seen it cheaper? We price-match genuine like-for-like quotes. How it works

Bought in the UK, backed in the UKWhy it matters →

Sourced through UK distribution
UK manufacturer warranty
UK-based engineers
No import duty or customs charges
GBP pricing, UK VAT invoices

Call 020 3815 8642

Return within 14 days

Installation services available Purchase orders: education customers only

10 Years Warranty Included

Key specifications

Typical screen size1067 - 1168 mm

Display centre height range (bottom to top row)416 - 1635 mm

Depth24 cm

Height185.2 cm

Lateral shiftYes

Manual height adjustmentMicro-adjustment up to 0.75" (19 mm) per screen

Overall dimensions (H x W x D)1852 x 2766 x 239 mm

Plumb adjustmentMicro-adjustment up to 0.75" (19 mm)

All 19 specifications

Description

Chief's Fusion large bolt-down freestanding stand builds a permanent video wall on the floor rather than the wall, which suits glazed frontages, retail floors and lobbies where fixing into the structure behind is not an option. The 3x2 landscape array carries six displays of 42" to 46", each supported to 56.7 kg.

Also in this range:LBM1X2U LBM3X3U LBM2X2U LBM1X3U Full specifications Datasheet Compare alternatives

Alignment is the point of the Fusion system. Every display position offers independent height, plumb and lateral shift adjustment, with micro-adjustment of up to 19 mm per screen, so a fitter can close the seams across the whole array without dismounting anything. Cable management is integrated into the columns.

Assembled, the structure measures 1852 mm high by 2766 mm wide by 239 mm deep and bolts to the floor through its column base plates, putting display centres between 416 mm and 1635 mm from floor level. FCAX interface brackets extend it beyond the standard screen range - confirm any non-standard display against Chief MountFinder before ordering.

Supplied by TopAV. Manufacturer part number LBM3X2U.

Call 020 3815 8642

Key features

3x2 landscape array

Holds six displays in three columns of two, in landscape orientation.

Weight capacity

56.7 kg per display position.

Micro-adjustment

Independent height, plumb and lateral shift, with up to 19 mm of micro-adjustment per screen.

Bolt-down structure

Floor-fixed columns with bolt-down base plates; 1852 x 2766 x 239 mm assembled.

Cable management

Cable routing integrated into the vertical columns.

Certification

UL Listed and TAA compliant.

Technical specifications

Choose a section to view its specifications.

Display (4)

Typical screen size: 1067 - 1168 mm
Display centre height range (bottom to top row): 416 - 1635 mm
Weight capacity per display: 56.7 kg
Number of displays: 6

Power & Physical (7)

Depth: 24 cm
Height: 185.2 cm
Manual height adjustment: Micro-adjustment up to 0.75" (19 mm) per screen
Overall dimensions (H x W x D): 1852 x 2766 x 239 mm
Shipping weight: 105.2 kg
Width: 276.6 cm
Colour: Black

Certifications & Warranty (1)

Certifications: TAA, UL Listed

General (7)

Lateral shift: Yes
Plumb adjustment: Micro-adjustment up to 0.75" (19 mm)
Adjustability: Micro-Adjustable
Application: Bolt-Down
Array configuration: 3x2
Orientation: Landscape
TAA compliant: Yes

Call 020 3815 8642

Documents

LBM Series Installation Manual (PDF) from Legrand AV - the installation manual covering the Chief LBM3X2U. Legrand does not publish a cutsheet for this SKU.
