Home / Fixed Wall Mounts / Chief KITXWXSM1UP Ultrawide Micro-Adjustable Static Wall Mount Kit, Extra Large - Portrait
Chief

Chief KITXWXSM1UP Ultrawide Micro-Adjustable Static Wall Mount Kit, Extra Large - Portrait

£670.80inc. VAT
£559.00 ex. VAT
Out of stock
1

Seen it cheaper? We price-match genuine like-for-like quotes. How it works

Bought in the UK, backed in the UKWhy it matters →
  • Sourced through UK distribution
  • UK manufacturer warranty
  • UK-based engineers
  • No import duty or customs charges
  • GBP pricing, UK VAT invoices
Return within 14 days
Installation services availablePurchase orders: education customers only
10 Years Warranty Included
Key specifications
Weight capacity113.4 kg
Typical screen size80 - 120 in
VESA mounting pattern100 x 600mm - 891 x 1500mm
OrientationPortrait
AdjustabilityFixed, lateral shift, micro-adjustable
Lateral shiftUp to 575 mm
Depth5.7 cm
Height153.7 cm
All 15 specifications

Description

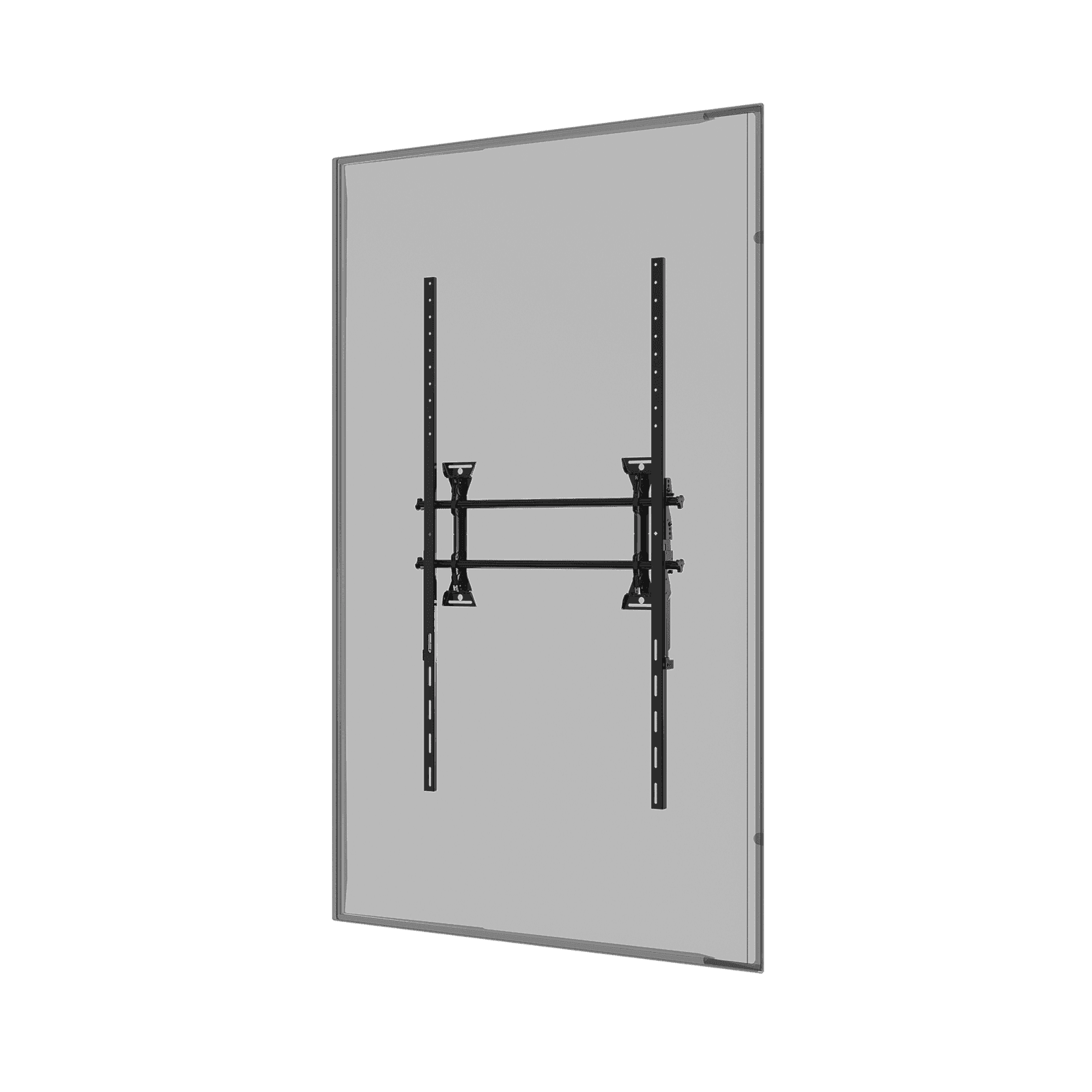

The KITXWXSM1UP is the portrait version of Chief's ultrawide extra-large wall mount kit, built for 21:9 displays and the very wide mounting patterns that come with them. It is a static mount, so the screen sits flat against the wall at 57 mm depth, and it is supplied as a complete kit.

Full specifications Datasheet Compare alternatives

Installation is where the kit earns its keep. A teardrop wall plate lets the bolts go into the wall first and the mount hang onto them; ControlZone levelling then trims height and level after the screen is up; and Centerless Shift gives up to 575 mm of lateral movement so the display can be centred on the room rather than the studs. Nesting spacers stack to reach any wall depth, and there are several stud spacing options.

Once positioned, set screws lock everything rigid, ClickConnect confirms audibly that the screen has engaged, and a built-in cable stand keeps connectors reachable under the display. The kit is rated to 113.4 kg on VESA patterns from 100 x 600 mm to 891 x 1500 mm, measures 1,537 mm high by 883 mm wide, and includes integrated security. Supplied by TopAV. Manufacturer part number KITXWXSM1UP.

Key features

Weight capacity

Rated to 113.4 kg (250 lb).

Screen size range

For ultrawide displays from 80 to 120 inches, mounted portrait.

VESA range

100 x 600 mm to 891 x 1500 mm.

Micro-adjustment

ControlZone levelling for height and level after installation, plus Centerless Shift lateral movement.

Fast wall plate fitting

Teardrop keyholes let the wall bolts be pre-installed; nesting spacers stack to any depth.

Low profile

Sits 57 mm from the wall, with ClickConnect engagement, a built-in cable stand and integrated security.

Technical specifications

Display
Typical screen size80 - 120 in
Power & Physical
Weight capacity113.4 kg
VESA mounting pattern100 x 600mm - 891 x 1500mm
Depth5.7 cm
Height153.7 cm
Width88.3 cm
Minimum depth5.7 cm
Overall dimensions1537 x 883 x 57 mm
ColourBlack
Shipping weight18.1 kg
General
OrientationPortrait
AdjustabilityFixed, lateral shift, micro-adjustable
Lateral shiftUp to 575 mm
ApplicationWall
TAA compliantNo

Documents

Chief KITXWXSM1UP installation manual (PDF, Legrand AV). Attached in place of the cutsheet, which Legrand generates in the browser rather than hosting.
