Home / Matrix Switchers & Splitters / ATEN VM8804 4-Port HDMI Output Board with Scaler
ATEN

ATEN VM8804 4-Port HDMI Output Board with Scaler

£1,546.99inc. VAT
£1,289.16 ex. VAT
Out of stock
1
  • Visa
  • Mastercard
  • American Express
  • PayPal

Or 3 interest-free payments of £515.67 with PayPal Pay in 3.

4.5 on Trustpilot · 14 reviews

Seen it cheaper? We price-match genuine like-for-like quotes. How it works

Bought in the UK, backed in the UKWhy it matters →
  • Sourced through UK distribution
  • UK manufacturer warranty
  • UK-based engineers
  • No import duty or customs charges
  • GBP pricing, UK VAT invoices
Call 01342 580255
Return within 14 days
Installation services availablePurchase orders: education customers only
2 Years Warranty Included
Key specifications
Video Output — Interfaces4 x HDMI Type A Female (Black)
Video Output — Impedance100 Ω
Video Output — Max. DistanceUp to 15m
Video — Max. Data Rate6.75 Gpbs (2.25 Gbps Per Lane)
Video — Max. Pixel Clock225 MHz
Video — ComplianceHDMI (3D, Deep Color); HDCP 1.4 Compatible; Consumer Electronics Control (CEC)
Video — Max. ResolutionUp to 1920 x 1200
Audio — Output4 x Captive Screw Connector, 5 pole
All 15 specifications

Description

The ATEN VM8804 is a four-port output board for ATEN modular matrix switches such as the VM1600A, VM3200 and VM3250. The chassis ships empty of I/O; boards like this are what define how many sources and displays the frame handles and which connectors they use, so a system is specified by its board mix rather than by a fixed model number.

Also in this range:VM3200 VM3250 VM7104 VM7404 Full specifications Datasheet Compare alternatives

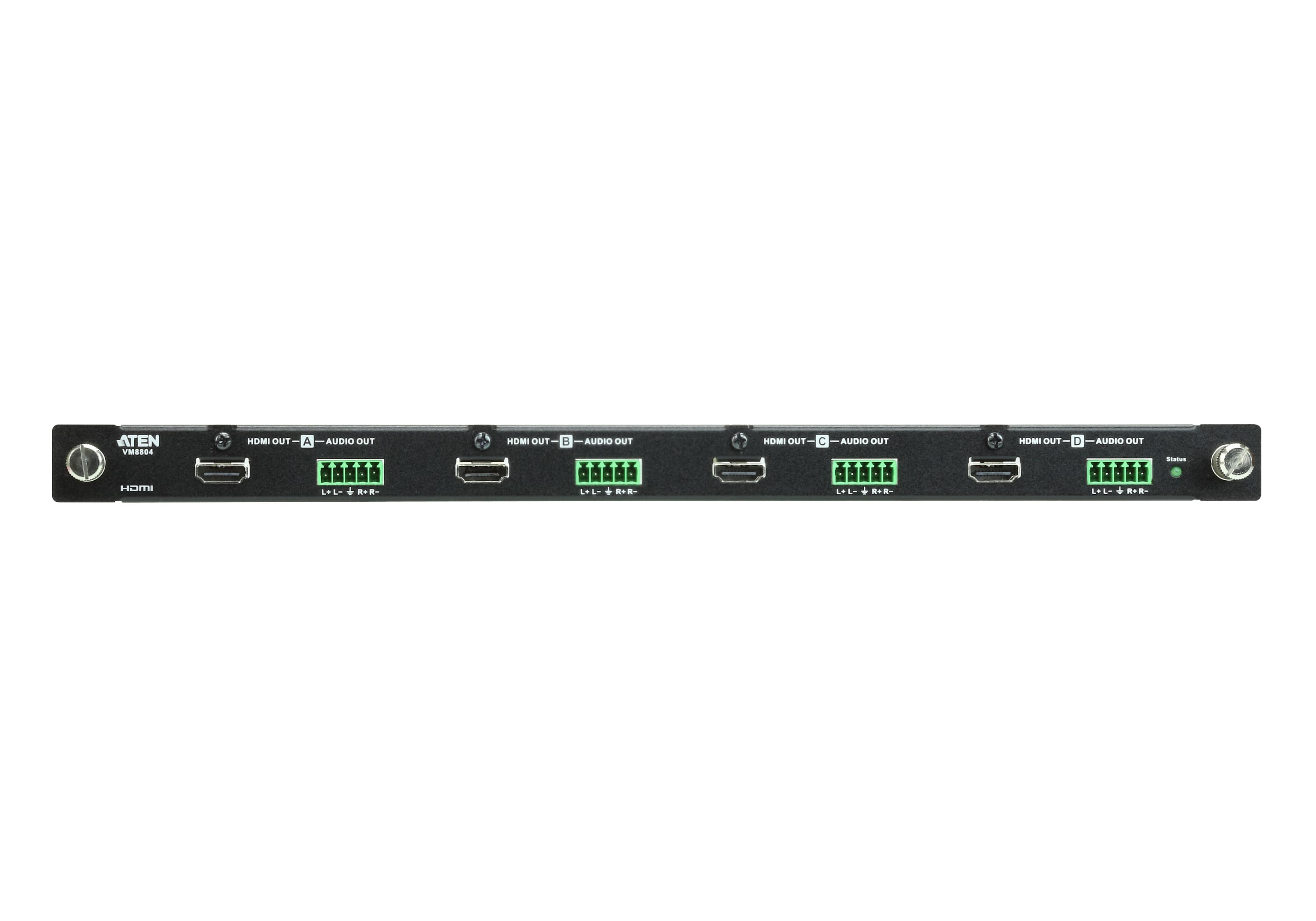

It presents 4 x HDMI Type A Female (Black) on the chassis rear. Boards are hot-swappable, so an installation can start small and grow, or change interface type later, without replacing the frame.

It scales each output to the connected display, which prevents resolution mismatches between mixed sources and mixed screens. Video is supported to 1920 x 1200. Supplied to order from TopAV with ATEN's 36-month warranty.

Call 01342 580255

Key features

Superior video quality

HDTV resolutions of 480p, 720p, 1080i and 1080p (1920 x 1080).

Seamless Switch™

Provides continuous video streams, realtime switching and stable signal transmission.

EDID Expert

Selects optimum EDID settings for smooth power-up and the highest quality display.

Built-in EDID wizard

Provides an easy way to customized EDID settings.

Technical specifications

Display
Video — Max. ResolutionUp to 1920 x 1200
Connectivity
Video Output — Interfaces4 x HDMI Type A Female (Black)
Video Output — Impedance100 Ω
Video Output — Max. DistanceUp to 15m
Audio — Output4 x Captive Screw Connector, 5 pole
Power & Physical
Power Consumption23.13W:108BTU/h; Note:; ● The measurement in Watts indicates the typical power consumption of the device with no external loading.; ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Physical Properties — Weight0.58 kg ( 1.28 lb )
Physical Properties — Dimensions (L x W x H)35.20 x 23.80 x 2.33 cm; (13.86 x 9.37 x 0.92 in.)
Certifications & Warranty
Video — ComplianceHDMI (3D, Deep Color); HDCP 1.4 Compatible; Consumer Electronics Control (CEC)
General
Video — Max. Data Rate6.75 Gpbs (2.25 Gbps Per Lane)
Video — Max. Pixel Clock225 MHz
Environmental — Operating Temperature0 - 40°C
Environmental — Storage Temperature-20 - 60°C
Environmental — Humidity0 - 80% RH, Non-Condensing
Physical Properties — HousingMetal
Call 01342 580255

Documents

ATEN VM8804 manufacturer datasheet (PDF)
