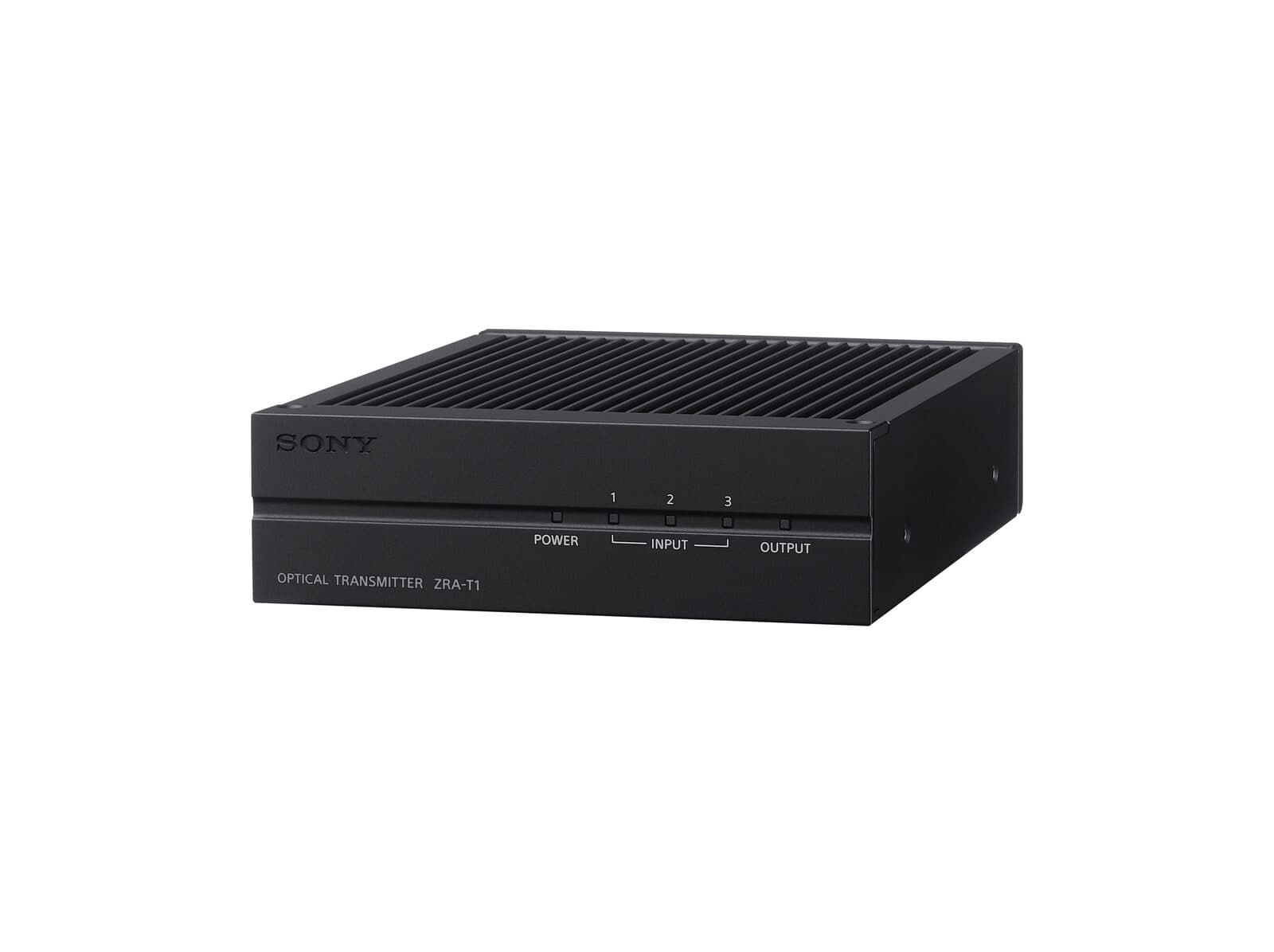

Sony ZRA-T1 Crystal LED Optical Transmitter
Full HD
£1,580.94inc. VAT
Out of stock
Sony
Sony ZRA-R1 Crystal LED Optical Receiver
£1,580.94inc. VAT
£1,317.45 ex. VAT
Out of stock
1
- Visa
- Mastercard
- American Express
- PayPal
Or 3 interest-free payments of £526.98 with PayPal Pay in 3.
4.5 on Trustpilot · 14 reviewsSeen it cheaper? We price-match genuine like-for-like quotes. How it works
Bought in the UK, backed in the UKWhy it matters →
- Sourced through UK distribution
- UK manufacturer warranty
- UK-based engineers
- No import duty or customs charges
- GBP pricing, UK VAT invoices
Key specifications
TypeOptical receiver
InputSFP+ (multi-mode optical fibre)
OutputRJ45 x 3
TransmissionFibre optic, 300 m maximum
Supported Signal ResolutionUp to 1920 x 1080 (4 pairs required for a 4K screen)
Supported CabinetsZRD-B / C series, ZRD-BH / CH series
Supported ControllerZRCT-300
Dimensions (W x D x H)110 x 142.5 x 33.5 mm
Description
The ZRA-R1 is the receiving half of Sony's optical extension pair for Crystal LED walls. It takes the optical signal sent by a ZRA-T1 transmitter over multi-mode fibre and converts it back to three RJ45 outputs that feed the cabinets, at distances of up to 300 m.
That distance is the reason the pair exists. Copper runs between a ZRCT-300 controller and the wall are limited, and in real buildings the rack and the wall are often nowhere near each other - opposite ends of an atrium, different floors, a plant room feeding a lobby. Fibre removes that constraint and takes the electrical noise question off the table at the same time.
Each link carries up to 1920x1080, so a 4K wall needs four pairs. The unit is compact at 110 x 142.5 x 33.5 mm and 610 g, and is powered over USB Type-C from a USB PD compliant adaptor. It supports the ZRD-B, ZRD-C, ZRD-BH and ZRD-CH cabinet series with the ZRCT-300 controller.
Key features
300 m fibre run
Multi-mode optical fibre puts the controller rack and the video wall as far apart as the building demands.
Three RJ45 outputs
Converts the incoming optical signal back to three RJ45 cabinet feeds at the wall end.
USB-C powered
Runs from a USB PD compliant adaptor rather than needing a dedicated power supply and outlet.
Works across the Crystal LED range
Supported with ZRD-B, ZRD-C, ZRD-BH and ZRD-CH series cabinets driven by a ZRCT-300 controller.
Technical specifications
TypeOptical receiver
InputSFP+ (multi-mode optical fibre)
OutputRJ45 x 3
TransmissionFibre optic, 300 m maximum
Supported Signal ResolutionUp to 1920 x 1080 (4 pairs required for a 4K screen)
Supported CabinetsZRD-B / C series, ZRD-BH / CH series
Supported ControllerZRCT-300
Dimensions (W x D x H)110 x 142.5 x 33.5 mm
Weight610 g
Power RequirementDC 5 V / 2 A via USB Type-C
Power Consumption10 W
Operating Temperature0 to 45 degrees C
Operating Humidity20-80% (no condensation)
Complete your setup
Optional extras that fit this product. Tick anything you need and it joins the same basket — or add this product on its own from the buy box above.
Choose a Mount
Video Conferencing
Professional Installation
Want it installed by our AV experts? We offer professional on-site installation including mounting, cable management, and system configuration.
Your Configuration
Sony ZRA-R1 Crystal LED Optical Receiver × 1£1,580.94
Total£1,580.94
inc. VAT
1
This item is currently out of stock. Please check back soon or contact us.
Documents
Delivery & returns
Estimated delivery 8 Sept - 12 Sept. UK mainland delivery only. Some large or made-to-order items carry longer lead times, shown on the product page.
Unused items in original packaging can be returned within 14 days of delivery — see the returns policy for how business and consumer returns differ. Faulty items are covered under manufacturer warranty and by your statutory rights.
Bought in the UK, backed in the UK
This item is sourced through UK distribution and ships to you from within the UK, so the order never crosses a customs border.
The manufacturer warranty is honoured here in the UK. If something fails, you deal with us, not with an overseas seller in another time zone.
Our own UK-based engineers install, commission and support what we sell, and can attend site when a system needs hands on it.
Delivered within the UK mainland, so there is no import duty, customs charge or courier handling fee waiting for you on delivery.
Prices are in pounds sterling with proper UK VAT invoices, and purchase orders are accepted from approved education accounts: no currency conversion and no surprises at the door.
Payment & security
Pay securely by card. Education customers can apply for a 30-day purchase order account.
Schools, colleges, sixth forms, universities and multi-academy trusts can order on invoice, with no card payment required. Purchase orders and credit terms are for education customers only.
All transactions are processed over an encrypted, secure checkout.
Alternative products
Closest matches in this category on price and capability. Not sure which way to go? Our technical team will talk it through.
Samsung
Samsung IF025R 2.5mm IFR Series Indoor LED Cabinet
1000 cd/m²
£1,500.00inc. VAT
Out of stock
ViewSonic

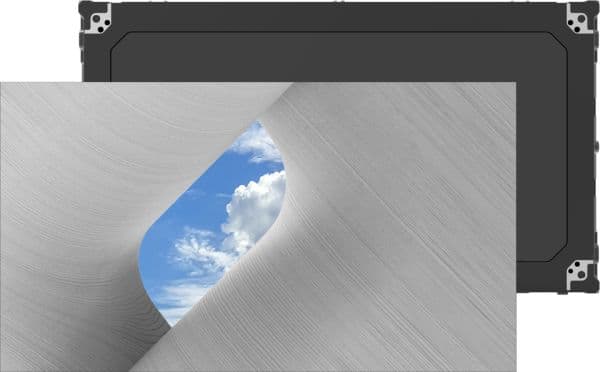

ViewSonic LDC027G-181 27" P1.88 Direct View LED Cabinet
4K UHD600 cd/m²27"
£1,491.29inc. VAT
Out of stock
ViewSonic

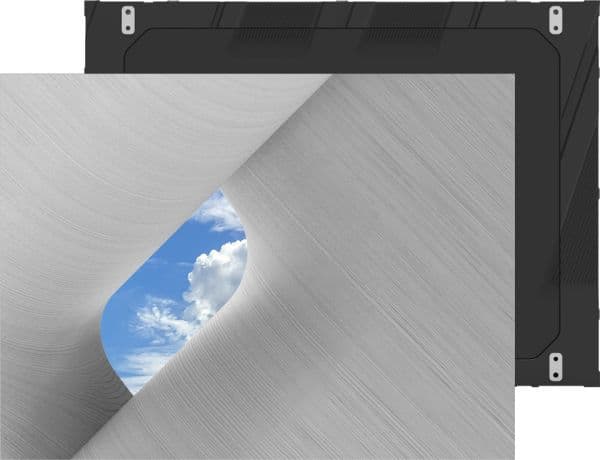

ViewSonic LDC031G-251 31.5" P2.5 Direct View LED Cabinet
