Home / PTZ Cameras / Sony BRC-AM7 4K 60p PTZ Auto Framing Camera (Black)

Sony

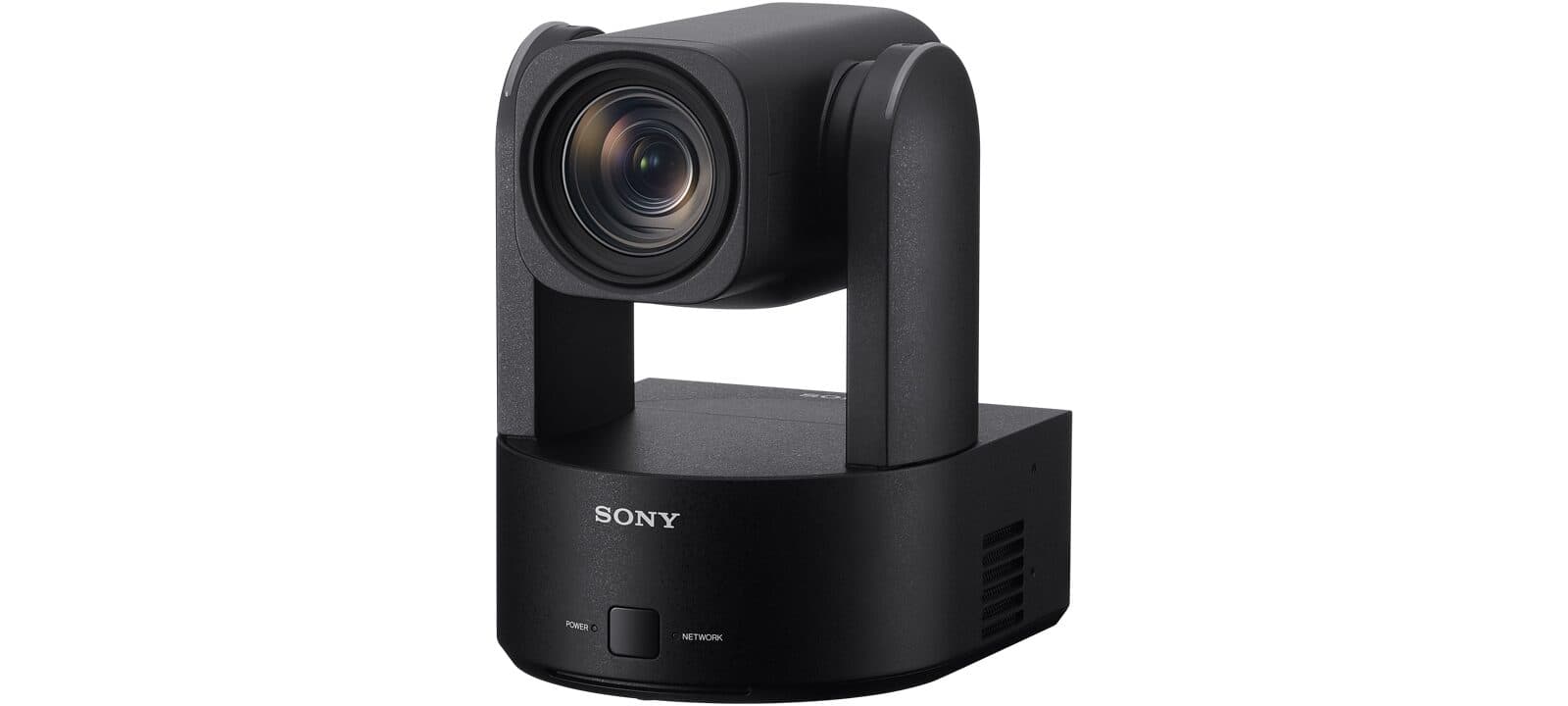

Sony BRC-AM7 4K 60p PTZ Auto Framing Camera (Black)

Name: Sony BRC-AM7 4K 60p PTZ Auto Framing Camera (Black)
Brand: Sony
SKU: BRC-AM7/BC
Price: 14125.42 GBP
Availability: OutOfStock

£14,125.42inc. VAT

£11,771.18 ex. VAT

Out of stock

Visa
Mastercard
American Express
PayPal

4.5 on Trustpilot · 14 reviews

Seen it cheaper? We price-match genuine like-for-like quotes. How it works

Bought in the UK, backed in the UKWhy it matters →

Sourced through UK distribution
UK manufacturer warranty
UK-based engineers
No import duty or customs charges
GBP pricing, UK VAT invoices

Call 01342 580255

Return within 14 days

Installation services available Purchase orders: education customers only

Key specifications

Imaging Device1.0-type (13.2 x 8.8 mm) Exmor RS CMOS

Total PixelsApprox. 20.9 megapixels

Maximum Effective PixelsApprox. 14.0 megapixels

Optical Zoom20x

Clear Image ZoomApprox. 1.5x (QFHD), approx. 2x (FHD)

Focal Lengthf = 7.71 to 154.21 mm (24-480 mm in 35 mm terms), F2.8 to F4.5

Horizontal / Vertical Viewing AngleApprox. 75 / 46 degrees

Focus TypeFast Hybrid AF (phase-detection and contrast-detection), up to 475 phase-detection points

All 25 specifications

Description

The BRC-AM7 is Sony's flagship PTZ Auto Framing camera and the only one in the family built around a 1.0-type Exmor RS CMOS sensor. That sensor, together with a 20x optical zoom covering 24-480 mm in 35 mm terms and a built-in variable ND filter, puts it in production territory rather than meeting-room territory.

Full specifications Datasheet Compare alternatives

It shoots 4K 60p with Fast Hybrid AF across up to 475 phase-detection points, and offers Sony's cinema Base Look options including S-Cinetone and S-Log3, so it cuts against Cinema Line cameras without a grade fight. AI analytics handle auto framing and composition tracking. Minimum illumination is 1.2 lux typical, and ISO runs from 250 to 16000.

Connectivity is built for live production: NDI|HX pre-installed, SRT, RTMP/RTMPS and RTSP streaming at up to 80 Mbps, two XLR audio inputs with 48 V phantom power, gigabit Ethernet and tally ramps on both sides of the body. It runs on DC 12 V or PoE++, measures approximately 168.7 x 225.2 x 192.3 mm at about 3.5 kg, and is rated NC25 or quieter in operation.

Call 01342 580255

Key features

1.0-type Exmor RS sensor

A large sensor with 20x optical zoom and a built-in variable ND filter, for production-grade images from a PTZ head.

4K 60p with Fast Hybrid AF

Up to 475 phase-detection points with human recognition, plus AI-driven auto framing and composition tracking.

Cinema Line colour science

S-Cinetone, S-Log3 and HLG Base Looks, so BRC-AM7 footage matches Sony Cinema Line cameras in the grade.

Production connectivity

NDI|HX pre-installed plus SRT and RTMP/RTMPS streaming, twin XLR inputs with phantom power and dual tally ramps.

Technical specifications

Display

Horizontal / Vertical Viewing AngleApprox. 75 / 46 degrees

IP Stream Resolution3840x2160, 1920x1080, 1280x720, 640x360

Connectivity

Optical Zoom20x

Audio Input2 x XLR 3-pin (line / mic / mic +48 V), 1 x 3.5 mm stereo minijack

NetworkRJ-45 1000BASE-T

Power & Physical

Power Consumption132 W max (DC 12 V), 71.3 W max (PoE++)

Dimensions (W x H x D)Approx. 168.7 x 225.2 x 192.3 mm

WeightApprox. 3.5 kg

Body ColourBlack

General

Imaging Device1.0-type (13.2 x 8.8 mm) Exmor RS CMOS

Total PixelsApprox. 20.9 megapixels

Maximum Effective PixelsApprox. 14.0 megapixels

Clear Image ZoomApprox. 1.5x (QFHD), approx. 2x (FHD)

Focal Lengthf = 7.71 to 154.21 mm (24-480 mm in 35 mm terms), F2.8 to F4.5

Focus TypeFast Hybrid AF (phase-detection and contrast-detection), up to 475 phase-detection points

Minimum Illumination1.2 lux typical (3840x2160/29.97p, F2.8, +36 dB, 1/30s, ITU709)

ISO SensitivityISO 250 to 16000

Built-in ND FilterClear, linear variable ND (1/4 to 1/128)

Base LookS-Cinetone, ITU709, 709tone, s709, 709(800%), S-Log3, HLG Live / Mild / Natural

Streaming ProtocolsRTP/RTCP, RTSP, RTMP/RTMPS, SRT, NDI|HX

NDI|HXYes, pre-installed

IP Bitrate Range512 Kbps to 80 Mbps

TallyLeft and right ramps, red / green / yellow / blue

Power RequirementsDC 12 V (11.0-17.0 V) or PoE++ (IEEE 802.3bt Type 4 Class 8)

QuietnessNC25 or less

Call 01342 580255

Documents

Sony BRC-AM7 product datasheet (PDF) — full specifications, published by Sony at pro.sony.
