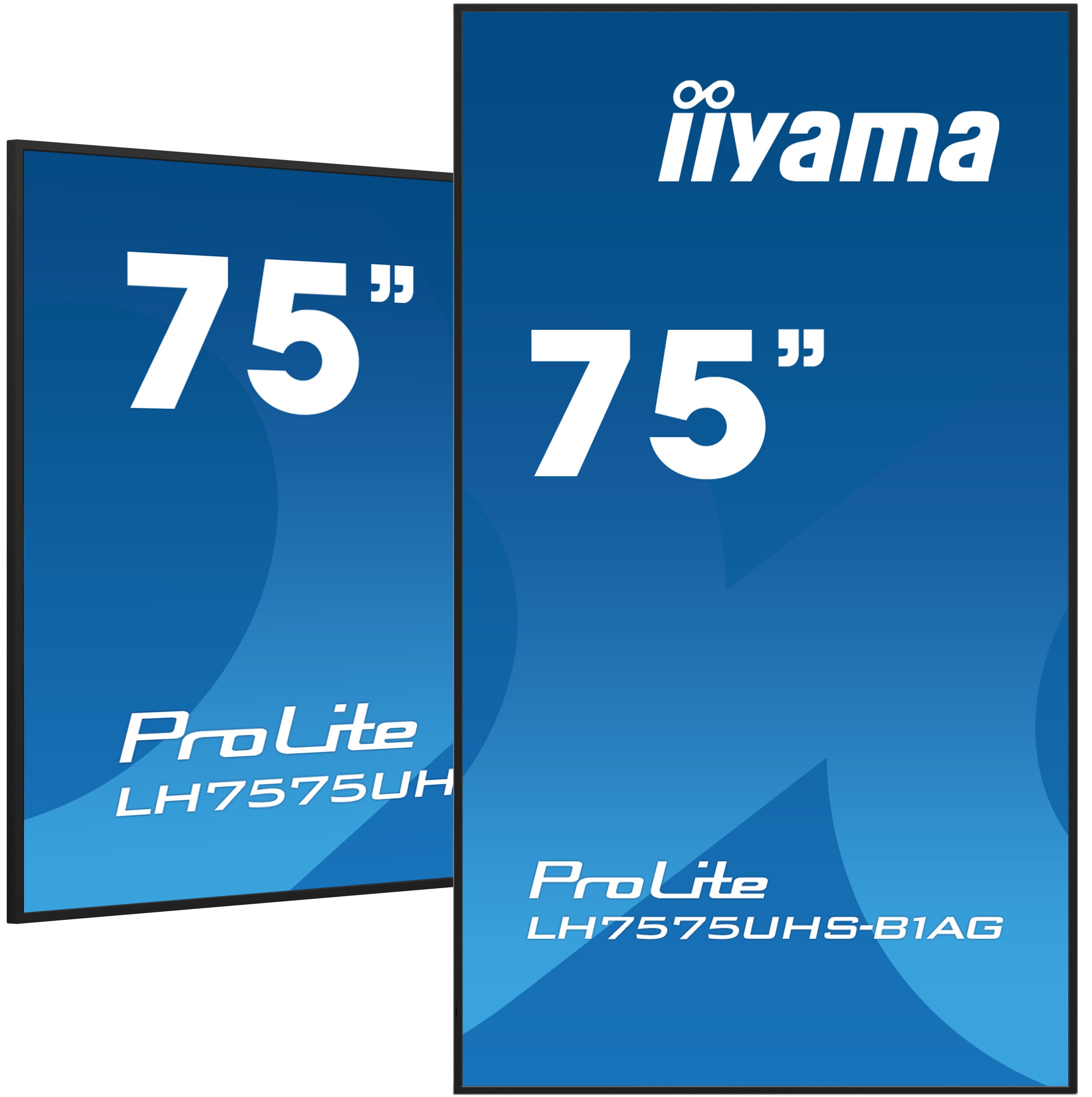

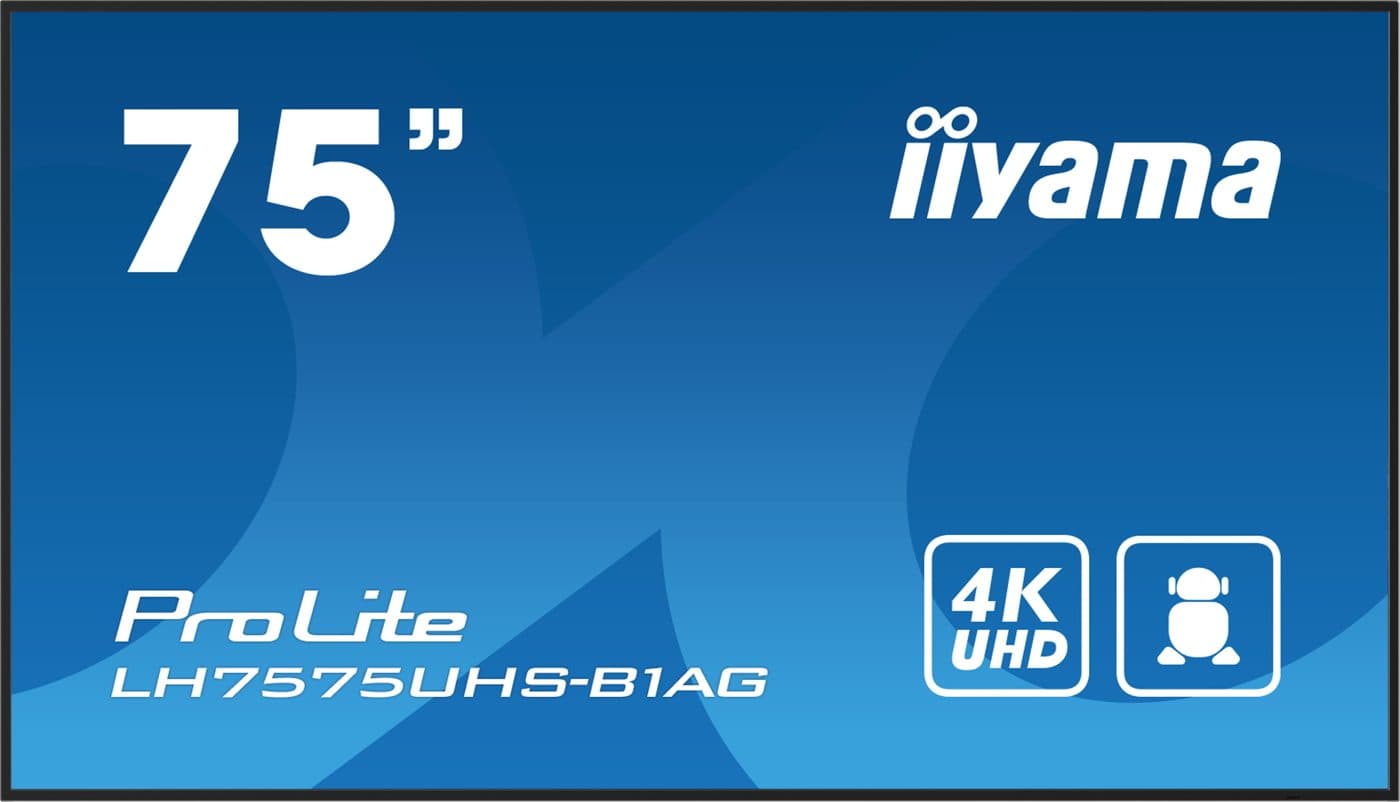

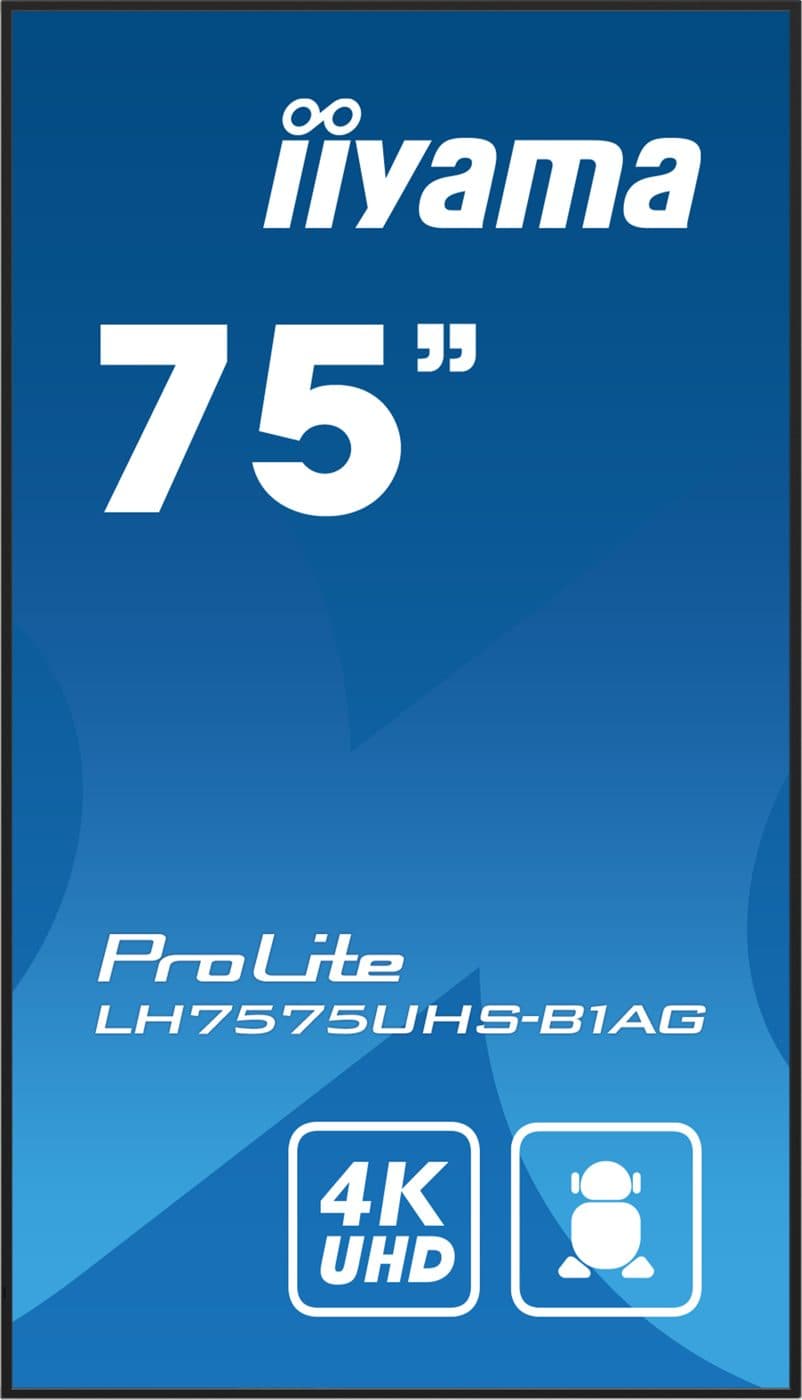

iiyama LH7575UHS-B1AG 75" Signage Display

SKU LH7575UHS-B1AG
£1,198.80inc. VAT
£999.00 ex. VAT
Ask a question
Out of stock
Bought in the UK, backed in the UKWhy it matters →
  • Sourced through UK distribution
  • UK manufacturer warranty
  • UK-based engineers
  • No import duty or customs charges
  • GBP pricing, UK VAT invoices
Key specifications
DesignThin bezel
Diagonal75", 189.3cm
PanelIPS, AG coated glass, matte finish, haze 25%
Native resolution3840 x 2160 @60Hz (8.3 MegaPixels 4K UHD)
Aspect ratio16:9
Panel brightness500 cd/m²
Static contrast1200:1
Response time (GTG)8ms

Choose a Mount

Video Conferencing

Professional Installation

Want it installed by our AV experts? We offer professional on-site installation including mounting, cable management, and system configuration.

Your Configuration
iiyama LH7575UHS-B1AG 75" Signage Display × 1£1,198.80
Total£1,198.80
inc. VAT
1

This item is currently out of stock. Please check back soon or contact us.

Request a QuoteTalk to an Expert

Description

ProLite LH7575UHS-B1AG 75" 4K UHD Professional Digital Signage 24/7 display featuring Android OS, FailOver and Intel® SDM slot Choose non-stop high performance and reliability with the ideal all-in-one signage solution for mission critical environments. The LH7575UHS from iiyama can be operated in landscape or portrait orientation in continual around the clock environments, 24/7 without any interruption. Its versatility can be adapted to your industry’s display needs. On-board Android 11 OS means you can easily customize the display to your needs and install applications directly to it. The on-board iiSignage² (Content Management System) gives you total control of your messaging and advertising remotely and safely. The SDM Slot provides embedded PC option for total flexibility, security and control, while the FailOver feature ensures your content is always actively displayed through your

Technical specifications

DesignThin bezel
Diagonal75", 189.3cm
PanelIPS, AG coated glass, matte finish, haze 25%
Native resolution3840 x 2160 @60Hz (8.3 MegaPixels 4K UHD)
Aspect ratio16:9
Panel brightness500 cd/m²
Static contrast1200:1
Response time (GTG)8ms
Viewing zonehorizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Colour support1.07B 8bit+FRC (NTSC 72%)
Horizontal Sync28 - 160kHz
Viewable area W x H1650 x 928mm, 65 x 36.5"
Bezel width (sides, top, bottom)14.9mm, 14.9mm, 14.9mm
Pixel pitch0.429mm
Bezel colour and finishblack, matte
Digital signal inputHDMI x3 (v.2.0, max. 3840x2160 @60Hz, ARC on HDMI #3)DisplayPort x1 (v.1.2, max. 3840x2160 @60Hz)
Monitor control inputRS-232c x1 (2.5mm sub-mini jack)RJ45 (LAN) x1IR x1 (3.5mm stereo mini)
Digital signal outputDisplayPort x1 (max. 3840x2160 @60Hz, MST-out Daisy Chain v.1.2)
Audio outputMini jack x1Speakers 2 x 10W
Monitor control outputRS-232c x1 (2.5mm sub-mini jack)IR loop through x1 (3.5mm stereo mini)
HDCPv.2.2
USB portsx2 (v.2.0)
Integrated softwareAndroid 11 OS, iiSignage², FailOver, EShare
WiFiyes (Built-in, 802.11ac)
HardwareCPU: A73*4+A53*4, Memory: 4GB, Storage: 32GB
ExtraIntel® SDM-L, micro SD card slot
Max. non-stop operating time24/7
Anti image retentionyes
Video wall / daisy chainYes, (MST-output)
Media playbackyes
Housing (bezel)metal
OSD languagesEN, DE, FR, ES, IT, CN, RU, JP, CZ, NL, PL, SV, FI, NB
Control buttonsPower
User controlspicture (brightness, contrast, sharpness, black level, tint, colour, noise reduction, gamma selection, colour temperature, colour control, over scan, picture reset), screen (zoom mode, custom zoom, screen reset), audio (balance, treble, bass, volume, audio out, maximum volume, minimum volume, mute, audio reset, audio out sync, speaker setting), configuration 1 (switch on state, panel saving, RS232-routing, boot on source, WOL, configuration 1 reset, factory reset), Configuration 2 (OSD timeout, OSD H-Position, OSD V-position, rotation, information OSD, logo and animation, logo setting, animation setting, monitor ID, group ID, monitor information, DP version, DP monitors, HDMI version, configuration 2 reset), advanced option (no signal image, IR control, power LED light, tiling, off timer, schedule, HDMI with one wire, HDMI with one wire power off, FailOver, language, OSD transparency, power saving, SDM settings, advanced option reset), Android settings (network & internet, apps & notifications, display, signage display, security, language & input, date & time, about device)
Plug&PlayDDC2B
Orientationlandscape, portrait
Fanless designyes
VESA mounting600 x 400mm
Mini PC mountVESA 100 x 100
Operation temperature range0°C - 40°C
Storage temperature range- 20°C - 60°C
MTBF44.000 hours (excluding backlight)
Cablespower, HDMI, RS-232c
Guidesquick start guide, safety guide
OtherStickers for screw holes, wire buckles
Remote controlyes (batteries included)
Power supply unitinternal
Power supplyAC 100 - 240V, 50/60Hz
Power usage189W typical, 0.5W stand by, 0.5W off mode
RegulationsCB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH
Energy efficiency class (Regulation (EU) 2017/1369)G
REACH SVHCabove 0.1%: Lead, Lead monoxide
Product dimensions W x H x D1679.5 x 958.5 x 55mm
Box dimensions W x H x D1883 x 1140 x 186mm
Weight (without box)29.5kg
Weight (with box)41kg
EAN code4948570123483
User manualLH43_50_55_65_75_8675UHS_3275HS-usermanual-e-revD.pdf
Technical specificationProLite LH7575UHS-B1AG - gb_en.pdf
DrawingLH7575UHS_Drawing.pdf
EU Energy LabelLH7575UHS-B1AG EU Energy Label (1886880).pdf
UK Energy LabelLH7575UHS-B1AG UK Energy Label (1886880).pdf
RS232-LAN CommandsLHxx75_RS232-LAN_commands_2025_04.pdf
EShare Network RequirementsEShare Network Requirements v7.4-e.pdf
iiSignage²ii_iisignage2_whitepaper_A4_EN (09.23).pdf
