Chief TS525TU Large Thinstall Dual Swing Arm Wall Display Mount - 25 Inch Extension

Name: Chief TS525TU Large Thinstall Dual Swing Arm Wall Display Mount - 25 Inch Extension
Brand: Chief
SKU: TS525TU
Price: 563.33 GBP
Availability: InStock

£563.33inc. VAT

£469.44 ex. VAT

In stock, dispatched within 11 working days

Visa
Mastercard
American Express
PayPal

Or 3 interest-free payments of £187.78 with PayPal Pay in 3.

Independently reviewed on Trustpilot

Seen it cheaper? We price-match genuine like-for-like quotes. How it works

Bought in the UK, backed in the UKWhy it matters →

In UK stock, ships from the UK
UK manufacturer warranty
UK-based engineers
No import duty or customs charges
GBP pricing, UK VAT invoices

Return within 14 days

Installation services available Purchase orders: education customers only

10 Years Warranty Included

Key specifications

Typical screen size42" - 75"

Weight capacity56.7 kg

VESA mounting pattern100 x 100mm

Wall stud compatibilityDual Stud

AdjustabilityExtension

Tilt+0° / -15°

Swivel±90° (depending on screen width)

Maximum extension63.5 cm

All 23 specifications

Description

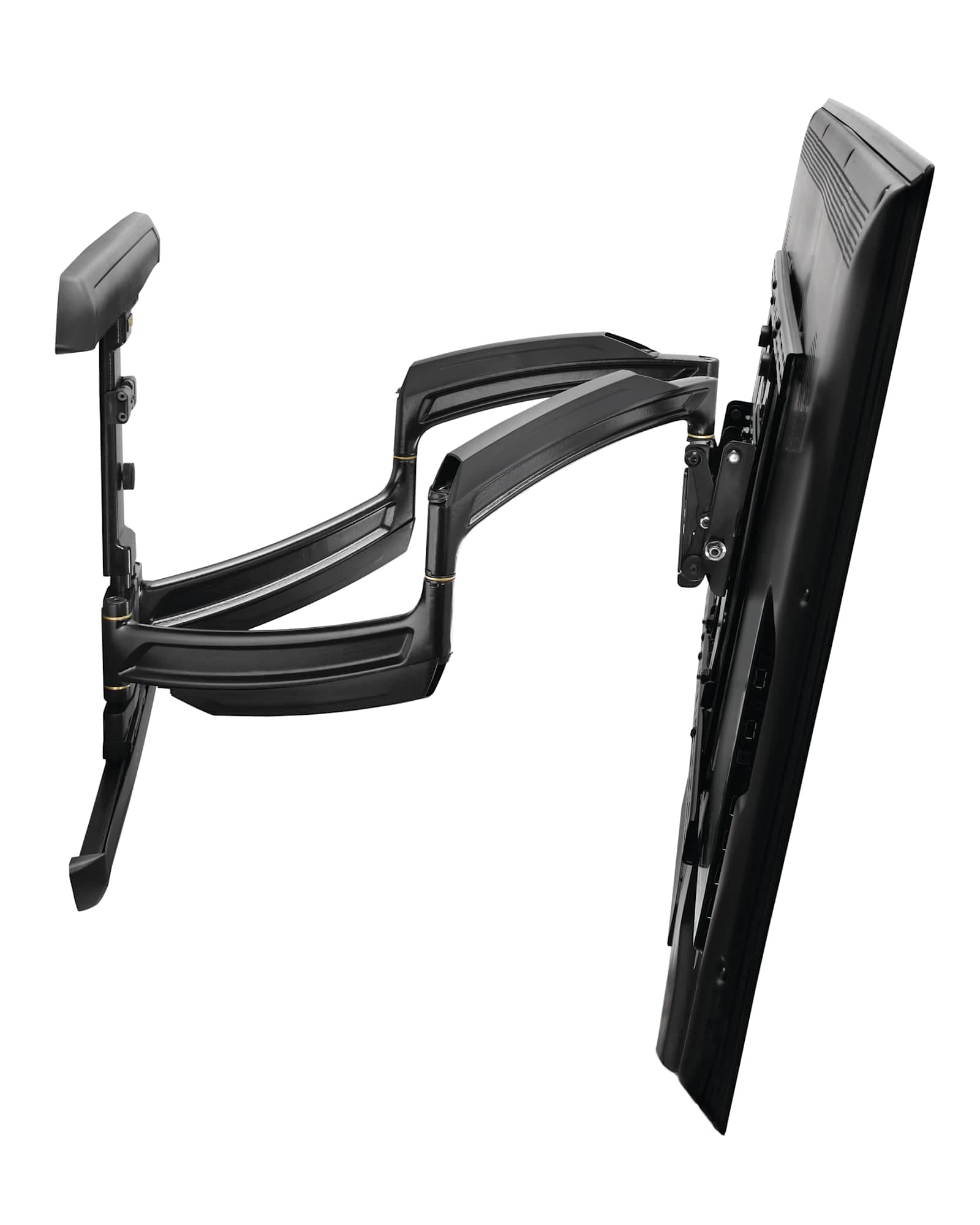

The Chief TS525TU is a large Thinstall dual swing arm wall mount for flat panel displays from 42 to 75 inches and up to 56.7 kg. Two articulating arms pull the screen up to 635 mm off the wall and swivel it through approximately +/-90 degrees, so a display can be angled towards a meeting table, a reception desk or a second seating area and then folded back to a 51 mm resting depth.

Full specifications Datasheet Compare alternatives

The mount ships with a 100 x 100 mm VESA interface and dual-stud wall fixing, and accepts screens up to 76.2 mm thick. Tilt runs from 0 to -15 degrees, lateral shift is 406 mm and post-installation roll levelling lets the installer square the picture after the plate is on the wall. The top rail installs first so the arm assembly can be lifted on afterwards by one person.

Finished in black, 518 x 749 x 51 mm overall, UL Listed and OSHPD pre-approved. Supplied by TopAV. Manufacturer part number TS525TU.

Key features

Screen range and load

Rated for 42-75 inch displays weighing up to 56.7 kg (125 lb).

25 inch extension

Dual swing arms extend the screen up to 635 mm from the wall and retract to 51 mm.

Swivel and tilt

Approximately +/-90 degrees of swivel depending on screen width, plus 0 to -15 degrees of tilt.

VESA and stud fixing

100 x 100 mm VESA mounting pattern; dual-stud wall fixing.

Post-installation levelling

Roll adjustment lets the display be levelled after the mount is fitted.

Certification

UL Listed, with OSHPD pre-approval documentation available.

Technical specifications

Choose a section to view its specifications.

Display (2)

Typical screen size: 42" - 75"
Maximum screen thickness: 76.2 mm

Power & Physical (9)

Weight capacity: 56.7 kg
VESA mounting pattern: 100 x 100mm
Depth: 5.1 cm
Height: 51.8 cm
Width: 74.9 cm
Overall dimensions: 20.39" x 29.5" x 2" (518 x 749 x 50.8 mm)
Colour: Black
Shipping weight: 23 kg
Shipping dimensions: 32.68" x 21.65" x 3.47" (830.1 x 550 x 88.2 mm)

Certifications & Warranty (1)

Certifications: UL Listed

General (11)

Wall stud compatibility: Dual Stud
Adjustability: Extension
Tilt: +0° / -15°
Swivel: ±90° (depending on screen width)
Maximum extension: 63.5 cm
Lateral shift: 40.6 cm
Application: Wall
Orientation: Landscape
Solution type: Universal
Post-installation roll levelling: Yes
TAA compliant: No

Documents

Chief Thinstall Swing Arm Wall Mount cut sheet (PDF, covers the TS525TU).
