Home / Fixed Wall Mounts / Chief FCAXV1U Fusion Extra-Large Pull-Out Accessory

Chief

Chief FCAXV1U Fusion Extra-Large Pull-Out Accessory

Name: Chief FCAXV1U Fusion Extra-Large Pull-Out Accessory
Brand: Chief
SKU: FCAXV1U
Price: 499.20 GBP
Availability: LimitedAvailability

£499.20inc. VAT

£416.00 ex. VAT

Low stock (1 left), order soon

Seen it cheaper? We price-match genuine like-for-like quotes. How it works

Bought in the UK, backed in the UKWhy it matters →

In UK stock, ships from the UK
UK manufacturer warranty
UK-based engineers
No import duty or customs charges
GBP pricing, UK VAT invoices

Return within 14 days

Installation services available Purchase orders: education customers only

10 Years Warranty Included

Key specifications

Typical screen sizeExtra Large

Weight capacity113.4 kg

Plumb adjustment+0.5° / -2°

Accessory typeExtension

ApplicationWall

Solution typeUniversal

Special featuresMulti-Display

ColourBlack

All 12 specifications

Description

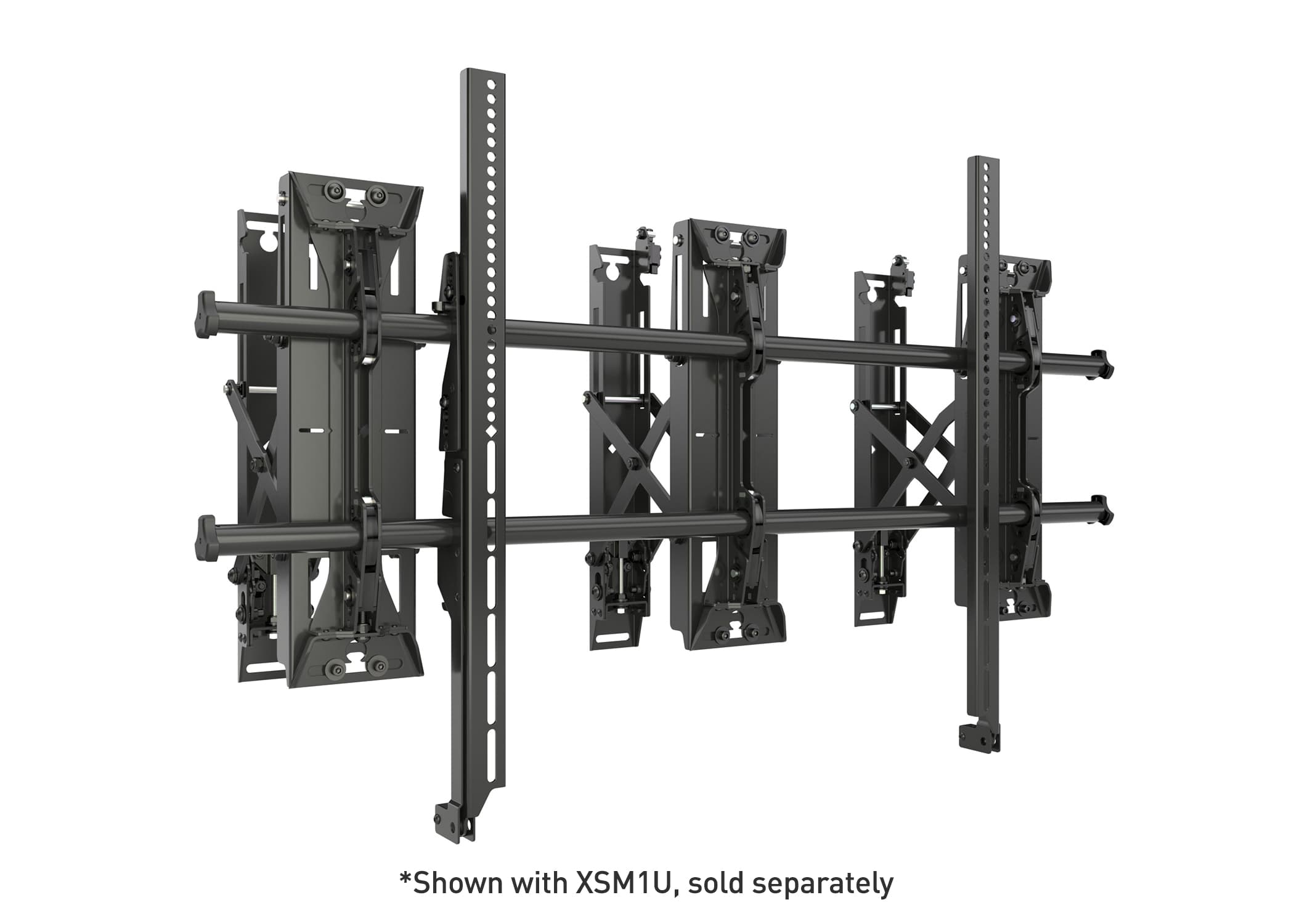

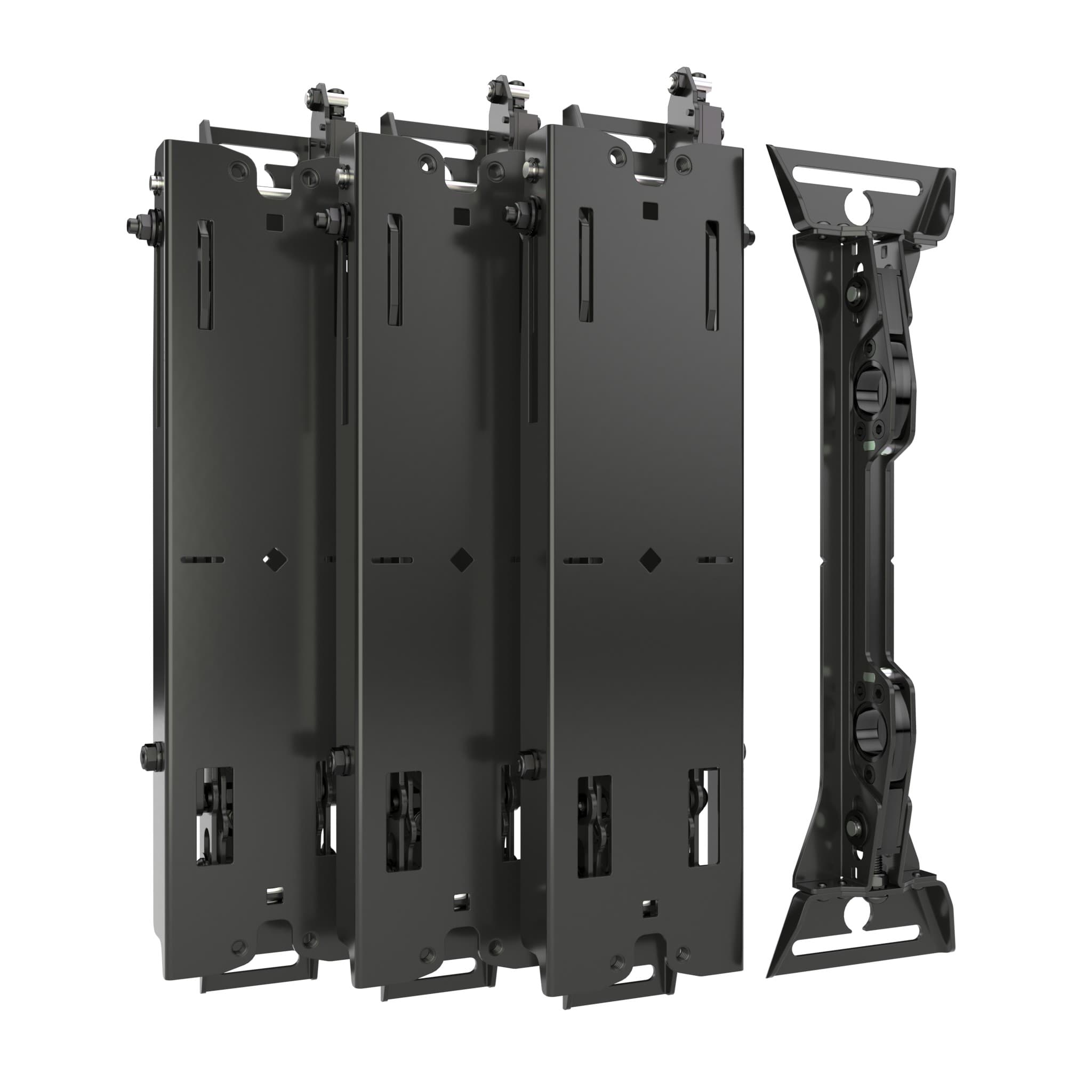

The Chief FCAXV1U converts a Chief Fusion extra-large micro-adjustable fixed or tilt wall mount into a pull-out installation. Scissor arms behind the interface plates let the screen be drawn up to 293 mm away from the wall for access to connections, a media player or a recessed enclosure, then pushed flat again.

Full specifications Datasheet Compare alternatives

It is rated to 113.4 kg, which covers the heavy extra-large panels the Fusion X-Large mounts are designed around, and provides +0.5 to -2 degrees of plumb adjustment so the screen can be trued against an out-of-square wall. The kit is used with a compatible Fusion wall mount, which is ordered separately.

Black, UL Listed. Supplied by TopAV. Manufacturer part number FCAXV1U.

Key features

Adds pull-out access

Draws the display up to 293 mm from the wall for service access, then returns it flat.

Weight capacity

113.4 kg (250 lb).

Plumb adjustment

+0.5 to -2 degrees to true the screen against an uneven wall.

Fusion X-Large compatibility

For use with Chief Fusion extra-large micro-adjustable fixed and tilt wall mounts, sold separately.

Multi-display capable

Suitable for extra-large single screens and multi-display walls built on Fusion mounts.

Certification

UL Listed.

Technical specifications

Display

Typical screen sizeExtra Large

Power & Physical

Weight capacity113.4 kg

ColourBlack

Shipping weight14 kg

Shipping dimensions22.51" x 12.99" x 4.61"(571.8 x 330 x 117.1 mm)

Certifications & Warranty

CertificationsUL Listed

General

Plumb adjustment+0.5° / -2°

Accessory typeExtension

ApplicationWall

Solution typeUniversal

Special featuresMulti-Display

TAA compliantNo

Documents

Chief FCAXV1U installation manual (PDF).
