Chief DVM27U4 TiLED dvLED Universal 27-Inch Wall Mount - 4 High Starter

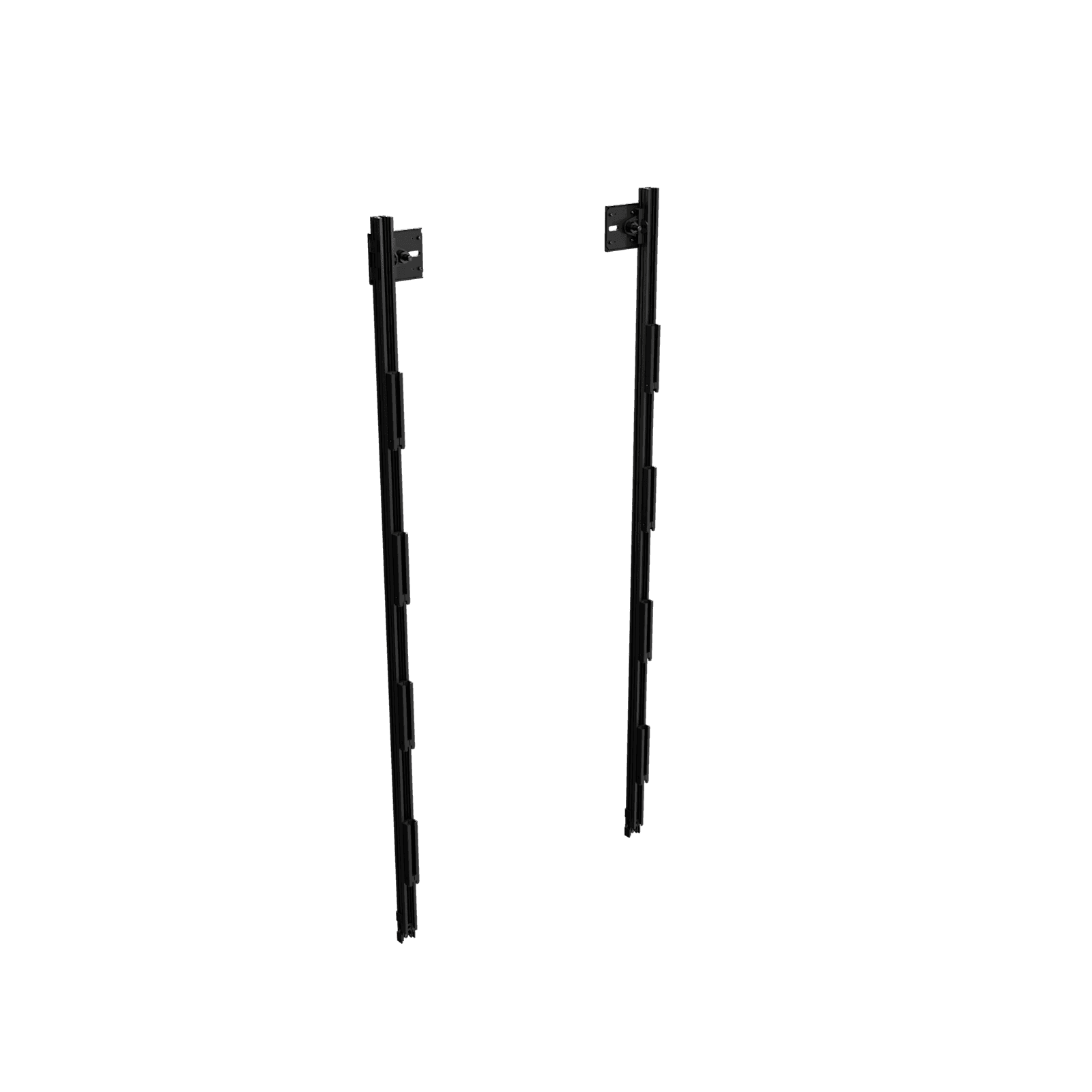

This is a direct-view LED mount, not an LCD bracket. The DVM27U4 is a starter module from Chief's TiLED Universal range: a pair of vertical extrusions that bolt to the wall and capture a column of four 27.5-inch class dvLED cabinets, 600 mm wide by 337.5 mm high. Starters form the bottom row of the array and carry the load; extender modules stack above them to build the wall upwards.

Alignment is what the system is for. Floating button-capture hardware and full X-Y-Z adjustment - 8 mm of lateral shift, up to 50.8 mm of height adjustment and 15.9 mm of macro depth adjustment - let the installer pull each cabinet into pixel alignment with its neighbours even on a wall that is out of true. M6 and M8 mounting button kits are included, and the same hardware works across interlocking cabinets from most leading dvLED manufacturers.

Each column is rated to 113.4 kg total cabinet weight. The mount needs a plywood-reinforced wall, sits 51 mm deep and ships at 6.9 kg. It is TAA compliant. Supplied by TopAV. Manufacturer part number DVM27U4.
