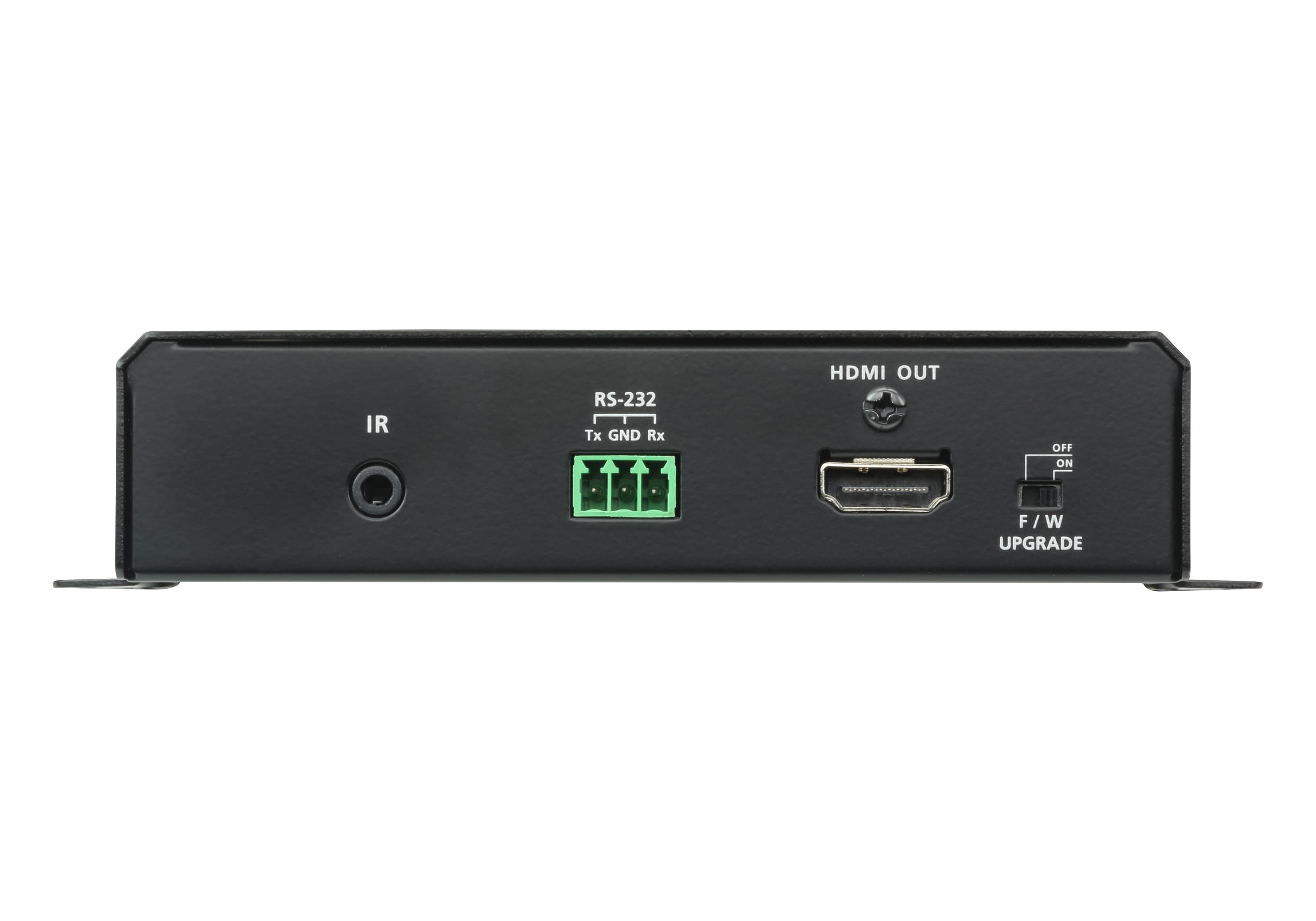

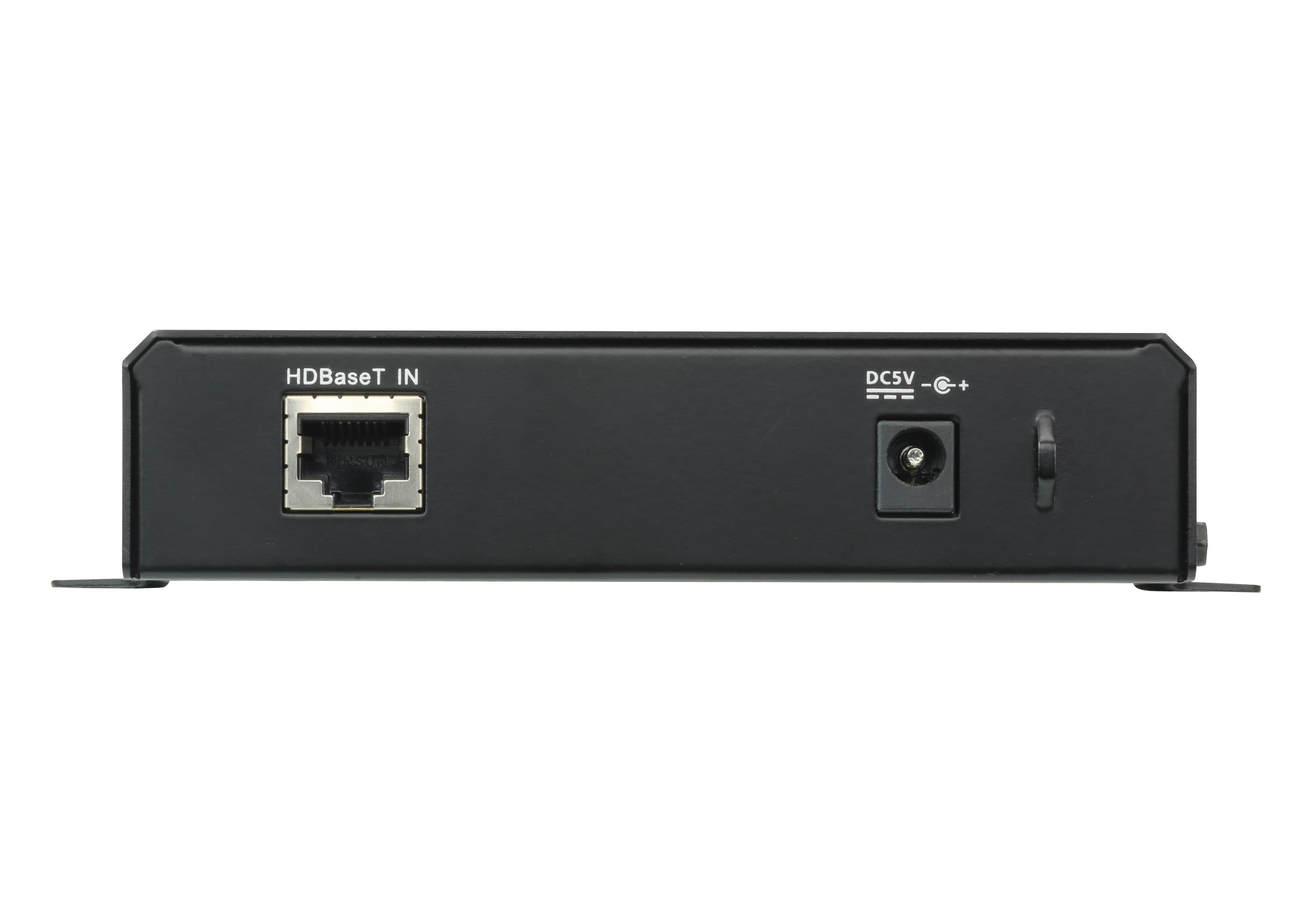

ATEN VE816R 4K HDMI HDBaseT Receiver with Scaler (4K@100m)
£826.93inc. VAT
£689.11 ex. VAT
Out of stock
1
- Visa
- Mastercard
- American Express
- PayPal
Or 3 interest-free payments of £275.65 with PayPal Pay in 3.
4.5 on Trustpilot · 14 reviewsSeen it cheaper? We price-match genuine like-for-like quotes. How it works
Bought in the UK, backed in the UKWhy it matters →
- Sourced through UK distribution
- UK manufacturer warranty
- UK-based engineers
- No import duty or customs charges
- GBP pricing, UK VAT invoices
2 Years Warranty Included
Key specifications
Video Input — Interfaces1 x RJ-45 Female (Silver)
Video Input — Impedance100 Ω
Video Output — Interfaces1 x HDMI Type A Female (Black)
Video Output — Impedance100 Ω
Video Output — Max. Distance3 m
Video — Max. Data Rate10.2 Gbps (3.40 Gbps per lane)
Video — Max. Pixel Clock340 MHz
Video — ComplianceHDMI (3D, 4K, Deep Color); HDCP2.2 Compatible; HDBaseT Compatible
Description
The ATEN VE816R is an HDBaseT receiver for sending HDMI over structured cabling. It replaces a long, lossy HDMI run with ordinary Cat 5e/6 between the source rack and the display, which is what makes lecture theatres, boardrooms and digital signage practical to wire.
Video is carried at up to 4K@70m (Cat 5e/6) / 100m (Cat 6a/ATEN 2L-2910 Cat6). Control passes down the same cable, so IR and RS-232 from the head end still reach the display.
It scales incoming video to the display native resolution, which avoids the black screen you get when a source and a panel disagree. Housing is metal. Supplied to order from TopAV with ATEN's 36-month warranty.
Key features
Superior video quality
• 4K up to 100 m • 1080p up to 150 m.
HDBaseT Long Reach Mode
Activated by RS-232 commands, Long Reach Mode extends signals up to 150 m, 1080p, via a single Cat 5e/6 cable.
Scaler
Scales videos of different resolutions to their optimal output for display and to avoid black screen.
Video Wall
Features video wall profiles that allows for custom screen layouts via an intuitive web GUI.
Technical specifications
Display
Video — Max. Resolutions / DistanceUp to 4K@70m (Cat 5e/6) / 100m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@100m (Cat 5e/6/6a)
Connectivity
Video Input — Interfaces1 x RJ-45 Female (Silver)
Video Input — Impedance100 Ω
Video Output — Interfaces1 x HDMI Type A Female (Black)
Video Output — Impedance100 Ω
Video Output — Max. Distance3 m
Connectors — Unit To Unit1 x RJ-45 Female
Connectors — Power1 x DC Jack (Sliver)
Control — IR Channel1 x Mini Stereo Jack Female (Black)
Power & Physical
Power ConsumptionDC5V:9.09W:28BTU/h; Note:; ● The measurement in Watts indicates the typical power consumption of the device with no external loading.; ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Certifications & Warranty
Video — ComplianceHDMI (3D, 4K, Deep Color); HDCP2.2 Compatible; HDBaseT Compatible
General
Video — Max. Data Rate10.2 Gbps (3.40 Gbps per lane)
Video — Max. Pixel Clock340 MHz
Control — RS-232 Channel1 x Terminal Block, 3 pole (Green)
Switches — Firmware Upgrade1 x Slide Switch - ON/OFF
Documents
Delivery & returns
Estimated delivery 9 Sept - 13 Sept. UK mainland delivery only. Some large or made-to-order items carry longer lead times, shown on the product page.
Unused items in original packaging can be returned within 14 days of delivery — see the returns policy for how business and consumer returns differ. Faulty items are covered under manufacturer warranty and by your statutory rights.
Bought in the UK, backed in the UK
This item is sourced through UK distribution and ships to you from within the UK, so the order never crosses a customs border.
The manufacturer warranty is honoured here in the UK. If something fails, you deal with us, not with an overseas seller in another time zone.
Our own UK-based engineers install, commission and support what we sell, and can attend site when a system needs hands on it.
Delivered within the UK mainland, so there is no import duty, customs charge or courier handling fee waiting for you on delivery.
Prices are in pounds sterling with proper UK VAT invoices, and purchase orders are accepted from approved education accounts: no currency conversion and no surprises at the door.
Payment & security
Pay securely by card. Education customers can apply for a 30-day purchase order account.
Schools, colleges, sixth forms, universities and multi-academy trusts can order on invoice, with no card payment required. Purchase orders and credit terms are for education customers only.
All transactions are processed over an encrypted, secure checkout.
Alternative products
Closest matches in this category on price and capability. Not sure which way to go? Our technical team will talk it through.
ATEN

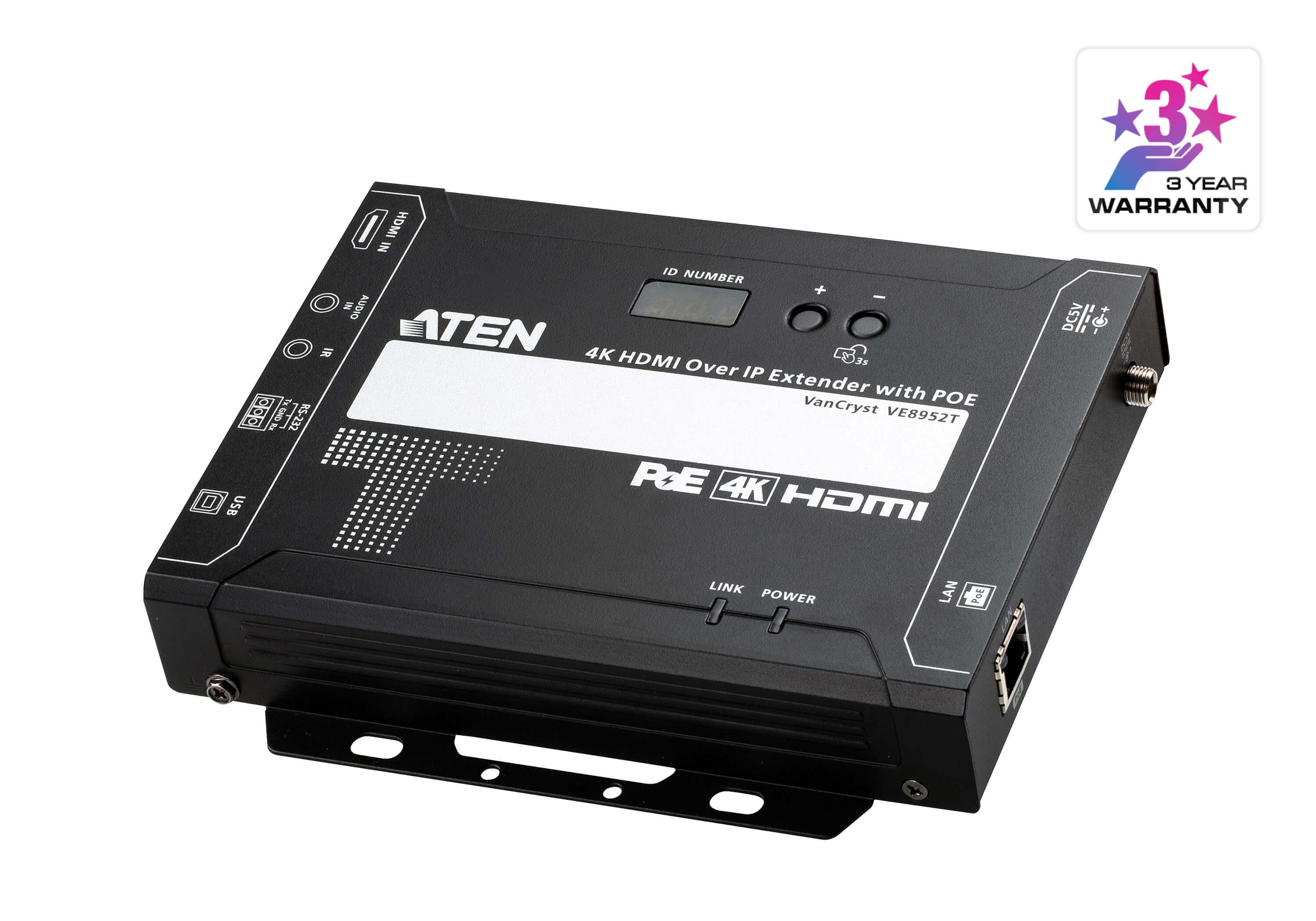

ATEN VE8952T 4K HDMI over IP Transmitter with PoE
