Home / Extenders / Kramer KDS-DEC7 High-performance, highly-scalable, AVoIP Decoder for 4K over 1G network (KDS-7)
Kramer
Kramer KDS-DEC7 High-performance, highly-scalable, AVoIP Decoder for 4K over 1G network (KDS-7)
£760.80inc. VAT
£634.00 ex. VAT
Low stock (1 left), order soon
1
- Visa
- Mastercard
- American Express
- PayPal
Or 3 interest-free payments of £253.60 with PayPal Pay in 3.
4.5 on Trustpilot · 14 reviewsSeen it cheaper? We price-match genuine like-for-like quotes. How it works
Bought in the UK, backed in the UKWhy it matters →
- In UK stock, ships from the UK
- UK manufacturer warranty
- UK-based engineers
- No import duty or customs charges
- GBP pricing, UK VAT invoices
3 Years Warranty Included
Key specifications
Inputs - 1 HDMIOn a female HDMI connector
Outputs - 1 HDMIOn a female HDMI connector
Ports - 2 EthernetsOn R-J45 connectors
Ports - 1 Balanced AudioOn a 5-pin terminal block connector
Ports - 1 RS-232On a 3-pin terminal block connector
Ports - 1 IROn a 3.5mm TRS connector
Ports - 2 USBOn USB-A connectors
USB Features - Integrated USB Hubs1-layer when connecting to KDS-EN7
Description
KDS-DEC7 decoder is an advanced receiver for streaming 4K video signals via Ethernet over copper cable. It decodes streams over an IP network to HDMI output, and transmit the USB, IR, RS-232, or CEC signal over IP network. Manufacturer part number KDS-DEC7.
Key features
Outstanding end-user experience
Rich set of inputs and interfaces
Easy-to-use KM/KVM - Searchable OSD Menu for KM and fully
Easy-to-use KM/KVM - Searchable OSD Menu for KM and fully configurable KVM roaming
Large scale video wall - up to 16x16
Large scale video wall - up to 16x16
Instantaneous switching time - 1 second
Instantaneous switching time - 1 second
Ideal for large-scale deployments
Highly scalable - 999 channels build in support
State of the art management device
State of the art management device
Rich set of management capabilities - Standard P3K Open API , LCD
Rich set of management capabilities - Standard P3K Open API , LCD screen for configuration
Robust security
Enterprise IT-grade security - 802.1x and HTTPS/TLS
Security certification - OWASP Top 10 certificate
Security certification - OWASP Top 10 certificate
Separate ETH ports for optimal security and experience
Separate ETH ports for optimal security and experience
Technical specifications
Display
Video - Max Resolution4K@30Hz 4:4:4
Video Streaming - Max Input Resolution4K@30Hz 4:4:4
Video Streaming - Max Output Resolution4K@30hz (4:4:4)
Video Streaming - Max End-to-End Resolution4K@30hz (4:4:4)
Resolution4096x2160@30Hz, 1600x1200@60Hz, 1280x960@60Hz, 848x480@60Hz,
Connectivity
Inputs - 1 HDMIOn a female HDMI connector
Outputs - 1 HDMIOn a female HDMI connector
Ports - 2 EthernetsOn R-J45 connectors
Ports - 1 Balanced AudioOn a 5-pin terminal block connector
Ports - 1 RS-232On a 3-pin terminal block connector
Ports - 1 IROn a 3.5mm TRS connector
Ports - 2 USBOn USB-A connectors
USB Features - Integrated USB Hubs1-layer when connecting to KDS-EN7
Network - MulticastUDP, IGMP snooping non-blocking, Layer 2
Network - UnicastUDP
Network - BitratePeak: 850Mbps, 4K average: 350Mbps, 1080p average: 250Mbps
Audio - Supported FormatsLPCM, Dolby and DTS
Audio
Audio - LPCMLPCM upto 7.1/24-bit/192kHz
Audio - DolbyDolby AtmosTM, Dolby TrueHD, Dolby Digital PlusTM, Dolby Digital EX, Dolby Digital 5.1, Dolby Digital 2/0 Surround, Dolby Digital 2/0
Audio - DTSDTS-HD Master AudioTM, DTS-HD, DTS-ES Discrete 6.1, DTS-ES Matrix 6.1, DTS Digital Surround 5.1
General
Video - CompressionVisually Lossless, proprietary codec
Video Streaming - Compression StandardJPEG2K based, proprietary stream
Video Streaming - ScalerYes
Video Streaming - End-to-End Latency33msec
Video Streaming - Switching Time1sec
Documents
Delivery & returns
Estimated delivery 9 Sept - 13 Sept. UK mainland delivery only. Some large or made-to-order items carry longer lead times, shown on the product page.
Unused items in original packaging can be returned within 14 days of delivery — see the returns policy for how business and consumer returns differ. Faulty items are covered under manufacturer warranty and by your statutory rights.
Bought in the UK, backed in the UK
This item is in UK stock and ships to you from within the UK, so the order never crosses a customs border on its way to you.
The manufacturer warranty is honoured here in the UK. If something fails, you deal with us, not with an overseas seller in another time zone.
Our own UK-based engineers install, commission and support what we sell, and can attend site when a system needs hands on it.
Delivered within the UK mainland, so there is no import duty, customs charge or courier handling fee waiting for you on delivery.
Prices are in pounds sterling with proper UK VAT invoices, and purchase orders are accepted from approved education accounts: no currency conversion and no surprises at the door.
Payment & security
Pay securely by card. Education customers can apply for a 30-day purchase order account.
Schools, colleges, sixth forms, universities and multi-academy trusts can order on invoice, with no card payment required. Purchase orders and credit terms are for education customers only.
All transactions are processed over an encrypted, secure checkout.
Alternative products
Closest matches in this category on price and capability. Not sure which way to go? Our technical team will talk it through.
Kramer

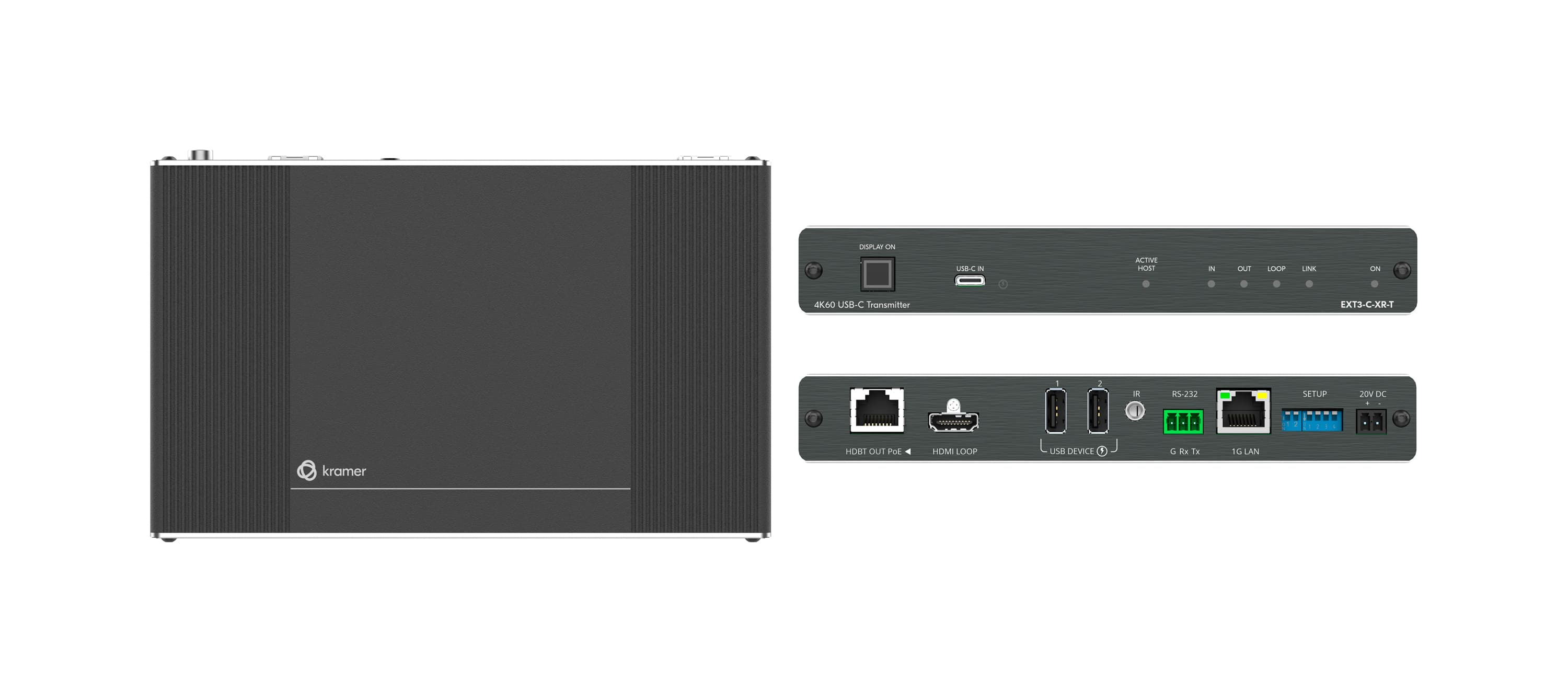

Kramer EXT3-C-XR-T 4K60 4:4:4 USB-C Transmitter with USB, Ethernet, RS-232, & IR over Extended-Reach HDBaseT 3.0
4K UHD
£744.00inc. VAT
Out of stock
Vaddio
Vaddio EasyIP Tx/Rx HDMI Encoder or Decoder
1080p
£783.60inc. VAT
Out of stock
ATEN

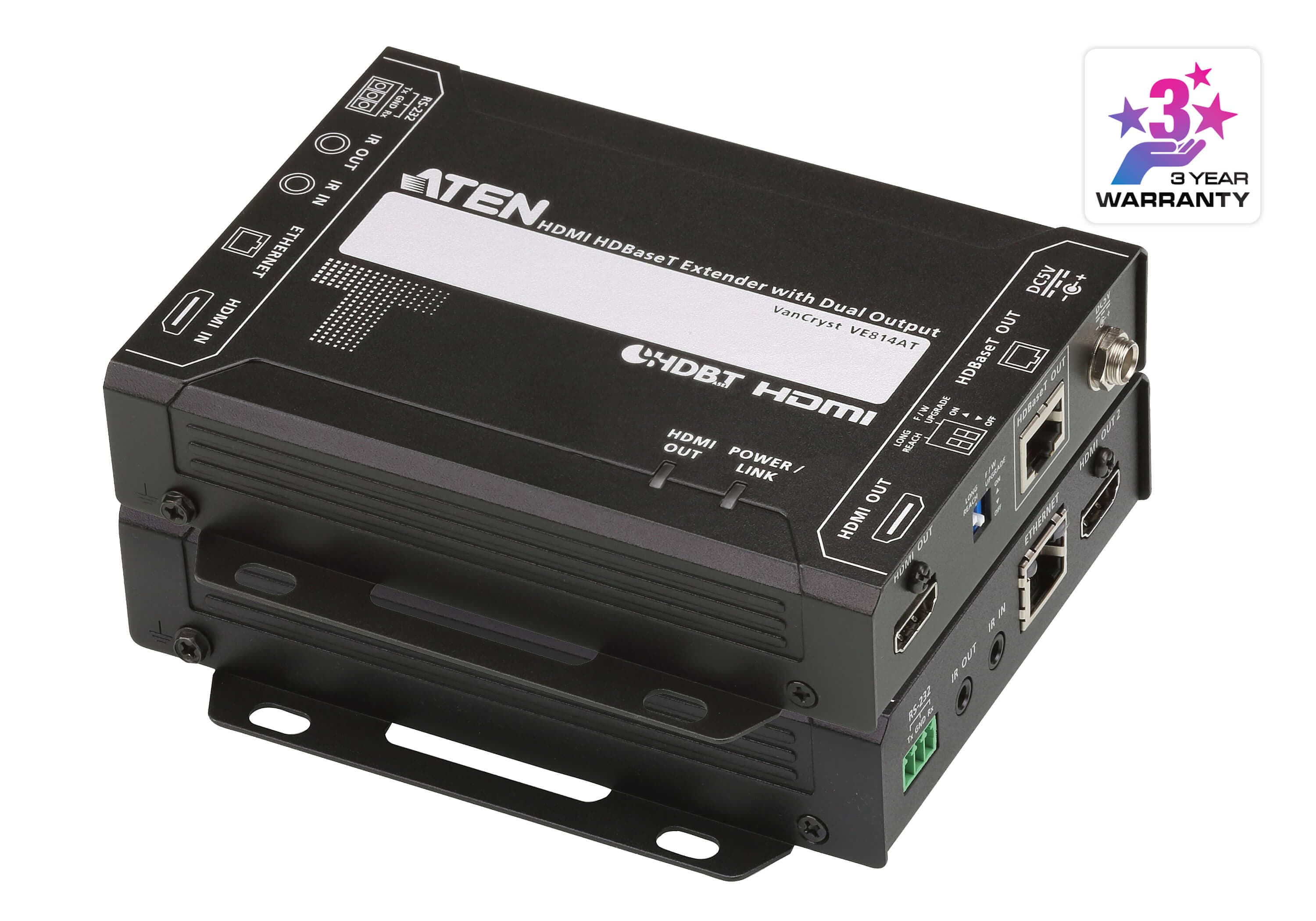

ATEN VE814A HDMI HDBaseT Extender with Dual Output (4K@100m)
