Key specifications
Video Input — Interfaces1 x RJ-45 Female (Silver)
Video Input — Impedance100 Ω
Video Output — Interfaces1 x HDMI Type A Female (Black)
Video Output — Impedance100 Ω
Video Output — Max. Distance3 m
Video — Max. Data Rate6.75 Gpbs (2.25 Gbps per lane)
Video — Max. Pixel Clock225 MHz
Video — ComplianceHDMI (3D, Deep Color); HDCP 1.4 Compatible; HDBaseT Compatible
Description
The ATEN VE805R is an HDBaseT receiver for sending HDMI over structured cabling. It replaces a long, lossy HDMI run with ordinary Cat 5e/6 between the source rack and the display, which is what makes lecture theatres, boardrooms and digital signage practical to wire.
Video is carried at up to 1080p @60m (Cat 5e/6). Control passes down the same cable, so IR and RS-232 from the head end still reach the display.
It scales incoming video to the display native resolution, which avoids the black screen you get when a source and a panel disagree. Housing is metal. Supplied to order from TopAV with ATEN's 36-month warranty.
Key features
HDBaseT connectivity
Extends the connection between the VM8514 HDBaseT outputs and an HDMI display over a long distance via single Cat 5e/6/6a cable.
HDBaseT Anti-jamming
Resists signal interference during high quality video transmissions using HDBaseT technology.
Bi-directional RS-232 channel 1
Allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners.
Scaler
Features a scaling function to integrate a video wall seamlessly with various output formats.
Technical specifications
Display
Video — Max. Resolutions / DistanceUp to 1080p @60m (Cat 5e/6); 70m (Cat 6a)
Connectivity

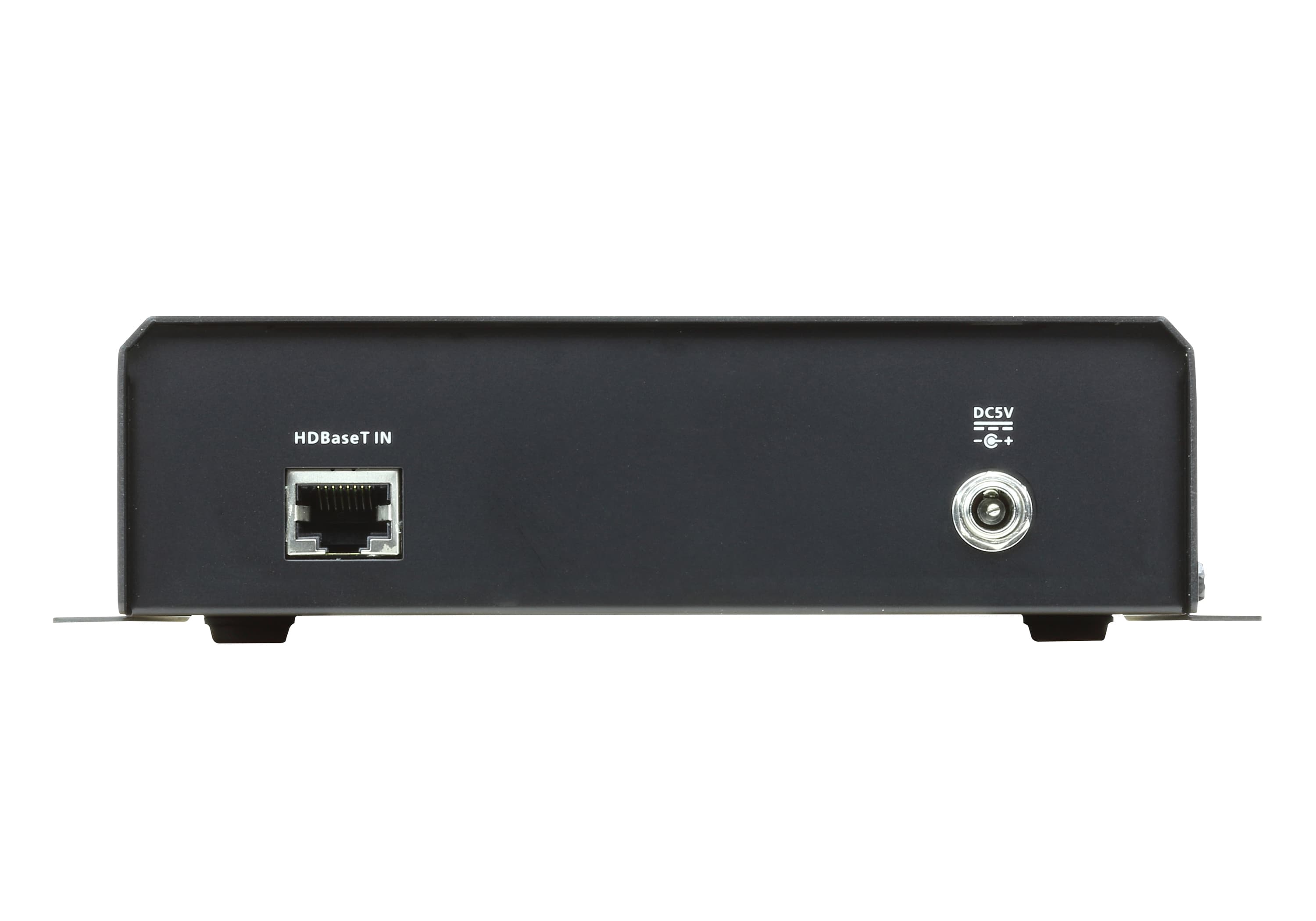

Video Input — Interfaces1 x RJ-45 Female (Silver)
Video Input — Impedance100 Ω

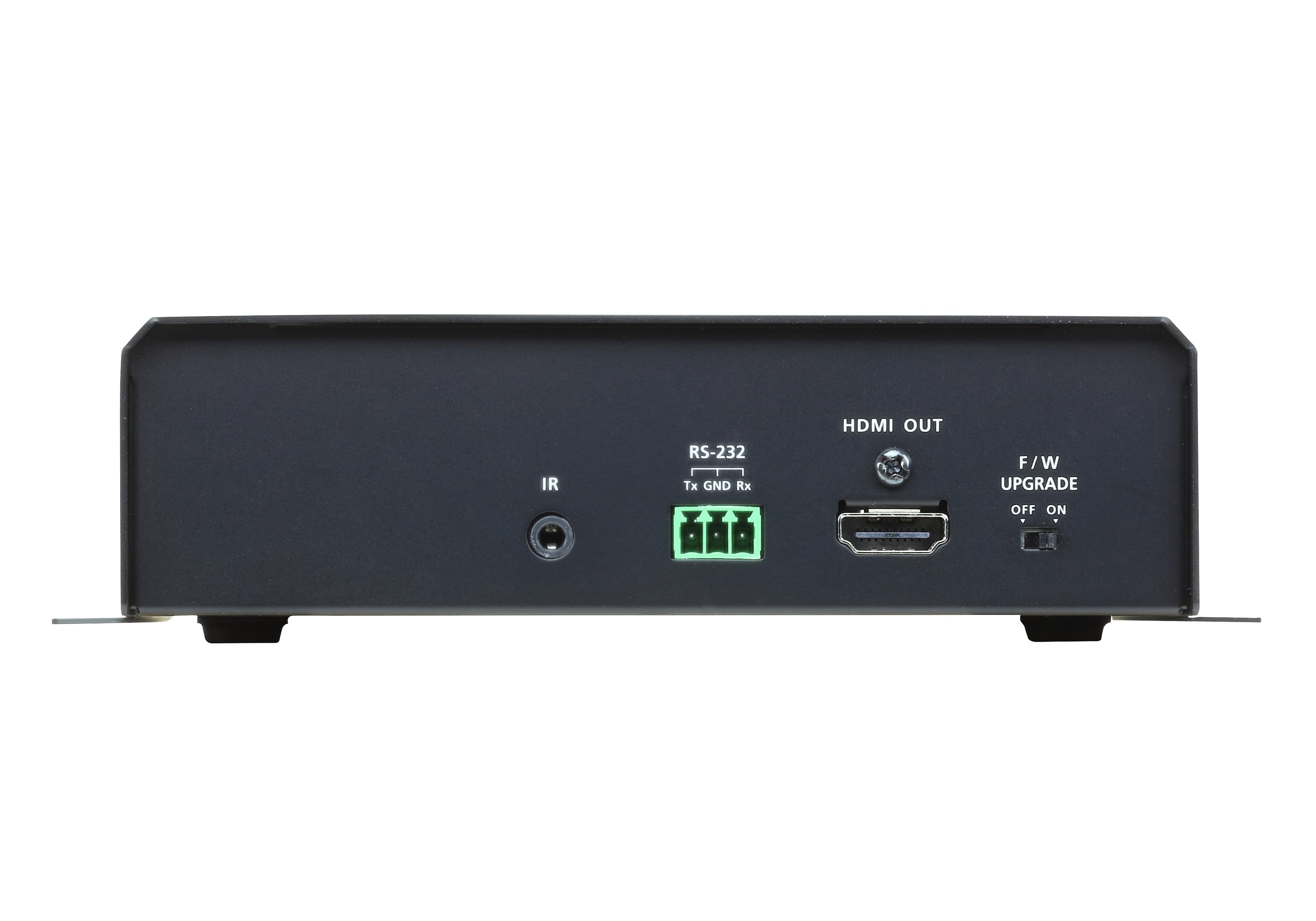

Video Output — Interfaces1 x HDMI Type A Female (Black)
Video Output — Impedance100 Ω
Video Output — Max. Distance3 m
Control — IR1 x Mini Stereo Jack Female (Black)
Connectors — Power1 x DC Jack (Sliver)
Power & Physical
Power ConsumptionDC5V:8.36W:39BTU/h; Note:; ● The measurement in Watts indicates the typical power consumption of the device with no external loading.; ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Certifications & Warranty
Video — ComplianceHDMI (3D, Deep Color); HDCP 1.4 Compatible; HDBaseT Compatible
General
Video — Max. Data Rate6.75 Gpbs (2.25 Gbps per lane)
Video — Max. Pixel Clock225 MHz
Control — RS-2321 x Captive Screw Connector, 3 Pole
Switches — Firmware Upgrade1 x Slide Switch
Environmental — Operating Temperature0 - 50°C
