ATEN VE2812PR HDMI HDBaseT Receiver with Audio De-Embedding / Bi-directional PoH (4K@100m)(PoH PSE & PD)

Name: ATEN VE2812PR HDMI HDBaseT Receiver with Audio De-Embedding / Bi-directional PoH (4K@100m)(PoH PSE & PD)
Brand: ATEN
SKU: VE2812PR
Price: 438.04 GBP
Availability: OutOfStock

£438.04inc. VAT

£365.03 ex. VAT

Out of stock

Visa
Mastercard
American Express
PayPal

Or 3 interest-free payments of £146.02 with PayPal Pay in 3.

Independently reviewed on Trustpilot

Seen it cheaper? We price-match genuine like-for-like quotes. How it works

Bought in the UK, backed in the UKWhy it matters →

Sourced through UK distribution
UK manufacturer warranty
UK-based engineers
No import duty or customs charges
GBP pricing, UK VAT invoices

Return within 14 days

Installation services available Purchase orders: education customers only

2 Years Warranty Included

Key specifications

Video Output — Interfaces1 x HDMI Type A Female (Black)

Video Output — Impedance100 Ω

Video Output — Max. Distance3 m

Video — Max. Data Rate10.2Gbps (3.4Gbps per lane)

Video — Max. Pixel Clock340 MHz

Video — ComplianceHDMI (3D, Deep Color, 4K); HDCP2.2 Compatible; Consumer Electronics Control (CEC)

Video — Max. Resolution*4K supported:; 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)

Video — Max. Resolutions / DistanceUp to 4K@70m (Cat 5e/6) / 100m (HDBaseT Certified cable / ATEN’s tailor-made HDBaseT cable); 1080p@100m (Cat 5e/6/6a)

All 15 specifications

Description

The ATEN VE2812PR is an HDBaseT receiver for sending HDMI over structured cabling. It replaces a long, lossy HDMI run with ordinary Cat 5e/6 between the source rack and the display, which is what makes lecture theatres, boardrooms and digital signage practical to wire.

Full specifications Datasheet Compare alternatives

Video is carried at up to 4K@70m (Cat 5e/6) / 100m (HDBaseT Certified cable / ATEN’s tailor-made HDBaseT cable). Control passes down the same cable, so IR and RS-232 from the head end still reach the display, and PoH powers the far end from the near end so no mains socket is needed behind the screen.

Housing is metal. Supplied to order from TopAV with ATEN's 36-month warranty.

Key features

Bi-directional PoH

Allows a PoH PD-enabled Tx to be remotely powered by the locally powered VE2812PR - enables power distribution from a PoH PSE-enabled Tx to the VE2812PR over the cable.

Audio de-embedding

Extracts audio stream from the HDMI source and delivers as a separate audio from HDMI to Coaxial S/PDIF, or Stereo audio output.

RS-232 serial communication switch

Switch between command mode and bypass mode for various application requirements.

Technical specifications

Choose a section to view its specifications.

Display (2)

Video — Max. Resolution: *4K supported:; 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Video — Max. Resolutions / Distance: Up to 4K@70m (Cat 5e/6) / 100m (HDBaseT Certified cable / ATEN’s tailor-made HDBaseT cable); 1080p@100m (Cat 5e/6/6a)

Connectivity (6)

Video Output — Interfaces: 1 x HDMI Type A Female (Black)
Video Output — Impedance: 100 Ω
Video Output — Max. Distance: 3 m

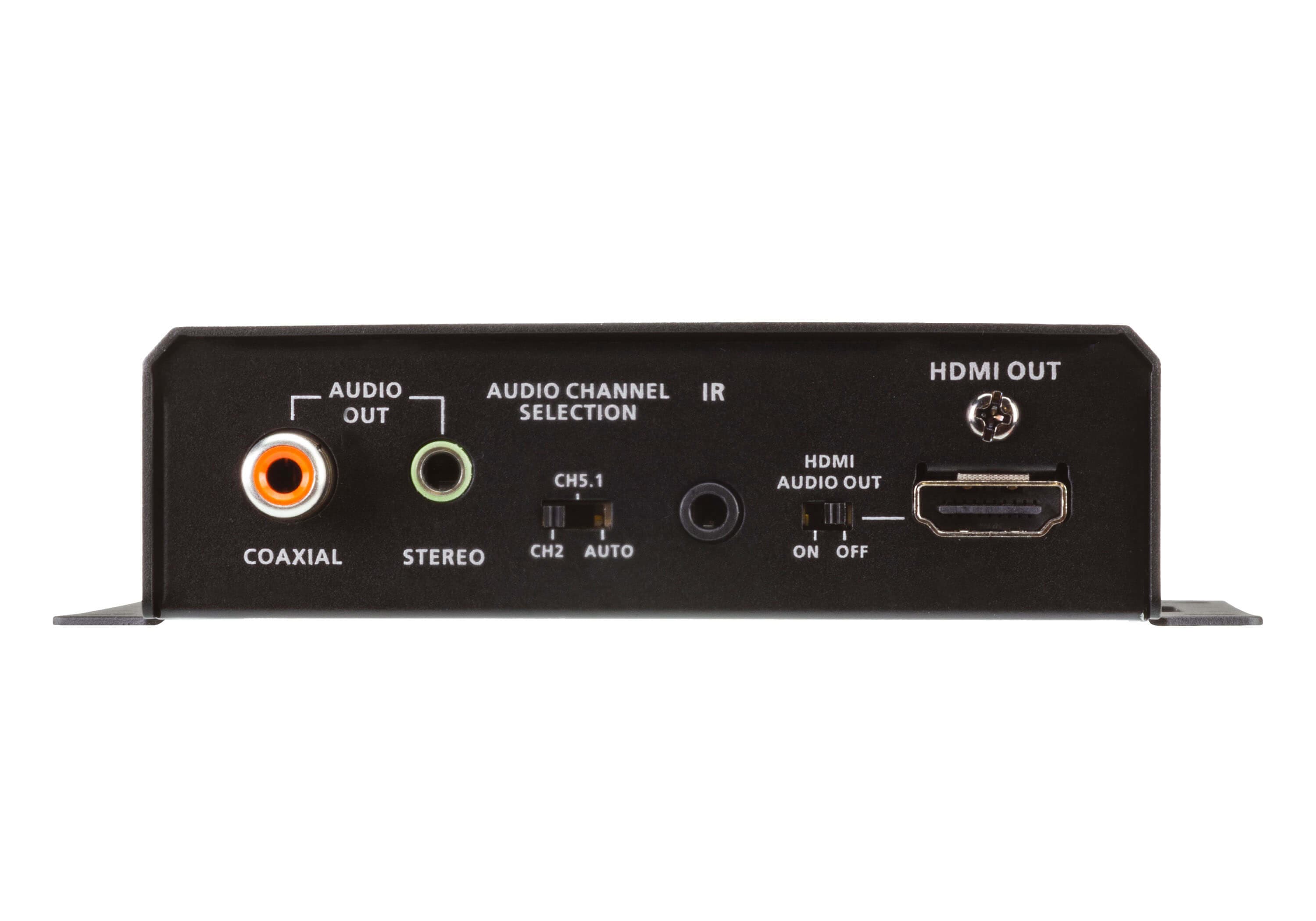

Audio — Output: 1 x HDMI Type A Female (Black); 1 x Mini Stereo Jack Female (Green); 1 x SPDIF Coaxial Female (Orange)
Control — IR Channel: 1 x Mini Stereo Jack Female (Black), bi-directional full range IR bypass channel
Switches — HDMI Mute: 1 x Slide Switch - HDMI Audio ON/OFF

Audio (1)

Switches — Audio EDID Selection: 1 x Slide Switch - Audio Output Format Selection: 2ch / 5.1ch / AUTO

Certifications & Warranty (1)

Video — Compliance: HDMI (3D, Deep Color, 4K); HDCP2.2 Compatible; Consumer Electronics Control (CEC)

General (5)

Video — Max. Data Rate: 10.2Gbps (3.4Gbps per lane)
Video — Max. Pixel Clock: 340 MHz

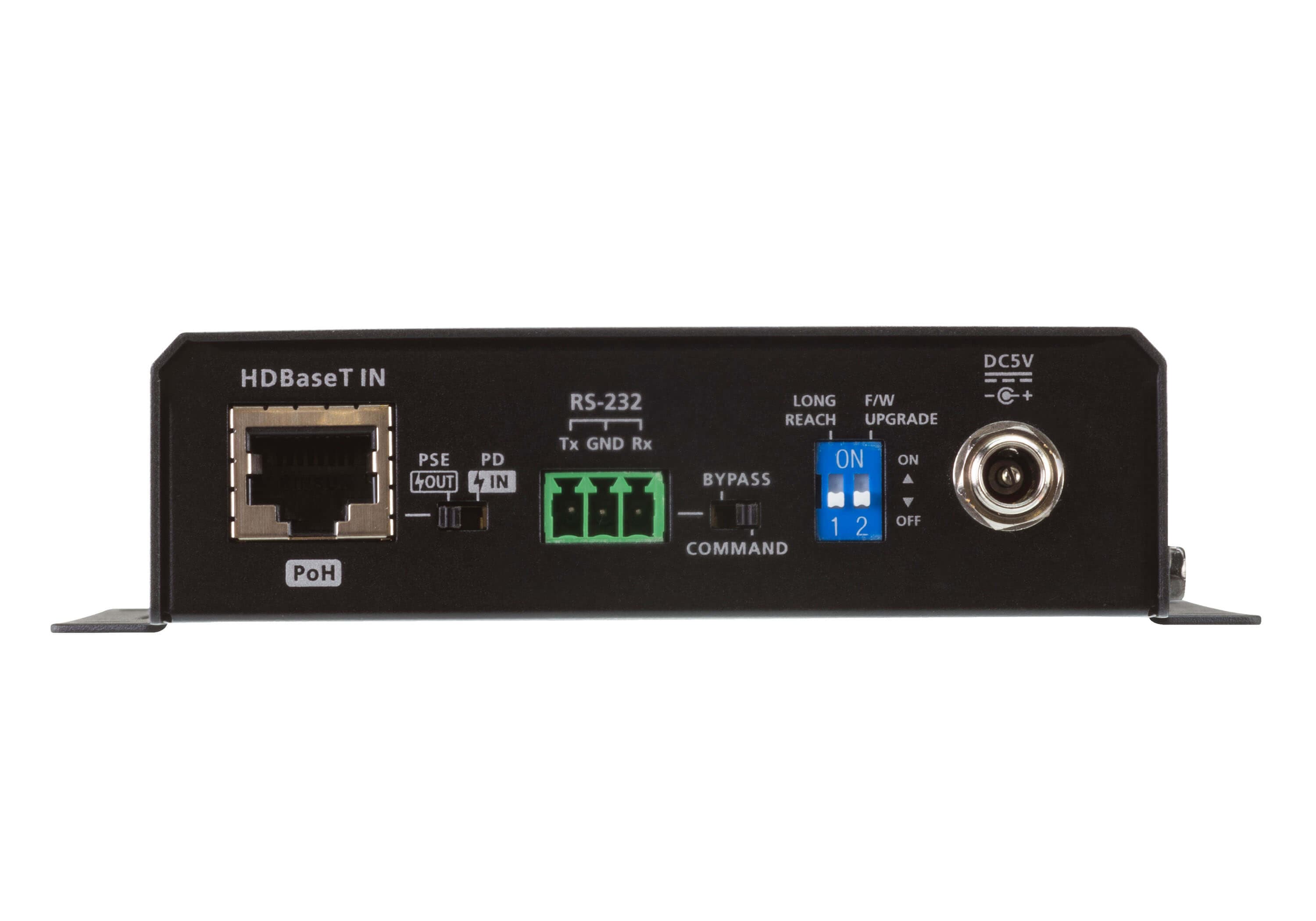

Control — RS-232 Channel: Connector: 1 x Terminal Block, 3 pole; Type: DTE; Baud Rate: 115200, Data Bits:8,; Stop Bits:1, no parity and flow control
Switches — Power Selected: 1 x Slide Switch - POH Power Selection: PSE / PD
Switches — Mode Selection: 1 x Slide Switch - RS-232 Bypass or Command mode Selection

Documents

ATEN VE2812PR manufacturer datasheet (PDF)
