Radio Design Labs DB-TPSM2A Active Two-Pair Sender - Dual Microphone Preamplifier - Twisted Pair Format-A

Name: Radio Design Labs DB-TPSM2A Active Two-Pair Sender - Dual Microphone Preamplifier - Twisted Pair Format-A
Brand: Radio Design Labs
SKU: DB-TPSM2A
Price: 422.40 GBP
Availability: OutOfStock

£422.40inc. VAT

£352.00 ex. VAT

Out of stock

Visa
Mastercard
American Express
PayPal

Or 3 interest-free payments of £140.80 with PayPal Pay in 3.

4.5 on Trustpilot · 14 reviews

Seen it cheaper? We price-match genuine like-for-like quotes. How it works

Bought in the UK, backed in the UKWhy it matters →

Sourced through UK distribution
UK manufacturer warranty
UK-based engineers
No import duty or customs charges
GBP pricing, UK VAT invoices

Return within 14 days

Installation services available Purchase orders: education customers only

7 Years Warranty Included

Key specifications

Inputs (2)XLR (3 pin, 1=GND, 2+, 3-)

Gain (fixed)40 dB (LOW gain); 60 dB (HIGH gain)

Gain (AUTO)40 dB for condenser mics; 60 dB for dynamic mics

Maximum Input Level>-18 dBu (LOW gain); >-35 dBu (HIGH gain)

Input Impedance> 1 kΩ balanced

Phantom PowerP48 (48 V per IEC 61938: 2013)

OutputRDL TP Format A

Format-A Signal Pair UsedSwitch-selectable A, B, or C (rear panel; one switch for each preamplifier)

All 20 specifications

Description

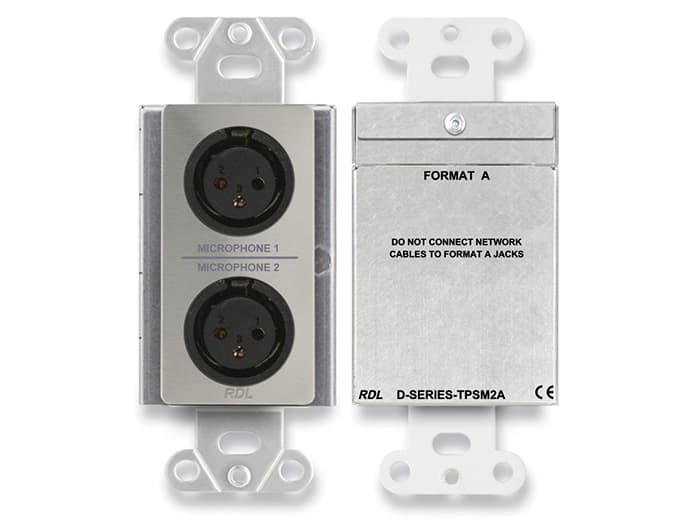

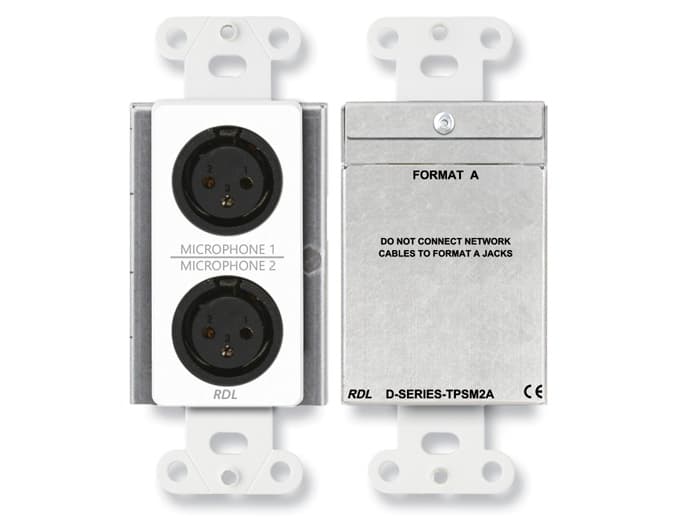

The D SERIES-TPSM2A modules are two-pair audio sending modules compatible with RDL Format-A twisted pair products. These modules are designed to be mounted in wall boxes, cabinets or other enclosures that allow users to connect audio sources. The -TPSM2A models mount in RDL WB-1U and WB-2U wall boxes, or in standard U.S. electrical boxes. The D-TPSM2A features a white front-panel laminate with gray lettering that matches RDL Decora©-style remote controls. The DB-TPSM2A features a black front-panel laminate. The DS-TPSM2A is constructed of stainless steel to coordinate with RDL Decora-style stainless steel remote controls in commercial/industrial installations.

Full specifications Datasheet Compare alternatives

APPLICATION: The D SERIES-TPSM2A modules feature two XLR microphone inputs. The module provides IEC 48 V phantom (P48) and accepts input signals from both dynamic and condenser microphones. The input signals are amplified using studio-quality microphone preamplifiers optimized for normal operating levels. The rear-panel GAIN switch is normally set by the installer for AUTO (automatic) gain. The module automatically sets the gain to 60 dB for dynamic microphones or 40 dB for condenser microphones. If consistently low mic levels are expected, this switch may be set to the HIGH gain position. If the module is used only with condenser microphones, the switch may be set to LOW gain. Each pre-amplified microphone source is routed to one output cable pair selected during installation using a rear-panel switch.

These modules drive only two cable pairs; therefore, they accept a signal and power from another mic-level or line-level Format-A sender. The D SERIES-TPSM2A modules have a second RJ45 jack for that input cable. One single-pair sender may be chained with the -TPSM2A. If two senders are connected together, each audio source must feed a different pair: A, B or C. The power pair and all three audio pairs are fed through both rear-panel RJ45 jacks.

The D SERIES-TPSM2A must be remotely powered through the twisted pair cable from any other module, signal distributor or RDL power inserter connected to the same twisted pair cable.

RDL FORMAT-A features superior audio performance that rivals or exceeds shielded wiring. Design simplicity, ease of installation, unsurpassed flexibility, automatic fused power, exceptional hum rejection, low noise, and low distortion provide designers and installers the optimum choice in economical twisted pair products.

Key features:

• Two Balanced Microphone XLR Inputs with P48 Phantom

• Switch-Selectable Mic Gain on Rear Panel

• Gain Selector Provides Fixed 40 dB, 60 dB or Automatic

• Automatic Gain: 60 dB for Dynamic Mics; 40 dB for Condenser Mics

• Output Pair Selector to Feed RJ45 Pair (A, B or C) for Each Preamplifier

• Signal and Power Pairs Pass Through RJ45 Connectors

• Module is Remotely Powered Through RJ45 Connector

• Utilizes Two Format-A Pairs

• Daisy-Chain with a Single-Pair Format-A Sender

• Studio-Quality Precision Active Balanced Circuitry

Manufacturer part number DB-TPSM2A.

Key features

Inputs (2)

XLR (3 pin, 1=GND, 2+, 3-)

Gain (fixed)

40 dB (LOW gain); 60 dB (HIGH gain)

Gain (AUTO)

40 dB for condenser mics; 60 dB for dynamic mics

Maximum Input Level

>-18 dBu (LOW gain); >-35 dBu (HIGH gain)

Input Impedance

> 1 kΩ balanced

Phantom Power

P48 (48 V per IEC 61938: 2013)

Output

RDL TP Format A

Format-A Signal Pair Used

Switch-selectable A, B, or C (rear panel; one switch for each preamplifier)

Technical specifications

Connectivity

Inputs (2)XLR (3 pin, 1=GND, 2+, 3-)

Maximum Input Level>-18 dBu (LOW gain); >-35 dBu (HIGH gain)

Input Impedance> 1 kΩ balanced

OutputRDL TP Format A

Format-A Signal Pair UsedSwitch-selectable A, B, or C (rear panel; one switch for each preamplifier)

Headroom (above +4 dBu output)>18 dB

Residual Noise (below +4 dBu output)< -85 dB (20 Hz to 20 kHz, 40 dB gain, 150 Ω source) < -70 dB (20 Hz to 20 kHz, 60 dB gain, 150 Ω source) < -70 dB (20 Hz to 15 kHz, 60 dB gain, 150 Ω sources)

Power & Physical

WEEE Weight0.445 lbs

Shipping Weight0.585 lbs

General

Gain (fixed)40 dB (LOW gain); 60 dB (HIGH gain)

Gain (AUTO)40 dB for condenser mics; 60 dB for dynamic mics

Phantom PowerP48 (48 V per IEC 61938: 2013)

Channels2 (1 and 2; may be used for stereo or as two separate mono preamplifiers)

Gain Selectors (2)LOW, HIGH or AUTO (rear panel; one for each preamplifier)

Frequency Response20 Hz to 20 kHz (+/- 0.5 dB)

THD< 0.05%

CMRR> 80 dB (20 Hz to 5 kHz)

Power Requirement24 Vdc @ 80 mA (120 mA with phantom), Ground-referenced

Ambient Operating Environment0° C to 55° C

Tariff Code8543.70.9860

Documents

Radio Design Labs DB-TPSM2A Active Two-Pair Sender - Dual Microphone Preamplifier - Twisted Pair Format-A — RDL Datasheet
