Home / Extenders / ATEN VE2812AEUT HDMI & VGA HDBaseT Transmitter with EU Wall Plate / PoH (4K@100m)(PoH PD)

ATEN

ATEN VE2812AEUT HDMI & VGA HDBaseT Transmitter with EU Wall Plate / PoH (4K@100m)(PoH PD)

Name: ATEN VE2812AEUT HDMI & VGA HDBaseT Transmitter with EU Wall Plate / PoH (4K@100m)(PoH PD)
Brand: ATEN
SKU: VE2812AEUT
Price: 481.84 GBP
Availability: OutOfStock

£481.84inc. VAT

£401.53 ex. VAT

Out of stock

Visa
Mastercard
American Express
PayPal

Or 3 interest-free payments of £160.62 with PayPal Pay in 3.

4.5 on Trustpilot · 14 reviews

Seen it cheaper? We price-match genuine like-for-like quotes. How it works

Bought in the UK, backed in the UKWhy it matters →

Sourced through UK distribution
UK manufacturer warranty
UK-based engineers
No import duty or customs charges
GBP pricing, UK VAT invoices

Return within 14 days

Installation services available Purchase orders: education customers only

2 Years Warranty Included

Key specifications

Video Input — Interfaces1 x HDMI Type A Female (Black); 1 x HDB-15 (VGA) Female (Blue)

Video Input — ImpedanceHDMI: 100 Ω; HDB-15 (VGA): 75 Ω

Video Input — Max. DistanceHDMI: 3 m; HDB-15(VGA): 10m

Video — Max. Data Rate10.2Gbps (3.4Gbps per lane)

Video — Max. Pixel Clock340 MHz

Video — ComplianceHDMI (3D, Deep Color, 4K); HDCP2.2 Compatible; Consumer Electronics Control (CEC)

Video — Max. Resolutions / DistanceHDMI: Up to 4K@70m (Cat 5e/6) / 100m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@100m (Cat 5e/6/6a); VGA: Up to 1920x1200 & 1600x1200@70m (Cat 5e/6) / 100m (Cat 6a/ATEN 2L-2910 Cat6); 1920x1080@100m (Cat 5e/6/6a)

Audio — Input1 x HDMI Type A Female (Black); 1 x Mini Stereo Jack Female (Green)

All 15 specifications

Description

The ATEN VE2812AEUT is an HDBaseT transmitter for sending HDMI over structured cabling. It replaces a long, lossy HDMI run with ordinary Cat 5e/6 between the source rack and the display, which is what makes lecture theatres, boardrooms and digital signage practical to wire.

Full specifications Datasheet Compare alternatives

Video is carried at up to HDMI: Up to 4K@70m (Cat 5e/6) / 100m (Cat 6a/ATEN 2L-2910 Cat6). Control passes down the same cable, so IR and RS-232 from the head end still reach the display, and PoH powers the far end from the near end so no mains socket is needed behind the screen.

Housing is metal. Supplied to order from TopAV with ATEN's 36-month warranty.

Key features

Superior video quality

• HDMI: 4K at distance up to 100 m via a Cat 6a or ATEN 2L-2910 Cat 6 cable • VGA: 1600 x 1200 and 1920 x 1200 up to 100 m via a Cat 6a or ATEN 2L-2910 Cat 6 cable.

Supports HDBaseT Long Reach Mode

Up to 150 m via a single Cat 5e/6 cable at resolutions up to 1080p.

Built-in PoH (Power over HDBaseT) function

The VE2812AEUT receives power supply from the HDBaseT output port on the connected device.

Supports Auto Switch

Allows the VE2812AEUT to automatically switch to a newly plugged-in source.

Technical specifications

Display

Connectivity

Video Input — Interfaces1 x HDMI Type A Female (Black); 1 x HDB-15 (VGA) Female (Blue)

Video Input — ImpedanceHDMI: 100 Ω; HDB-15 (VGA): 75 Ω

Video Input — Max. DistanceHDMI: 3 m; HDB-15(VGA): 10m

Audio — Input1 x HDMI Type A Female (Black); 1 x Mini Stereo Jack Female (Green)

Control — IR1 x Mini Stereo Jack Female (Black)

Switches — Video Input Port Selection1 x Push Button - HDMI, VGA and AUTO

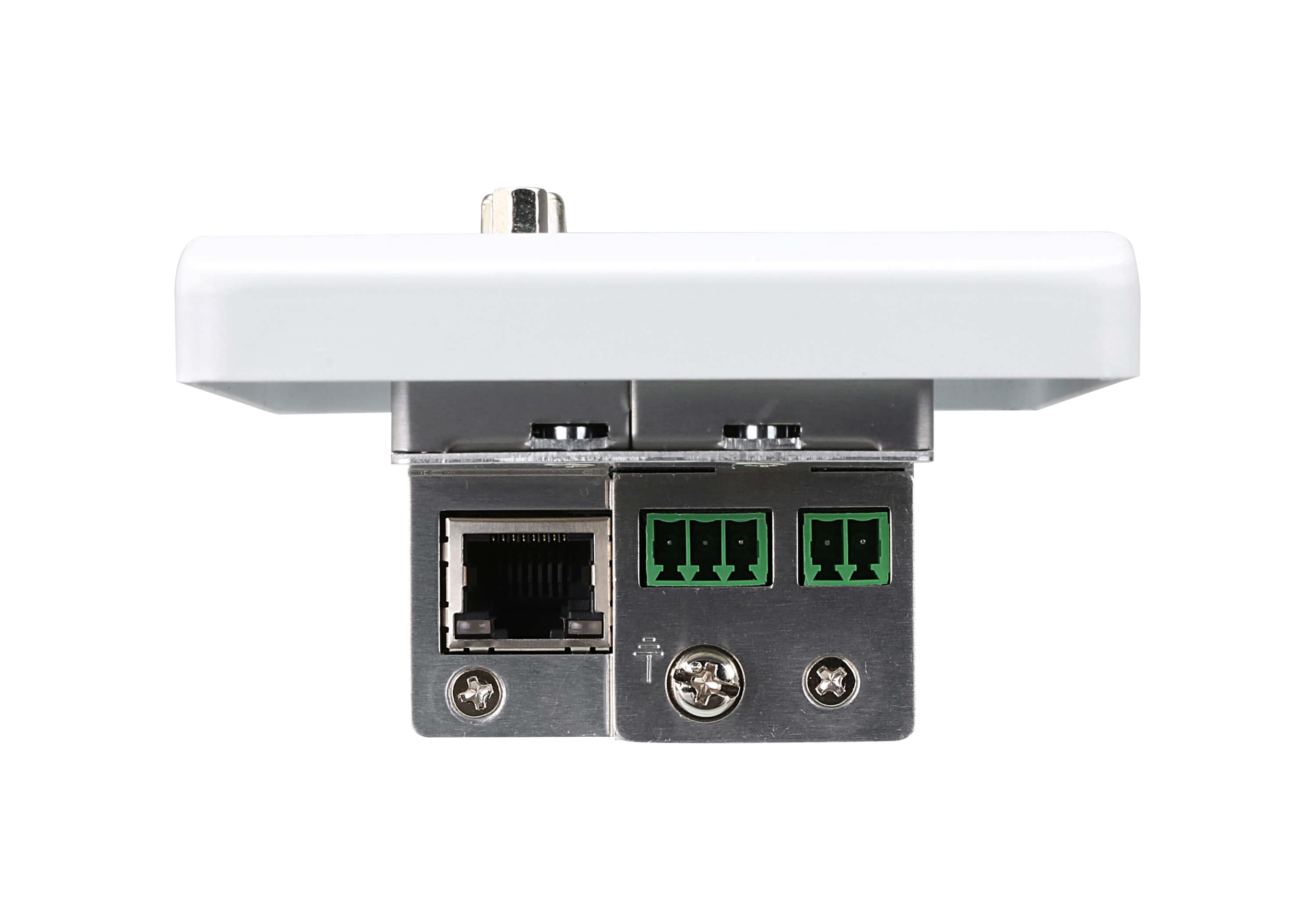

Connectors — Unit To Unit1 x RJ-45 Female

Connectors — Power1 x Terminal Block, 2 pole (Green) or; 1 x RJ-45 Female (POH)

Certifications & Warranty

Video — ComplianceHDMI (3D, Deep Color, 4K); HDCP2.2 Compatible; Consumer Electronics Control (CEC)

General

Video — Max. Data Rate10.2Gbps (3.4Gbps per lane)

Video — Max. Pixel Clock340 MHz

Control — RS-232Connector: 1 x Terminal Block, 3 pole (Green); Baud Rate: 19200, Data Bits:8,; Stop Bits:1, no parity and flow control

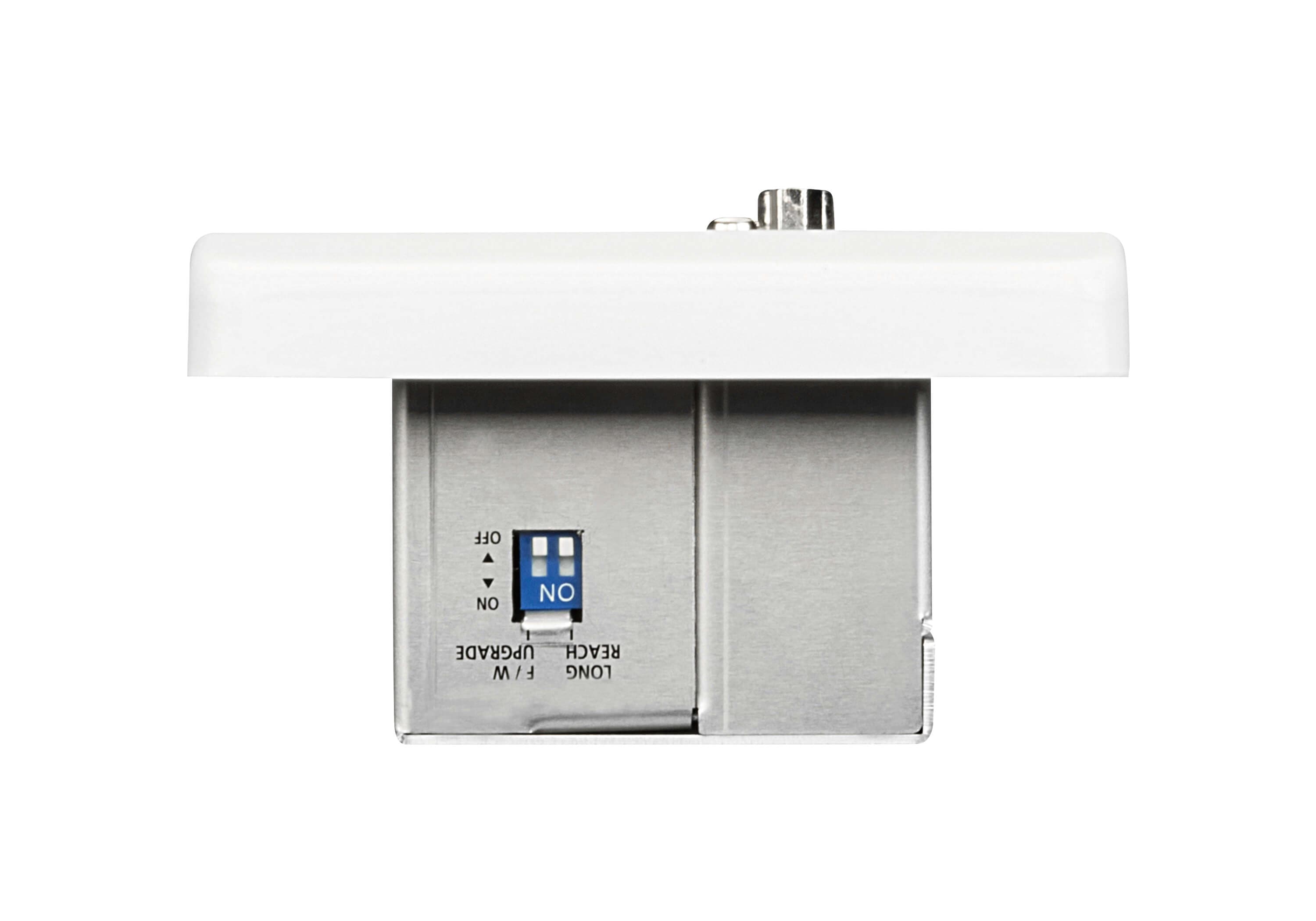

Switches — Long Reach Mode Switch1 x Slide Switch - ON/OFF

Switches — Firmware Upgrade1 x Slide Switch - ON/OFF

Documents

ATEN VE2812AEUT manufacturer datasheet (PDF)
