Home / Hubs & Converters / ATEN UC3310 CAMLIVE MX UVC Camera Seamless Matrix

ATEN

ATEN UC3310 CAMLIVE MX UVC Camera Seamless Matrix

Name: ATEN UC3310 CAMLIVE MX UVC Camera Seamless Matrix
Brand: ATEN
SKU: UC3310
Price: 508.86 GBP
Availability: OutOfStock

£508.86inc. VAT

£424.05 ex. VAT

Out of stock

Visa
Mastercard
American Express
PayPal

Or 3 interest-free payments of £169.62 with PayPal Pay in 3.

4.5 on Trustpilot · 14 reviews

Seen it cheaper? We price-match genuine like-for-like quotes. How it works

Bought in the UK, backed in the UKWhy it matters →

Sourced through UK distribution
UK manufacturer warranty
UK-based engineers
No import duty or customs charges
GBP pricing, UK VAT invoices

Return within 14 days

Installation services available Purchase orders: education customers only

2 Years Warranty Included

Key specifications

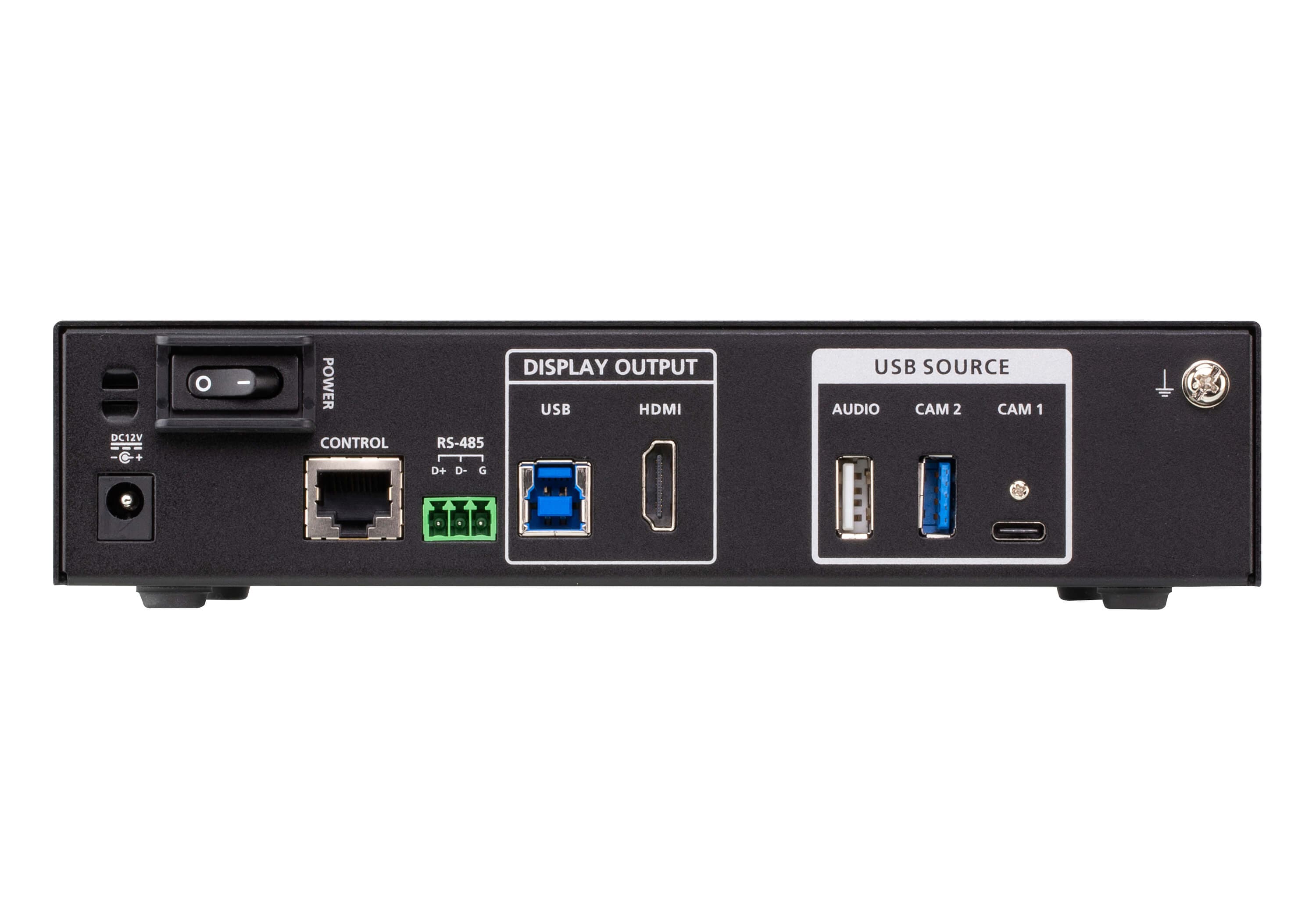

Connectors — Video In1 x USB3.2 Gen1 Type A Female (Blue); 1 x USB3.2 Gen1 Type C Female (Black)

Connectors — Audio Inputs1x USB2.0 Type A Female (White)

Connectors — Video Output1 x HDMI Type A Female (PGM Video, Black)

Connectors — USB PortUSB 3.2 Gen1 Type-B Female (Blue); (USB-B to USB-A cable package included)

Color SpaceNV12

Audio Sampling16-bit PCM audio, 48KHz

Control — RS-232Interface : RJ-45; Bit rate : 50bps~921.6Kbps (Default: 9600bps); Stop bit : 1 stop bit; Data bits: 8 bits; Parity : no parity; Signal : TxD, RxD, GND

Environmental — Operating Temperature0 - 40 ºC

All 15 specifications

Description

The ATEN UC3310 is a CAMLIVE MX camera matrix. It takes two UVC cameras — one on USB Type-A, one on USB Type-C — switches between them and presents the result to the host as a single plug-and-play USB camera, so the meeting or streaming application sees one device however many cameras the room actually has.

Also in this range:UC3430 Full specifications Datasheet Compare alternatives

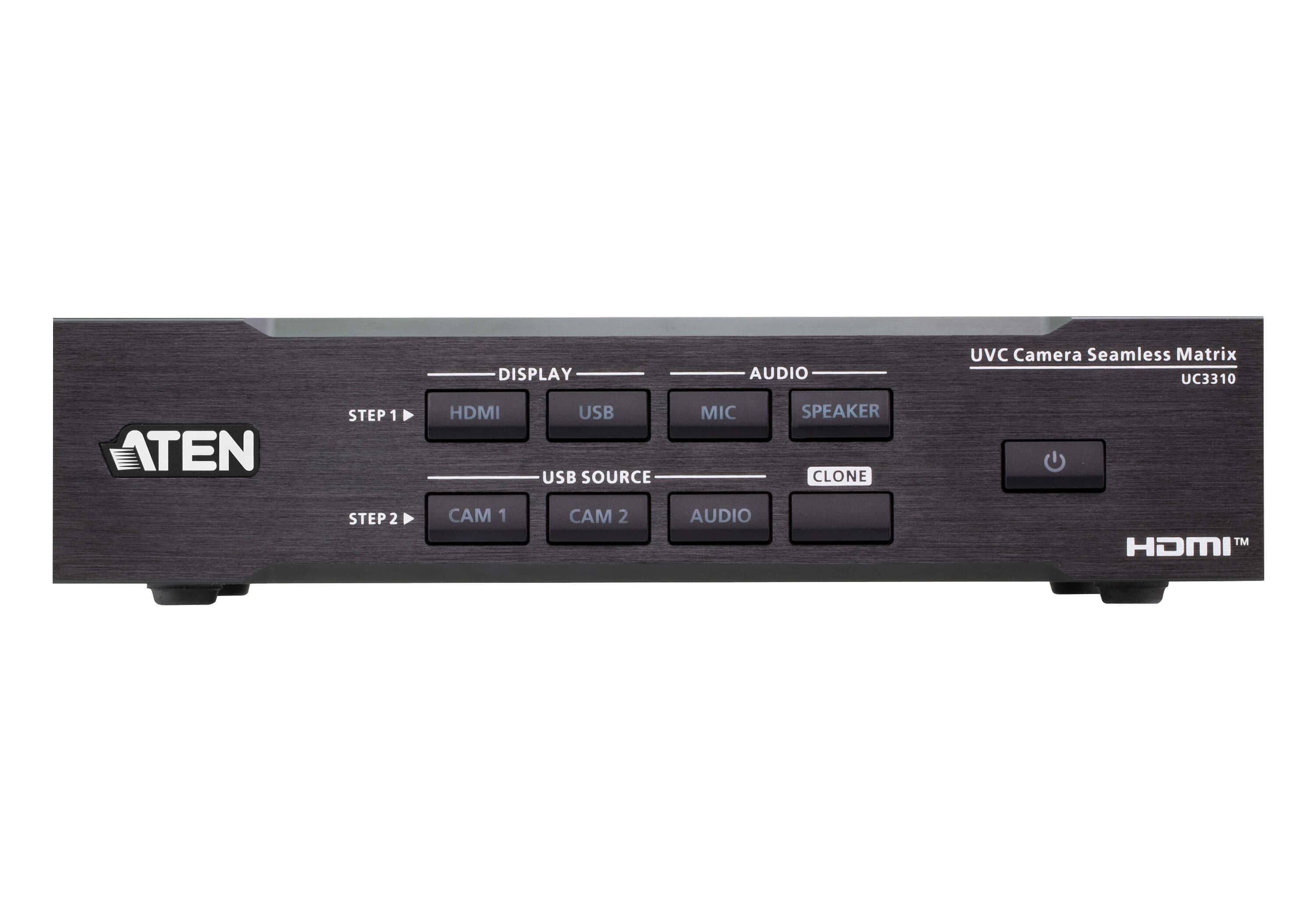

Switching is done on the front-panel pushbuttons, or remotely: an RS-232 port lets an ATEN VK control system drive the selection as part of a room preset, and a separate RS-485 port speaks VISCA for PTZ camera control, so framing and source selection can both be handled from the same place.

Alongside the USB output there is an HDMI program output for a confidence monitor or a room display, and a USB audio input for a separate microphone feed. It needs no drivers on Windows 10 or macOS 12 and later. Supplied to order from TopAV with ATEN's 36-month warranty.

Key features

Video In

1 x USB3.2 Gen1 Type A Female (Blue); 1 x USB3.2 Gen1 Type C Female (Black).

Audio Inputs

1x USB2.0 Type A Female (White).

Video Output

1 x HDMI Type A Female (PGM Video, Black).

Technical specifications

Connectivity

Connectors — Video In1 x USB3.2 Gen1 Type A Female (Blue); 1 x USB3.2 Gen1 Type C Female (Black)

Connectors — Audio Inputs1x USB2.0 Type A Female (White)

Connectors — Video Output1 x HDMI Type A Female (PGM Video, Black)

Connectors — USB PortUSB 3.2 Gen1 Type-B Female (Blue); (USB-B to USB-A cable package included)

OS SupportWindows 10 and above; Mac OS 12 and above

Audio

Audio Sampling16-bit PCM audio, 48KHz

Power & Physical

Physical Properties — Weight0.98 kg ( 2.16 lb )

Physical Properties — Dimensions (L x W x H)16.46 x 20.00 x 4.40 cm; (6.48 x 7.87 x 1.73 in.)

General

Color SpaceNV12

Control — RS-232Interface : RJ-45; Bit rate : 50bps~921.6Kbps (Default: 9600bps); Stop bit : 1 stop bit; Data bits: 8 bits; Parity : no parity; Signal : TxD, RxD, GND

Environmental — Operating Temperature0 - 40 ºC

Environmental — Storage Temperature-20 – 60 ºC

Environmental — Humidity0 - 80% RH, Non-Condensing

Minimum Hardware RequirementsPC/Mac:; CPU: Intel® i3 Dual Core 2.8Ghz or higher; RAM: 4GB or more; 1 x USB-A interface

Physical Properties — HousingMetal

Documents
