Home / Hubs & Converters / ATEN UC3430 CAMLIVE PRO 4K 4-Input HDMI to USB Video Switcher

ATEN

ATEN UC3430 CAMLIVE PRO 4K 4-Input HDMI to USB Video Switcher

Name: ATEN UC3430 CAMLIVE PRO 4K 4-Input HDMI to USB Video Switcher
Brand: ATEN
SKU: UC3430
Price: 792.29 GBP
Availability: OutOfStock

£792.29inc. VAT

£660.24 ex. VAT

Out of stock

Visa
Mastercard
American Express
PayPal

Or 3 interest-free payments of £264.10 with PayPal Pay in 3.

Independently reviewed on Trustpilot

Seen it cheaper? We price-match genuine like-for-like quotes. How it works

Bought in the UK, backed in the UKWhy it matters →

Sourced through UK distribution
UK manufacturer warranty
UK-based engineers
No import duty or customs charges
GBP pricing, UK VAT invoices

Return within 14 days

Installation services available Purchase orders: education customers only

2 Years Warranty Included

Key specifications

Connectors — Video In4 x HDMI Type A Female (Black); (HDMI TMDS compatible and without the support of FRL/VRR/ALLM/eARC. Max. input video resolution up to 3840 x 2160p60 including stereo audio signals only)

Connectors — USB PortUSB 3.2 Gen1 Type-C Male (Black); (USB-C to USB-C and USB-C to USB-A cable package included)

Connectors — Video Output1 x HDMI Type A Female (PGM Video, Black); 1 x HDMI Type A Female (Loop-Thru Video, Black)

Connectors — Audio Inputs1x unbalanced audio via 6.35mm TRS connectors (Black)

Connectors — Audio Outputs1x unbalanced audio via 6.35mm TRS connectors (Black)

Video ResolutionVideo input:; 720p50, 720p60, 1080p25, 1080p30, 1080p50, 1080p60; 4096 x 2160 25p/30p/60p, 3840 x 2160 25p/30p/60p (4:4:4), HDMI unencrypted

Audio Sampling16‐bit PCM encoded audio at 44.1KHz and 48KHz sampling rates

Minimum Hardware RequirementsPC/Mac:; CPU: Intel® i3 Dual Core 2.8Ghz or higher; RAM: 4GB or more; One USB-C interface or USB-A interface

All 15 specifications

Description

The ATEN UC3430 is a CAMLIVE PRO switcher: four HDMI inputs in, one USB-C video stream out. The host laptop sees a standard UVC/UAC webcam, so Teams, Zoom, OBS and the rest pick it up with no driver install and no capture card in a slot.

Also in this range:UC3310 Full specifications Datasheet Compare alternatives

Between the inputs and the output it does real production work — seamless switching with transitions, picture-in-picture and side-by-side layouts, chroma key and logo insertion, plus a built-in audio mixer that folds the four HDMI audio streams and a line-level input together for live narration or music.

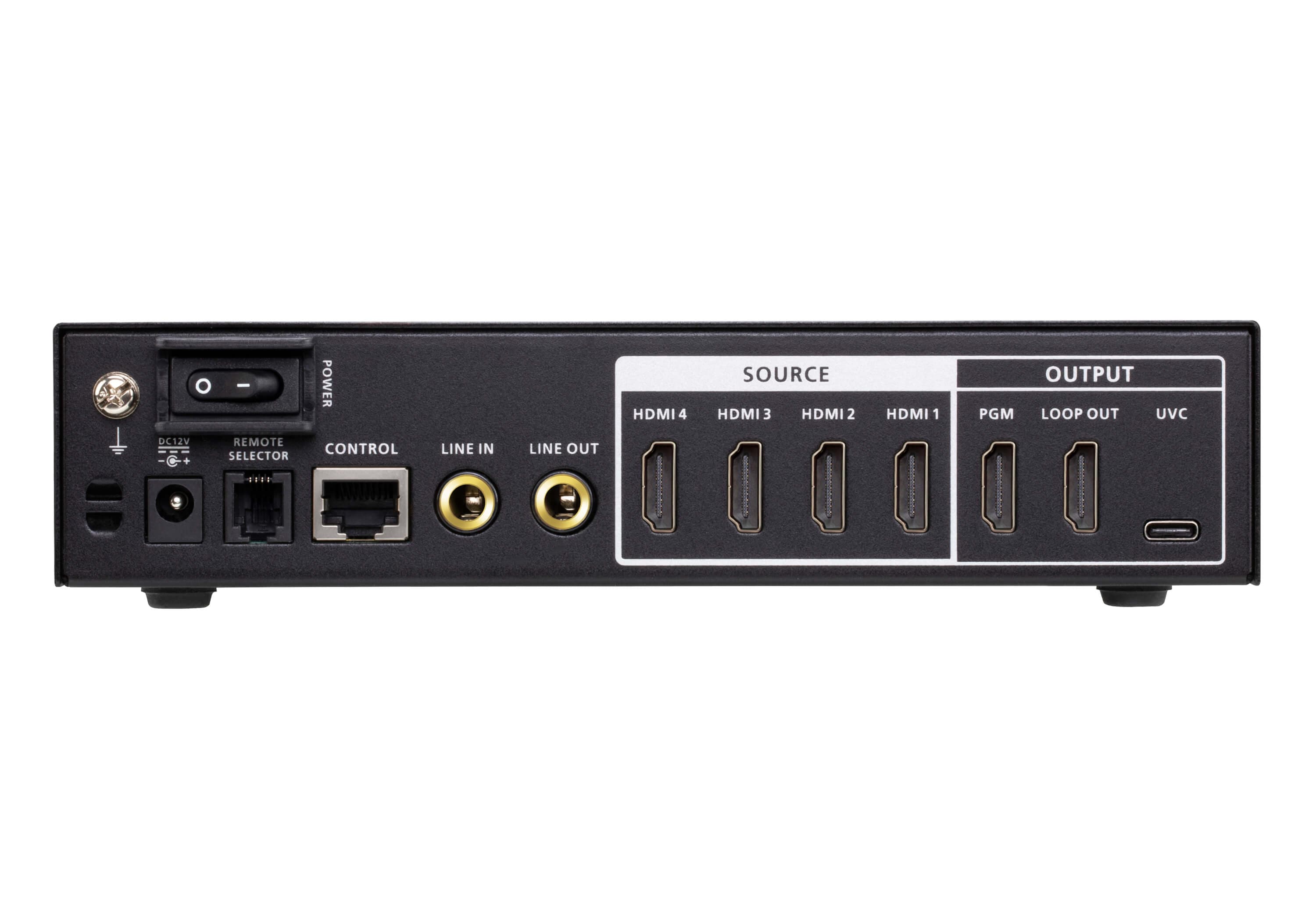

There are two HDMI outputs as well as the USB feed — a program output and a loop-through — for confidence monitoring at up to 4K@60, while the USB stream runs at up to 4K@30. Control is by front-panel buttons, by the ATEN OnAir Lite app, or over serial from an ATEN VK control system. Supplied to order from TopAV with ATEN's 36-month warranty.

Key features

Multiple output options

HDMI PGM / Loop-through at 4K @ 60 for preview and monitoring purposes – USB-C output 4K @ 30 for live broadcast on the Internet.

Built-in audio mixer

Mixes up to 4 HDMI audios and 1 line-level audio for adding live narration / music to the content.

ATEN OnAir Lite app

Users can remotely control device settings in real-time, including multiple AV source switching / mixing, content cropping / resizing, layout options (full screen / PiP / PbP / PoP), transitions, Chroma Key, and logo adding.

Technical specifications

Choose a section to view its specifications.

Display (1)

Video Resolution: Video input:; 720p50, 720p60, 1080p25, 1080p30, 1080p50, 1080p60; 4096 x 2160 25p/30p/60p, 3840 x 2160 25p/30p/60p (4:4:4), HDMI unencrypted

Connectivity (7)

Connectors — Video In: 4 x HDMI Type A Female (Black); (HDMI TMDS compatible and without the support of FRL/VRR/ALLM/eARC. Max. input video resolution up to 3840 x 2160p60 including stereo audio signals only)
Connectors — USB Port: USB 3.2 Gen1 Type-C Male (Black); (USB-C to USB-C and USB-C to USB-A cable package included)
Connectors — Video Output: 1 x HDMI Type A Female (PGM Video, Black); 1 x HDMI Type A Female (Loop-Thru Video, Black)
Connectors — Audio Inputs: 1x unbalanced audio via 6.35mm TRS connectors (Black)
Connectors — Audio Outputs: 1x unbalanced audio via 6.35mm TRS connectors (Black)
Control — USB: Support ATEN OnAir Lite App, App downloadable from Microsoft Store
OS Support: OnAir Lite App for Windows10 and above only

Audio (1)

Audio Sampling: 16‐bit PCM encoded audio at 44.1KHz and 48KHz sampling rates

Power & Physical (1)

Power Consumption: DC12V:20.49W:100BTU/h; Note:; ● The measurement in Watts indicates the typical power consumption of the device with no external loading.; ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

General (5)

Minimum Hardware Requirements: PC/Mac:; CPU: Intel® i3 Dual Core 2.8Ghz or higher; RAM: 4GB or more; One USB-C interface or USB-A interface
Control — Contact In: RS-232 connection via RJ45 interface
Control — RS-232: Flow Control: RTS/CTS, XON/XOFF; FIFO: 64 bytes; Baud rate: 50bps ~921.6Kbps; Stop bit: 2 stop bits (9600 8N2) OR 1 stop bit (1,1.5, 2); Parity: no parity; Signal: TxD, RxD, RTS, CTS, DTR, DSR, GND
System Requirements: Windows 10 and above with UVC/UAC v1.1 support; Mac OS X 10.13 and above with UVC/UAC support
Environmental — Humidity: 0 - 80% RH, Non-Condensing

Documents

ATEN UC3430 manufacturer datasheet (PDF)
