Home / Hubs & Converters / Radio Design Labs DB-BT1A Wall-Mounted Bluetooth® Audio Format-A Interface
Radio Design Labs

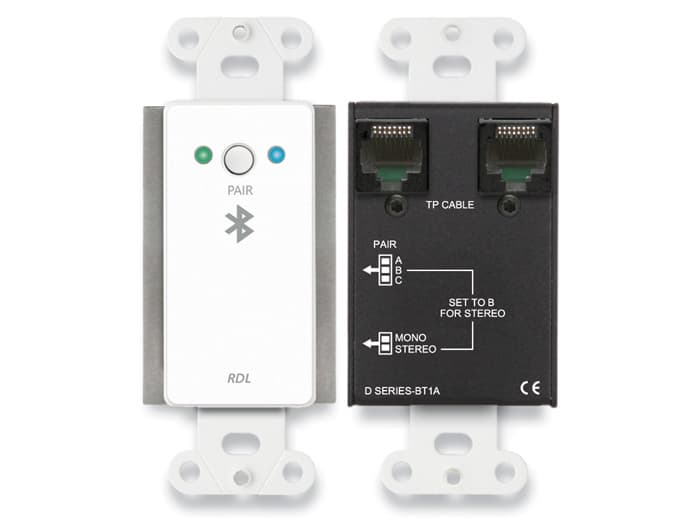

Radio Design Labs DB-BT1A Wall-Mounted Bluetooth® Audio Format-A Interface

£492.00inc. VAT
£410.00 ex. VAT
Out of stock
1
  • Visa
  • Mastercard
  • American Express
  • PayPal

Or 3 interest-free payments of £164.00 with PayPal Pay in 3.

4.5 on Trustpilot · 14 reviews

Seen it cheaper? We price-match genuine like-for-like quotes. How it works

Bought in the UK, backed in the UKWhy it matters →
  • Sourced through UK distribution
  • UK manufacturer warranty
  • UK-based engineers
  • No import duty or customs charges
  • GBP pricing, UK VAT invoices
Return within 14 days
Installation services availablePurchase orders: education customers only
7 Years Warranty Included
Key specifications
OutputRDL Format-A (RJ45)
Format-A InputRJ45 LOOP IN
Format-A Signal Pair UsedA, B, or C (summed mono mode, rear-panel switch-selectable); B and C (stereo mode, pair A pass through)
Frequency Response20 Hz to 20 kHz (± 0.5 dB)
THD+N< 0.1%
Noise below -20 dBFS< -70 dB
Crosstalk (channel to channel)< 70 dB
Audio Operating Levels-20 dBFS = +4 dBu (balanced), nominal
All 12 specifications

Description

The D SERIES-BT1A modules are Bluetooth audio receiving modules compatible with RDL® Format-A twisted pair receivers. When paired with a compatible Bluetooth enabled device, the module receives stereo audio from the Bluetooth source. The stereo signal is sent through two Format-A pairs to any RDL Format-A receiver. A stereo/mono switch set by the installer permits summed mono audio to be sent over one switch-selected pair to the Format-A receiver.

Full specifications Datasheet Compare alternatives

If set for stereo operation, an additional Format-A source (set to Pair A) may be daisy chained with the D SERIES-BT1A to a three-pair Format-A receiver. If set for mono operation, up to three D SERIES-BT1A modules may be daisy chained to a single three-pair Format-A receiver. Connections between Format-A modules and Format-A receivers use standard CATx cable with RJ45 connectors.

The D SERIES-BT1A modules are powered from the Format-A receiver. The installer can customize the module name and programming password through the Bluetooth connection using a smartphone, computer or tablet terminal program. These modules feature studio-quality circuits and analog filters to provide audio performance exceeding expectations from consumer interface technologies. High performance, simplicity of operation and efficiency of installation make RDL the best value in professional Bluetooth interfaces.

Recommended Stereo Format-A receiver: TX-TPR2A

Key features:

• Bluetooth Audio Input for Installed Sound System

• Intuitive Single Button Pairing with LED Status Indication

• Special Software Not Required for Module Setup

• Customize the Module ID Name and Programming Password through the Bluetooth Connection

• Sends Received Bluetooth Audio to RDL Format-A Receivers

• Mono Summed or Stereo Audio Input Mode is Switch-Selectable on Rear Panel

• Rear-Panel Switch Selects which RJ45 Pair (A, B or C) is Fed in Mono Summed Mode

• Daisy-Chain up to Three D SERIES-BT1A modules to One Format-A Receiver in Mono Mode

• Remotely Powered through Twisted Pair Cable

• Signal and Power Pair Pass-Through on RJ45 Jacks Requirements:

• To complete a Bluetooth setup using the D SERIES-BT1A Wall-Mounted Bluetooth® Audio Format-A Interface, at least one compatible Format-A receiver and its recommended power supply must be used.

Manufacturer part number DB-BT1A.

Key features

Output

RDL Format-A (RJ45)

Format-A Input

RJ45 LOOP IN

Format-A Signal Pair Used

A, B, or C (summed mono mode, rear-panel switch-selectable); B and C (stereo mode, pair A pass through)

Frequency Response

20 Hz to 20 kHz (± 0.5 dB)

THD+N

< 0.1%

Noise below -20 dBFS

< -70 dB

Crosstalk (channel to channel)

< 70 dB

Audio Operating Levels

-20 dBFS = +4 dBu (balanced), nominal

Technical specifications

Connectivity
OutputRDL Format-A (RJ45)
Format-A InputRJ45 LOOP IN
Format-A Signal Pair UsedA, B, or C (summed mono mode, rear-panel switch-selectable); B and C (stereo mode, pair A pass through)
Audio
Audio Operating Levels-20 dBFS = +4 dBu (balanced), nominal
Power & Physical
Dimensions1.73" (4.39 cm) W; 4.11" (10.44 cm) H; 1.62" (4.11 cm) D
Shipping Weight0.45 lb.
General
Frequency Response20 Hz to 20 kHz (± 0.5 dB)
THD+N< 0.1%
Noise below -20 dBFS< -70 dB
Crosstalk (channel to channel)< 70 dB
Ambient Operating Environment0° C to 40° C
Power Requirement24 Vdc @ 100 mA (through RJ45)

Documents

Radio Design Labs DB-BT1A Wall-Mounted Bluetooth® Audio Format-A Interface — RDL Datasheet
