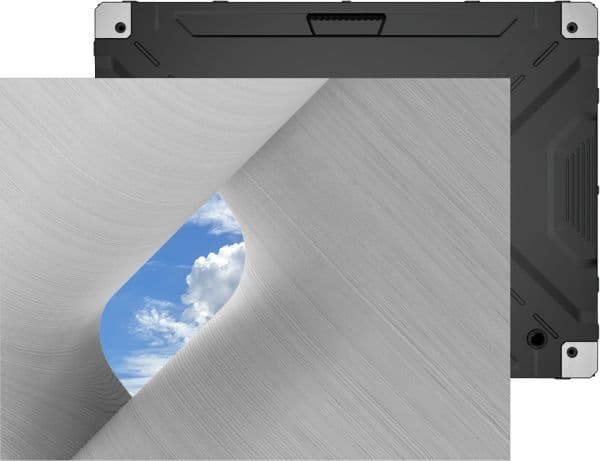

ViewSonic LDC031-180 31.5" P1.8 Direct View LED Cabinet
4K UHD600 cd/m²31.5"
£3,851.02inc. VAT
Out of stock
Home / LED Displays / Sony ZRD-VS25FB Crystal LED CAPRI 2.5mm Video Wall Cabinet (Brompton Tessera SX40)
Sony
Sony ZRD-VS25FB Crystal LED CAPRI 2.5mm Video Wall Cabinet (Brompton Tessera SX40)
£3,848.34inc. VAT
£3,206.95 ex. VAT
Out of stock
1
- Visa
- Mastercard
- American Express
- PayPal
Seen it cheaper? We price-match genuine like-for-like quotes. How it works
Bought in the UK, backed in the UKWhy it matters →
- Sourced through UK distribution
- UK manufacturer warranty
- UK-based engineers
- No import duty or customs charges
- GBP pricing, UK VAT invoices
Key specifications
Pixel Pitch2.50 mm
Resolution (per cabinet)200 x 200
LED TypeSMD
Brightness (max)1,500 cd/m2
Contrast Ratio (0 lx)More than 1,000,000:1
Viewing Angle (H/V)160 / 160 degrees
Refresh Rate7,680 Hz
Colour GamutApprox. 82% BT.2020, approx. 98% DCI-P3
Description
The ZRD-VS25FB is a cabinet from Sony's Crystal LED CAPRI range, built for virtual production rather than signage. It is a 500 x 500 mm square cabinet on a 2.5 mm pitch, 200 x 200 pixels, running at a 7,680 Hz refresh rate - the number that matters on a shooting stage, because it is what stops the wall banding or flickering in camera at high shutter speeds.
Brightness peaks at 1,500 cd/m2 and colour coverage is approximately 98% of DCI-P3 and 82% of BT.2020, so virtual sets reproduce faithfully and interactive lighting off the wall lands close to the intended colour. This version is driven by the Brompton Tessera SX40 processor.
CAPRI is designed to go up and come down quickly. Cabinets self-stack or self-hang up to 14 high (about 7 m), weigh roughly 10 kg each and are 93 mm deep, and maintenance is quick enough to keep on-set downtime short. Sony positions CAPRI as part of a wider virtual production ecosystem alongside its Cinema Line cameras and Virtual Production Tool Set.
Key features
7,680 Hz refresh rate
High refresh keeps the wall clean in camera at high shutter speeds, which is the whole point of an LED volume.
Wide colour for virtual sets
Approximately 98% DCI-P3 and 82% BT.2020 coverage for faithful reproduction of virtual environments and interactive light.
Self-stacking and self-hanging
Up to 14 cabinets (about 7 m) can stack or hang without additional structure, so a volume goes up fast.
Brompton Tessera SX40 workflow
Built to be driven by the Brompton Tessera SX40 processor, fitting straight into an established virtual production signal chain.
Technical specifications
Pixel Pitch2.50 mm
Resolution (per cabinet)200 x 200
LED TypeSMD
Brightness (max)1,500 cd/m2
Contrast Ratio (0 lx)More than 1,000,000:1
Viewing Angle (H/V)160 / 160 degrees
Refresh Rate7,680 Hz
Colour GamutApprox. 82% BT.2020, approx. 98% DCI-P3
Supported Display ControllerBrompton Tessera SX40
Signal Interface1 in / 1 out (2 x RJ45)
Power RequirementsAC 100-240 V, 50/60 Hz
Power Consumption (max)164 W per cabinet
Dimensions (W x H x D)500 x 500 x 93 mm
WeightApprox. 10 kg
Max. Self-Stacking / Self-Hanging14 cabinets (7 m)
Complete your setup
Optional extras that fit this product. Tick anything you need and it joins the same basket — or add this product on its own from the buy box above.
Choose a Mount
Video Conferencing
Professional Installation
Want it installed by our AV experts? We offer professional on-site installation including mounting, cable management, and system configuration.
Your Configuration
Sony ZRD-VS25FB Crystal LED CAPRI 2.5mm Video Wall Cabinet (Brompton Tessera SX40) × 1£3,848.34
Total£3,848.34
inc. VAT
1
This item is currently out of stock. Please check back soon or contact us.
Documents
Delivery & returns
Estimated delivery 8 Sept - 12 Sept. UK mainland delivery only. Some large or made-to-order items carry longer lead times, shown on the product page.
Unused items in original packaging can be returned within 14 days of delivery — see the returns policy for how business and consumer returns differ. Faulty items are covered under manufacturer warranty and by your statutory rights.
Bought in the UK, backed in the UK
This item is sourced through UK distribution and ships to you from within the UK, so the order never crosses a customs border.
The manufacturer warranty is honoured here in the UK. If something fails, you deal with us, not with an overseas seller in another time zone.
Our own UK-based engineers install, commission and support what we sell, and can attend site when a system needs hands on it.
Delivered within the UK mainland, so there is no import duty, customs charge or courier handling fee waiting for you on delivery.
Prices are in pounds sterling with proper UK VAT invoices, and purchase orders are accepted from approved education accounts: no currency conversion and no surprises at the door.
Payment & security
Pay securely by card. Education customers can apply for a 30-day purchase order account.
Schools, colleges, sixth forms, universities and multi-academy trusts can order on invoice, with no card payment required. Purchase orders and credit terms are for education customers only.
All transactions are processed over an encrypted, secure checkout.
Alternative products
Closest matches in this category on price and capability. Not sure which way to go? Our technical team will talk it through.
Samsung
Samsung IF015R 1.5mm IFR Series Indoor LED Cabinet
800 cd/m²
£3,833.34inc. VAT
Out of stock
Sony

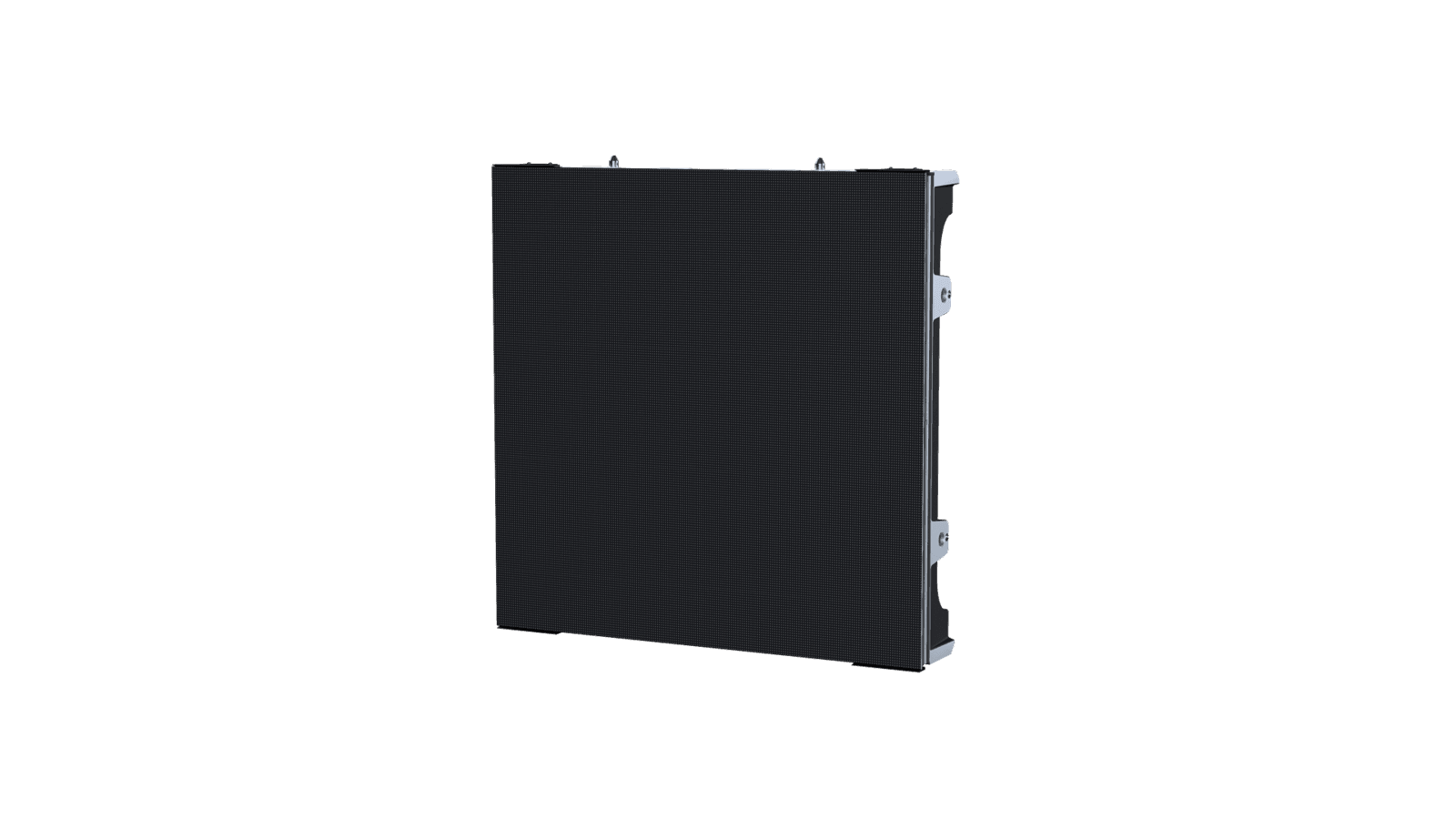

Sony ZRD-VS25FM Crystal LED CAPRI 2.5mm Video Wall Cabinet (Megapixel HELIOS)
200 x 2001,500 cd/m²
£3,692.34inc. VAT
Out of stock
ViewSonic

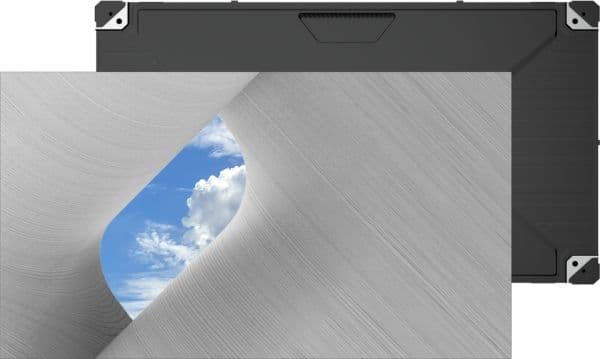

ViewSonic LDC027-120 27-inch P1.2 All-in-One Direct View LED Display Cabinet
