Home / Webcams / Logitech Reach Overhead Content Camera - Clamp Mount

Logitech

Logitech Reach Overhead Content Camera - Clamp Mount

Name: Logitech Reach Overhead Content Camera - Clamp Mount
Brand: Logitech
SKU: 960-001685
Price: 345.35 GBP
Availability: OutOfStock

£345.35inc. VAT

£287.79 ex. VAT

Out of stock

Visa
Mastercard
American Express
PayPal

Or 3 interest-free payments of £115.12 with PayPal Pay in 3.

Independently reviewed on Trustpilot

Seen it cheaper? We price-match genuine like-for-like quotes. How it works

Bought in the UK, backed in the UKWhy it matters →

Sourced through UK distribution
UK manufacturer warranty
UK-based engineers
No import duty or customs charges
GBP pricing, UK VAT invoices

Return within 14 days

Installation services available Purchase orders: education customers only

2 Years Warranty Included

Key specifications

Desktop Surface View Area @max zoom out30 x 55 cm

Desktop Surface View Area @max zoom in7 x 13 cm

Magnification/Zoom4.3X lossless

Independent Lateral Adjustmentsingle handed with 32.3 cm of horizontal travel and 360º panning rotation

Independent Vertical AdjustmentMultipoint push button to engage 31 cm of vertical travel

Head Adjustment360º rotation on camera ring interface, 180º tilt and 360º rotation on ball joint interface

Max Video Resolution1080p/60 fps in MJPEG

LensPremium Full HD, Glass lens, f/2.0 - focal length 3.7 mm and 78° DFOV

All 21 specifications

Description

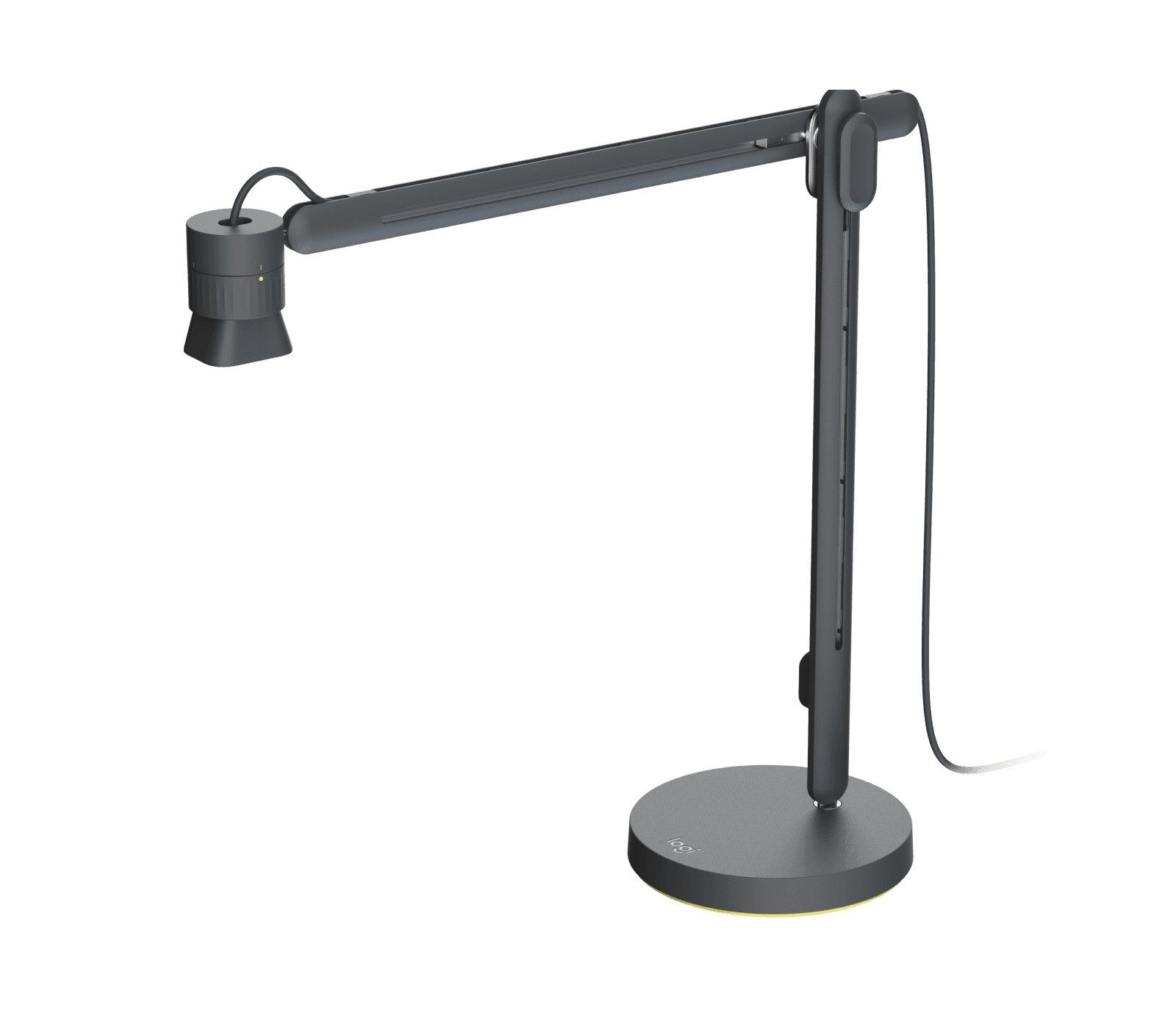

Logitech Reach is a content camera for showing things rather than people. The camera head sits on an articulated arm that moves with one hand - 32.3 cm of horizontal travel, 31 cm of vertical travel, 360 degree panning and a ball joint at the head - so a presenter can swing it over a desk, a whiteboard sketch, a circuit board or a pair of hands and put it back without re-rigging anything.

Full specifications Datasheet Compare alternatives

The optics are built for close work. At maximum zoom out the camera covers a 30 x 55 cm desk area; at maximum zoom in it resolves a 7 x 13 cm patch, with 4.3x lossless magnification in between. Video is 1080p at 60 fps in MJPEG over USB-C, and a dual omnidirectional microphone with a noise reduction filter picks up the person talking over what they are showing.

Reach appears to the room system as a second USB camera, so it works with the video platform already in place rather than needing its own application. Logitech ships it in two mount options; this is the version supplied with the desk clamp, which fixes to the edge of a table and leaves the work surface clear.

Supplied by TopAV. Manufacturer part number 960-001685.

Key features

Built for showing objects

30 x 55 cm coverage zoomed out, down to a 7 x 13 cm area zoomed in, with 4.3x lossless magnification

One-handed positioning

32.3 cm horizontal and 31 cm vertical travel, 360 degree pan and a ball joint at the camera head

1080p/60 over USB-C

MJPEG video with a dual omnidirectional microphone and noise reduction filter

Works as a second camera

Presents to the room system as a standard USB camera alongside the main conferencing camera

Technical specifications

Choose a section to view its specifications.

Display (1)

Max Video Resolution: 1080p/60 fps in MJPEG

Connectivity (1)

USB-C Cable with 91.5 cm of length available: Extension cables can be used to provide additional range but may impact max video quality

Power & Physical (7)

Learn more about logitech streamcam for in-depth features and specifications: https://logitech.com/streamcam
Logitech Reach with Base mount Dimensions above surface in compact mode: Height 59 cm, Width 19 cm, Depth 19 cm
Logitech Reach with Base mount Dimensions above surface in desktop mode: Height 53 cm, Width 55 cm, Depth 19 cm
Logitech Reach with Clamp mount Dimensions above surface in compact mode: Height 59 cm, Width 10 cm, Depth 10 cm
Logitech Reach with Clamp mount Dimensions above surface in desktop mode: Height 53 cm, Width 55 cm, Depth 10 cm
Logitech Reach with Base mount Weight: 4.05 kg
Logitech Reach with Clamp mount Weight: 1.5 kg

General (12)

Desktop Surface View Area @max zoom out: 30 x 55 cm
Desktop Surface View Area @max zoom in: 7 x 13 cm
Magnification/Zoom: 4.3X lossless
Independent Lateral Adjustment: single handed with 32.3 cm of horizontal travel and 360º panning rotation
Independent Vertical Adjustment: Multipoint push button to engage 31 cm of vertical travel
Head Adjustment: 360º rotation on camera ring interface, 180º tilt and 360º rotation on ball joint interface
Lens: Premium Full HD, Glass lens, f/2.0 - focal length 3.7 mm and 78° DFOV
Capture: Dual omnidirectional mic with noise reduction filter
Logitech Reach with Base mount Surface texture: Non marring, grip layer on bottom of base
Logitech Reach with Clamp mount Max Edge thickness: 5.6 cm
Logitech Reach with Clamp mount Recommended under table clearance for clamping: 5.4 cm
Logitech Reach with Clamp mount Surface texture: Non marring, grip layer on both clamping surfaces

Documents

Logitech Reach datasheet (PDF) - covers both the base-mount and clamp-mount versions; this listing is the clamp mount. Part numbers printed are the AMR/AP SKUs (960-001673 clamp), not the EMEA SKU 960-001685
