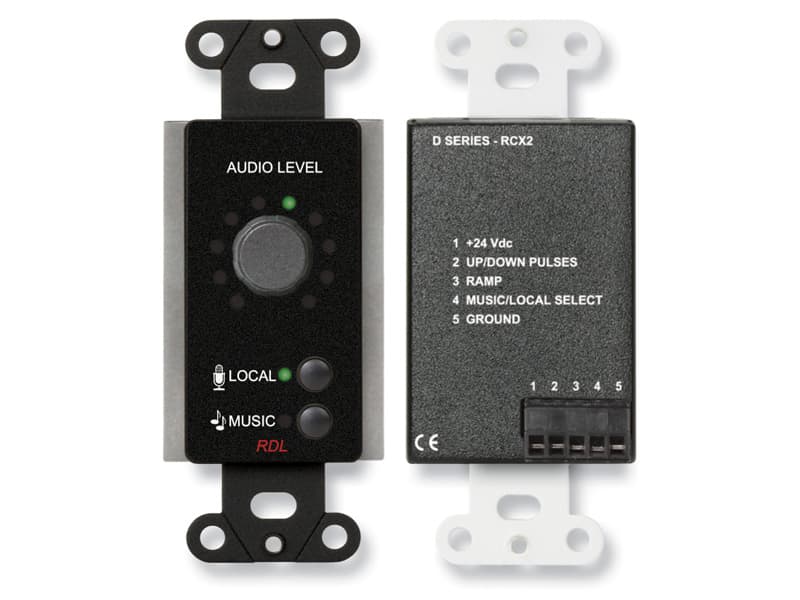

Radio Design Labs DB-RCX2 Room Control for RCX-5C Room Combiner
£403.20inc. VAT
Out of stock
Kramer
Kramer RC-208/EU-80/86(W) 8-Button I/O Control Keypad (EU, UK, US)
£424.80inc. VAT
£354.00 ex. VAT
Out of stock
1
- Visa
- Mastercard
- American Express
- PayPal
Or 3 interest-free payments of £141.60 with PayPal Pay in 3.
4.5 on Trustpilot · 14 reviewsSeen it cheaper? We price-match genuine like-for-like quotes. How it works
Bought in the UK, backed in the UKWhy it matters →
- Sourced through UK distribution
- UK manufacturer warranty
- UK-based engineers
- No import duty or customs charges
- GBP pricing, UK VAT invoices
3 Years Warranty Included
Key specifications
Inputs - 1 IR SensorFor IR learning
Outputs - 2 IROn 2-pin terminal block connectors
Ports - 1 EthernetOn an RJ-45 female connector for device configuration, control and firmware upgrade
Ports - 2 RS-232On 3-pin terminal block connectors
Ports - 1 RS-485On a 3-pin terminal block connector
Ports - 1 K-NETOn a 4-pin terminal block connector
Ports - 2 RelaysOn 2-pin terminal block connectors (30V DC, 1A max)
Ports - 1 GPI/OOn a 2-pin terminal block connector.
Description
RC-208 is a compact 8-button control keypad that fits US, European and UK standard 1-gang wall junction boxes. Easy to deploy, RC-208 fits decoratively within a room design. It is perfectly suited for use as a user interface keypad within a Kramer Control system. Using K-Config, tap into the rich, built-in I/O interfaces that enable this keypad to be used as a flexible, standalone room controller. In this way, it is ideal for classroom and meeting room control, providing end-user convenient control of complex multimedia systems and other room facilities such as screens, lighting and shades. Multiple keypads can be linked together side-by-side or at a distance, via a single K-NET™ cable carrying both power and communication, providing uniform design and user experience. Manufacturer part number RC-208/EU-80/86(W).
Key features
Clear and Customizable User Interface - RGB-color, tactile feedback
Clear and Customizable User Interface - RGB-color, tactile feedback, backlit buttons with custom labeled, removable button caps, allowing simple and intuitive end-user and guest control over facility deployed devices and systems.
Flexible Room Control - Control any room device via LAN connections
Flexible Room Control - Control any room device via LAN connections, multiple RS-232 and RS-485 serial ports, and various IR, relay and general purpose I/O built-in device ports. Connect the keypad to an IP network with additional control gateways interfacing with remote controlled devices, for extending control across large space facilities.
Expandable Control System - According to arising demands, easily
Expandable Control System - According to arising demands, easily expands to be part of a larger control system, or coupled-operation with auxiliary keypads, via either LAN or K-NET™ single cable connection delivering both power and communication.
Simple Control Programming - Using K-Config software. Leverage the
Simple Control Programming - Using K-Config software. Leverage the power of Kramer's highly customizable, flexible and user-friendly software, to easily program complex control scenarios of Pro-AV, Lighting, and other room and facility controlled devices.
Easy and Cost-effective Installation - Compactly fits into standard
Easy and Cost-effective Installation - Compactly fits into standard US, EU and UK 1-gang in-wall box size, allows decorative integration with room deployed user interfaces such as electrical switches.
Technical specifications
Connectivity
Inputs - 1 IR SensorFor IR learning
Outputs - 2 IROn 2-pin terminal block connectors
Ports - 1 EthernetOn an RJ-45 female connector for device configuration, control and firmware upgrade
Ports - 2 RS-232On 3-pin terminal block connectors
Ports - 1 RS-485On a 3-pin terminal block connector
Ports - 1 K-NETOn a 4-pin terminal block connector
Ports - 2 RelaysOn 2-pin terminal block connectors (30V DC, 1A max)
Ports - 1 GPI/OOn a 2-pin terminal block connector.
Ports - 1 Mini USBOn a female mini USB-B connector for configuration and firmware upgrade
Power & Physical
Enclosure - Size1 Gang wall plate
General
DEFAULT IP SETTINGSDHCP Enabled.
Power - Source12V DC 2A power supply
Power - Consumption12V DC, 780mA
Environmental Conditions - Operating Temperature0° to +40°C (32° to 104°F)
Environmental Conditions - Storage Temperature-40° to +70°C (-40° to 158°F)
Environmental Conditions - Humidity10% to 90%, RHL non-condensing
REGULATORY - SafetyCE, UL
REGULATORY - EnvironmentalRoHs, WEEE
Enclosure - CoolingConvection ventilation
Documents
Delivery & returns
Estimated delivery 9 Sept - 13 Sept. UK mainland delivery only. Some large or made-to-order items carry longer lead times, shown on the product page.
Unused items in original packaging can be returned within 14 days of delivery — see the returns policy for how business and consumer returns differ. Faulty items are covered under manufacturer warranty and by your statutory rights.
Bought in the UK, backed in the UK
This item is sourced through UK distribution and ships to you from within the UK, so the order never crosses a customs border.
The manufacturer warranty is honoured here in the UK. If something fails, you deal with us, not with an overseas seller in another time zone.
Our own UK-based engineers install, commission and support what we sell, and can attend site when a system needs hands on it.
Delivered within the UK mainland, so there is no import duty, customs charge or courier handling fee waiting for you on delivery.
Prices are in pounds sterling with proper UK VAT invoices, and purchase orders are accepted from approved education accounts: no currency conversion and no surprises at the door.
Payment & security
Pay securely by card. Education customers can apply for a 30-day purchase order account.
Schools, colleges, sixth forms, universities and multi-academy trusts can order on invoice, with no card payment required. Purchase orders and credit terms are for education customers only.
All transactions are processed over an encrypted, secure checkout.
Alternative products
Closest matches in this category on price and capability. Not sure which way to go? Our technical team will talk it through.
Radio Design Labs
Radio Design Labs DS-RCX2 Room Control for RCX-5C Room Combiner
£403.20inc. VAT
Out of stock
Nexmosphere

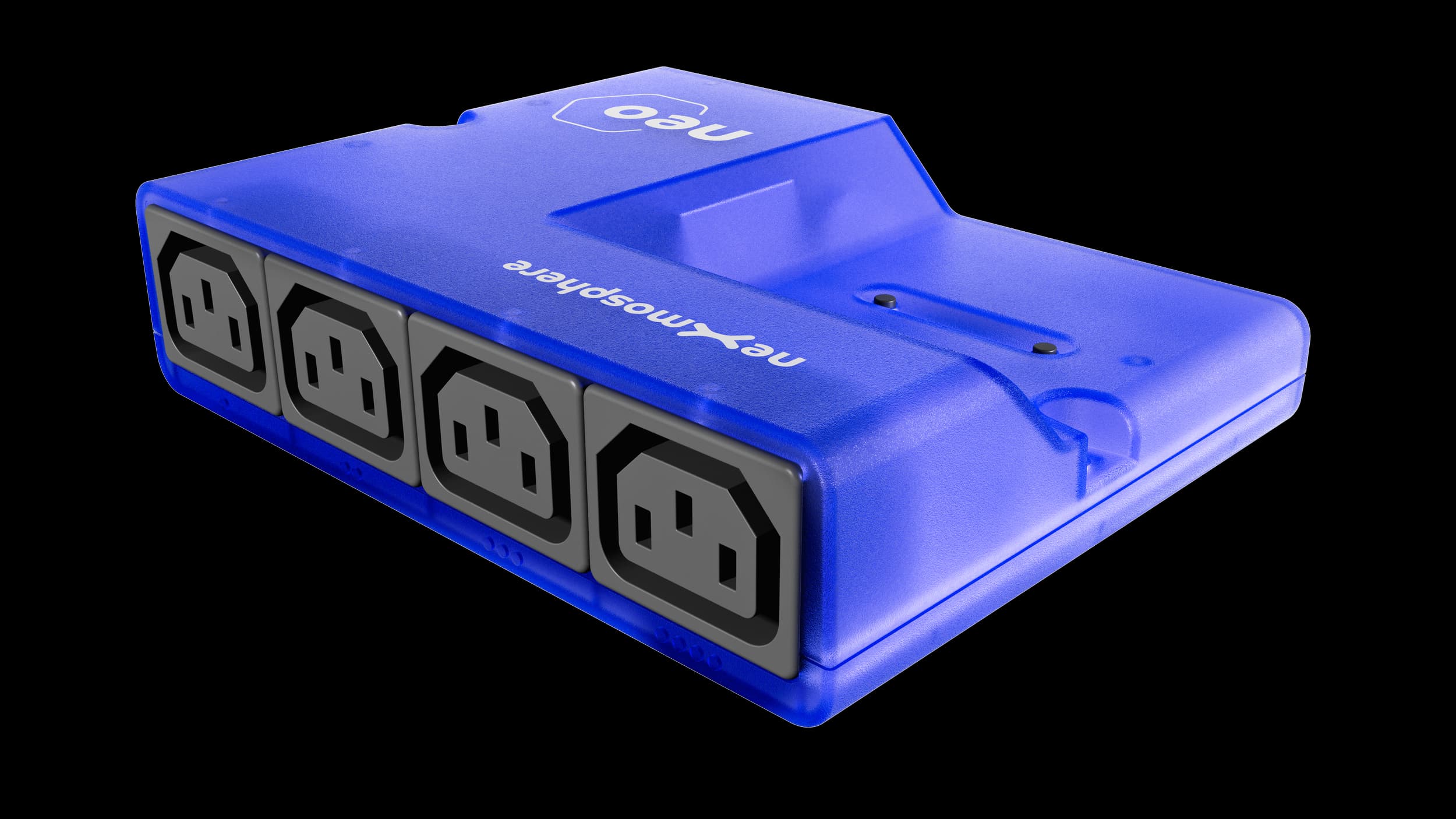

Nexmosphere NEO640 4-Port Metered Power Controller for Digital Signage
