UK stockKramer
Kramer MV-4X 4 Window Multi-viewer/4x2 Seamless Matrix Switcher
£2,043.60inc. VAT
£1,703.00 ex. VAT
Out of stock
1
- Visa
- Mastercard
- American Express
- PayPal
Seen it cheaper? We price-match genuine like-for-like quotes. How it works
Bought in the UK, backed in the UKWhy it matters →
- Sourced through UK distribution
- UK manufacturer warranty
- UK-based engineers
- No import duty or customs charges
- GBP pricing, UK VAT invoices
3 Years Warranty Included
Key specifications
Inputs - 4 HDMIOn a female HDMI connector
Outputs - 1 HDMIOn a female HDMI connector
Outputs - 1 HDBTOn an RJ-45 connector
Outputs - 1 Balanced Stereo AudioOn a 5-pin terminal block
Ports - 1 IR INOn an RCA connector for IR tunneling
Ports - 1 IR outOn an RCA connector for IR tunneling
Ports - 1 RS-232On a 3-pin terminal block for RS-232 tunneling
Ports - EthernetOn an RJ-45 port
Description
MV-4X is a high-performance HDMI matrix switcher with integrated scaling technology and multi-windowing options. It is an ideal solution for monitoring or displaying multiple sources simultaneously for use in control rooms, conference rooms or classrooms. Video resolutions up to 4K@60Hz 4:4:4 and LPCM audio up to 7.1 channels and 192kHz are supported on both inputs and outputs. In addition, MV-4X is fully compatible with the HDCP 1.x and 2.3 standards. The product offers 2 outputs - HDMI and HDBT. Users can choose to display any of the four HDMI sources individually, in full screen, or in a variety of multi-window modes that include quad mode, PiP, and PoP on both outputs. Alternatively, MV-4X offers a seamless (zero-time video cut) 4x2 matrix switcher option. The product also supports chroma-keying and includes a logo overlay feature. You can control and manage the MV-4X, including the input/window routing, position, and size via the front panel OSD buttons, Ethernet (with embedded webpages), and RS-232. Manufacturer part number MV-4X.
Key features
High Performance Multi-Viewer - 18G 4K HDMI product with 4 HDMI
High Performance Multi-Viewer - 18G 4K HDMI product with 4 HDMI inputs and HDBT and HDMI outputs that supports HDMI up to 4K@50/60Hz 4:4:4 and HDBT up to 4K@50/60Hz 4:2:0.
Zero-Time Video Cuts - Connect up to four HDMI sources, an HDMI and
Zero-Time Video Cuts - Connect up to four HDMI sources, an HDMI and an HDBT sink, and seamlessly switch between them.
HDMI Support - HDR10, CEC (for outputs only), 4K@60Hz, Y420, BT.2020
HDMI Support - HDR10, CEC (for outputs only), 4K@60Hz, Y420, BT.2020, Deep Color (for inputs only), x.v.Color™, 7.1 PCM, Dolby TrueHD, DTS-HD, as specified in HDMI 2.0.
Content Protection - Supports HDCP 2.3.
Content Protection - Supports HDCP 2.3.
Chroma Keying Support - select to key the video input using a
Chroma Keying Support - select to key the video input using a uniform-colored background.
Includes numerous filters and algorithms that eliminate picture
Includes numerous filters and algorithms that eliminate picture artifacts.
Matrix Switching - Truly seamless zero time 4x2 switching in Matrix
Matrix Switching - Truly seamless zero time 4x2 switching in Matrix mode.
Multiple Display Options - Display any of 4 HDMI sources
Multiple Display Options - Display any of 4 HDMI sources individually, full screen, with seamless switching in Matrix mode. Or choose to display the sources using multi-window modes such as fully customizable standard views like PiP (Picture in Picture) and PoP (Picture outside of Picture) as well as Quad-window modes.
4 Preset Memory Locations - Supports storage of multi-window
4 Preset Memory Locations - Supports storage of multi-window arrangements as a preset for later use.
Auto Layout Support - Auto-window mode that automatically changes the
Auto Layout Support - Auto-window mode that automatically changes the number of visible windows based on the number of live sources.
Technical specifications
Choose a section to view its specifications.
Display (3)
- Video - Max Resolution
- HDMI: 4K@60Hz (4:4:4)
- Control - Front Panel
- Input, output and window buttons, operation mode buttons, menu buttons, resolution reset and panel lock buttons
- Indication LEDs - Front Panel
- Output and window indication LEDs
Connectivity (9)
- Inputs - 4 HDMI
- On a female HDMI connector
- Outputs - 1 HDMI
- On a female HDMI connector
- Outputs - 1 HDBT
- On an RJ-45 connector
- Outputs - 1 Balanced Stereo Audio
- On a 5-pin terminal block
- Ports - 1 IR IN
- On an RCA connector for IR tunneling
- Ports - 1 IR out
- On an RCA connector for IR tunneling
- Ports - 1 RS-232
- On a 3-pin terminal block for RS-232 tunneling
- Ports - Ethernet
- On an RJ-45 port
- Ports - 1 USB
- On a type A USB port
Audio (5)
- Analog Audio - Max Vrms Level
- 15dBu
- Analog Audio - Impedance
- 500Ω
- Analog Audio - Frequency Response
- 20Hz - 20kHz @ +/-0.3dB
- Analog Audio - S/N Ratio
- >-88dB, 20Hz - 20kHz, at unity gain (unweighted)
- Analog Audio - THD + Noise
- <0.003%, 20 Hz - 20 kHz, at unity gain
Power & Physical (1)
- Video - Max Bandwidth
- 18Gbps (6Gbps per graphic channel)
Certifications & Warranty (1)
- Video - Compliance
- HDMI 2.0 and HDCP 2.3
General (6)
- Video - Extension Range
- Up to 40m (130ft): At 4K@60Hz 4:2:0
- Power - Consumption
- 12V DC, 1.9A
- Power - Source
- 12V DC, 5A
- Environmental Conditions - Operating Temperature
- 0° to +40°C (32° to 104°F)
- Environmental Conditions - Storage Temperature
- -40° to +70°C (-40° to 158°F)
- Environmental Conditions - Humidity
- 10% to 90%, RHL non-condensing
Documents
Delivery & returns
Estimated delivery 24 Oct - 28 Oct. UK mainland delivery only. Some large or made-to-order items carry longer lead times, shown on the product page.
Unused items in original packaging can be returned within 14 days of delivery — see the returns policy for how business and consumer returns differ. Faulty items are covered under manufacturer warranty and by your statutory rights.
Bought in the UK, backed in the UK
This item is sourced through UK distribution and ships to you from within the UK, so the order never crosses a customs border.
The manufacturer warranty is honoured here in the UK. If something fails, you deal with us, not with an overseas seller in another time zone.
Our own UK-based engineers install, commission and support what we sell, and can attend site when a system needs hands on it.
Delivered within the UK mainland, so there is no import duty, customs charge or courier handling fee waiting for you on delivery.
Prices are in pounds sterling with proper UK VAT invoices, and purchase orders are accepted from approved education accounts: no currency conversion and no surprises at the door.
Payment & security
Pay securely by card. Education customers can apply for a 30-day purchase order account.
Schools, colleges, sixth forms, universities and multi-academy trusts can order on invoice, with no card payment required. Purchase orders and credit terms are for education customers only.
All transactions are processed over an encrypted, secure checkout.
Alternative products
Closest matches in this category on price and capability. Not sure which way to go? Our technical team will talk it through.
AVer

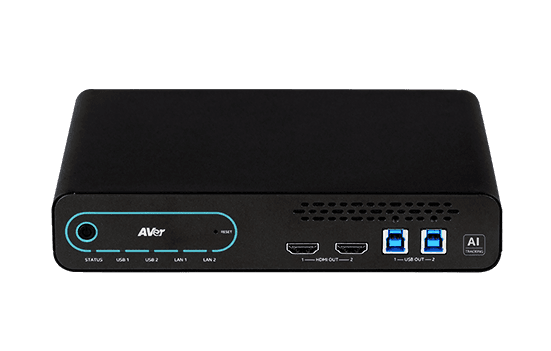

AVer MT300 Matrix Tracking Box
