Home / Switches / ATEN RCMHD101U 1-Local / Remote Shared Access Single Port 4K HDMI KVM over IP Switch

ATEN

ATEN RCMHD101U 1-Local / Remote Shared Access Single Port 4K HDMI KVM over IP Switch

Name: ATEN RCMHD101U 1-Local / Remote Shared Access Single Port 4K HDMI KVM over IP Switch
Brand: ATEN
SKU: RCMHD101U
Price: 2118.89 GBP
Availability: OutOfStock

£2,118.89inc. VAT

£1,765.74 ex. VAT

Out of stock

Visa
Mastercard
American Express
PayPal

4.5 on Trustpilot · 14 reviews

Seen it cheaper? We price-match genuine like-for-like quotes. How it works

Bought in the UK, backed in the UKWhy it matters →

Sourced through UK distribution
UK manufacturer warranty
UK-based engineers
No import duty or customs charges
GBP pricing, UK VAT invoices

Call 01342 580255

Return within 14 days

Installation services available Purchase orders: education customers only

2 Years Warranty Included

Key specifications

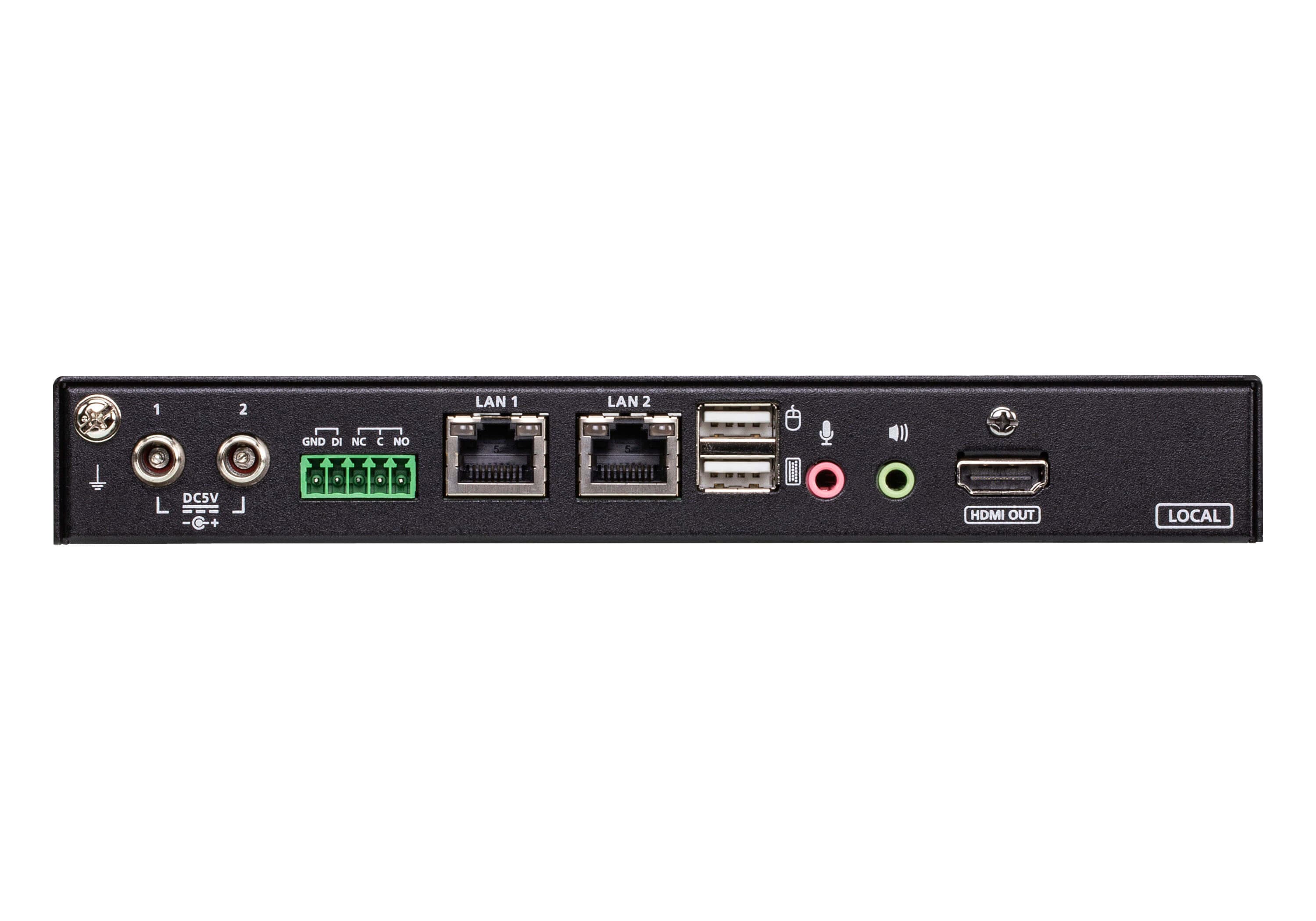

Connectors — Console Ports2 x USB Type A Female (White); 1 x HDMI Female (Black); 1 x Mini Stereo Jack Female (Green); 1 x Mini Stereo Jack Female (Pink)

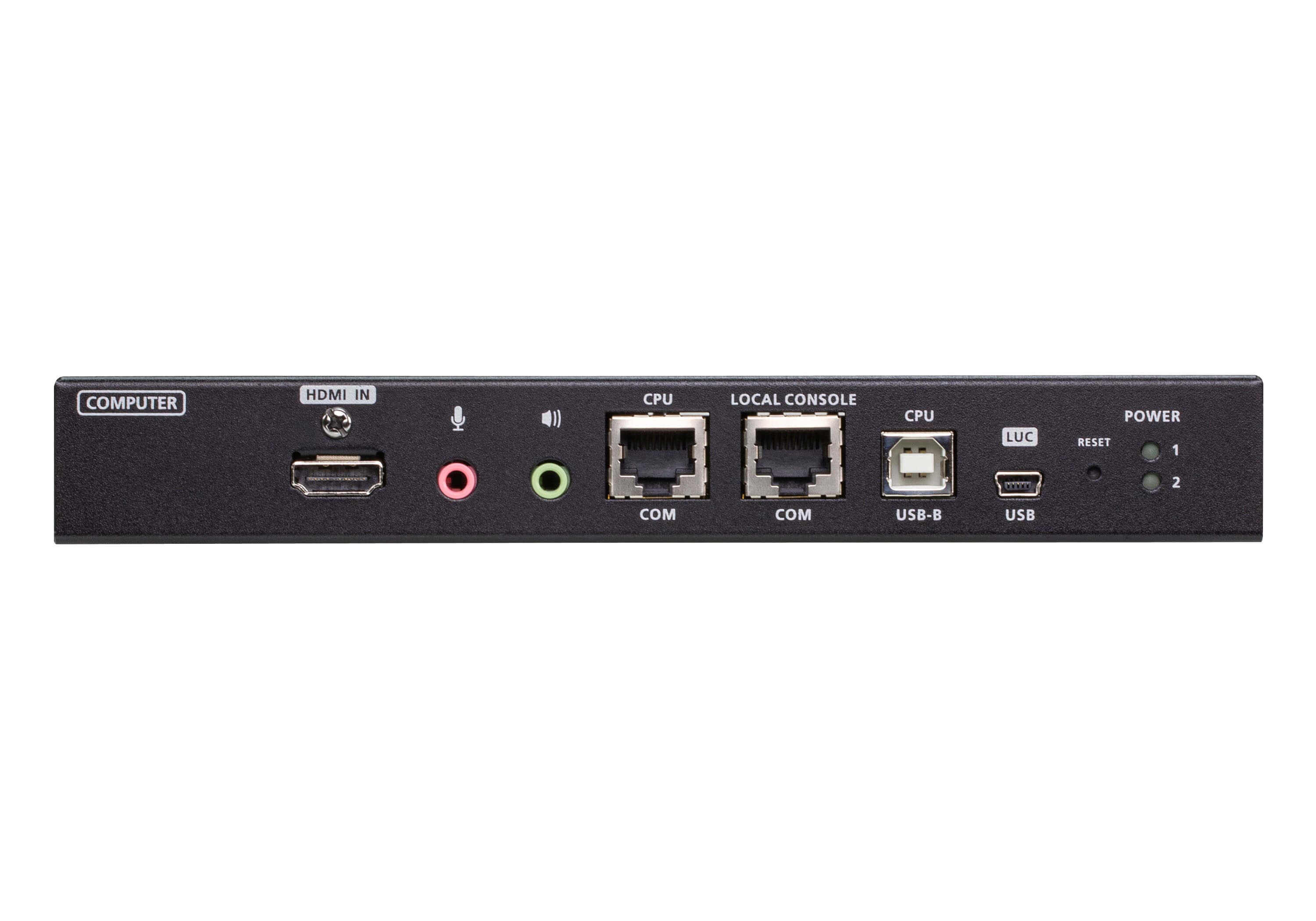

Connectors — KVM Ports1 x USB Type B Female (White); 1 x HDMI Female (Black); 1 x Mini Stereo Jack Female (Green); 1 x Mini Stereo Jack Female (Pink)

Connectors — LAN Ports2 x RJ-45 Female

Connectors — Virtual Media1 x USB Mini-B Female

Connectors — Power2 x DC Jack

Connectors — Serial2 x RJ-45 Female

Connectors — Control1 x 6-pin Mini-DIN Female (Purple)

Switches — Reset1 x Semi-recessed pushbutton (Black)

All 15 specifications

Description

The ATEN RCMHD101U is a single-port KVM over IP unit: it attaches to one machine and publishes that machine's keyboard, video and mouse over the network, so a workstation, industrial PC or medical imaging console can be driven from anywhere on the LAN without a full KVM matrix behind it.

Full specifications Datasheet Compare alternatives

Because it is part of ATEN's RCM family it is aimed at production and monitoring work rather than casual remote desktop. It pairs with the RCMMS management software so several units can be watched at once in a panel array, and it keeps a local console live alongside the remote session for the operator standing at the machine.

Video is handled at up to 4096 x 2160 @ 30 Hz. Supplied to order from TopAV with ATEN's 36-month warranty.

Call 01342 580255

Key features

OSD title bar notification

Instantly notifies users upon urgent events.

Local console priority

Gives the local console the priority over remote consoles to access the connected server.

Supports multiplatform server environments

Windows, Mac, Sun, Linux and VT100 based serial devices.

High video resolution

Up to 4096 x 2160 @ 30 Hz for both local and remote consoles.

Technical specifications

Connectivity

Connectors — Console Ports2 x USB Type A Female (White); 1 x HDMI Female (Black); 1 x Mini Stereo Jack Female (Green); 1 x Mini Stereo Jack Female (Pink)

Connectors — KVM Ports1 x USB Type B Female (White); 1 x HDMI Female (Black); 1 x Mini Stereo Jack Female (Green); 1 x Mini Stereo Jack Female (Pink)

Connectors — LAN Ports2 x RJ-45 Female

Connectors — Virtual Media1 x USB Mini-B Female

Connectors — Power2 x DC Jack

Connectors — Serial2 x RJ-45 Female

Connectors — Control1 x 6-pin Mini-DIN Female (Purple)

Power & Physical

Power ConsumptionDC5V:10.07W:48BTU/h; Note:; ● The measurement in Watts indicates the typical power consumption of the device with no external loading.; ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

General

Switches — Reset1 x Semi-recessed pushbutton (Black)

Emulation — Keyboard / MouseUSB

LEDs — Power2 (Green)

VideoLocal console - 4096 x 2160 @ 30 Hz; Remote console - 4096 x 2160

Environmental — Operating Temperature0 - 50°C

Environmental — Storage Temperature-20 - 60°C

Environmental — Humidity0 - 80% RH, Non-condensing

Call 01342 580255

Documents

ATEN manufacturer datasheet (PDF) - series spec sheet that covers the RCMHD101U alongside related models - archived copy captured 2025-12-01; ATEN has since issued a minor revision
