Kramer
Kramer KIT-400 4K Auto-Switcher/Scaler Kit over Long-Reach HDBaseT
£1,006.80inc. VAT
£839.00 ex. VAT
Out of stock
1
- Visa
- Mastercard
- American Express
- PayPal
Or 3 interest-free payments of £335.60 with PayPal Pay in 3.
4.5 on Trustpilot · 14 reviewsSeen it cheaper? We price-match genuine like-for-like quotes. How it works
Bought in the UK, backed in the UKWhy it matters →
- Sourced through UK distribution
- UK manufacturer warranty
- UK-based engineers
- No import duty or customs charges
- GBP pricing, UK VAT invoices
3 Years Warranty Included
Key specifications
TRANSMITTER Inputs/OutputsINPUTS
RECEIVER Inputs/OutputsINPUTS
Video - Max Data Rate (on the HDMI ports)KIT-400R: 18Gbps, KIT-400T: 10.2Gbps
Video - Max Resolution (on HDMI ports)KIT-400R: 4K@60Hz (4:4:4), KIT-400T: 4K@60Hz (4:2:0)
Video - HDMI Support4K60, CEC, xvYCC color
Video - Content ProtectionHDCP 1.4 and 2.2 (KIT-400R)
Video - KIT-400R Output Resolutions640x480@60Hz, 800x600@60Hz, 1024x768@60Hz, 1280x768@60Hz, 1280x800@60Hz, 1280x1024@60Hz, 1360x768@60Hz, 1400x1050@60Hz, 1440x900@60Hz, 1600x1200@60Hz, 1680x1050@60Hz, 1920x1200@60Hz RB, 2560x1600@60Hz
Extension Line - Up to 40m (130ft)At 4K@60Hz (4:2:0)
Description
KIT-400 is a high-performance auto-switcher/scaler kit for 4K HDMI™ and VGA over long-reach HDBaseT. The kit includes the KIT-400T transmitter/switcher and the KIT-400R receiver/scaler. The KIT-400T transmitter converts the user-selected input signal into the transmitted HDBaseT signal. The KIT-400R receiver receives the HDBaseT signal, converts it to HDMI and up- or down-scales the picture to match the resolution of the HDMI monitor. KIT-400 extends video signals to up to 40m (130ft) over CAT copper cables at up to 4K@60Hz (4:2:0) 24bpp video resolution and provides even further reach for lower HD video resolutions. Manufacturer part number KIT-400.
Key features
Simple and Powerful Maestro Room Automation - Intuitive user
Simple and Powerful Maestro Room Automation - Intuitive user interface enables you to fully automate your meeting room elements. Configure lights, shades, devices and more to be activated by an extensive range of triggers, including scheduling, input/output connectivity, routing, and button pressing. By minimizing user intervention, Maestro room automation saves meeting prep time and minimizes human error before presentations.
HDMI Support - HDCP 1.4 / 2.2. 4K60, CEC, xvYCC color (on input).
HDMI Support - HDCP 1.4 / 2.2. 4K60, CEC, xvYCC color (on input).
PoC (Power over Cable) Enabled - Power only one of the units. The
PoC (Power over Cable) Enabled - Power only one of the units. The other unit of the receiver/transmitter pair is powered via the HDBaseT extension.
2 Local and 1 Remote Source - With auto-switching of the live source
2 Local and 1 Remote Source - With auto-switching of the live source to the HDMI display on the output at the receiver. The transmitter has an HDMI and a VGA input, with a dedicated audio jack, and there is an additional HDMI input on the receiver side.
Audio De-embedding - Output the HDMI audio to a balanced stereo
Audio De-embedding - Output the HDMI audio to a balanced stereo output on the receiver side, and an unbalanced stereo output on the transmitter side.
Bidirectional RS-232 Extension - Serial interface data flows in both
Bidirectional RS-232 Extension - Serial interface data flows in both directions, allowing data transmission and device control.
I-EDIDPro™ Kramer Intelligent EDID Processing™ - Intelligent EDID
I-EDIDPro™ Kramer Intelligent EDID Processing™ - Intelligent EDID handling, processing and pass-through algorithm that ensures Plug and Play operation.
Easy Remote Device Control - Control devices connected to KIT-400
Easy Remote Device Control - Control devices connected to KIT-400 from the user-friendly Kramer Aware interface on the KIT-400 embedded webpages. You can also access the interface using the Kramer Aware app on a compatible Kramer touch panel.
Convenient Unit Control and Configuration Options - Local control via
Convenient Unit Control and Configuration Options - Local control via front panel source and output switching buttons, DIP-switches for configuring connection priority, and OSD menu. Distance control via user-friendly embedded web pages via Ethernet, Protocol 3000 API, RS-232 serial commands transmitted by a PC, touch screen system or other serial controller and relay switches.
Easy, Cost-effective Maintenance - Local firmware upgrade via USB
Easy, Cost-effective Maintenance - Local firmware upgrade via USB connector.
Technical specifications
Display
Video - Max Resolution (on HDMI ports)KIT-400R: 4K@60Hz (4:4:4), KIT-400T: 4K@60Hz (4:2:0)
Video - KIT-400R Output Resolutions640x480@60Hz, 800x600@60Hz, 1024x768@60Hz, 1280x768@60Hz, 1280x800@60Hz, 1280x1024@60Hz, 1360x768@60Hz, 1400x1050@60Hz, 1440x900@60Hz, 1600x1200@60Hz, 1680x1050@60Hz, 1920x1200@60Hz RB, 2560x1600@60Hz
Connectivity
TRANSMITTER Inputs/OutputsINPUTS
RECEIVER Inputs/OutputsINPUTS
Video - Max Data Rate (on the HDMI ports)KIT-400R: 18Gbps, KIT-400T: 10.2Gbps
Video - HDMI Support4K60, CEC, xvYCC color
Power & Physical
Enclosure - SizeMegaTOOLS®
Certifications & Warranty
STANDARDS COMPLIANCE - SafetyCE
STANDARDS COMPLIANCE - EnvironmentalFCC
General
Video - Content ProtectionHDCP 1.4 and 2.2 (KIT-400R)
Extension Line - Up to 40m (130ft)At 4K@60Hz (4:2:0)
Extension Line - Up to 70m (230ft)At full HD (1080p@60Hz)
Extended RS-232 - Baud Rate300 to 115200
Power - Source12V DC
Power - Combined Consumption of Both Units2A (1 unit connected to 12V DC + 1 unit powered by PoC)
User Interface - ControlInput selection buttons, DIP-switches, remote contact-closure switches, relay switches. Kramer API via RS-232 serial commands transmitted by a PC, touch screen system or other serial controller, embed
User Interface - IndicatorsPower, link, input selection LEDs.
Environmental Conditions - Operating Temperature0° to +40°C (32° to 104°F)
Environmental Conditions - Storage Temperature-40° to +70°C (-40° to 158°F)
Environmental Conditions - Humidity10% to 90%, RHL non-condensing
Enclosure - TypeAluminum
Enclosure - CoolingConvection ventilation
Documents
Delivery & returns
Estimated delivery 9 Sept - 13 Sept. UK mainland delivery only. Some large or made-to-order items carry longer lead times, shown on the product page.
Unused items in original packaging can be returned within 14 days of delivery — see the returns policy for how business and consumer returns differ. Faulty items are covered under manufacturer warranty and by your statutory rights.
Bought in the UK, backed in the UK
This item is sourced through UK distribution and ships to you from within the UK, so the order never crosses a customs border.
The manufacturer warranty is honoured here in the UK. If something fails, you deal with us, not with an overseas seller in another time zone.
Our own UK-based engineers install, commission and support what we sell, and can attend site when a system needs hands on it.
Delivered within the UK mainland, so there is no import duty, customs charge or courier handling fee waiting for you on delivery.
Prices are in pounds sterling with proper UK VAT invoices, and purchase orders are accepted from approved education accounts: no currency conversion and no surprises at the door.
Payment & security
Pay securely by card. Education customers can apply for a 30-day purchase order account.
Schools, colleges, sixth forms, universities and multi-academy trusts can order on invoice, with no card payment required. Purchase orders and credit terms are for education customers only.
All transactions are processed over an encrypted, secure checkout.
Alternative products
Closest matches in this category on price and capability. Not sure which way to go? Our technical team will talk it through.
Kramer

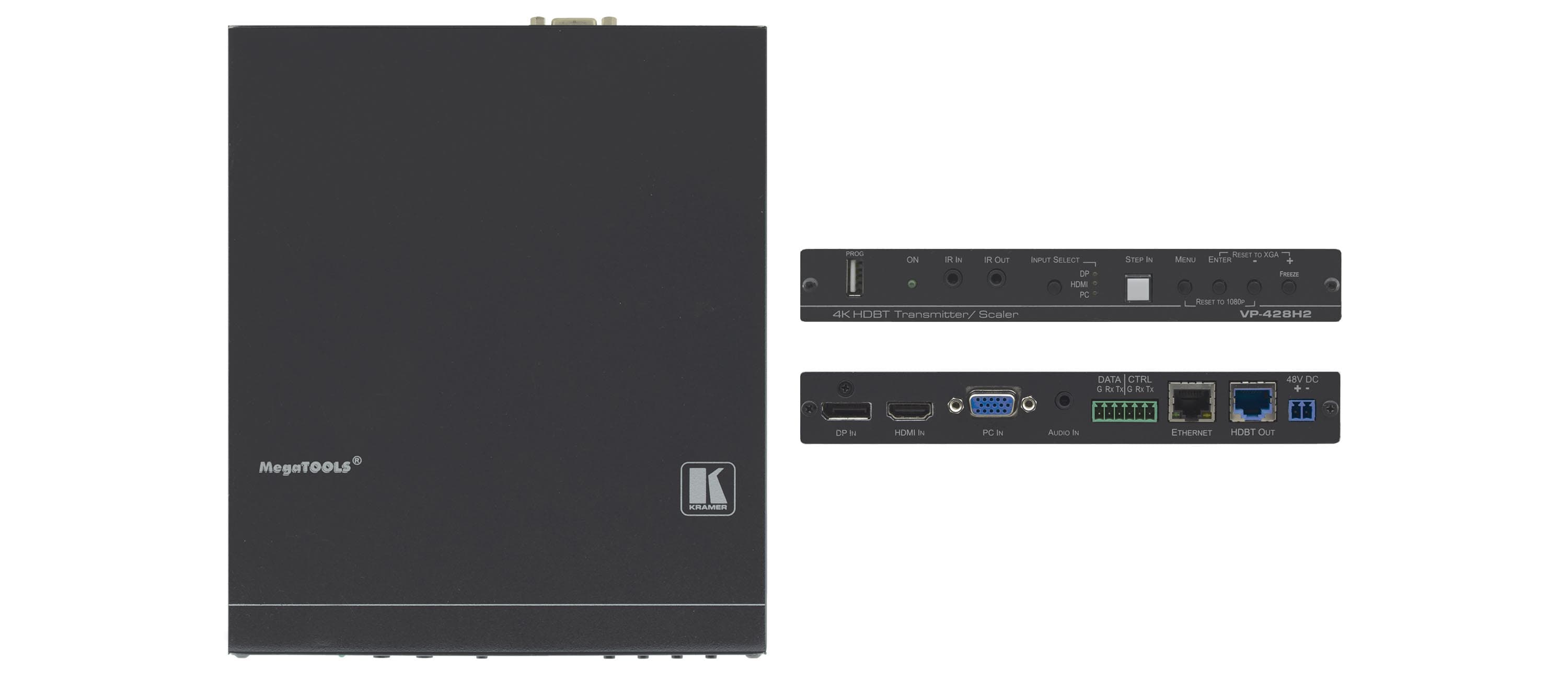

Kramer VP-428H2 DisplayPort, HDMI & VGA Auto Switcher/Scaler and PoE Provider over HDBaseT
