Home / Fixed Wall Mounts / Chief LWM3X1U Fusion Large 3x1 Menu Board Wall Mount

Chief

Chief LWM3X1U Fusion Large 3x1 Menu Board Wall Mount

Name: Chief LWM3X1U Fusion Large 3x1 Menu Board Wall Mount
Brand: Chief
SKU: LWM3X1U
Price: 1033.20 GBP
Availability: OutOfStock

£1,033.20inc. VAT

£861.00 ex. VAT

Out of stock

Seen it cheaper? We price-match genuine like-for-like quotes. How it works

Bought in the UK, backed in the UKWhy it matters →

Sourced through UK distribution
UK manufacturer warranty
UK-based engineers
No import duty or customs charges
GBP pricing, UK VAT invoices

Call 01342 580255

Return within 14 days

Installation services available Purchase orders: education customers only

10 Years Warranty Included

Key specifications

Array configuration3x1

Number of displays3

OrientationLandscape

ApplicationWall

ColourBlack

Solution typeUniversal

Weight capacity56.7 kg

Overall dimensions425 x 3983 x 147 mm

All 19 specifications

Description

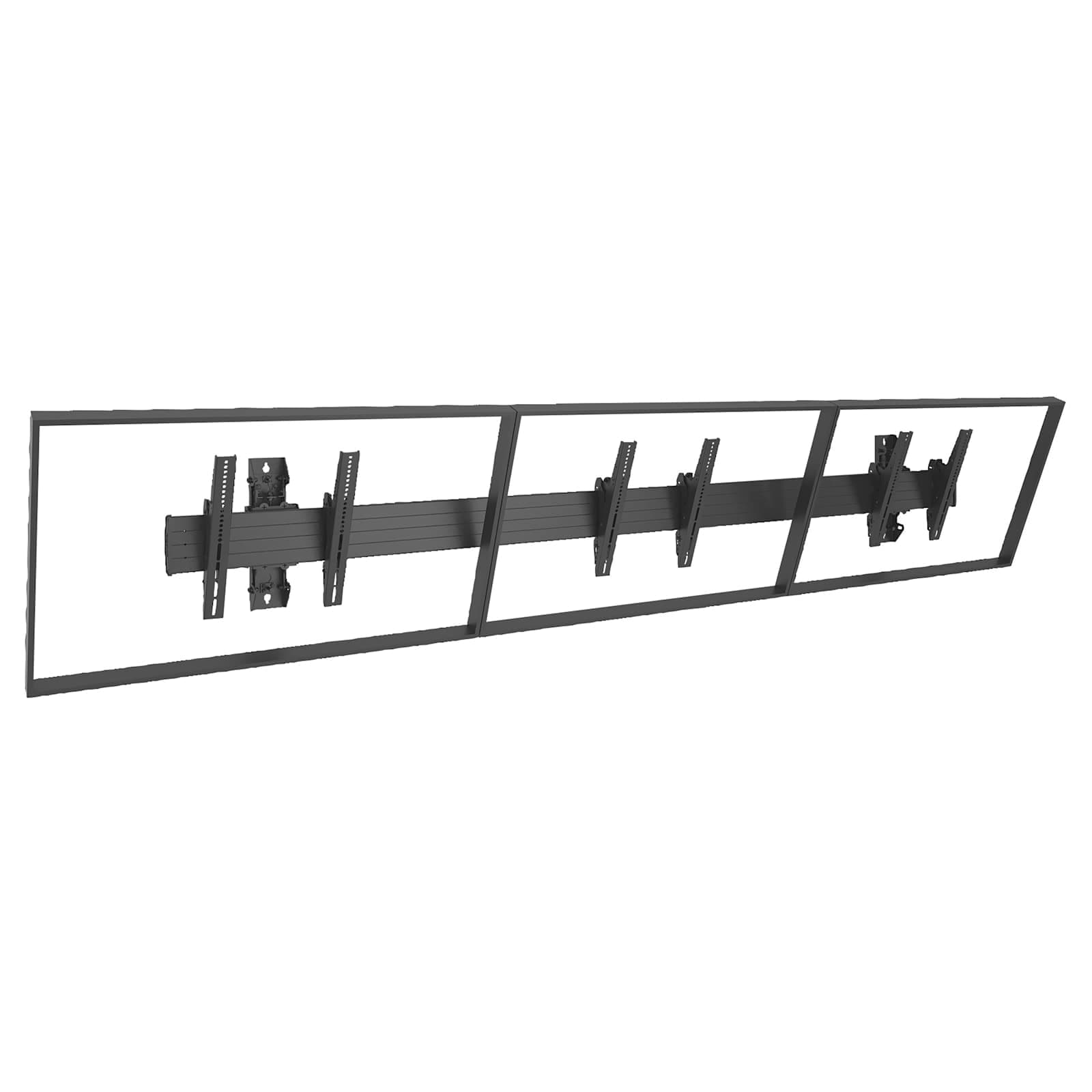

The Chief LWM3X1U mounts three landscape displays in a row on one continuous wall rail - the familiar three-panel menu board above a counter, or a wide information display in a reception or waiting area. Overall dimensions are 425 mm high by 3983 mm wide, with a minimum depth of 147 mm from the wall.

Also in this range:LWM4X1U Full specifications Datasheet Compare alternatives

Each display position is rated to 125 lb (56.7 kg) and tilts from 0 to -20 degrees, so content can be angled towards viewers standing beneath it. The mount is height adjustable and supports lateral shift, which lets the three panels be levelled and evenly spaced after the rail is fixed.

The unit is finished in black, is UL Listed and ships at 27.7 kg. Chief does not publish a TAA compliance claim for this model.

Supplied by TopAV. Manufacturer part number LWM3X1U.

Call 01342 580255

Key features

Three displays in a row

Single continuous wall rail carries a 3 wide by 1 high landscape menu board.

56.7 kg capacity

Rated weight capacity of 125 lb (56.7 kg).

Overall dimensions

425 mm high x 3983 mm wide x 147 mm deep at minimum depth.

Downward tilt

Each display position tilts from 0 to -20 degrees for viewing from below.

Height adjustable with lateral shift

Panels can be levelled and evenly spaced after the rail is fixed.

UL Listed

Certified UL Listed; finished in black.

Technical specifications

Display

Number of displays3

Power & Physical

ColourBlack

Weight capacity56.7 kg

Overall dimensions425 x 3983 x 147 mm

Width398.3 cm

Height42.5 cm

Depth20.3 cm

Minimum depth14.7 cm

Shipping weight27.7 kg

Certifications & Warranty

CertificationsUL Listed

General

Array configuration3x1

OrientationLandscape

ApplicationWall

Solution typeUniversal

Tilt0 / -20 degrees

AdjustabilityTilt, height adjustable, lateral shift

TAA compliantNo

Special featuresMulti-display

Mount typeWall menu board mount

Call 01342 580255

Documents

Chief LWM3X1U installation manual (PDF) published by Legrand AV - LWM Series Instruction Manual.
