Home / Ceiling Mounts / Chief LCM3X1UP Fusion Large Ceiling Mounted 3x1 Menu Board Mount - Portrait

Chief

Chief LCM3X1UP Fusion Large Ceiling Mounted 3x1 Menu Board Mount - Portrait

Name: Chief LCM3X1UP Fusion Large Ceiling Mounted 3x1 Menu Board Mount - Portrait
Brand: Chief
SKU: LCM3X1UP
Price: 1228.80 GBP
Availability: OutOfStock

£1,228.80inc. VAT

£1,024.00 ex. VAT

Out of stock

Seen it cheaper? We price-match genuine like-for-like quotes. How it works

Bought in the UK, backed in the UKWhy it matters →

Sourced through UK distribution
UK manufacturer warranty
UK-based engineers
No import duty or customs charges
GBP pricing, UK VAT invoices

Call 01342 580255

Return within 14 days

Installation services available Purchase orders: education customers only

10 Years Warranty Included

Key specifications

Array configuration3x1

Number of displays3

OrientationPortrait

ApplicationCeiling

ColourBlack

Solution typeUniversal

Typical screen size40-55 in

Weight capacity56.7 kg

All 18 specifications

Description

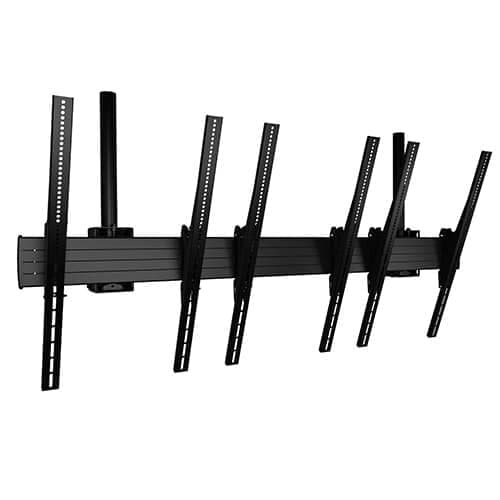

The Chief LCM3X1UP suspends three portrait displays in a row from the ceiling, giving a tall three-panel menu board in spaces where nothing can be fixed to a wall. Portrait orientation suits menu listings, departure boards and directory content that reads vertically.

Also in this range:LCM2X1UP Full specifications Datasheet Compare alternatives

Universal interface brackets accept VESA patterns from 100 mm to 800 mm wide by any height, cover screens from 40 to 55 in and are rated to 125 lb (56.7 kg). Each display tilts from +5 to -20 degrees for viewing from below, and 2 in of micro-adjustment at the structural intersection points lets the three panels be aligned to each other after hanging.

A ceiling plate and extension column are required and ordered separately. The mount is finished in black, is UL Listed and is TAA compliant.

Supplied by TopAV. Manufacturer part number LCM3X1UP.

Call 01342 580255

Key features

Three portrait displays

3 wide by 1 high portrait array suspended from a ceiling column.

56.7 kg capacity

Rated weight capacity of 125 lb (56.7 kg).

40-55 in displays

Typical screen size range 40 in to 55 in (1016 mm to 1397 mm).

Portrait VESA range

Accepts mounting patterns from 100 mm to 800 mm wide by any height.

Tilt and micro-adjustment

Tilts +5 to -20 degrees, with 2 in of micro-adjustment at structural intersection points.

Column ordered separately

Requires a Chief ceiling plate and extension column, sold separately.

Technical specifications

Display

Number of displays3

Typical screen size40-55 in

Power & Physical

ColourBlack

Weight capacity56.7 kg

VESA mounting pattern100 - 800 mm wide x any height

Shipping dimensions278.1 x 33 x 30.5 cm

Shipping weight28.1 kg

Certifications & Warranty

CertificationsUL Listed, TAA

General

Array configuration3x1

OrientationPortrait

ApplicationCeiling

Solution typeUniversal

Tilt+5 / -20 degrees

Adjustments2 in micro-adjustment at structural intersection points

AdjustabilityTilt, height adjustable

TAA compliantYes

Special featuresMulti-display

Mount typeCeiling menu board mount

Call 01342 580255

Documents

Chief LCM3X1UP installation manual (PDF) published by Legrand AV - LCM3X1U LCM3X1UP Installation Manual.
