Home / Ceiling Mounts / Chief LCM3X1UM Fusion Large Ceiling Mounted 3x1 Modular Menu Board Mount - Landscape
Chief

Chief LCM3X1UM Fusion Large Ceiling Mounted 3x1 Modular Menu Board Mount - Landscape

£1,228.80inc. VAT
£1,024.00 ex. VAT
Out of stock
1

Seen it cheaper? We price-match genuine like-for-like quotes. How it works

Bought in the UK, backed in the UKWhy it matters →
  • Sourced through UK distribution
  • UK manufacturer warranty
  • UK-based engineers
  • No import duty or customs charges
  • GBP pricing, UK VAT invoices
Call 01342 580255
Return within 14 days
Installation services availablePurchase orders: education customers only
10 Years Warranty Included
Key specifications
Array configuration3x1
Number of displays3
OrientationLandscape
ApplicationCeiling
Solution typeUniversal
Weight capacity56.7 kg
Total weight capacity170.1 kg
VESA mounting patternAny width x 100 - 400 mm
All 16 specifications

Description

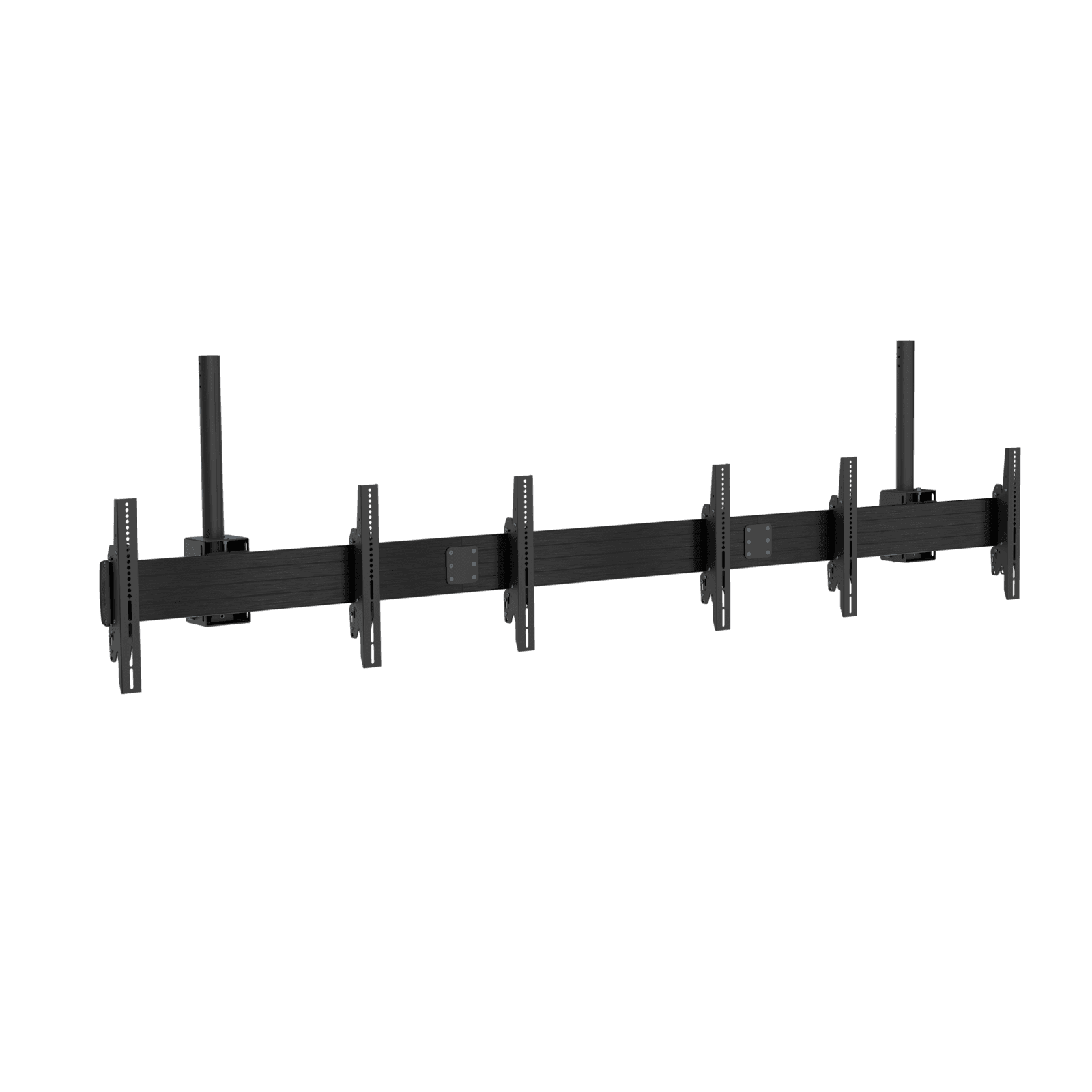

The Chief LCM3X1UM is the modular build of Chief's large ceiling menu board mount. The rail is made up of sections joined by splice plates rather than a single fixed length, which makes a three-display landscape row easier to handle on site and easier to extend later.

Full specifications Datasheet Compare alternatives

Each display position is rated to 125 lb (56.7 kg) with a maximum of 375 lb (170.1 kg) across the whole assembly. Universal interface brackets accept any mounting width by 100 to 400 mm in height, and displays tilt from +5 to 0 degrees. Minimum depth from the ceiling column is 19.8 cm.

Two ceiling columns carry the assembly; ceiling plates and extension columns are ordered separately. The mount ships at 21.8 kg in a compact 915 x 458 x 229 mm carton. Chief does not publish a TAA compliance claim for this model.

Supplied by TopAV. Manufacturer part number LCM3X1UM.

Call 01342 580255

Key features

Modular rail construction

Rail sections join with splice plates, simplifying handling on site and allowing the row to be extended.

Three landscape displays

3 wide by 1 high landscape menu board carried on two ceiling columns.

56.7 kg per display, 170.1 kg total

Rated to 125 lb (56.7 kg) maximum per display and 375 lb (170.1 kg) maximum overall.

Flexible VESA range

Accepts any mounting width by 100 to 400 mm in height.

Tilt

Displays tilt from +5 to 0 degrees.

Compact shipping

Ships at 48 lb (21.8 kg) in a 915 x 458 x 229 mm carton.

Technical specifications

Display
Number of displays3
Power & Physical
Weight capacity56.7 kg
Total weight capacity170.1 kg
VESA mounting patternAny width x 100 - 400 mm
Minimum depth19.8 cm
Shipping dimensions915 x 458 x 229 mm
Shipping weight21.8 kg
General
Array configuration3x1
OrientationLandscape
ApplicationCeiling
Solution typeUniversal
Tilt+5 / 0 degrees
AdjustabilityTilt
TAA compliantNo
Special featuresModular, multi-display
Mount typeModular ceiling menu board mount
Call 01342 580255

Documents

Chief LCM3X1UM installation manual (PDF) published by Legrand AV - Fusion Ceiling 3X1 Modular Menu Board Installation Manual.
