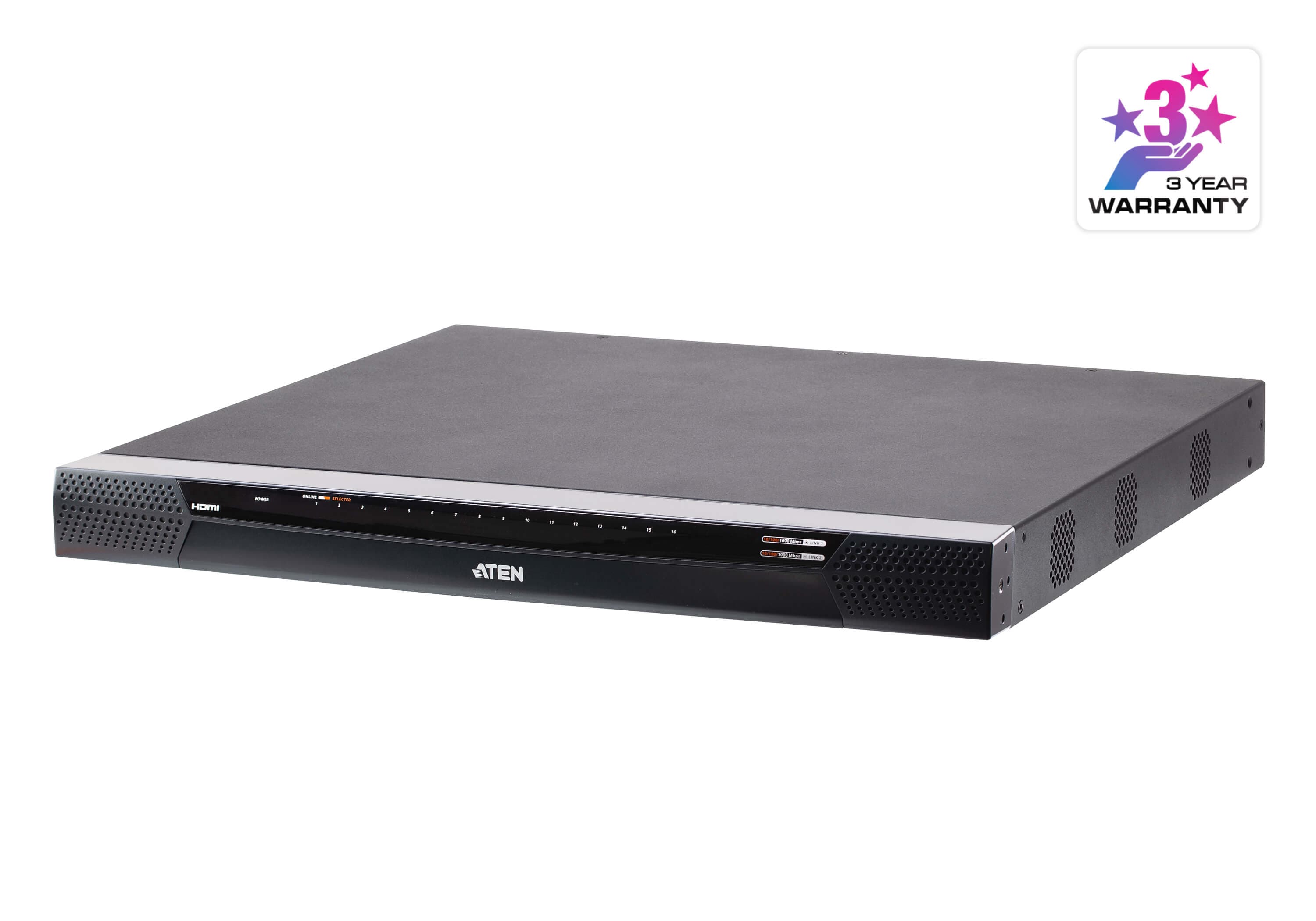

ATEN RCM816A 1-Local/8-Remote Shared Access 16-Port Multi-Interface Cat 5 KVM over IP Switch
£17,459.15inc. VAT
Out of stock
ATEN

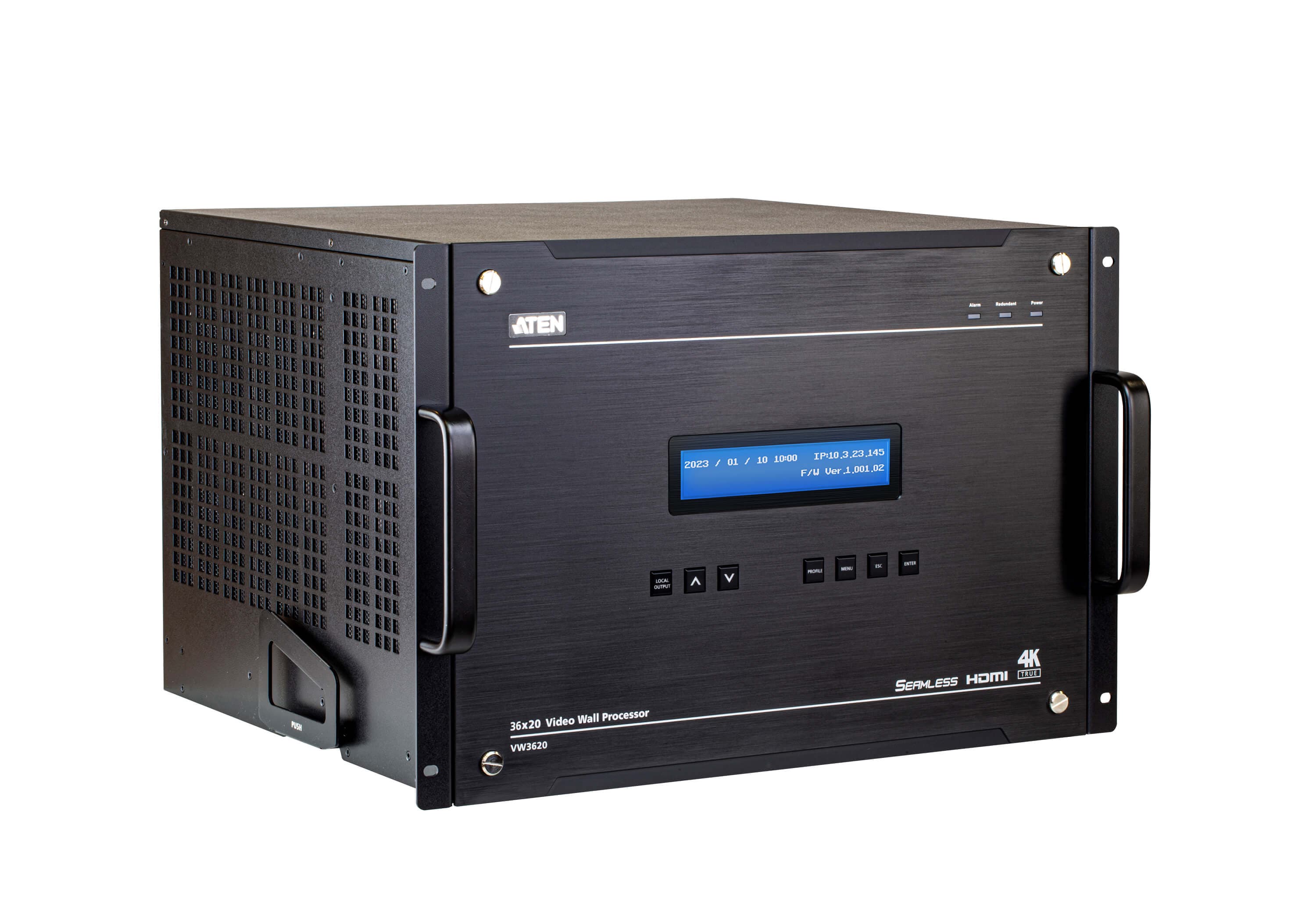

ATEN VW3620 36 x 20 Modular Video Wall Processor
£22,981.13inc. VAT
£19,150.94 ex. VAT
Out of stock
1
- Visa
- Mastercard
- American Express
- PayPal
Seen it cheaper? We price-match genuine like-for-like quotes. How it works
Bought in the UK, backed in the UKWhy it matters →
- Sourced through UK distribution
- UK manufacturer warranty
- UK-based engineers
- No import duty or customs charges
- GBP pricing, UK VAT invoices
2 Years Warranty Included
Key specifications

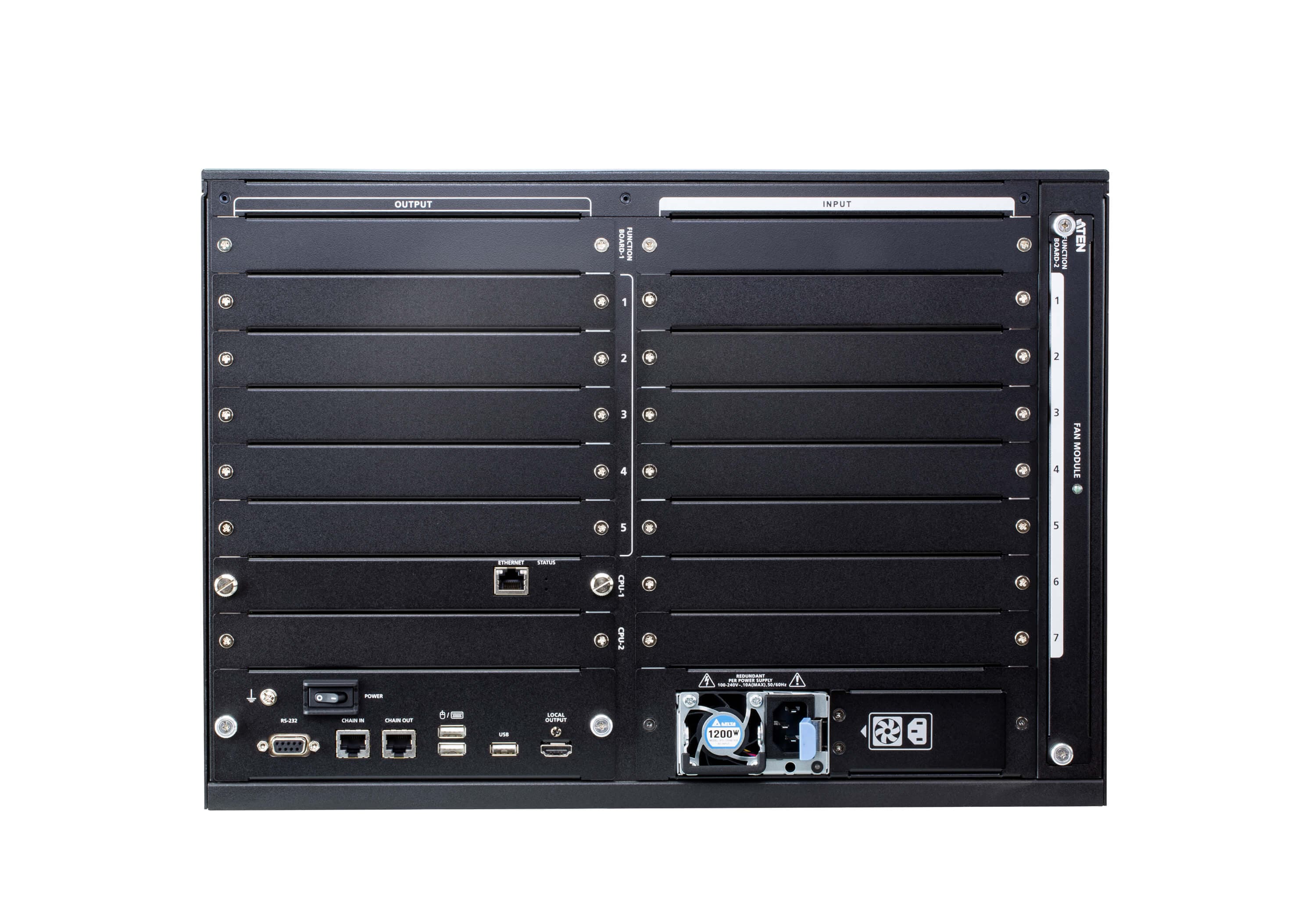

Board Input7 x Slot, up to 32 4K inputs
Board Output5 x Slot, up to 20 4K outputs
Function2 x Slots for Function Board, can also used as Input Slot
Video Input — InterfacesDepends on which I/O board is inserted
Video Output — InterfacesLocal Output: 1x HDMI Type A Female (Black)
Control — RS-232Connector: 1 x DB-9 Female (Black); Serial Control Pin Configurations:; Pin2 = Tx, Pin 3=Rx, Pin 5= Gnd; Baud Rate and Protocol:; Baud Rate:19200, Data Bits:8, Stop Bits:1, Parity: No, Flow Control: No
Control — EthernetConnector: 1 x RJ-45 Female
Control — USB3 x Keyboard (TBD) / Mouse(TBD) /FW upgrade & Storage
Description
The ATEN VW3620 is a modular video wall processor. It takes multiple live sources and lays them out across an array of displays — full-wall, windowed, overlapping — with the layout switched live rather than rebuilt in hardware.
Being modular, the input and output count is set by the boards fitted to the chassis rather than by the model, so a control room can be sized to the job and re-boarded later. Power and cooling modules are redundant and hot-swappable, which is what makes it usable in an operation that cannot go dark.
Layouts and presets are driven over IP from ATEN's control software. Supplied to order from TopAV with ATEN's 36-month warranty.
Key features
FPGA hardware architecture
Handles True 4K input sources, supports near-zero-second seamless source switching, and transmits high quality video streams without delay.
True 4K@60 scalability with 4:4:4 signal processing
Supports custom resolutions and enables upscaling of video signals for crystal clear, accurate imagery regardless of the display size or type from LED, LCD, DLP, to other large screens.
Backup Mode enabled with two VW3620s daisy-chained together
The secondary unit continuously mirrors all system settings and configurations from the primary one in real time and takes control automatically when any primary unit malfunctions occurs for uninterrupted display performance.
Supports Multiview
Content source monitoring in 2x2 or 4x4 layouts from a single display.
Technical specifications
Choose a section to view its specifications.
Connectivity (9)
- Board Input
- 7 x Slot, up to 32 4K inputs
- Board Output
- 5 x Slot, up to 20 4K outputs
- Video Input — Interfaces
- Depends on which I/O board is inserted
- Video Output — Interfaces
- Local Output: 1x HDMI Type A Female (Black)
- Control — Ethernet
- Connector: 1 x RJ-45 Female
- Control — USB
- 3 x Keyboard (TBD) / Mouse(TBD) /FW upgrade & Storage
- Communication — Daisy Chain Ports
- RJ45 x2
- Connectors — Power
- 1 x 3-Prong AC Socket
- Power — Maximum Input Power Rating
- 100-240 VAC; 50-60Hz; 10A
General (6)
- Function
- 2 x Slots for Function Board, can also used as Input Slot
- Control — RS-232
- Connector: 1 x DB-9 Female (Black); Serial Control Pin Configurations:; Pin2 = Tx, Pin 3=Rx, Pin 5= Gnd; Baud Rate and Protocol:; Baud Rate:19200, Data Bits:8, Stop Bits:1, Parity: No, Flow Control: No
- EDID Settings
- EDID Mode: Default / Port1 / Remix / Customized (EDID Wizard support)
- Power (Optional)
- Redundancy, Optional Hot Swap PSU
- Environmental — Operating Temperature
- 0 - 40°C
- Environmental — Storage Temperature
- -20 - 60°C
Documents
Delivery & returns
Estimated delivery 24 Oct - 28 Oct. UK mainland delivery only. Some large or made-to-order items carry longer lead times, shown on the product page.
Unused items in original packaging can be returned within 14 days of delivery — see the returns policy for how business and consumer returns differ. Faulty items are covered under manufacturer warranty and by your statutory rights.
Bought in the UK, backed in the UK
This item is sourced through UK distribution and ships to you from within the UK, so the order never crosses a customs border.
The manufacturer warranty is honoured here in the UK. If something fails, you deal with us, not with an overseas seller in another time zone.
Our own UK-based engineers install, commission and support what we sell, and can attend site when a system needs hands on it.
Delivered within the UK mainland, so there is no import duty, customs charge or courier handling fee waiting for you on delivery.
Prices are in pounds sterling with proper UK VAT invoices, and purchase orders are accepted from approved education accounts: no currency conversion and no surprises at the door.
Payment & security
Pay securely by card. Education customers can apply for a 30-day purchase order account.
Schools, colleges, sixth forms, universities and multi-academy trusts can order on invoice, with no card payment required. Purchase orders and credit terms are for education customers only.
All transactions are processed over an encrypted, secure checkout.
Alternative products
Closest matches in this category on price and capability. Not sure which way to go? Our technical team will talk it through.
ATEN

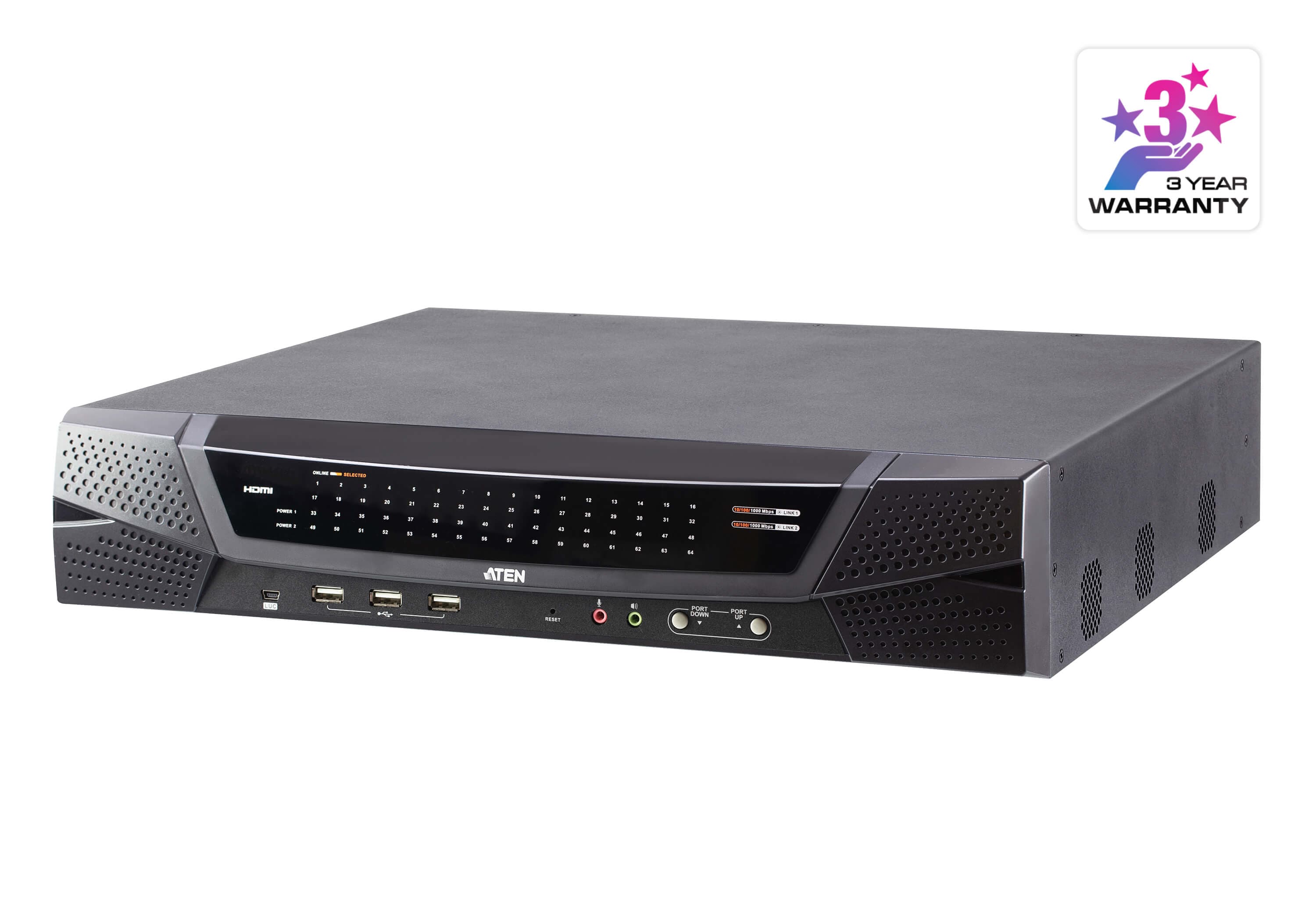

ATEN RCM464VA 1-Local/4-Remote Shared Access 64-Port Multi-Interface Cat 5 KVM over IP Switch
