Home / Control Systems / ATEN VK248 8-Channel Relay Expansion Box

ATEN

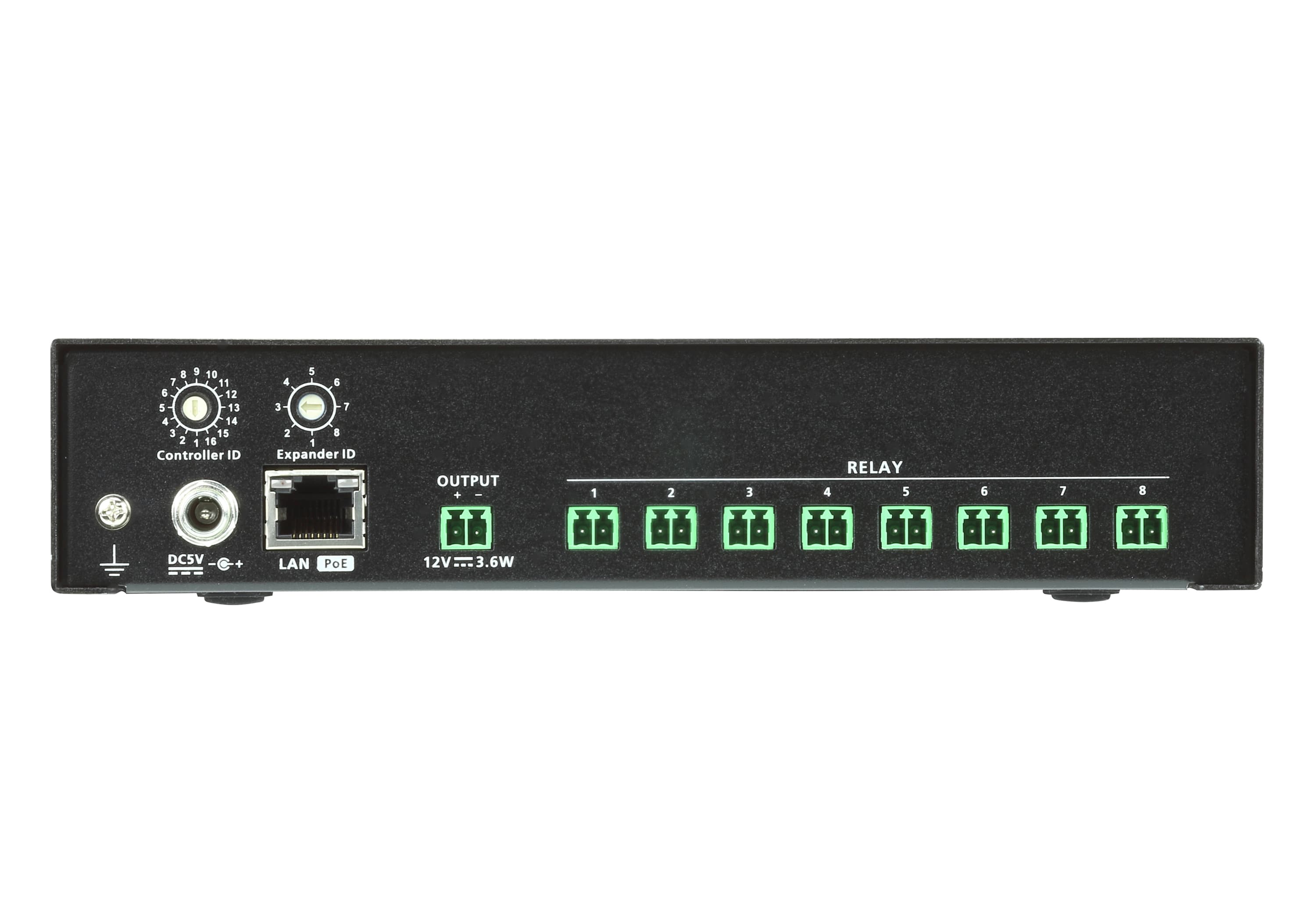

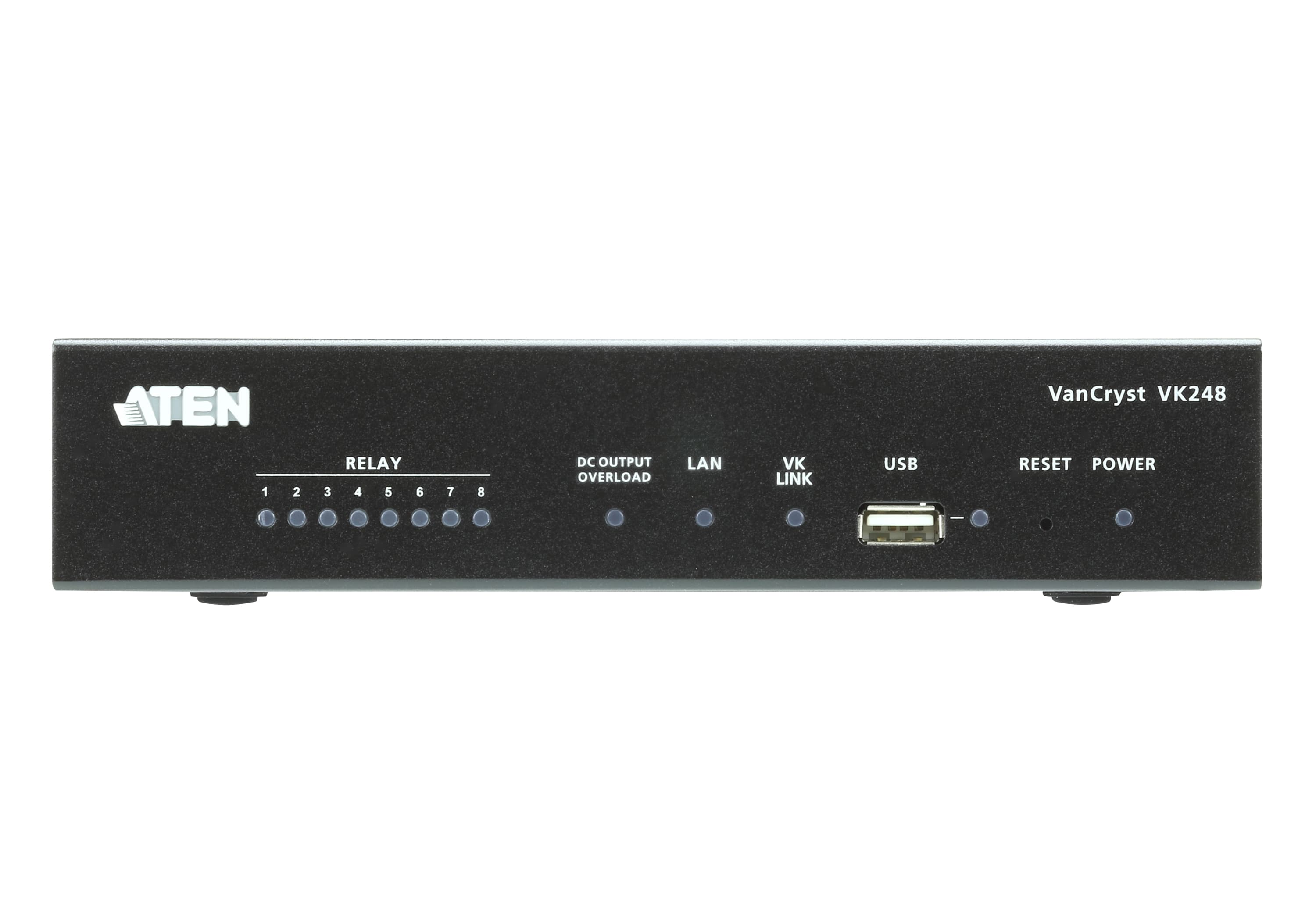

ATEN VK248 8-Channel Relay Expansion Box

Name: ATEN VK248 8-Channel Relay Expansion Box
Brand: ATEN
SKU: VK248
Price: 491.90 GBP
Availability: OutOfStock

£491.90inc. VAT

£409.92 ex. VAT

Out of stock

Visa
Mastercard
American Express
PayPal

Or 3 interest-free payments of £163.97 with PayPal Pay in 3.

4.5 on Trustpilot · 14 reviews

Seen it cheaper? We price-match genuine like-for-like quotes. How it works

Bought in the UK, backed in the UKWhy it matters →

Sourced through UK distribution
UK manufacturer warranty
UK-based engineers
No import duty or customs charges
GBP pricing, UK VAT invoices

Return within 14 days

Installation services available Purchase orders: education customers only

2 Years Warranty Included

Key specifications

Interfaces — Relay• 8 normally open relays (8 x 2-pole terminal block); • Contact Rating: Max 24 VDC, 2A

Switches — Controller ID1 x 16-segment Switch

Switches — Expander ID1 x 8-segment Switch

Reset Button1 x Semi-recessed Pushbutton

USB1 x USB Type A (Firmware upgrade only)

Environmental — Operating Temperature0 – 50°C

Environmental — Storage Temperature–20 – 60°C

Environmental — Humidity0 - 80% RH, Non-Condensing

All 12 specifications

Description

The ATEN VK248 is an expansion box for ATEN's control system. It adds 8-channel relay capacity to an existing control box over the LAN, which is how you extend a room's control reach without replacing the processor.

Also in this range:VK102 VK236 VK258 VK320 Full specifications Datasheet Compare alternatives

Because it connects over Ethernet rather than a proprietary bus, it can be mounted next to the equipment it drives — behind a screen, in a lectern, at the far end of a large room — instead of being cabled all the way back to the rack.

It is configured from the same ATEN Configurator project as the control box it belongs to. Supplied to order from TopAV with ATEN's 36-month warranty.

Key features

Relay

• 8 normally open relays (8 x 2-pole terminal block); • Contact Rating: Max 24 VDC, 2A.

Controller ID

1 x 16-segment Switch.

Expander ID

1 x 8-segment Switch.

Technical specifications

Connectivity

USB1 x USB Type A (Firmware upgrade only)

Power — Output12 VDC, 300 mA

Power & Physical

Physical Properties — Weight0.65 kg ( 1.43 lb )

Physical Properties — Dimensions (L x W x H)20.00 x 7.58 x 4.20 cm; (7.87 x 2.98 x 1.65 in.)

General

Interfaces — Relay• 8 normally open relays (8 x 2-pole terminal block); • Contact Rating: Max 24 VDC, 2A

Switches — Controller ID1 x 16-segment Switch

Switches — Expander ID1 x 8-segment Switch

Reset Button1 x Semi-recessed Pushbutton

Environmental — Operating Temperature0 – 50°C

Environmental — Storage Temperature–20 – 60°C

Environmental — Humidity0 - 80% RH, Non-Condensing

Physical Properties — HousingMetal

Documents

ATEN VK248 manufacturer datasheet (PDF)
