Home / Switches / ATEN CM1942 2-Port 4K DisplayPort Dual Display Mini-Matrix Boundless KVM Switch

ATEN

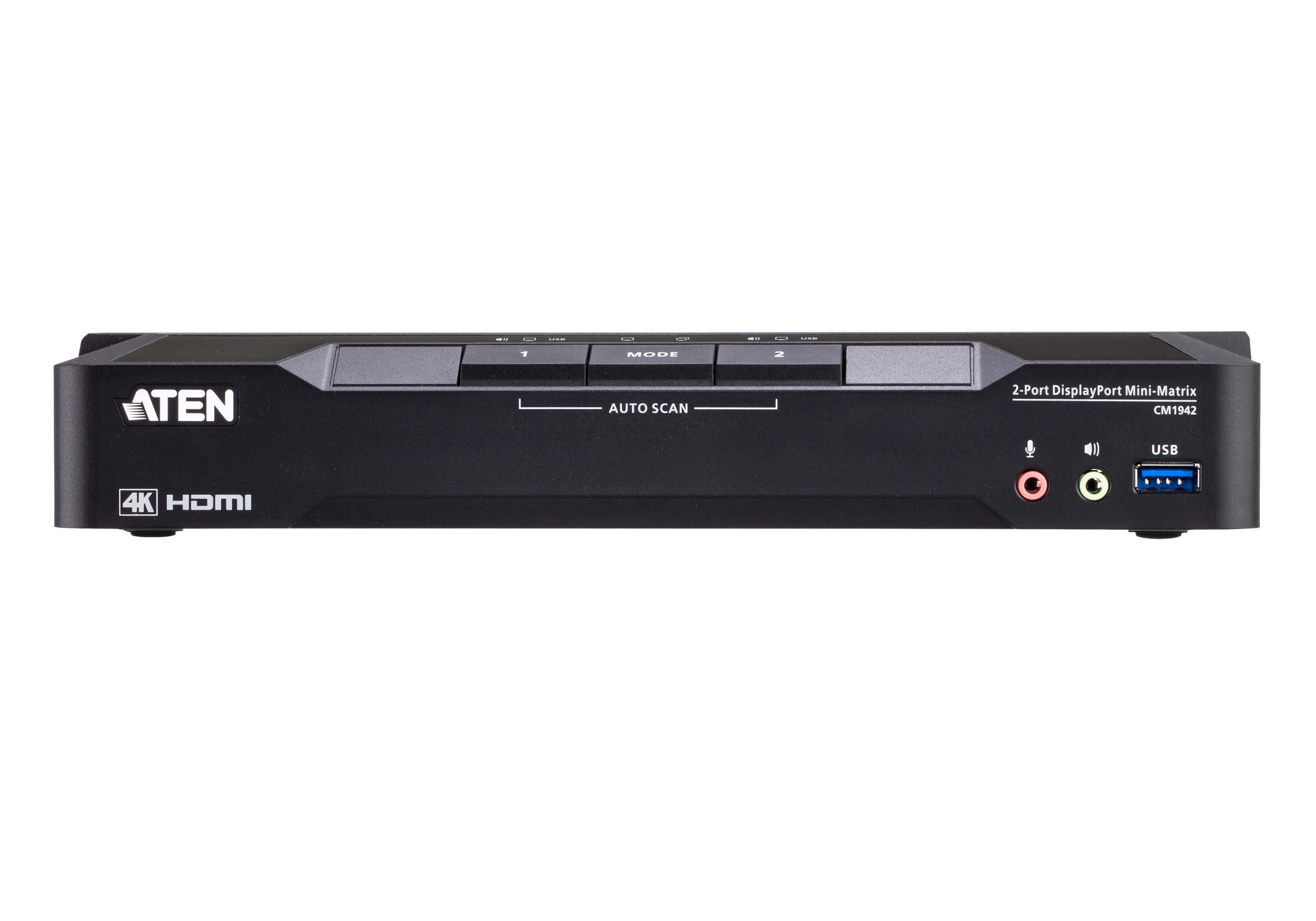

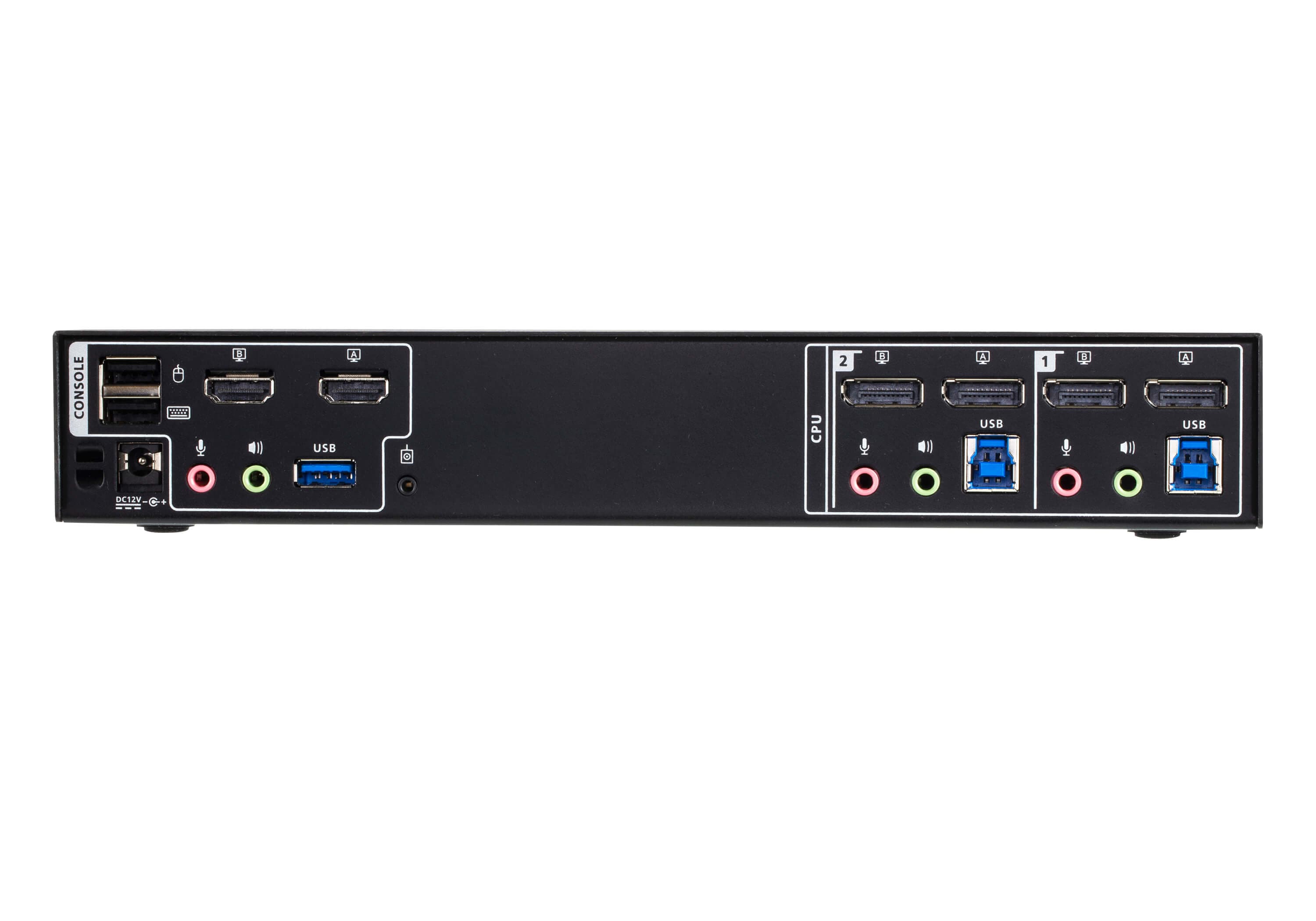

ATEN CM1942 2-Port 4K DisplayPort Dual Display Mini-Matrix Boundless KVM Switch

Name: ATEN CM1942 2-Port 4K DisplayPort Dual Display Mini-Matrix Boundless KVM Switch
Brand: ATEN
SKU: CM1942
Price: 457.07 GBP
Availability: OutOfStock

£457.07inc. VAT

£380.89 ex. VAT

Out of stock

Visa
Mastercard
American Express
PayPal

Or 3 interest-free payments of £152.36 with PayPal Pay in 3.

4.5 on Trustpilot · 14 reviews

Seen it cheaper? We price-match genuine like-for-like quotes. How it works

Bought in the UK, backed in the UKWhy it matters →

Sourced through UK distribution
UK manufacturer warranty
UK-based engineers
No import duty or customs charges
GBP pricing, UK VAT invoices

Return within 14 days

Installation services available Purchase orders: education customers only

2 Years Warranty Included

Key specifications

Computer Connections2

Port SelectionHotkey, Pushbutton, Mouse Wheel, Mouse Cursor, Remote Port Selector

Console Ports2 x USB Type A Female; 2 x HDMI Female (Black); 2 x 3.5mm Audio Jack Female (Green; 1 x front, 1 x rear); 2 x 3.5mm Audio Jack Female (Pink; 1 x front, 1 x rear)

KVM (Computer) Ports2 x USB3.1 Gen1 Type B Female (Blue); 4 x DisplayPort Female (Black); 2 x 3.5mm Audio Jack Female (Green); 2 x 3.5mm Audio Jack Female (Pink)

USB Hub2 x USB3.1 Gen1 Type A Female (Blue; 1 x front; 1 x rear)

Selected (Switches)3 x Pushbutton

Audio (LEDs)2 (Green)

KVM (LEDs)2 (Orange)

All 15 specifications

Description

The ATEN CM1942 is a 2-Port 4K DisplayPort Dual Display Mini-Matrix Boundless KVM Switch. One keyboard, monitor and mouse drive several machines, with switching by hotkey, front-panel button or the other methods ATEN lists for this model.

Full specifications Datasheet Compare alternatives

It takes 2 computer connections, offers port selection by hotkey, pushbutton, mouse wheel, mouse cursor, remote port selector and is specified for video up to 4096 x 2160 @ 60Hz.

Console and computer-side connectors, LED behaviour and emulation detail are in the ATEN datasheet attached to this listing. The unit is housed in metal and operates from 0-40°C.

Available to order from TopAV with ATEN's standard 24-month product warranty.

Key features

Video

4096 x 2160 @ 60Hz

Computer connections

Console ports

2 x USB Type A Female; 2 x HDMI Female (Black); 2 x 3.5mm Audio Jack Female (Green; 1 x front, 1 x rear); 2 x 3.5mm Audio Jack Female (Pink; 1 x front, 1 x rear)

Port selection

Hotkey, Pushbutton, Mouse Wheel, Mouse Cursor, Remote Port Selector

Technical specifications

Connectivity

Computer Connections2

Port SelectionHotkey, Pushbutton, Mouse Wheel, Mouse Cursor, Remote Port Selector

Console Ports2 x USB Type A Female; 2 x HDMI Female (Black); 2 x 3.5mm Audio Jack Female (Green; 1 x front, 1 x rear); 2 x 3.5mm Audio Jack Female (Pink; 1 x front, 1 x rear)

KVM (Computer) Ports2 x USB3.1 Gen1 Type B Female (Blue); 4 x DisplayPort Female (Black); 2 x 3.5mm Audio Jack Female (Green); 2 x 3.5mm Audio Jack Female (Pink)

USB Hub2 x USB3.1 Gen1 Type A Female (Blue; 1 x front; 1 x rear)

USB (LEDs)2 (Green)

Audio

Audio (LEDs)2 (Green)

Power & Physical

Weight0.64 kg ( 1.41 lb )

Dimensions (L x W x H)26.00 x 7.18 x 4.25 cm; (10.24 x 2.83 x 1.67 in.)

General

Selected (Switches)3 x Pushbutton

KVM (LEDs)2 (Orange)

Mode of Operation (LEDs)2 (Orange)

HousingMetal

Operating Temperature0-40°C

Storage Temperature-20-60°C

Documents

ATEN CM1942 datasheet (PDF, published by ATEN)
