Yealink MVC S90-C5U Microsoft Teams Rooms System for Extra-Large Rooms

Name: Yealink MVC S90-C5U Microsoft Teams Rooms System for Extra-Large Rooms
Brand: Yealink
SKU: MVC-S90
Price: 6097.20 GBP
Availability: InStock

£6,097.20inc. VAT

£5,081.00 ex. VAT

In stock, dispatched within 2 working days

Visa
Mastercard
American Express
PayPal

4.5 on Trustpilot · 14 reviews

Seen it cheaper? We price-match genuine like-for-like quotes. How it works

Bought in the UK, backed in the UKWhy it matters →

In UK stock, ships from the UK
UK manufacturer warranty
UK-based engineers
No import duty or customs charges
GBP pricing, UK VAT invoices

Call 01342 580255

Return within 14 days

Installation services available Purchase orders: education customers only

Key specifications

In the boxMCore 4 + MTouch Plus + RoomSensor + UVC86 x 2 + AVHub + VCH51 Pro. Preloaded with Windows 11 IoT Enterprise X64, a Windows 11 IoT Enterprise licence, the Microsoft Teams Rooms app and Yealink RoomConnect.

Package ContentMCore 4, MTouch Plus, RoomSensor, UVC86 x 2, AVHub, VCH51 Pro

PreloadWindows 11 IoT Enterprise X64, Windows 11 IoT Enterprise licence, Microsoft Teams Rooms app, Yealink RoomConnect

MCore 4 ProcessorIntel Ultra 5 125H

MCore 4 Memory / Storage16 GB (2 x 8 GB) DDR5, 256 GB SSD

MCore 4 Interfaces1 x HDMI-Out 2.1, 2 x HDMI-Out 2.0, 1 x HDMI-In, 4 x USB 3.0 Type-A, 1 x MTouch port (RJ-45), 1 x LAN port for AV network, 1 x 10/100/1000 Gigabit Ethernet, 1 x power supply, 1 x 3.5 mm headphone, 1 x reset, 1 x security slot; Wi-Fi 802.11 a/b/g/n/ac/ax, Bluetooth 5.2

MTouch Plus11.6-inch narrow bezel IPS display, 1920 x 1080; screen-to-desktop angle 30-70 degrees; support frame 50-180 degrees; HDMI/USB-C video input; wired and wireless (WPP30) content sharing; desktop, desktop-fixed or wall-mounted

UVC86 Camera4K sensor, 20.4x HD zoom (12x optical, 1.7x digital); telephoto lens 90 degrees DFOV / 81 degrees HFOV / 50 degrees VFOV; panoramic lens 120 degrees DFOV / 110 degrees HFOV / 78 degrees VFOV; horizontal rotation 200 degrees, vertical rotation 130 degrees; up to 9 presets

All 14 specifications

Description

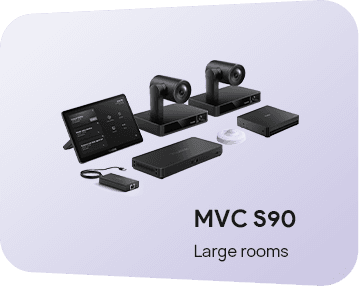

The Yealink MVC S90 is a Microsoft Teams Rooms solution for extra-large meeting spaces. The set includes the MCore 4 mini-PC, the MTouch Plus large-screen touch panel, two UVC86 4K cameras, the AVHub audio and video processor, the RoomSensor and VCH51 Pro. The two UVC86 cameras support 12x optical zoom and intelligent tracking; paired with AVHub, users can customise the screen layout and run Yealink's multi-camera solution supporting up to nine cameras at once with multi-speaker tracking. With the VCH51 Pro, plugging a USB cable into a laptop lets it use the room's audio and video equipment.

Also in this range:S98-C5U Full specifications Compare alternatives

In the box: MCore 4 + MTouch Plus + RoomSensor + UVC86 x 2 + AVHub + VCH51 Pro. Preloaded with Windows 11 IoT Enterprise X64, a Windows 11 IoT Enterprise licence, the Microsoft Teams Rooms app and Yealink RoomConnect.

Call 01342 580255

Key features

Multi-cam solution, flexible layout

The AVHub audio and video processor supports up to nine Yealink cameras. They can be controlled independently from the MTouch Plus or spliced into a single output with an adjustable layout, and multiple MVC S90 sets can be combined over network cable for merged and divided rooms.

Intelligent tracking with UVC86

The UVC86 PTZ camera supports auto-framing, speaker tracking and presenter tracking, with region trigger and gesture on/off, up to nine preset positions, 4K video output and a 12x optical zoom lens.

Native Microsoft Teams integration

The whole bundle runs a native Microsoft Teams interface. The MTouch Plus gives one-click conferencing, call control, camera adjustment and content sharing, and the RoomSensor wakes the system as participants enter.

Intel Core Ultra 5 AI PC

At the core is the MCore 4 with the Intel Ultra 5 125H processor and NPU, providing a stable and efficient operating environment for immersive remote communication.

Wired and wireless content sharing

Wireless sharing via WPP30 at 1080P/30fps; wired sharing over USB-C or HDMI. The MCore 4's HDMI-In supports 4K resolution auxiliary stream input.

Simple deployment

A single CAT5e cable connects the MCore 4 and MTouch Plus for both data and power, and the RoomSensor works over Bluetooth LE.

Technical specifications

Display

General

Package ContentMCore 4, MTouch Plus, RoomSensor, UVC86 x 2, AVHub, VCH51 Pro

PreloadWindows 11 IoT Enterprise X64, Windows 11 IoT Enterprise licence, Microsoft Teams Rooms app, Yealink RoomConnect

MCore 4 ProcessorIntel Ultra 5 125H

MCore 4 Memory / Storage16 GB (2 x 8 GB) DDR5, 256 GB SSD

UVC86 AI FeaturesAuto-framing, speaker tracking, presenter tracking with area trigger and gesture control, multi-focus, picture-in-picture

UVC86 Interfaces1 x HDMI output, 1 x Yealink microphone port (RJ-45), 1 x USB 3.0 Type-B, 1 x USB 2.0 Type-A, 1 x power port, 1 x security lock, 1 x reset hole

AVHub Interfaces2 x USB-A, 1 x USB-B, 1 x codec port, 7 x Yealink VCH ports (RJ-45), 1 x RCA in/out, 1 x 6.3 mm line in, 1 x 6.3 mm line out, 1 x power

AVHub FeaturesDividable and merging meeting rooms, intelligent multi-speaker tracking, Multi-Stream IntelliFrame (on device)

RoomSensorDetection angle 120 degrees, adjustable +/-20 degrees; operating temperature 0-40 C; operating humidity 10-95%

VCH51 Pro1 x 1000 Mbps RJ45 port (IEEE 802.3af, full duplex), 1 x USB 2.0 Type-C with DP video input, 1 x PD power port; 144 x 65 x 18 mm; operating temperature 0-40 C, humidity 10-95%
