Home / Matrix Switchers & Splitters / StarTech.com VS424HDPIP 4x4 HDMI Matrix Switch with Picture-and-Picture Multiviewer
StarTech.com

StarTech.com VS424HDPIP 4x4 HDMI Matrix Switch with Picture-and-Picture Multiviewer

£764.51inc. VAT
£637.09 ex. VAT
Out of stock
1
  • Visa
  • Mastercard
  • American Express
  • PayPal

Or 3 interest-free payments of £254.84 with PayPal Pay in 3.

4.5 on Trustpilot · 14 reviews

Seen it cheaper? We price-match genuine like-for-like quotes. How it works

Bought in the UK, backed in the UKWhy it matters →
  • Sourced through UK distribution
  • UK manufacturer warranty
  • UK-based engineers
  • No import duty or customs charges
  • GBP pricing, UK VAT invoices
Return within 14 days
Installation services availablePurchase orders: education customers only
2 Years Warranty Included
Key specifications
HDMI Inputs4
HDMI Outputs4
Maximum Resolution1920 x 1200
Supported Resolutions1920 x 1200, 1920 x 1080, 1280 x 720, 640 x 480
AudioYes
Control Connectors1 x DB-9 serial, 1 x RJ-45, 1 x infrared
Power SupplyAC adapter included, 100-240 V AC in, 12 V DC 3 A out
Power Consumption36 W
All 15 specifications

Description

The VS424HDPIP does more than route four HDMI sources to four displays: it can combine inputs on a single screen. Matrix, dual and wall modes let one display carry several feeds at once, which saves buying extra screens where a control desk or reception point needs to watch more than one source.

Full specifications Datasheet Compare alternatives

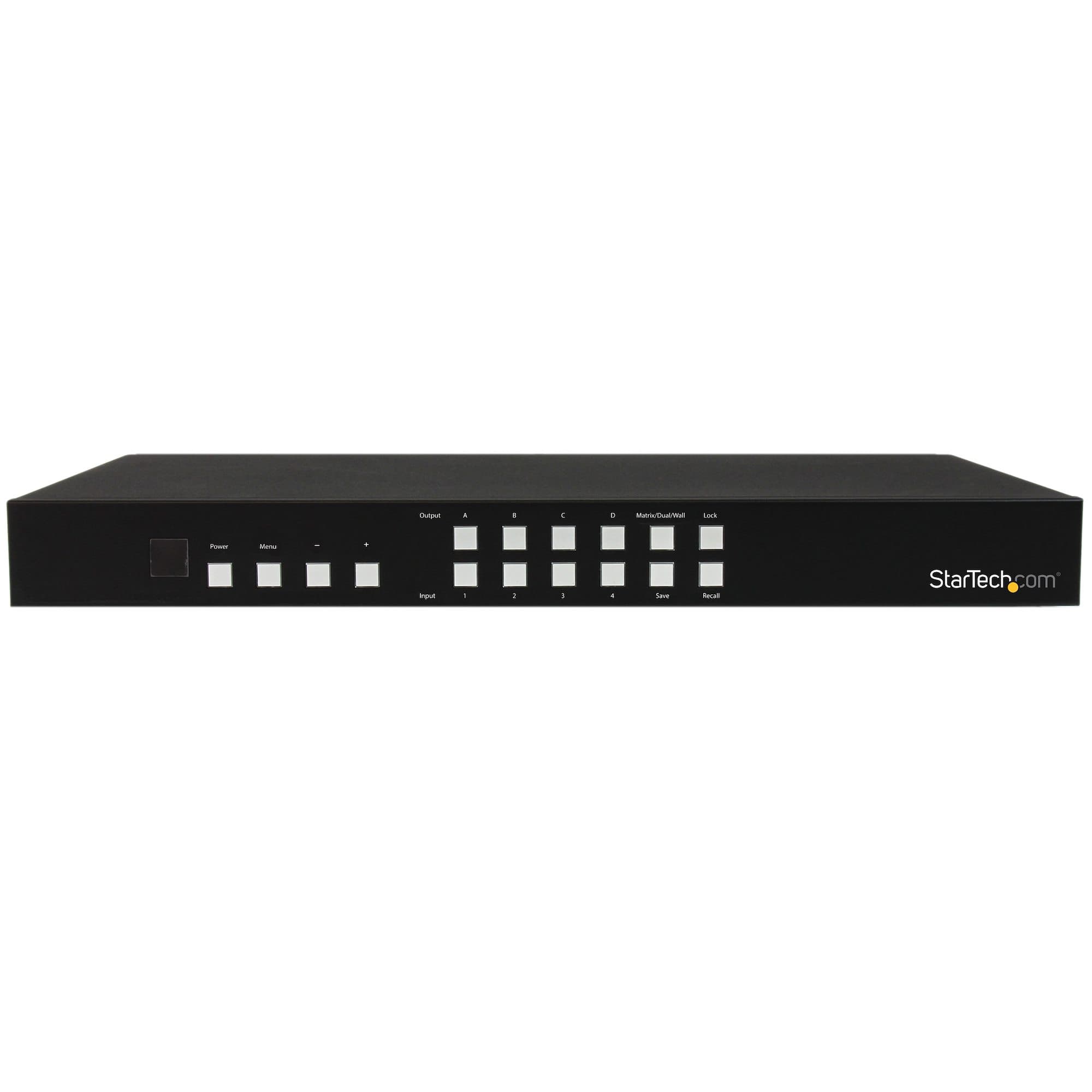

Resolution support runs to 1920 x 1200 and 1080p, with audio carried alongside the video. Front-panel LEDs show the selected input and output, the current mode, and whether the configuration is saved or locked, so the state of the switch is readable at a glance rather than only in software.

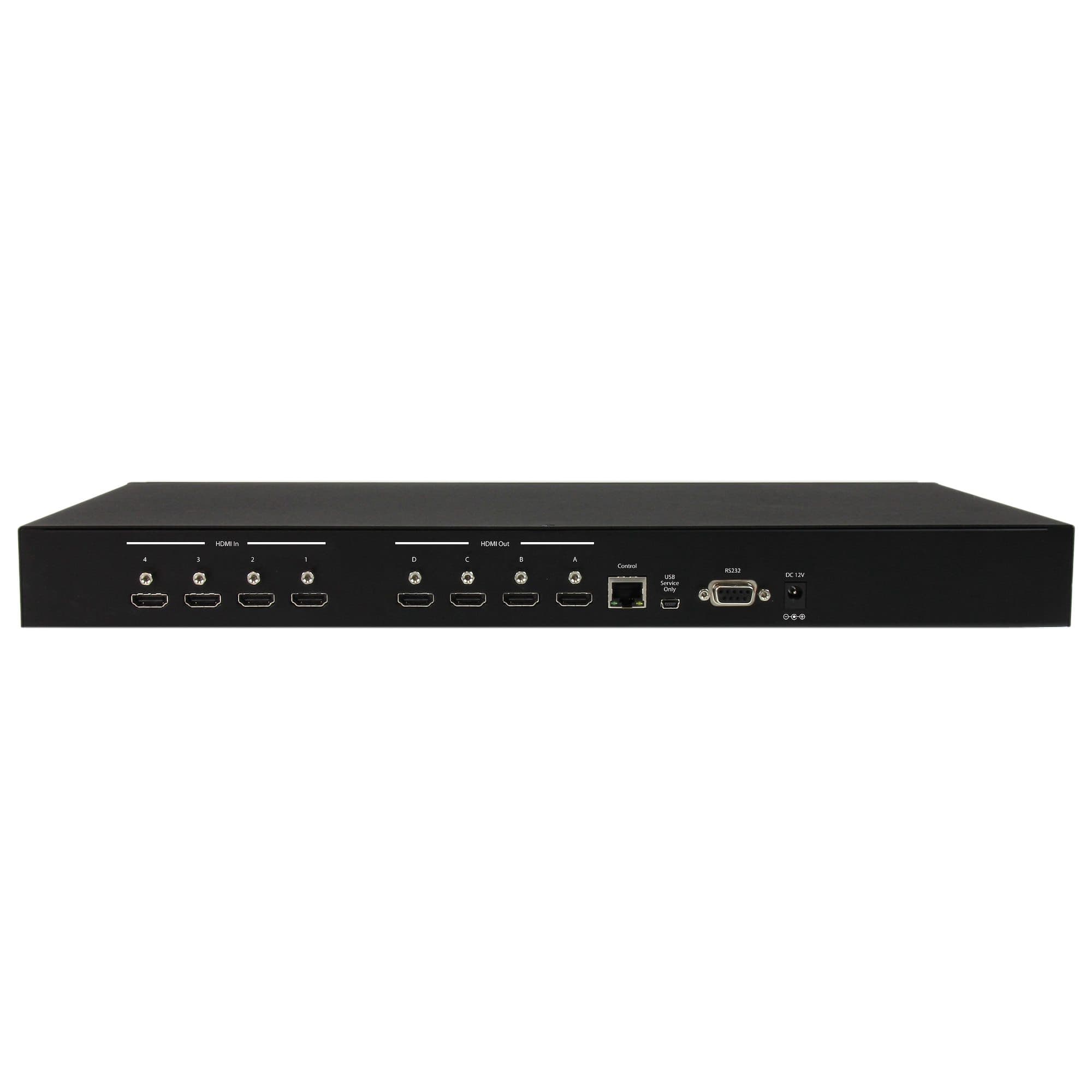

Control is available from the front panel, the bundled remote, RS232 or the RJ-45 network port. The aluminium chassis is 43.6 cm wide, mounting brackets are supplied, and the universal power adapter includes UK, EU, ANZ and NA plugs. StarTech.com covers it with a two-year warranty.

Key features

Matrix, dual and wall modes

Combine multiple HDMI inputs on one display, or run the unit as a conventional four-by-four matrix.

Full matrix picture-and-picture

Several sources can share a single screen, so one display can replace two or more.

Readable front panel

Dedicated LEDs for input and output selection, mode, save and lock states.

Rack-friendly build

Aluminium housing with mounting brackets and a universal power adapter supplied.

Technical specifications

Display
Maximum Resolution1920 x 1200
Supported Resolutions1920 x 1200, 1920 x 1080, 1280 x 720, 640 x 480
Connectivity
HDMI Inputs4
HDMI Outputs4
Control Connectors1 x DB-9 serial, 1 x RJ-45, 1 x infrared
Audio
AudioYes
Power & Physical
Power Consumption36 W
Product Dimensions43.6 x 25.0 x 4.0 cm
Weight2.8 kg
MaterialAluminium
ColourBlack
Certifications & Warranty
Warranty2 years
General
Power SupplyAC adapter included, 100-240 V AC in, 12 V DC 3 A out
Operating Temperature0 to 40 degrees C
Humidity20% to 90% RH non-condensing

Documents

StarTech.com VS424HDPIP 4x4 HDMI Matrix Switch with Picture-and-Picture Multiviewer datasheet (PDF)
