Sony

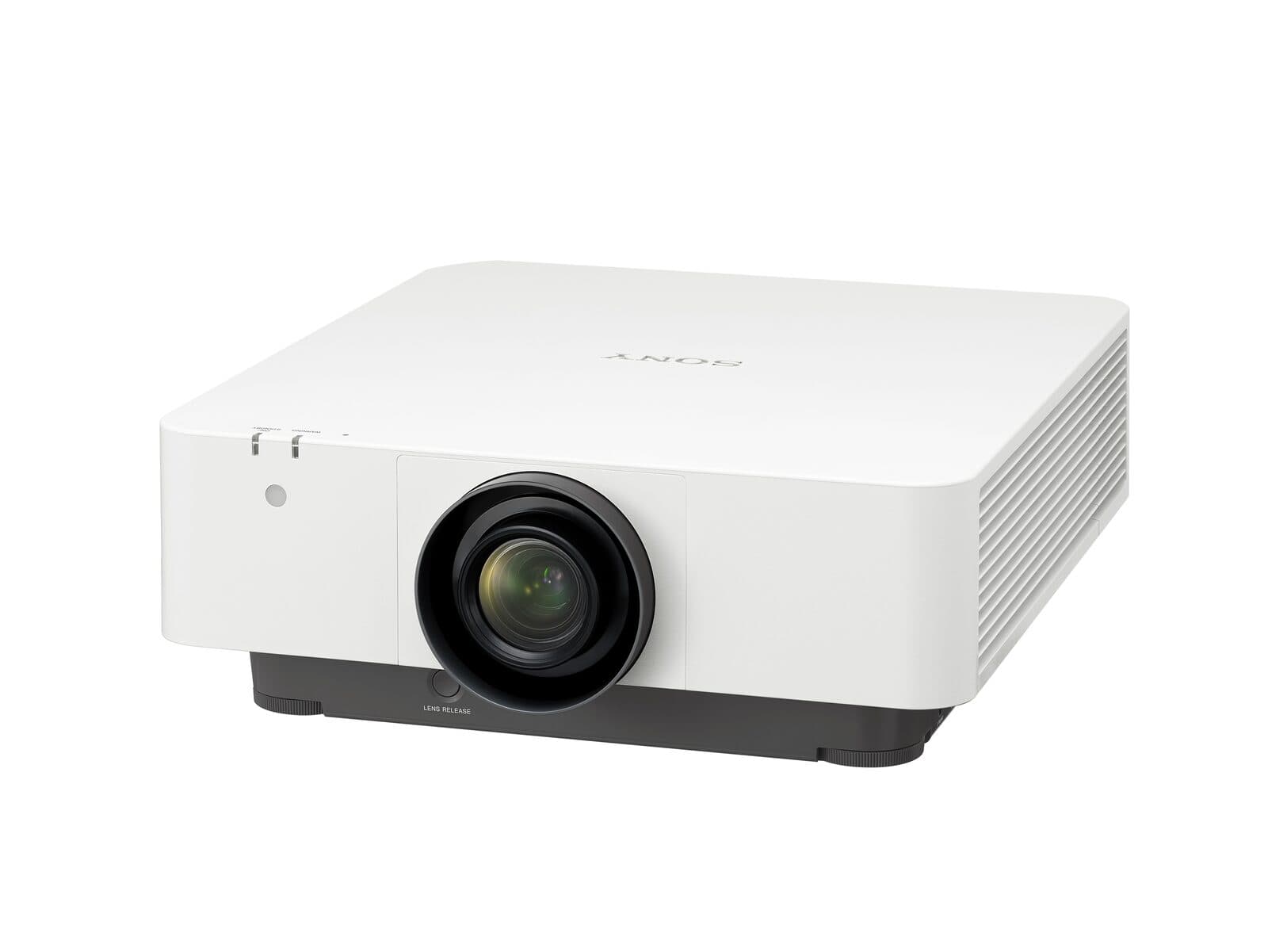

Sony VPL-FHZ80 WUXGA Laser Projector - White
WUXGA40-600"
£4,960.46inc. VAT
Out of stock
Sony
Sony VPL-FHZ80 WUXGA Laser Projector - Black
£4,960.46inc. VAT
£4,133.72 ex. VAT
Out of stock
1
- Visa
- Mastercard
- American Express
- PayPal
Seen it cheaper? We price-match genuine like-for-like quotes. How it works
Bought in the UK, backed in the UKWhy it matters →
- Sourced through UK distribution
- UK manufacturer warranty
- UK-based engineers
- No import duty or customs charges
- GBP pricing, UK VAT invoices
Key specifications
Display System3LCD (0.76 inch BrightEra panels x 3)
ResolutionWUXGA 1920 x 1200 (16:10)
Light SourceLaser diode
Light Output6,000 lm (6,500 lm centre) in Standard mode
Colour Light Output6,000 lm in Standard mode
Light Source Life20,000 hours (Standard) / 30,000 hours (Middle)
Contrast RatioInfinity:1 (full white / full black)
Throw Ratio1.39:1 to 2.23:1 with the standard lens
Description
The Sony VPL-FHZ80 is a 3LCD laser installation projector rated at 6,000 lumens of both white and colour light output at WUXGA (1920 x 1200). Because the colour figure matches the white figure, coloured detail - charts, logos, brand colours, coloured text - stays as bright as the white parts of the image instead of dulling off, which is the usual giveaway of a cheaper single-chip design.
The laser light source is rated for 20,000 hours in Standard mode and 30,000 hours in Middle mode before output halves, so there are no lamps to schedule, budget for or climb up to change. Sony's sealed optical path and filter arrangement keep dust off the panels, which is what actually kills long-term brightness in a real building. Powered zoom, focus and lens shift (+70% to -5% vertical, +/- 32% horizontal) mean the unit can be hung where the structure allows and aligned afterwards from the remote.
Connectivity is aimed at permanent installation rather than a laptop on a trolley: HDMI, DVI-D, analogue RGB, composite BNC, plus HDBaseT for video, audio, LAN and control down a single Cat cable, and RS-232C for a control system. The standard lens gives a 1.39:1 to 2.23:1 throw and the projector accepts Sony's VPLL-3003, VPLL-3007, VPLL-Z3010, VPLL-Z3024 and VPLL-Z3032 optional lenses for anything shorter or longer.
Key features
6,000 lumens white and colour
Equal white and colour light output keeps branded and charted content as bright as the white areas of the image.
20,000 to 30,000 hour laser
No lamp changes to schedule or budget for over a normal installation life; Middle mode extends the figure to 30,000 hours.
Powered zoom, focus and lens shift
Align the image from the remote after rigging, with +70% to -5% vertical and +/- 32% horizontal shift.
HDBaseT plus a full analogue and digital input set
Video, audio, LAN and control over one Cat cable, alongside HDMI, DVI-D, RGB and composite for legacy sources.
Technical specifications
Display System3LCD (0.76 inch BrightEra panels x 3)
ResolutionWUXGA 1920 x 1200 (16:10)
Light SourceLaser diode
Light Output6,000 lm (6,500 lm centre) in Standard mode
Colour Light Output6,000 lm in Standard mode
Light Source Life20,000 hours (Standard) / 30,000 hours (Middle)
Contrast RatioInfinity:1 (full white / full black)
Throw Ratio1.39:1 to 2.23:1 with the standard lens
Lens ShiftPowered; vertical -5% to +70%, horizontal +/- 32%
Screen Size40" to 600" diagonal
InputsHDMI, DVI-D, RGB (mini D-sub 15), composite BNC, HDBaseT (RJ45)
ControlRS-232C (D-sub 9-pin), LAN 10BASE-T/100BASE-TX, IR Control S
Dimensions (W x H x D)460 x 169 x 494 mm (without protrusions)
MassApprox. 13 kg
Optional LensesVPLL-3003, VPLL-3007, VPLL-Z3010, VPLL-Z3024, VPLL-Z3032
Throw distance guide
With its 1.39 to 2.23:1 throw ratio, here's how far the projector needs to sit from the screen for common 16:10 image sizes. Try our throw distance calculator for your exact room.
Supported image: 40″ to 600″ diagonal
Try a size
100"
16:10 diagonal image
2.15 m × 1.35 m
Lens position
3.0 m to 4.8 m
Side view: drag the projector to try its available lens positions
Position fits
| Image size | Image dimensions | Lens distance range |
|---|---|---|
| 40" | 0.86 m × 0.54 m | 1.2 m to 1.9 m |
| 60" | 1.29 m × 0.81 m | 1.8 m to 2.9 m |
| 80" | 1.72 m × 1.08 m | 2.4 m to 3.8 m |
| 100" | 2.15 m × 1.35 m | 3.0 m to 4.8 m |
| 120" | 2.58 m × 1.62 m | 3.6 m to 5.8 m |
| 150" | 3.23 m × 2.02 m | 4.5 m to 7.2 m |
| 200" | 4.31 m × 2.69 m | 6.0 m to 9.6 m |
| 250" | 5.38 m × 3.37 m | 7.5 m to 12 m |
| 300" | 6.46 m × 4.04 m | 9.0 m to 14 m |
| 400" | 8.62 m × 5.38 m | 12 m to 19 m |
| 500" | 10.77 m × 6.73 m | 15 m to 24 m |
| 600" | 12.92 m × 8.08 m | 18 m to 29 m |
Planning from a real wall? Use the projector room planner to upload a photo, preview the image to scale and find projectors that fit within your maximum available space.
Distances are lens-to-screen, calculated from the manufacturer's stated throw ratio; allow for lens shift and mounting hardware. Always confirm against the manufacturer's installation guide before fixing mounts.
See it on your wall, to scale
Choose a picture size, then upload a wall photo, or scan the QR code and take it on your phone. We'll show the projected picture at its real size.
Picture size
100" 16:10 · 2.15 m × 1.35 m
On a computer, the QR code sends your phone photo straight back to this page.
Complete your setup
Optional extras that fit this product. Tick anything you need and it joins the same basket — or add this product on its own from the buy box above.
Choose a Mount
Choose a Screen
Video Conferencing
No video conferencing options found in our catalogue.
Professional Installation
Want it installed by our AV experts? We offer professional on-site installation including mounting, cable management, and system configuration.
Your Configuration
Sony VPL-FHZ80 WUXGA Laser Projector - Black × 1£4,960.46
Total£4,960.46
inc. VAT
1
This item is currently out of stock. Please check back soon or contact us.
Documents
Delivery & returns
Estimated delivery 9 Sept - 13 Sept. UK mainland delivery only. Some large or made-to-order items carry longer lead times, shown on the product page.
Unused items in original packaging can be returned within 14 days of delivery — see the returns policy for how business and consumer returns differ. Faulty items are covered under manufacturer warranty and by your statutory rights.
Bought in the UK, backed in the UK
This item is sourced through UK distribution and ships to you from within the UK, so the order never crosses a customs border.
The manufacturer warranty is honoured here in the UK. If something fails, you deal with us, not with an overseas seller in another time zone.
Our own UK-based engineers install, commission and support what we sell, and can attend site when a system needs hands on it.
Delivered within the UK mainland, so there is no import duty, customs charge or courier handling fee waiting for you on delivery.
Prices are in pounds sterling with proper UK VAT invoices, and purchase orders are accepted from approved education accounts: no currency conversion and no surprises at the door.
Payment & security
Pay securely by card. Education customers can apply for a 30-day purchase order account.
Schools, colleges, sixth forms, universities and multi-academy trusts can order on invoice, with no card payment required. Purchase orders and credit terms are for education customers only.
All transactions are processed over an encrypted, secure checkout.
Alternative products
Closest matches in this category on price and capability. Not sure which way to go? Our technical team will talk it through.
ViewSonic

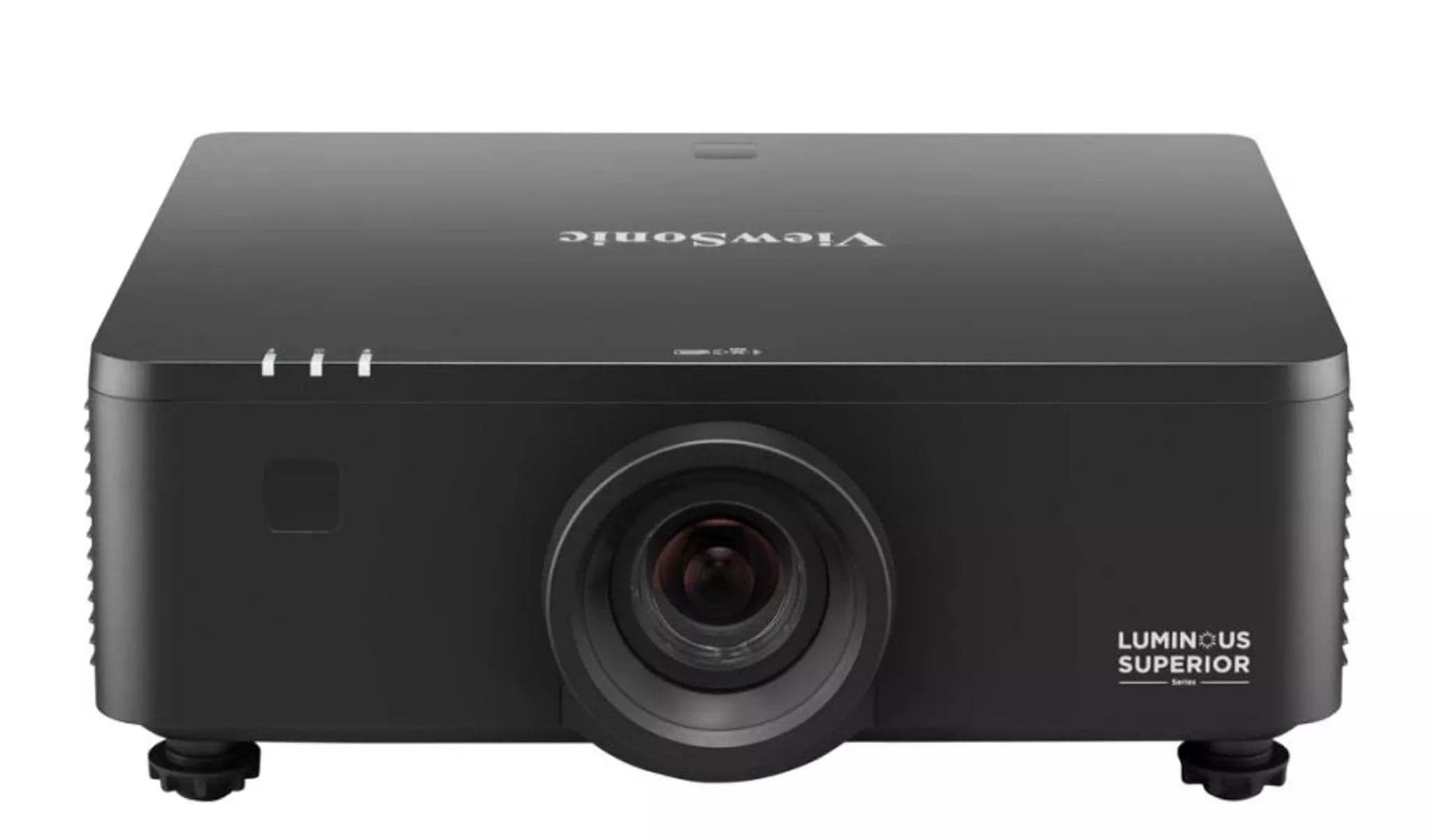

Viewsonic LS951WU Projector
£4,982.35inc. VAT
In stock
UK stock
Epson

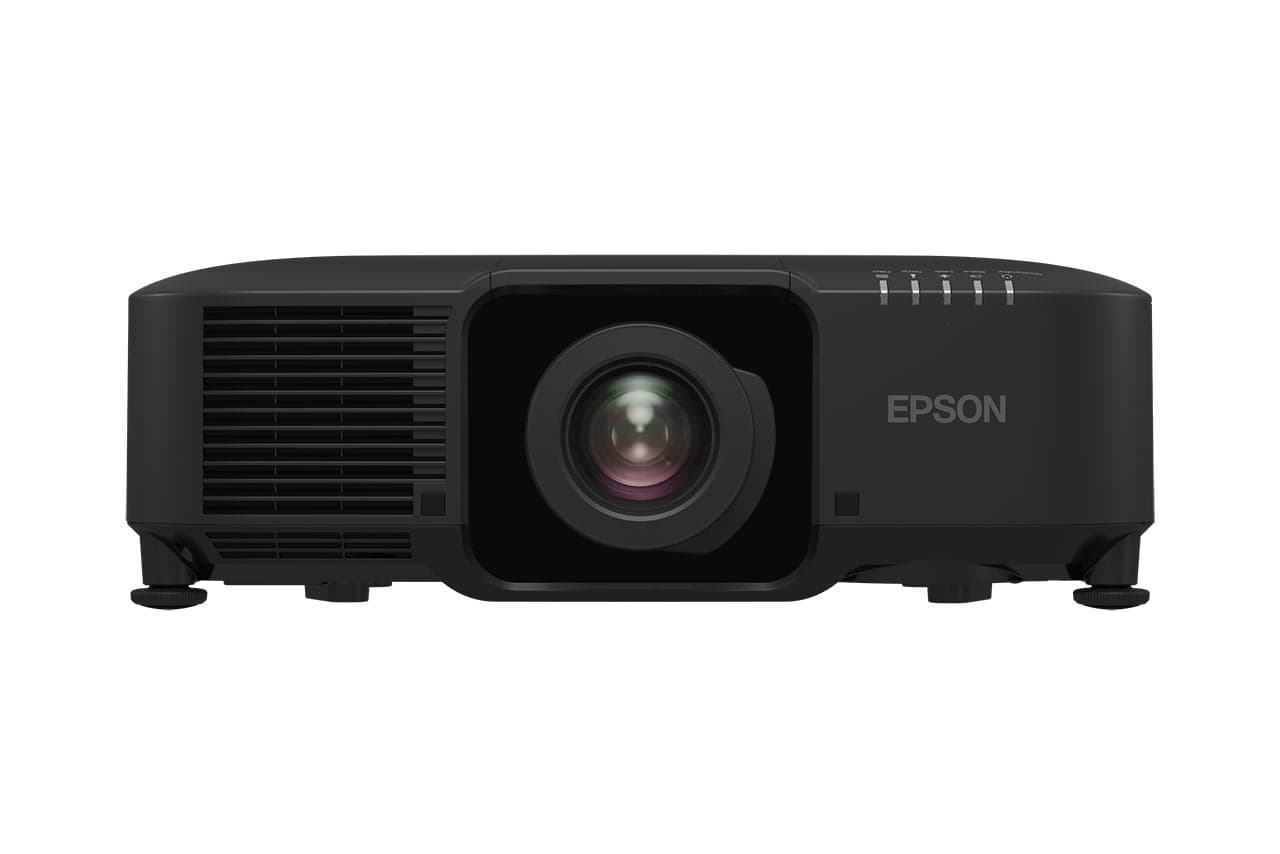

Epson EB-PU1007B data projector Large venue projector 7000 ANSI lumens 3LCD WUXGA (1920x1200) Black - Lens Not Included
WUXGA7000 lm3LCD
£4,929.60inc. VAT
In stock
UK stock
Epson

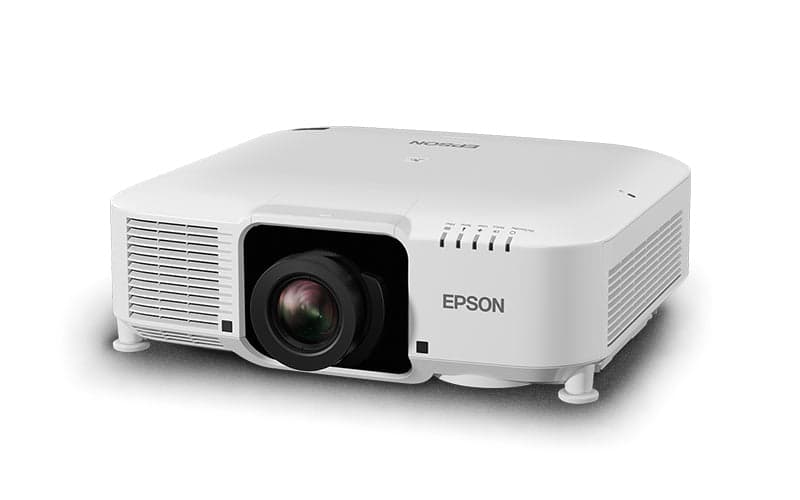

Epson EB-PU1007W data projector Large venue projector 7000 ANSI lumens 3LCD WUXGA (1920x1200) White
