Sony

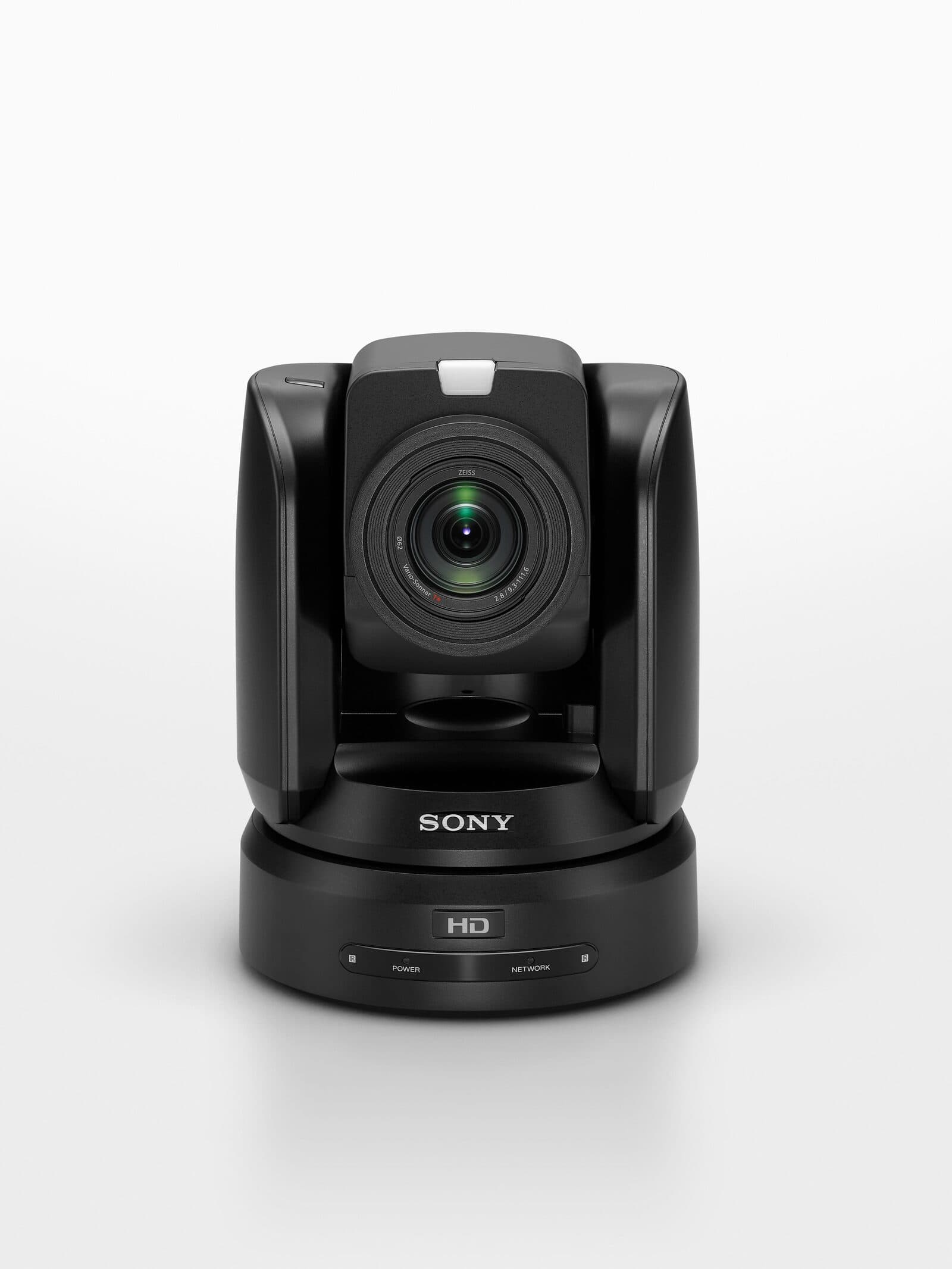

Sony BRC-H800 Full HD PTZ Camera (Black)
Full HD
£5,592.18inc. VAT
Out of stock
Sony
Sony BRC-H800 Full HD PTZ Camera (White)
£5,592.18inc. VAT
£4,660.15 ex. VAT
Out of stock
1
- Visa
- Mastercard
- American Express
- PayPal
Seen it cheaper? We price-match genuine like-for-like quotes. How it works
Bought in the UK, backed in the UKWhy it matters →
- Sourced through UK distribution
- UK manufacturer warranty
- UK-based engineers
- No import duty or customs charges
- GBP pricing, UK VAT invoices
Key specifications
Image Sensor1.0-type back-illuminated Exmor R CMOS
Effective PixelsApprox. 14.2 megapixels
Optical Zoom12x
Focal Lengthf = 9.3 to 111.6 mm, F2.8 (wide) to F4.5 (tele)
Horizontal Viewing AngleTyp. 64.6 degrees (wide end)
Horizontal Resolution850 TV lines (3G-SDI output, centre)
Minimum Illumination1.7 lux (50IRE, F2.8, 1/30s, max gain)
Signal System1080/59.94p, 1080/50p, 1080i, 720p, 1080/23.98p
Description
This is the white-bodied version of the BRC-H800, Sony's premium Full HD PTZ camera, built around a 1.0-type back-illuminated Exmor R CMOS sensor - a far larger sensor than the 1/2.5-type used in most PTZ cameras. That is what the camera is for: low-light performance and shallow depth of field that hold up on a broadcast or streamed programme, rather than a wide-angle view of a meeting room.
It has a 12x optical zoom (f = 9.3 to 111.6 mm), resolves 850 TV lines at the centre through its 3G-SDI output, and works down to 1.7 lux. Pan range is +/-170 degrees with tilt from +90 to -30 degrees, and 100 preset positions are stored on board. Two 3G-SDI outputs plus HDMI feed a vision mixer and a confidence monitor at the same time.
Control is over VISCA RS-422 or VISCA over IP, so it drops into an existing Sony robotic camera system - a single RM-IP500 controller can address up to 100 cameras over IP. Power is DC 12 V or PoE+, which keeps a ceiling or wall install to one cable. The body is 198 x 260 x 238 mm and about 4.3 kg, and ships with a ceiling bracket, wire rope and IR remote commander.
Key features
1.0-type Exmor R sensor
A much larger sensor than typical PTZ cameras use, for cleaner low-light images and shallower depth of field.
12x optical zoom
f = 9.3 to 111.6 mm covering wide establishing shots through to tight close-ups from a fixed position.
Dual 3G-SDI plus HDMI
Two SDI outputs and HDMI, so a mixer feed and a monitor feed can run simultaneously.
VISCA over IP control
Integrates with Sony RM-IP500 and RM-IP10 controllers over IP or RS-422 for multi-camera operation.
Technical specifications
Display
Horizontal Viewing AngleTyp. 64.6 degrees (wide end)
Horizontal Resolution850 TV lines (3G-SDI output, centre)
4K Video OutputNo
Connectivity
Optical Zoom12x
HD Video Output3G-SDI x 2 and HDMI
Power & Physical
Power Consumption19.0 W max (DC 12 V), 23.0 W max (PoE+)
Dimensions (W x H x D)Approx. 198 x 260 x 238 mm
WeightApprox. 4.3 kg
Camera Body ColourWhite
General
Image Sensor1.0-type back-illuminated Exmor R CMOS
Effective PixelsApprox. 14.2 megapixels
Focal Lengthf = 9.3 to 111.6 mm, F2.8 (wide) to F4.5 (tele)
Minimum Illumination1.7 lux (50IRE, F2.8, 1/30s, max gain)
Signal System1080/59.94p, 1080/50p, 1080i, 720p, 1080/23.98p
Pan / Tilt AnglePan +/-170 degrees, tilt +90 / -30 degrees
Preset Positions100
Camera Control InterfaceVISCA RS-422 (RJ45 in/out), VISCA over IP (RJ45)
Power RequirementsDC 10.8-13.2 V or PoE+ (IEEE 802.3at)
Operating Temperature0 to 40 degrees C
Documents
Delivery & returns
Estimated delivery 8 Sept - 12 Sept. UK mainland delivery only. Some large or made-to-order items carry longer lead times, shown on the product page.
Unused items in original packaging can be returned within 14 days of delivery — see the returns policy for how business and consumer returns differ. Faulty items are covered under manufacturer warranty and by your statutory rights.
Bought in the UK, backed in the UK
This item is sourced through UK distribution and ships to you from within the UK, so the order never crosses a customs border.
The manufacturer warranty is honoured here in the UK. If something fails, you deal with us, not with an overseas seller in another time zone.
Our own UK-based engineers install, commission and support what we sell, and can attend site when a system needs hands on it.
Delivered within the UK mainland, so there is no import duty, customs charge or courier handling fee waiting for you on delivery.
Prices are in pounds sterling with proper UK VAT invoices, and purchase orders are accepted from approved education accounts: no currency conversion and no surprises at the door.
Payment & security
Pay securely by card. Education customers can apply for a 30-day purchase order account.
Schools, colleges, sixth forms, universities and multi-academy trusts can order on invoice, with no card payment required. Purchase orders and credit terms are for education customers only.
All transactions are processed over an encrypted, secure checkout.
Alternative products
Closest matches in this category on price and capability. Not sure which way to go? Our technical team will talk it through.
Sony
Sony SRG-A40 4K PTZ Camera with Built-In AI and 30x/40x Clear Image Zoom (White)
UHD
£5,054.39inc. VAT
In stock
UK stock
Sony

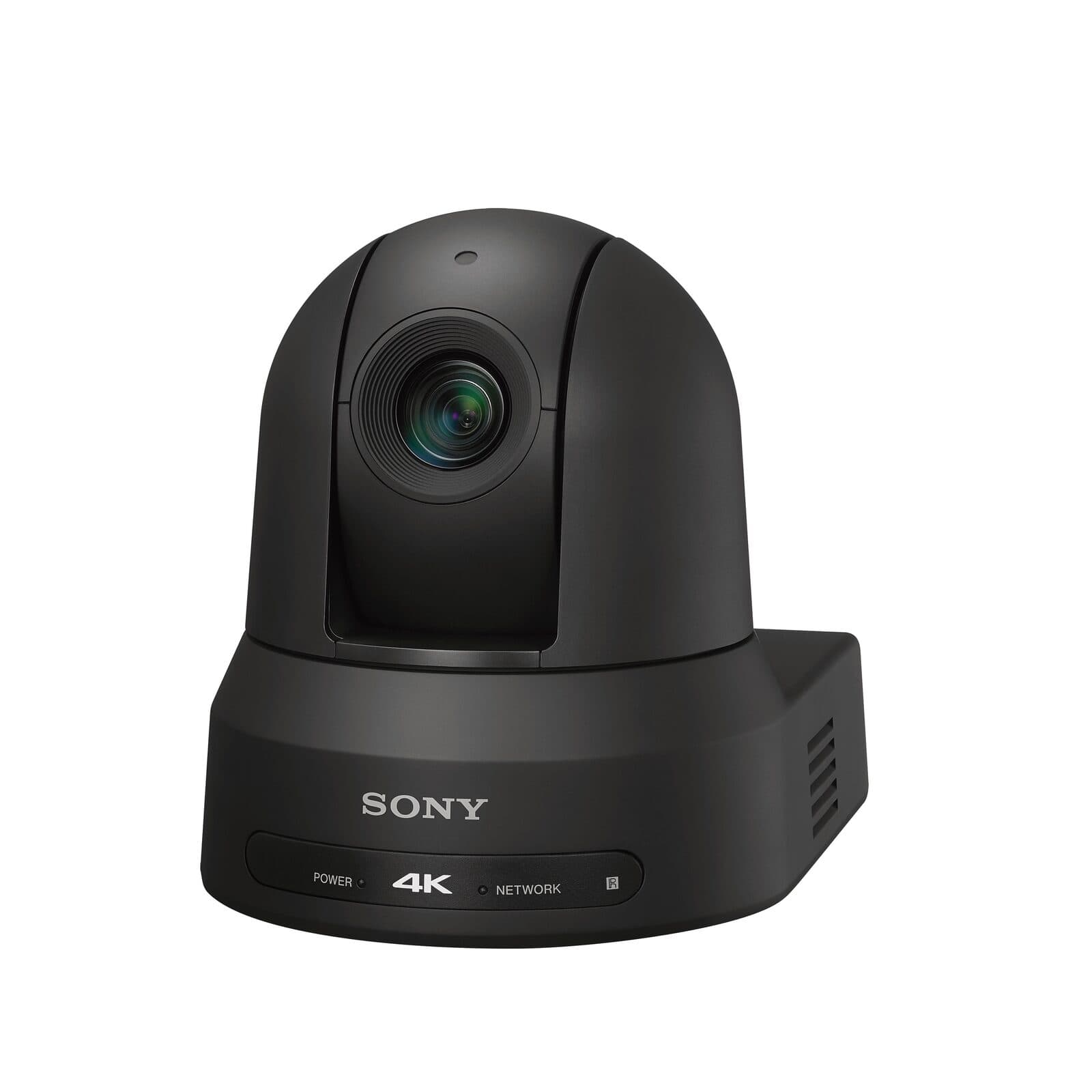

Sony BRC-X400 4K PTZ Camera with NDI|HX (Black)
4K UHD
£4,297.69inc. VAT
Out of stock
Sony

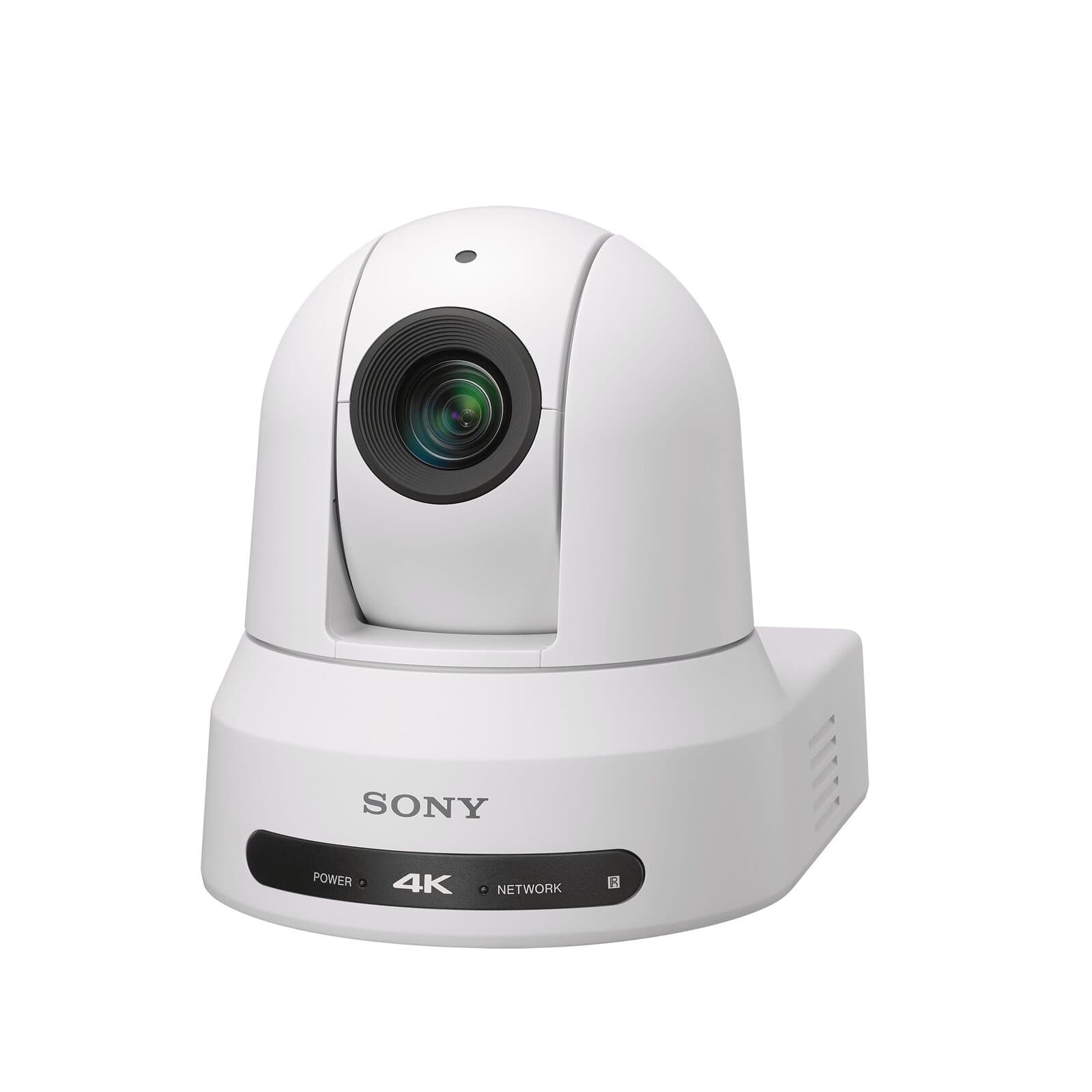

Sony BRC-X400 4K PTZ Camera with NDI|HX (White)
