Radio Design Labs D-RN02 Wall-Mounted Mic/Line Dante Interface 0x2

Name: Radio Design Labs D-RN02 Wall-Mounted Mic/Line Dante Interface 0x2
Brand: Radio Design Labs
SKU: D-RN02
Price: 854.40 GBP
Availability: OutOfStock

£854.40inc. VAT

£712.00 ex. VAT

Out of stock

Visa
Mastercard
American Express
PayPal

Or 3 interest-free payments of £284.80 with PayPal Pay in 3.

4.5 on Trustpilot · 14 reviews

Seen it cheaper? We price-match genuine like-for-like quotes. How it works

Bought in the UK, backed in the UKWhy it matters →

Sourced through UK distribution
UK manufacturer warranty
UK-based engineers
No import duty or customs charges
GBP pricing, UK VAT invoices

Return within 14 days

Installation services available Purchase orders: education customers only

7 Years Warranty Included

Key specifications

Network ConnectorRJ45 with Link and Speed indicators

Digital Audio Ethernet ProtocolDante

Transmission Rate100 Mbps

Sample Rates Supported44.1 kHz, 48 kHz (default), 88.2 kHz, 96 kHz

Bit Depth Supported24 bits

Audio Operating Level-18 dBFS = +4 dBu

Reference Level0 dBFS = +22 dBu

Outputs (2)Balanced, XLR and detachable wiring block (2)

All 25 specifications

Description

The D-RN02 is a complete wall-mounted Dante or AES67 audio network interface. It features two balanced XLR mic or line outputs on the front panel and on a rear-panel detachable wiring block. The module is configured and adjusted using RDL CONSOLE or other network control software. The D-RN02 fits a standard US single-gang electrical box or can be used with the RDL EP-1 adaptor for mounting in EU/UK square back boxes with 60 mm distance screw hole mounting centers. The D-RN02 is PoE powered and is available in multiple finishes with optional customized graphics.

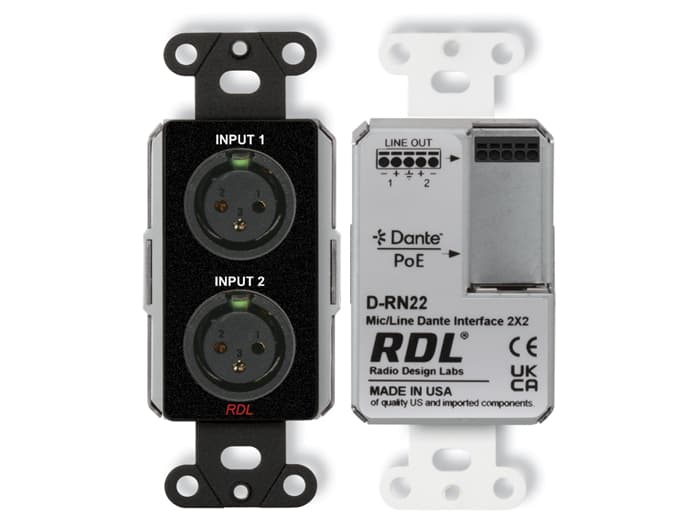

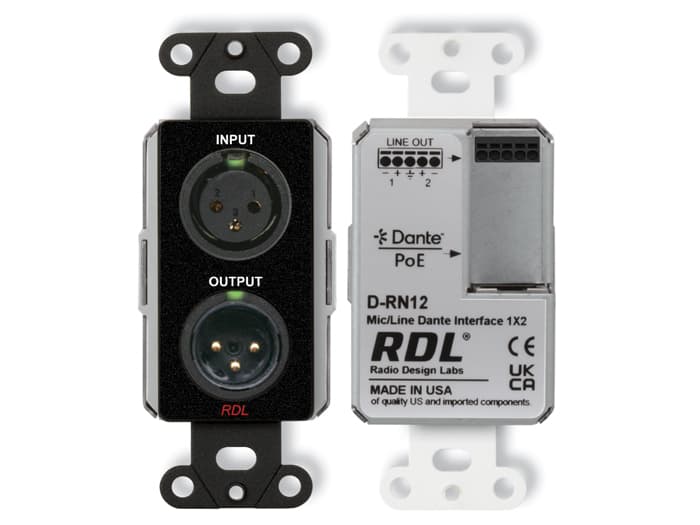

Also in this range:D-RN12 D-RN22 Full specifications Datasheet Compare alternatives

Network to Mic/Line Outputs Section

Two Dante or AES67 audio channels are converted to balanced line level feeding front-panel XLR jacks and a rear-panel detachable wiring block. Each output provides balanced +4 dBu for a network digital audio level of -18 dBFS. Each output is equipped with a software- controlled attenuator adjustable in 1 dB steps to a maximum attenuation of 63 dB, then OFF. Each front-panel output is equipped with a software-controlled mic/line output attenuator pad. When an output is set to mic level, the step attenuator reduces the mic output in 1 dB steps to a maximum attenuation of 63 dB below mic level, then OFF.

Valid PoE power and synchronization to the Dante network are indicated by green LEDs visible from the front of the unit.

The D-RN02 is a professional grade product delivering studio-quality fidelity and low noise performance, coupled through XLR jacks housed in a steel chassis mounted with a powder-coated or stainless-steel Decora front plate.

The D-RN02’s superior performance specifications make it ideally suited to installations requiring network control and exceptional value in commercial networked audio systems. This full-featured product is engineered and manufactured in the U.S.A. for continuous duty in demanding installations. Designed to outperform. Built to last.

Key features:

• Single-Gang Dante or AES67 Network Interface for Two Audio Outputs

• Two Balanced Outputs on Front Panel XLRs and on Rear Panel Detachable Wiring Block

• Front-Panel XLR Outputs are Software-Selectable for Mic or Line Level

• Outputs Equipped with Software-Controlled Attenuator in 1 dB Steps

• Module is Configured and Adjusted Using RDL CONSOLE or Other Network Control Software

• Q-SYS Plug-In Available for Configuring in Q-SYS Environment

• Compatible with RDL Network Remote Controls

• High Resolution 24 Bit Digital to Analog Conversion

• Legendary RDL Studio Quality, Low-Noise Performance

Manufacturer part number D-RN02.

Key features

Network Connector

RJ45 with Link and Speed indicators

Digital Audio Ethernet Protocol

Dante

Transmission Rate

100 Mbps

Sample Rates Supported

44.1 kHz, 48 kHz (default), 88.2 kHz, 96 kHz

Bit Depth Supported

24 bits

Audio Operating Level

-18 dBFS = +4 dBu

Reference Level

0 dBFS = +22 dBu

Outputs (2)

Balanced, XLR and detachable wiring block (2)

Technical specifications

Connectivity

Network ConnectorRJ45 with Link and Speed indicators

Digital Audio Ethernet ProtocolDante

Sample Rates Supported44.1 kHz, 48 kHz (default), 88.2 kHz, 96 kHz

Bit Depth Supported24 bits

Outputs (2)Balanced, XLR and detachable wiring block (2)

Output Level (operating)+4 dBu (nominal) balanced

Output Level (maximum)+22 dBu balanced

Output AttenuatorSoftware-controlled, 0 to -63 dB and OFF (analog output per received network channel)

Output Impedance150 Ω balanced

Audio

Audio Operating Level-18 dBFS = +4 dBu

Power & Physical

Dimensions1.80” (4.57 cm) W; 4.11” (10.44 cm) H; 2.09” (5.31 cm) D

Shipping Weight0.69 lbs. (0.313 kg)

General

Transmission Rate100 Mbps

Reference Level0 dBFS = +22 dBu

Frequency ResponseMic: 20 Hz to 20 kHz (± 0.5 dB); Line: 20 Hz to 20 kHz (± 0.5 dB)

THD+N< 0.1%

THD< 0.01% (1 kHz)

Noise< -80 dB (below +4 dBu); < -100 dB (below +22 dBu)

CrosstalkBelow Noise Floor (20 Hz to 20 kHz at operating level, output to output)

Headroom above +4 dBu> 18 dB

Indicators (4)Ethernet Link and Speed (2, rear panel); Sync and Power (2, front panel)

Ambient Operating Environment0° C to 50° C

Power RequirementPoE Class 0, IEEE 802.3af

Specification ConditionsGain/Level: ± 1 dB; Source termination: 150 Ω

US Tariff code8543.70.9100
