Home / Meeting Room Solutions / Poly Studio Large Room Kit for Microsoft Teams Rooms - Studio E70 and GC8
Poly

Poly Studio Large Room Kit for Microsoft Teams Rooms - Studio E70 and GC8

£3,727.20inc. VAT
£3,106.00 ex. VAT
Low stock (2 left), order soon
1

Seen it cheaper? We price-match genuine like-for-like quotes. How it works

Bought in the UK, backed in the UKWhy it matters →
  • In UK stock, ships from the UK
  • UK manufacturer warranty
  • UK-based engineers
  • No import duty or customs charges
  • GBP pricing, UK VAT invoices
Call 01342 580255
Return within 14 days
Installation services availablePurchase orders: education customers only
1 Year Warranty Included
Key specifications
Kit contentsPoly Studio E70 smart camera and Poly GC8 touch controller
Camera typeDual-lens
Camera resolution4K UHD (3840 x 2160)
Total camera megapixels2 x 20 MP
Horizontal field of view120 (wide) / 70 (narrow) °
Diagonal field of view140 (wide) / 78 (narrow) °
Zoom7.3x digital
Camera rangeUp to 25 ft
All 28 specifications

Description

The Poly Studio Large Room Kit for Microsoft Teams Rooms pairs the Studio E70 camera with the GC8 touch controller for boardrooms and training rooms running Teams Rooms on Windows. It is the camera-and-control half of a room build: the conferencing PC, displays and cabling are chosen separately.

Full specifications Datasheet Compare alternatives

The Studio E70 is a dual-lens camera with two 20 MP 4K sensors, a 120 degree wide lens and a 70 degree narrow lens, 7.3x digital zoom and coverage to roughly 25 ft. Poly DirectorAI drives speaker framing, people framing and group framing, and a motorised electronic privacy shutter closes the lenses between meetings. The camera takes a single USB Type-C connection plus RJ-45, powered by its 12 V adapter or 802.3af Class 3 PoE.

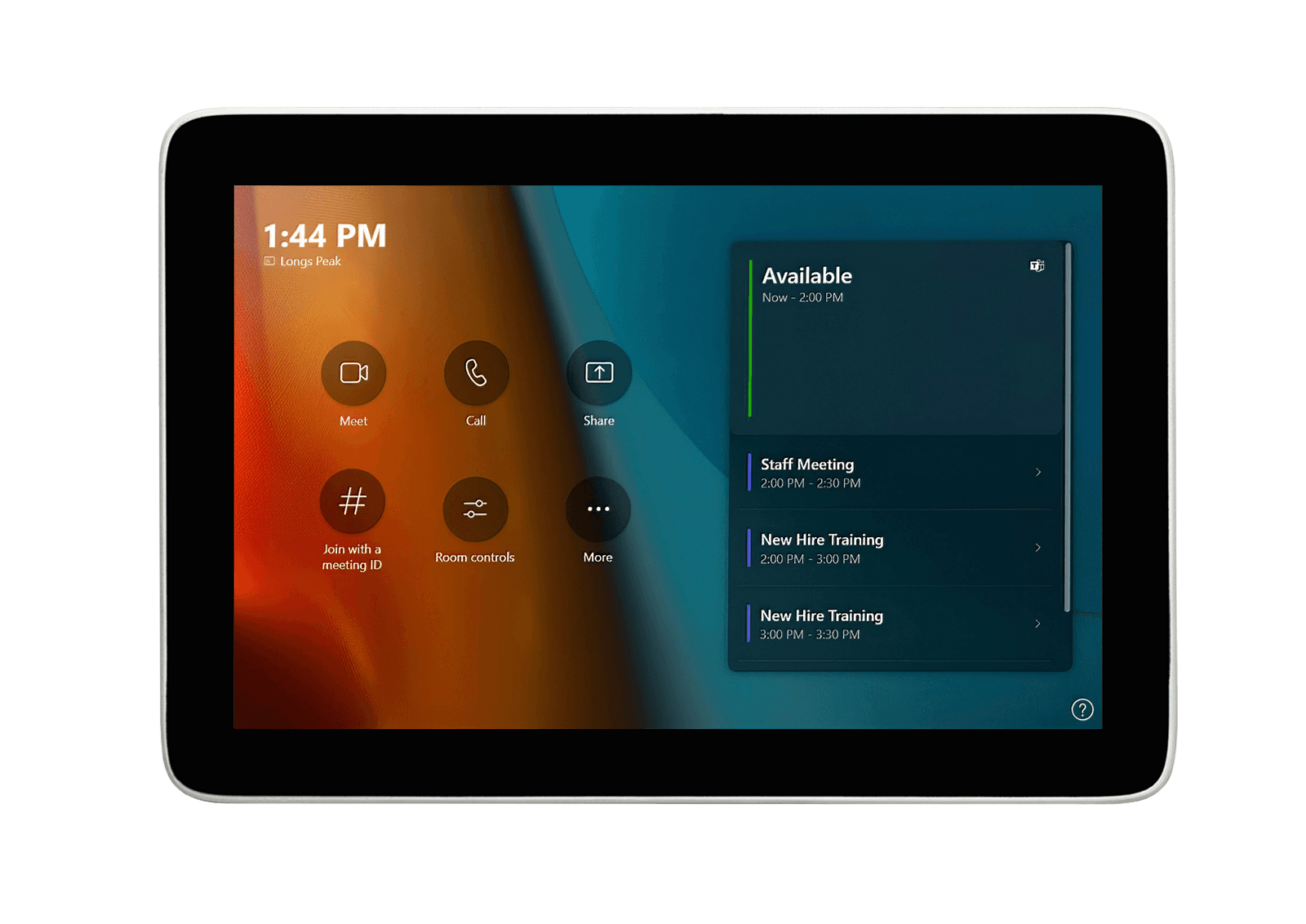

The Poly GC8 sits on the table with an 8-inch 1280 x 800 IPS touchscreen at a 60 degree viewing angle. It connects to the room PC over USB and carries its own mini HDMI and USB Type-A inputs, so a laptop can share content from the table without cabling back to the PC. Where the PC is further away, an active optical USB cable or a CAT5e USB extender can be added. Both devices are managed through Poly Lens.

Supplied by TopAV. Manufacturer part number 9C954AA.

Call 01342 580255

Key features

What is in the kit

Poly Studio E70 smart camera and Poly GC8 touch controller with their supplied cables and wall mount kit

Camera

Dual-lens Studio E70, two 20 MP 4K sensors, 120 degree wide and 70 degree narrow field of view, 7.3x digital zoom

Camera intelligence

Poly DirectorAI speaker, people and group framing plus a motorised electronic privacy shutter

Controller

Poly GC8 with an 8-inch WXGA IPS touchscreen, mini HDMI and USB Type-A content inputs and a Kensington lock slot

Certification

Certified for Microsoft Teams; the Studio E70 is also Zoom certified

Long cable runs

GC8 supports an optional active optical USB cable or a USB 2.0 extender over CAT5e to reach a distant room PC

Technical specifications

Display
Camera resolution4K UHD (3840 x 2160)
Controller display8 in IPS, WXGA 1280 x 800, 16:10
Controller viewing angle75 horizontal / 75 vertical °
Connectivity
Camera I/O ports1 x USB Type-C (5 Gbps), 1 x RJ-45
Camera Power over Ethernet802.3af Class 3, 15.4 W
Controller I/O ports1 x USB Type-C (5 Gbps), 1 x USB Type-A (5 Gbps), 1 x mini HDMI, 1 x 3.5 mm audio jack
Power & Physical
Camera colourWhite
Camera weight0.91 kg
Camera dimensions (W x D x H)320.8 x 102.1 x 89.2 mm
Controller weight0.77 kg
Controller dimensions (W x D x H)205 x 123 x 112 mm
Certifications & Warranty
Certified collaboration softwareMicrosoft Teams (Studio E70 also Zoom certified)
WarrantyPoly standard one-year limited warranty
General
Kit contentsPoly Studio E70 smart camera and Poly GC8 touch controller
Camera typeDual-lens
Total camera megapixels2 x 20 MP
Horizontal field of view120 (wide) / 70 (narrow) °
Diagonal field of view140 (wide) / 78 (narrow) °
Zoom7.3x digital
Camera rangeUp to 25 ft
Smart camera technologyPoly DirectorAI with speaker framing, people framing, group framing and DirectorAI perimeter
Privacy shutterMotorised integrated electronic shutter
Camera power supplyExternal, 100-240 VAC input, 12 VDC 5 A 60 W output
Operating temperature range0 to 40 °C
Operating humidity range15 to 80 %
Operating altitude16,000 ft
Management softwarePoly Lens
Controller securityStandard Kensington lock slot
Call 01342 580255

Documents

Poly Studio E70 Smart Camera datasheet (PDF)
Poly GC8 Touch Controller datasheet (PDF)
