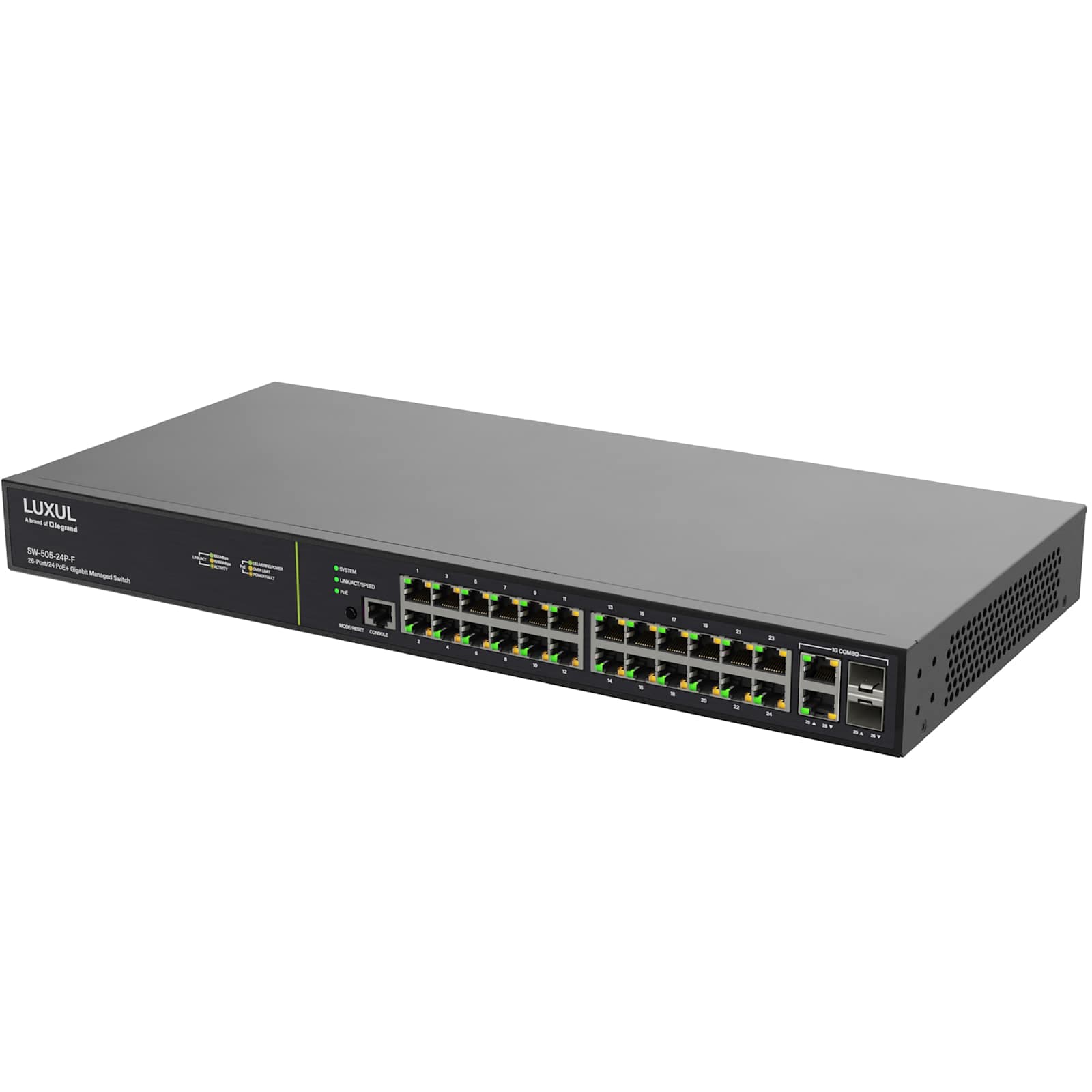

Luxul 24 PoE+ | 2 Combo RJ45/SFP Rear-Facing Ports - 1Gb L2/L3 Managed Switch, EU Power Cord

Name: Luxul 24 PoE+ | 2 Combo RJ45/SFP Rear-Facing Ports - 1Gb L2/L3 Managed Switch, EU Power Cord
Brand: Luxul
SKU: SW-505-24P-R-E
Price: 1076.40 GBP
Availability: OutOfStock

£1,076.40inc. VAT

£897.00 ex. VAT

Out of stock

Visa
Mastercard
American Express
PayPal

Or 3 interest-free payments of £358.80 with PayPal Pay in 3.

Independently reviewed on Trustpilot

Seen it cheaper? We price-match genuine like-for-like quotes. How it works

Bought in the UK, backed in the UKWhy it matters →

Sourced through UK distribution
UK manufacturer warranty
UK-based engineers
No import duty or customs charges
GBP pricing, UK VAT invoices

Call 020 3815 8642

Return within 14 days

Installation services available Purchase orders: education customers only

Key specifications

Height1.75 in (4.4 cm)

Length17.4 in (44.2 cm)

Max Power Consumption293W @ 100VAC

Operating Temperature32° to 104°F (0° to 40°C)

PoE Power Budget250W

Product Weight6.6 lbs (3 kg)

Switching Capacity52 GBPS

Width8.3 in (21.1 cm)

All 25 specifications

Description

The SW-505-24P-R includes 24 1-Gigabit PoE+ Ethernet ports, two non-powered Ethernet ports, and two 1-Gigabit SFP expansion ports (SFP and non-powered ethernet ports cannot be used at the same time). Both 1 Gb SFP ports can be aggregated for a connection speed of up to 2 Gb. The 24 PoE+ ports deliver both gigabit data and power over a single cable to 802.11af/atcompliant devices, with a maximum of 30W per port. For separately powered devices, these ports deliver network connectivity only. The total power budget is 250W for all PoE+ ports combined. The advanced Layer 2/Layer 3 features a refreshed easy-to-use management interface to simplify configuration and make this switch ideal for use in single-switch AVoIP environments. Setup of IGMP/Multicast on a per-port basis is easy, improving the setup and reliability of running audio and video over the network simultaneously. Watch Video: Meet our SW Series Managed PoE+ Switches Category Cable Connectivity Get the Network Patch Cables you need from C2G. Explore Here Features Refreshed, simplified user interface Supports inbound (ingress) ACL filtering Layer 2/Layer 3 capabilities (static routing included) Multicast/IGMP snooping and que Manufacturer part number SW-505-24P-R-E.

Full specifications Datasheet Compare alternatives

Call 020 3815 8642

Key features

Height

1.75 in (4.4 cm)

Length

17.4 in (44.2 cm)

Max Power Consumption

293W @ 100VAC

Operating Temperature

32° to 104°F (0° to 40°C)

PoE Power Budget

250W

Product Weight

6.6 lbs (3 kg)

Switching Capacity

52 GBPS

Width

8.3 in (21.1 cm)

Connection Type

Wired

Jumbo Frame Support

9216 B

Layer Support

L2 / L3

Multicast

IGMP v1/2/3 / Per Port Unregistered Flooding / Quierer / Snooping

Technical specifications

Choose a section to view its specifications.

Connectivity (9)

Connection Type: Wired
Jumbo Frame Support: 9216 B
Layer Support: L2 / L3
Number of Fiber SFP Ports: 2
Number of Ports: 24
Port Location: Rear
SPF Port Type: 2 x 1 Gigabit
VLAN Compliance: 802.1Q max 4094 VIDs & VLAN trunking
VLAN ID: 4094

Power & Physical (4)

Height: 1.75 in (4.4 cm)
Max Power Consumption: 293W @ 100VAC
Product Weight: 6.6 lbs (3 kg)
Width: 8.3 in (21.1 cm)

General (12)

Length: 17.4 in (44.2 cm)
Operating Temperature: 32° to 104°F (0° to 40°C)
PoE Power Budget: 250W
Switching Capacity: 52 GBPS
Multicast: IGMP v1/2/3 / Per Port Unregistered Flooding / Quierer / Snooping
PoE Self Healing: Per Port Basis
Power Cord: EU Cord
Spanning Tree: MSTP / RSTP / STP
Special Features: PoE Self Healing
Switch Type: Managed / PoE+
TAA Compliant: Yes
Wired Data Rate: 1Gbps

Call 020 3815 8642

Documents

Luxul 24 PoE+ | 2 Combo RJ45/SFP Rear-Facing Ports - 1Gb L2/L3 Managed Switch, EU Power Cord — LUX-SPEC-SW-505-24P-R
