Home / Collaboration Touch Displays / Jupiter Pana 105T 105" 21:9 Ultra-Wide 5K Touchscreen Display
Jupiter

Jupiter Pana 105T 105" 21:9 Ultra-Wide 5K Touchscreen Display

£13,148.80inc. VAT
£10,957.33 ex. VAT
In stock, dispatched within 2 working days
1
  • Visa
  • Mastercard
  • American Express
  • PayPal
Independently reviewed on Trustpilot

Seen it cheaper? We price-match genuine like-for-like quotes. How it works

Bought in the UK, backed in the UKWhy it matters →
  • In UK stock, ships from the UK
  • UK manufacturer warranty
  • UK-based engineers
  • No import duty or customs charges
  • GBP pricing, UK VAT invoices
Return within 14 days
3-year manufacturer warranty
Installation services available
Call 01342 580255
Key specifications
Screen Size105 in
Resolution5120 x 2160 (5K)
Aspect Ratio21:9
Brightness700 cd/m2
Contrast Ratio10,000:1
Viewing Angle178 degrees
Panel TypeIPS LCD with local dimming and anti-glare coating
Touch TechnologyDirect-bonding multi-touch
All 22 specifications
Talk to an Expert

Description

The Jupiter Pana 105T is the largest model in Jupiter's ultra-wide Pana line, an 8-foot-wide 21:9 interactive display aimed at boardrooms, command centres and large-format collaboration spaces that need a single, continuous, high-resolution canvas rather than a wall of smaller screens. The IPS panel runs at native 5K resolution (5120x2160) with 700 cd/m2 brightness, local dimming, a 10,000:1 contrast ratio and 178-degree viewing angles for consistent image quality across the full 8x3.4 ft display area.

Full specifications Datasheet Compare alternatives

Direct-bonded multi-touch turns the panel into a genuine interactive workspace, letting teams annotate, sketch and manipulate content directly on screen with Jupiter's SimpleShare collaboration software and reverse touch to connected Windows, Mac, Android or Linux devices. Connectivity mirrors the rest of the Pana range: DisplayPort 1.4 in/out with MST, HDMI 2.0, USB-C with 65W power delivery, USB 2.0 Type-A, S/PDIF optical audio and Ethernet/RS232 control, with an optional slide-in Pana OPS compute module available for a PC-free install.

As with the rest of the Pana family, the 105T is HDCP 2.2 compliant, platform-agnostic, and pairs with Jupiter's Canvas-enabled video wall processors for advanced multi-window and multi-display deployments in critical-data and command-and-control environments.

Call 01342 580255

Key features

8-foot 5K ultra-wide canvas

5120x2160 native resolution across a 21:9 aspect ratio and 8x3.4 ft display area for boardrooms and command centres.

Direct-bonded multi-touch

Direct-bonding touch technology with reverse-touch support to connected Windows, Mac, Android and Linux systems.

700 cd/m2 with local dimming

10,000:1 contrast ratio and 178-degree viewing angle for bright, glare-prone executive and control-room environments.

SimpleShare collaboration software

Jupiter's SimpleShare software enables intuitive on-screen annotation and content sharing across connected sources.

Rich connectivity

DisplayPort 1.4 in/out with MST, HDMI 2.0, USB-C 65W power delivery, USB-A, S/PDIF optical and Ethernet/RS232 control.

Technical specifications

Choose a section to view its specifications.

Display (11)
Screen Size
105 in
Resolution
5120 x 2160 (5K)
Aspect Ratio
21:9
Brightness
700 cd/m2
Contrast Ratio
10,000:1
Viewing Angle
178 degrees
Panel Type
IPS LCD with local dimming and anti-glare coating
Touch Technology
Direct-bonding multi-touch
Touch Points
20-point multi-touch
Panel Lifetime
50,000+ hours
Display Area
8 ft x 3.4 ft
Connectivity (1)
Connectivity
DisplayPort 1.4 In/Out (MST), HDMI 2.0, USB-C (65W PD), USB 2.0 Type-A, S/PDIF optical, Ethernet/RS232
Audio (1)
Audio
Built-in 2x15W speakers
Power & Physical (3)
VESA Mount
1500 x 600 mm
Weight
207 lbs (approx 94 kg)
Size Band
100"+
Certifications & Warranty (1)
Warranty
3 years
General (5)
Response Time
8 ms
HDCP
HDCP 2.2
Collaboration Software
Jupiter SimpleShare with reverse touch to Windows, Mac, Android and Linux
Optional Compute Module

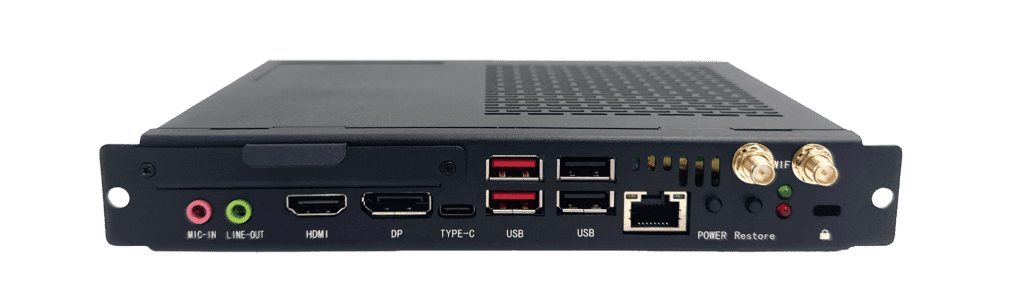

Pana OPS slide-in PC (12th Gen Intel Core i7-12650H, 16GB DDR4, 256GB NVMe, Intel Iris Xe, Wi-Fi 6)
Energy efficiency class
F
