iiyama · iiyama ProLite LH75 SDM signage series
iiyama LH8675UHS-B2AG 86-inch 4K commercial display
- Visa
- Mastercard
- American Express
- PayPal
Seen it cheaper? We price-match genuine like-for-like quotes. How it works
- In UK stock, ships from the UK
- UK manufacturer warranty
- UK-based engineers
- No import duty or customs charges
- GBP pricing, UK VAT invoices
An 86-inch 4K UHD IPS signage display rated 1400:1, with an Intel SDM-L slot for an optional compute module, three HDMI 2.0 inputs and DisplayPort, Android 11 with iiSignage2 on board, and a 500 cd/m2 panel rated for 24/7 operation.
TopAV buying advice
Is the iiyama LH8675UHS-B2AG right for your reception?
The largest screen in this range, and a structural decision as much as a display one.
Shortlist the LH8675UHS-B2AG for a large foyer, an atrium, a main reception wall, a canteen, a transport concourse or a showroom where the screen has to be read from right across the space and has to hold attention on its own. It is the only size in this range iiyama rates at 1400:1 static contrast rather than 1200:1, and it carries the same Intel SDM slot that defines the range, so the compute can be the customer's own rather than the display's. At 50kg it is a rigging and structural job, not a two-person wall hang.
Reasons to shortlist it
- The Intel SDM-L slot takes a standards-based compute module inside the chassis, powered and cooled by the display. An IT team that will not run vendor Android on its network can run its own Windows or Linux player behind the glass instead, which on a screen this size and this high up removes a player box, its power supply and its cabling from a position nobody wants to reach twice. The module is a separate purchase and does not come with the screen.
- Three HDMI 2.0 inputs with audio return channel on the third, plus a DisplayPort 1.2 input. That is one more HDMI than most signage panels carry, so a lectern laptop, a room PC and a player can all stay connected at once, and FailOver switches to the next live input by itself when a source drops out.
- Android 11 runs on the display with iiSignage2 content management, iiControl device management, iiShare and EShare wireless sharing and FailOver, on an eight core A311D2 processor with a G52 MP8 graphics core, 4GB of memory and 32GB of storage, plus a micro SD card slot for local media. Content is scheduled and updated over the network without anyone going near the screen.
- iiyama rates this panel at 1400:1 static contrast, above the 1200:1 quoted for the other IPS sizes in this range, on anti-glare coated glass at 25 percent haze. On a very large panel in a foyer with overhead lighting, both figures matter more than they do on a small one, because the whole surface is in view at once.
- It is rated for 24/7 non-stop operation, is fanless and has anti image retention built in, in a metal housing with a 50,000 hour MTBF figure. A fanless 86-inch screen adds no noise to an atrium, it can stay on every hour of the year, and a fixed logo or header bar will not burn itself into a panel this expensive to replace.
Check before you choose
- At 50kg and 1927 x 1098.5 x 57mm this is not a conventional wall hang. It needs a structurally rated fixing or a floor-supported mount, a lift crew, and an access route that will take a 65kg boxed load. Get the wall construction and the route surveyed before you order, because a screen this size that cannot be got into the room is an expensive problem.
- It draws 229W typically with 0.5W still used in off mode and carries energy efficiency class G. On a display rated to run continuously that is a running cost worth multiplying out over a year, and it is a meaningful step up from the 187W of the 75-inch model in the same range if the sightline does not genuinely demand the extra size.
- The panel is 500 cd/m2, an indoor signage level, and the compute module for the SDM slot is bought separately in the larger SDM-L format. An atrium with glazing behind or beside the screen may need the high-brightness tier instead, there is no USB-C input so a USB-C laptop needs an adapter, and the two USB Type A ports are USB 2.0.
See the 86" on your wall, to scale
On a phone, point your camera at the wall and see the 86" there at its real size. On a computer, upload a photo of the wall (or scan the QR code to take one with your phone and it will appear here) and drag the display around it to scale.
Not sure 86" is the right size for the room? The screen size calculator shows how far a 86" display carries for presentations, touch work and video.
What to plan before installing the LH8675UHS-B2AG
01
Survey the wall and the route first
Confirm the wall construction, the fixing method and the load path for 50kg, and walk the delivery route for a 65kg boxed load 1927mm on the long edge. Doors, lifts and stairwells decide more 86-inch installs than the specification does. The mounting pattern is listed in the specification table, and the screen is 1927 x 1098.5 x 57mm on the wall.
02
Sightlines, orientation and light
Measure the furthest reading point and the smallest text in your content, then check the daylight falling on the position against a 500 cd/m2 panel. Landscape and portrait are both supported, but a portrait install at this size is a very tall object, so check the ceiling height and the bracket rating before you decide. Overhead lighting reflections are worth checking at the actual mounting height. iiyama lists a 600 x 400 mm VESA pattern.
03
Content, power and control
Decide whether the content runs on the built-in Android 11 system with iiSignage2, on an Intel SDM-L compute module inside the chassis, or on an external source over HDMI or DisplayPort, and agree network access with your IT team. Allow a socket behind the mount for a 229W typical draw, and use wired LAN, RS-232c or IR for control. Tell us if you want the mount, the rigging or the installation quoted with the display.
Display price is for the panel. Installation and optional equipment are quoted separately. Purchase-order terms are available to approved education customers.
Build a quote you can compare
Include these details in your project enquiry so the quote covers the room as well as the screen.
- Number of displays, site postcode and required date.
- Furthest viewing distance and available wall space.
- Wall type, fixed mount or adjustable trolley, and cable routes.
- Laptop model, teaching apps, and any camera or Windows PC needs.
Ask for separate equipment, delivery, installation and licence costs, with a total including VAT. Confirm warranty coverage and any registration requirements before placing the order.
Complete your setup
What else the LH8675UHS-B2AG needs
The price above is for the display on its own. A wall mount or trolley is a separate purchase, and installation is quoted per site. Add what you need here and it joins the same basket.
Choose a mount
Professional Installation
Want it installed by our AV experts? We offer professional on-site installation including mounting, cable management, and system configuration.
Compare your shortlist
iiyama LH8675UHS-B2AG vs LH7575UHS-B2AG: 86-inch or 75-inch?
Choose around the room and the content people need to read, not the model number.
| Feature | LH8675UHS-B2AG | LH7575UHS-B2AG |
|---|---|---|
| Screen Size | 86 in | 75 in |
| Resolution | 3840 x 2160 @60Hz (8.3 megapixel 4K UHD) | 3840 x 2160 @60Hz (8.3 megapixel 4K UHD) |
| Brightness | 500 cd/m² | 500 cd/m² |
| Contrast Ratio | 1400:1 | 1200:1 |
| Speakers | 2 x 10W | 2 x 10W |
| Power Consumption | 229W typical, 0.5W standby, 0.5W off | 187W typical, 0.5W standby, 0.3W off |
Specifications checked on 13 September 2026: iiyama ProLite LH8675UHS-B2AG (opens in a new tab) and iiyama VisionCare warranty table (opens in a new tab). Buying advice is based on published specifications; confirm the supplied configuration for either model.
See this 86-inch display to scaleiiyama LH8675UHS-B2AG specifications and documents
iiyama specifications (opens in a new tab)Choose a section to view its specifications.
Display (6)
- Screen Size
- 86 in
- Resolution
- 3840 x 2160 @60Hz (8.3 megapixel 4K UHD)
- Brightness
- 500 cd/m²
- Contrast Ratio
- 1400:1
- Aspect Ratio
- 16:9
- Backlight Life
- 50,000 hours
Connectivity (1)
- HDMI Inputs
- 3 (HDMI 2.0, ARC on HDMI 3)
Audio (1)
- Speakers
- 2 x 10W
Power & Physical (5)
- Size Band
- 80 - 99"
- Power Consumption
- 229W typical, 0.5W standby, 0.5W off
- VESA Mount
- 600 x 400 mm
- Weight
- 50 kg
- Shipping Weight
- 65 kg
Certifications & Warranty (1)
- Warranty
- 3 years iiyama VisionCare (onsite exchange, mainland UK and Ireland)
General (10)
- Energy efficiency class
- G
- Operating System
- Android 11
- Orientation
- Landscape / Portrait
- RAM
- 4GB
- Storage
- 32GB
- OPS Slot
- No (Intel SDM slot for an optional compute module, module not included)
- Glass
- Anti-glare coated, haze 25%
- Duty Cycle
- 24/7
- Manufacturer part number
- LH8675UHS-B2AG
- GTIN
- 4948570125289
Specifications are iiyama's published figures. Checked on 13 September 2026. The buying advice is our own, from specifying and installing equipment like this in UK classrooms and meeting rooms.
iiyama LH8675UHS-B2AG questions answered
Who is the iiyama ProLite LH8675UHS-B2AG best suited to?
A large foyer, an atrium, a main reception wall, a canteen, a transport concourse, a showroom or a conference space where the screen has to be read right across the room. It is a commercial signage display rated for continuous operation rather than a television, and at 86 inches it is chosen for reach and presence rather than for detail, since the resolution is the same 4K as the smaller sizes.
What does the Intel SDM slot actually give me?
It is a standard slot for a plug-in compute module that sits inside the display and is powered by it. Fit one and the screen runs whatever that module runs, typically Windows, so the content platform is yours rather than the display maker's. On an 86-inch screen mounted high, it also means there is no player box, power supply or extra cable in a position that is awkward to reach. The module is bought separately.
Why would I use the slot instead of the built-in Android system?
Usually IT policy or an existing platform. Some organisations will not put a vendor Android device on their network, and others already run a signage, room-booking or dashboard application that only exists for Windows. A module in the slot gives them the operating system they already manage, with their own tooling, and none of the cabling of an external player. If neither applies, the built-in system is the cheaper route.
Does it need a separate media player?
No. Android 11 is built in with iiSignage2 content management, iiControl, iiShare, EShare wireless sharing and FailOver input recovery, on 4GB of memory and 32GB of storage with a micro SD card slot for local media. Three HDMI 2.0 inputs and a DisplayPort 1.2 input are there if you would rather drive it from a player, a PC or a compute module in the slot.
What does the install actually involve?
It weighs 50kg and 65kg in its box at 1927 x 1098.5 x 57mm, so it needs a structurally rated fixing or a floor-supported mount, a lift crew and a surveyed access route. The mounting pattern is listed in the specification table on this page. In practice the wall construction and the route through the building decide the job more often than the display specification does, so send us both and we will quote the mount and the installation with the screen.
Is its picture any different from the smaller models?
Slightly. iiyama rates this panel at 1400:1 static contrast where the other IPS sizes in the range are quoted at 1200:1, on the same anti-glare coated glass at 25 percent haze and the same 500 cd/m2 brightness. Resolution is the same 3840 x 2160, so at a given distance the image is not more detailed, only larger. The 50-inch VA model in this range is rated far higher at 5000:1 if deep blacks matter more than size.
Is it bright enough for an atrium?
Only away from the glass. At 500 cd/m2 this is the standard indoor signage level, right for a foyer, a concourse or a retail interior out of direct sun. If daylight falls on the screen from glazing behind or beside it, the high-brightness tier that starts around 800 cd/m2 is the right specification instead. Measure the light at the exact mounting position and at the brightest time of day.
How much power does it use?
iiyama quotes 229W typical, 0.5W in standby and 0.5W in off mode, with energy efficiency class G. On a screen rated for 24/7 operation that is worth multiplying out across a year, and it is a clear step up from the 187W of the 75-inch model. If the sightline does not genuinely need 86 inches, the smaller panel is cheaper to buy and cheaper to run.
Can it run all day, every day?
Yes. iiyama rates it for 24/7 non-stop operation, it is fanless so an atrium stays quiet, and anti image retention is built in for layouts with fixed elements such as a logo or a header bar. The quoted MTBF figure is 50,000 hours excluding the backlight, and the operating temperature range is 0 to 40 degrees C, which is worth checking in a sunlit atrium as well as a cold entrance hall.
Should I choose the 86-inch LH8675UHS-B2AG or the 75-inch LH7575UHS-B2AG?
Choose by the furthest reading point and by what the building will take. Both are 4K IPS at 500 cd/m2 with 2 x 10W speakers, three HDMI inputs, Android 11, an SDM-L slot and 24/7 operation, so the larger panel adds reach, not detail. The 86-inch weighs 50kg against 29.5kg and is 1927mm wide against 1679.5mm, which changes the fixing, the lift and the access route, and it draws 229W against 187W. Its contrast is quoted a little higher at 1400:1 against 1200:1.
Trusted by thousands of customers
Explore recent installations
See recent installations supplied by StriveAV, TopAV’s parent company. Customer names are masked for privacy.
Alternative products
Closest matches in this category on price and capability. Not sure which way to go? Our technical team will talk it through.

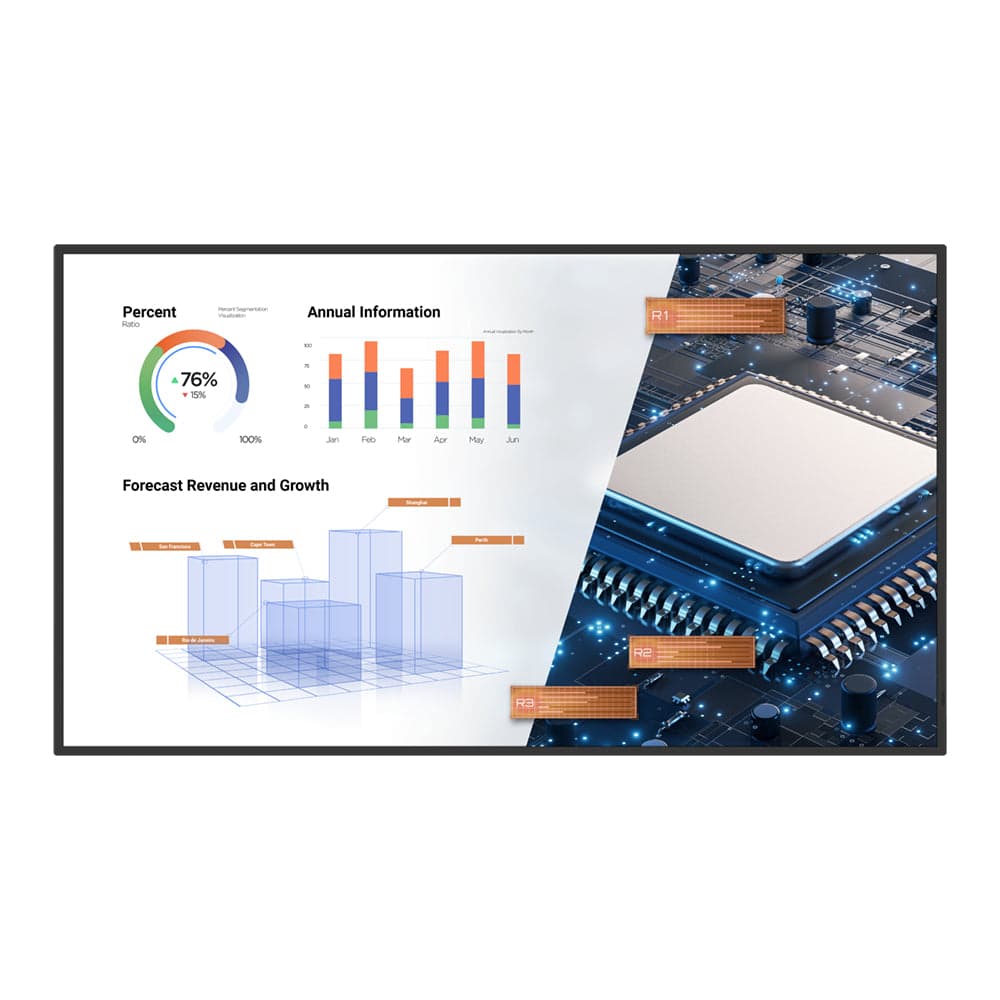

BenQ ST8602S 86" Signage Display
