Home / Ceiling Mounts / Chief XCM7000 Fusion Extra-Large Dual Pole Flat Panel Ceiling Mount
Chief

Chief XCM7000 Fusion Extra-Large Dual Pole Flat Panel Ceiling Mount

£572.40inc. VAT
£477.00 ex. VAT
Out of stock
1

Seen it cheaper? We price-match genuine like-for-like quotes. How it works

Bought in the UK, backed in the UKWhy it matters →
  • Sourced through UK distribution
  • UK manufacturer warranty
  • UK-based engineers
  • No import duty or customs charges
  • GBP pricing, UK VAT invoices
Return within 14 days
Installation services availablePurchase orders: education customers only
10 Years Warranty Included
Key specifications
Weight capacity136 kg
Typical screen size55 - 100 in
VESA mounting pattern200 x 100mm - 800 x 400mm
Tilt+7.5 / -20
AdjustabilityTilt, height adjustable
Number of displays1
ApplicationCeiling
OrientationLandscape
All 14 specifications

Description

The XCM7000 hangs a single extra-large display from two poles rather than one, which is what heavy and deep screens need if they are not to swing. It is aimed at digital signage in concourses, retail and large venues where the display has to come down from the ceiling.

Full specifications Datasheet Compare alternatives

Continuous tilt from plus 7.5 to minus 20 degrees has four set locking points, so several screens in a run can be brought to the same angle without guesswork, and post-installation levelling roll squares each one up. The screen engages without tools and takes a padlock for security. The mount is rated to 136 kg on VESA patterns from 200 x 100 mm to 800 x 400 mm.

It handles displays over 127 mm deep. Ceiling plates and extension columns for 1.5 inch NPT are ordered separately. TAA compliant and UL Listed. Supplied by TopAV. Manufacturer part number XCM7000.

Key features

Weight capacity

Rated to 136 kg (300 lb).

Screen size range

For a single display from 55 to 100 inches, including deep panels over 127 mm.

VESA range

200 x 100 mm to 800 x 400 mm.

Dual pole stability

Two drop poles plus locking tilt angles for extremely heavy and deep displays.

Repeatable tilt

Plus 7.5 to minus 20 degrees with four set locking points, and post-installation levelling roll.

TAA compliant and UL Listed

Ceiling plates and 1.5 inch NPT extension columns ordered separately.

Technical specifications

Display
Typical screen size55 - 100 in
Number of displays1
Power & Physical
Weight capacity136 kg
VESA mounting pattern200 x 100mm - 800 x 400mm
ColourBlack
Shipping dimensions92.7 x 31.8 x 26.7 cm
Shipping weight15.4 kg
Certifications & Warranty
CertificationsTAA, UL Listed
General
Tilt+7.5 / -20
AdjustabilityTilt, height adjustable
ApplicationCeiling
OrientationLandscape
Post-installation levelling rollYes
TAA compliantYes

Documents

Chief XCM7000 installation manual (PDF, Legrand AV). Attached in place of the cutsheet, which Legrand generates in the browser rather than hosting.

Delivery & returns

Estimated delivery 18 Sept - 22 Sept. UK mainland delivery only. Some large or made-to-order items carry longer lead times, shown on the product page.

Unused items in original packaging can be returned within 14 days of delivery — see the returns policy for how business and consumer returns differ. Faulty items are covered under manufacturer warranty and by your statutory rights.

Full delivery & returns policy

Bought in the UK, backed in the UK

  • This item is sourced through UK distribution and ships to you from within the UK, so the order never crosses a customs border.

  • The manufacturer warranty is honoured here in the UK. If something fails, you deal with us, not with an overseas seller in another time zone.

  • Our own UK-based engineers install, commission and support what we sell, and can attend site when a system needs hands on it.

  • Delivered within the UK mainland, so there is no import duty, customs charge or courier handling fee waiting for you on delivery.

  • Prices are in pounds sterling with proper UK VAT invoices, and purchase orders are accepted from approved education accounts: no currency conversion and no surprises at the door.

What to check before buying AV online →

Payment & security

Pay securely by card. Education customers can apply for a 30-day purchase order account.

Schools, colleges, sixth forms, universities and multi-academy trusts can order on invoice, with no card payment required. Purchase orders and credit terms are for education customers only.

All transactions are processed over an encrypted, secure checkout.

Purchase order & invoice terms

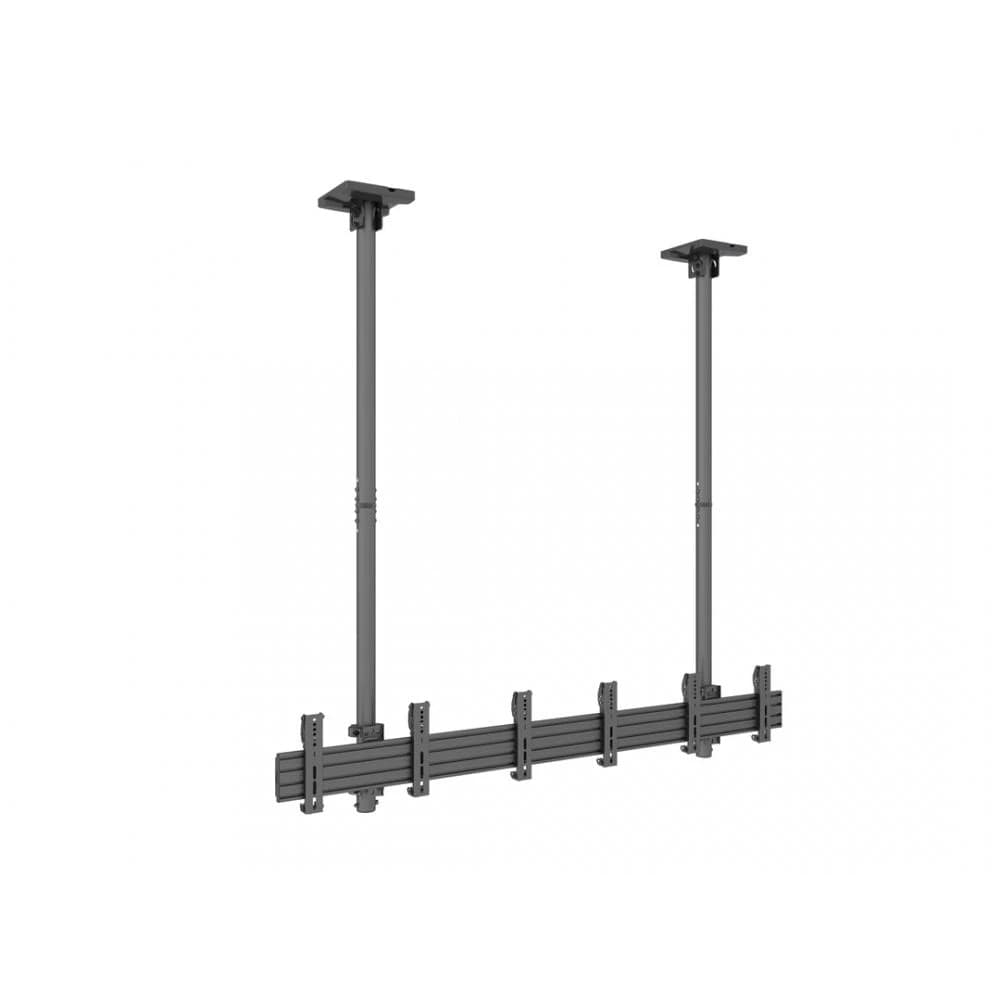

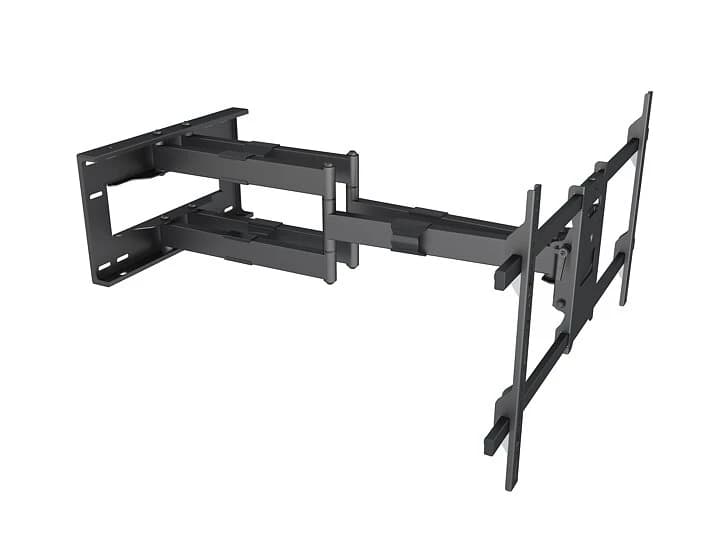

Alternative products
