Home / Floor-to-Wall Stands / Chief Velocity Outdoor Triple Pedestal Display System - 55" Portrait, Black

Chief

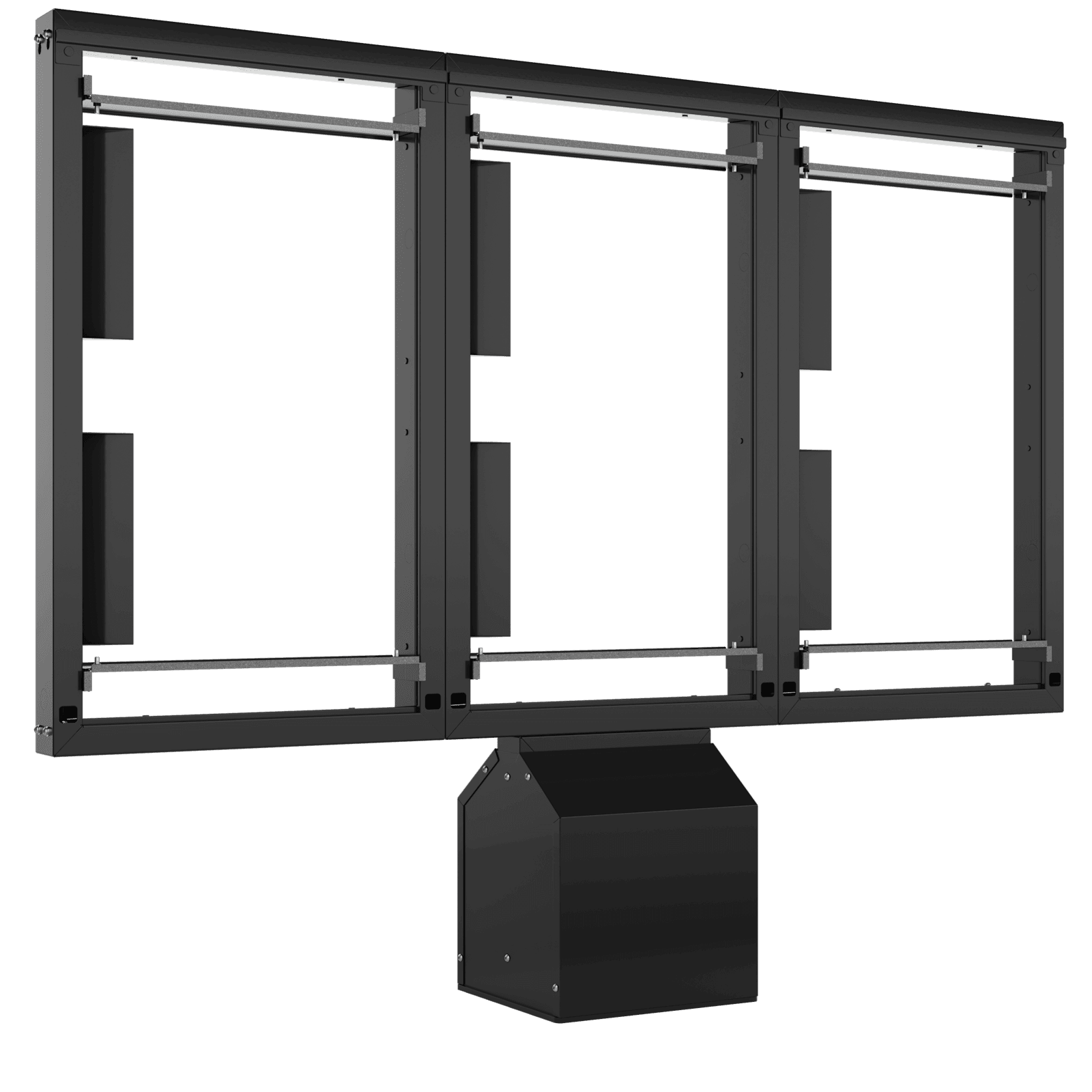

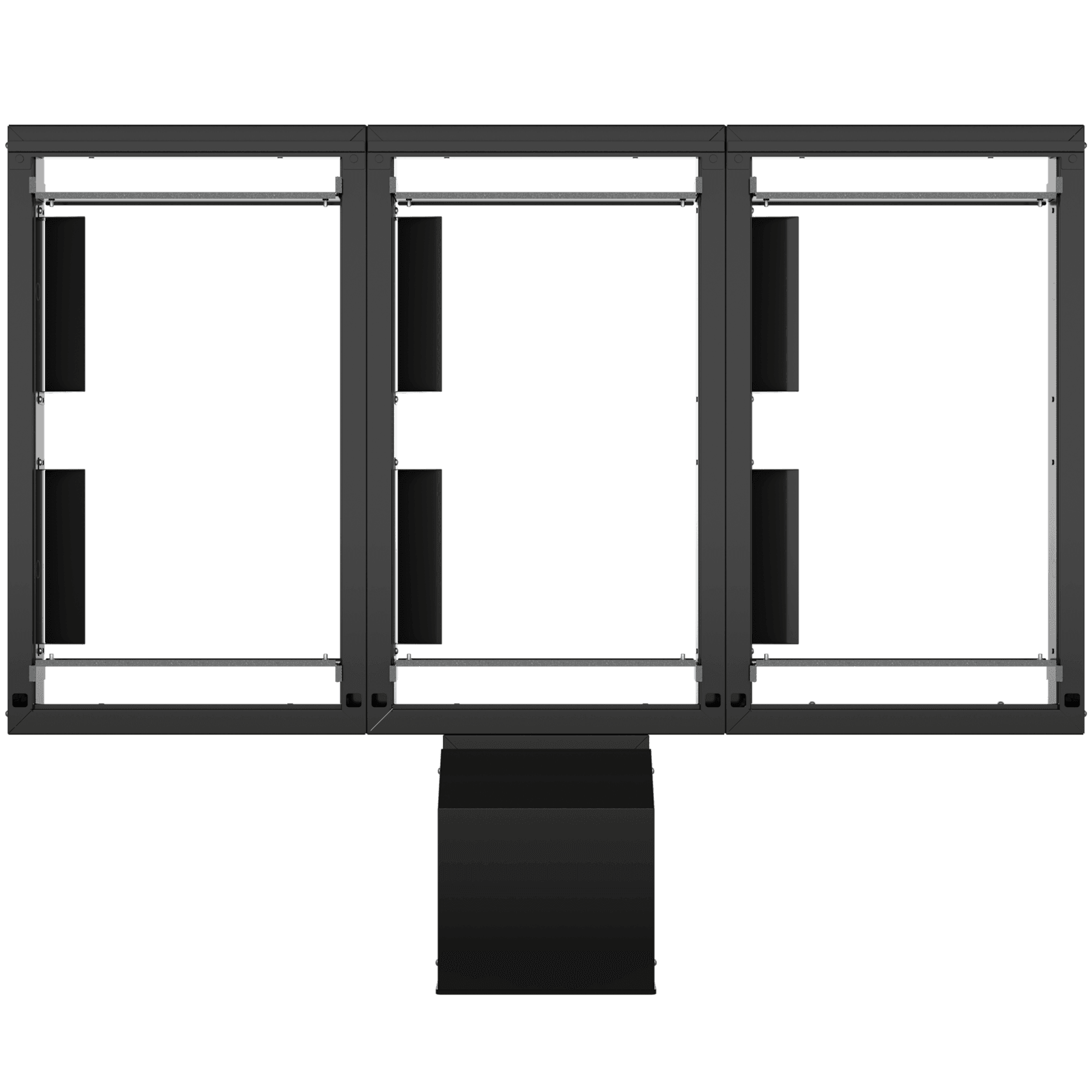

Chief Velocity Outdoor Triple Pedestal Display System - 55" Portrait, Black

Name: Chief Velocity Outdoor Triple Pedestal Display System - 55" Portrait, Black
Brand: Chief
SKU: ODMB3X1
Price: 7471.14 GBP
Availability: OutOfStock

£7,471.14inc. VAT

£6,225.95 ex. VAT

Out of stock

Visa
Mastercard
American Express
PayPal

Independently reviewed on Trustpilot

Seen it cheaper? We price-match genuine like-for-like quotes. How it works

Bought in the UK, backed in the UKWhy it matters →

Sourced through UK distribution
UK manufacturer warranty
UK-based engineers
No import duty or customs charges
GBP pricing, UK VAT invoices

Call 020 3815 8642

Return within 14 days

Installation services available Purchase orders: education customers only

10 Years Warranty Included

Key specifications

Typical screen size55 in

Weight capacity68 kg per frame

Mounting pattern560 x 1186 mm

Overall dimensions (D x W x H)390 x 2153 x 1711 mm

Internal device mounting dimensions390 x 416 x 451 mm

Internal mounting plates411 x 193 mm

Shipping dimensions1016 x 1219 x 718 mm

Shipping weight115.7 kg

All 17 specifications

Description

Chief Velocity is an open-frame outdoor pedestal system rather than a sealed enclosure. Each frame carries one 55-inch portrait outdoor-rated panel on a 560 x 1186 mm mounting pattern and sits on a base that anchors into concrete with threaded rod or wedge anchors. This triple configuration measures 2153 mm wide and 1711 mm high overall.

Full specifications Datasheet Compare alternatives

Because frames and bases are separate modules, a site can start with one display and add positions later without changing the mount. The baseplate gives 15 degrees of rotation for setting the viewing angle, the open back leaves the display and cabling directly accessible for service, and an optional back cover and speaker mount accessory are available separately.

Rated to 68 kg per frame and wind-load rated by Chief to 140 mph, UL Listed. Internal space for a player or receiver measures 390 x 416 x 451 mm. Note that the frame is open, so it must be paired with a display that is itself rated for outdoor use — typically an outdoor Samsung or LG 55-inch panel, ordered separately. Supplied by TopAV. Manufacturer part number ODMB3X1.

Call 020 3815 8642

Key features

Modular by design

Frames and bases are separate parts, so a single-display pedestal can be extended to a dual or triple array later without replacing the mount.

Concrete anchored

Each base fixes to concrete using threaded rod or wedge anchors, and the whole system ships on a standard 1016 x 1219 mm pallet.

Adjustable viewing angle

The baseplate provides 15 degrees of rotation and accepts an 8 in or 10 in square anchor pattern.

Two-person installation

The mount is designed to be installed by two people without heavy lifting equipment.

Open-back service access

The open back gives direct access to the display and cabling for maintenance; an optional back cover is available where a closed appearance is required.

Wind load rated

Rated by Chief for wind loads up to 140 mph and UL Listed.

Technical specifications

Choose a section to view its specifications.

Display (2)

Typical screen size: 55 in
Number of displays: 3

Power & Physical (9)

Weight capacity: 68 kg per frame
Mounting pattern: 560 x 1186 mm
Overall dimensions (D x W x H): 390 x 2153 x 1711 mm
Internal device mounting dimensions: 390 x 416 x 451 mm
Internal mounting plates: 411 x 193 mm
Shipping dimensions: 1016 x 1219 x 718 mm
Shipping weight: 115.7 kg
Colour: Black
Mounting method: Concrete mount via threaded rod or wedge anchors

Certifications & Warranty (1)

Certifications: UL Listed

General (5)

Product configuration: Triple display
Orientation: Portrait
Baseplate rotation: 15 degrees
Wind load rating: 140 mph
Installation environment: Outdoor

Call 020 3815 8642

Documents

Chief Velocity Outdoor Pedestal System datasheet (PDF) — the manufacturer cutsheet, covering part numbers, specifications and dimensioned drawings for ODMB1X1, ODMB2X1 and ODMB3X1.
