Chief PFB1UB Single Flat Panel Bolt-Down Floor Mount

Name: Chief PFB1UB Single Flat Panel Bolt-Down Floor Mount
Brand: Chief
SKU: PFB1UB
Price: 741.60 GBP
Availability: OutOfStock

£741.60inc. VAT

£618.00 ex. VAT

Out of stock

Seen it cheaper? We price-match genuine like-for-like quotes. How it works

Bought in the UK, backed in the UKWhy it matters →

Sourced through UK distribution
UK manufacturer warranty
UK-based engineers
No import duty or customs charges
GBP pricing, UK VAT invoices

Return within 14 days

Installation services available Purchase orders: education customers only

10 Years Warranty Included

Key specifications

Weight capacity68 kg

VESA mounting pattern200 x 200mm - 860 x 515mm

Tilt+15 / -15

Number of displays1

OrientationLandscape, Portrait

ColourBlack

ApplicationFloor, bolt-down

Display centre height range1305 - 2169 mm

All 14 specifications

Description

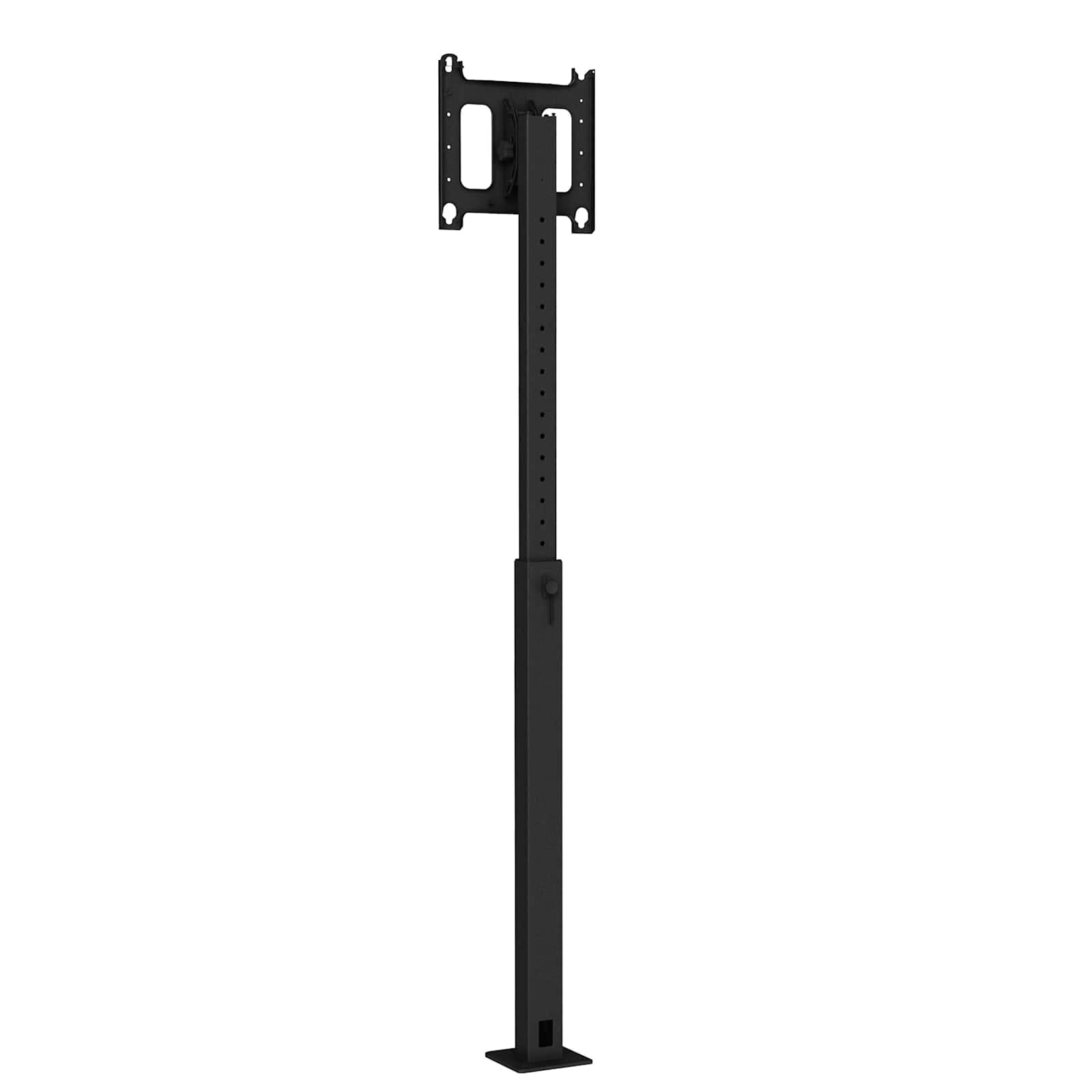

The PFB1UB anchors a single display to the floor on a slim column with a 203 x 203 mm bolt-down base, so a screen can stand free of any wall. It is aimed at storefront windows, retail displays and digital signage where a wall mount is not an option and the display needs to be seen from a set eye line.

Full specifications Datasheet Compare alternatives

Display centre height is set without tools anywhere between 1,305 mm and 2,169 mm from the floor, and the Q-Latch head rotates between landscape and portrait orientation. Chief's Centris tilt gives fingertip adjustment of plus or minus 15 degrees that stays where it is set, while ClickConnect provides an audible confirmation that the screen has engaged. Post-installation levelling roll takes out any residual twist.

The mount carries up to 68 kg on VESA patterns between 200 x 200 mm and 860 x 515 mm, routes cables inside the column, and accepts a padlock for integrated security. It is UL Listed. Supplied by TopAV. Manufacturer part number PFB1UB.

Key features

Weight capacity

Rated to 68 kg (150 lb) on a single display.

VESA range

Takes mounting patterns from 200 x 200 mm to 860 x 515 mm.

Height adjustment

Display centre sets between 1,305 mm and 2,169 mm from the floor, without tools.

Centris fingertip tilt

Plus or minus 15 degrees of tilt that holds its position until deliberately re-set.

Landscape or portrait

Q-Latch head rotates between orientations; post-installation levelling roll corrects twist.

Small footprint

203 x 203 mm bolt-down base plate, with cable management routed inside the column.

Technical specifications

Display

Number of displays1

Display centre height range1305 - 2169 mm

Power & Physical

Weight capacity68 kg

VESA mounting pattern200 x 200mm - 860 x 515mm

ColourBlack

Base plate size203 x 203 mm

Shipping dimensions147.3 x 62.2 x 21.6 cm

Shipping weight36.7 kg

Certifications & Warranty

CertificationsUL Listed

General

Tilt+15 / -15

OrientationLandscape, Portrait

ApplicationFloor, bolt-down

Post-installation levelling rollYes

TAA compliantNo

Documents

Chief PFB1UB and PFB2UB installation manual (PDF, Legrand AV). Legrand publishes no downloadable cutsheet for this SKU - its cutsheet is generated in the browser - so the installation manual is attached instead.
