Home / Floor-to-Wall Stands / Chief ODMPB1 Velocity Outdoor Pedestal Modular Base - Black
Chief

Chief ODMPB1 Velocity Outdoor Pedestal Modular Base - Black

£2,326.80inc. VAT
£1,939.00 ex. VAT
Out of stock
1

Seen it cheaper? We price-match genuine like-for-like quotes. How it works

Bought in the UK, backed in the UKWhy it matters →
  • Sourced through UK distribution
  • UK manufacturer warranty
  • UK-based engineers
  • No import duty or customs charges
  • GBP pricing, UK VAT invoices
Call 01342 580255
Return within 14 days
Installation services availablePurchase orders: education customers only
10 Years Warranty Included
Key specifications
SeriesChief Velocity
Product typeOutdoor pedestal modular base
Product configurationModular Base
Overall dimensions428.6 x 390.4 x 492.1 mm
Internal device mounting dimensions390 x 416 x 451 mm
Weight capacity9.07 per panel, 430 maximum kg
ColourBlack
OrientationPortrait
All 10 specifications

Description

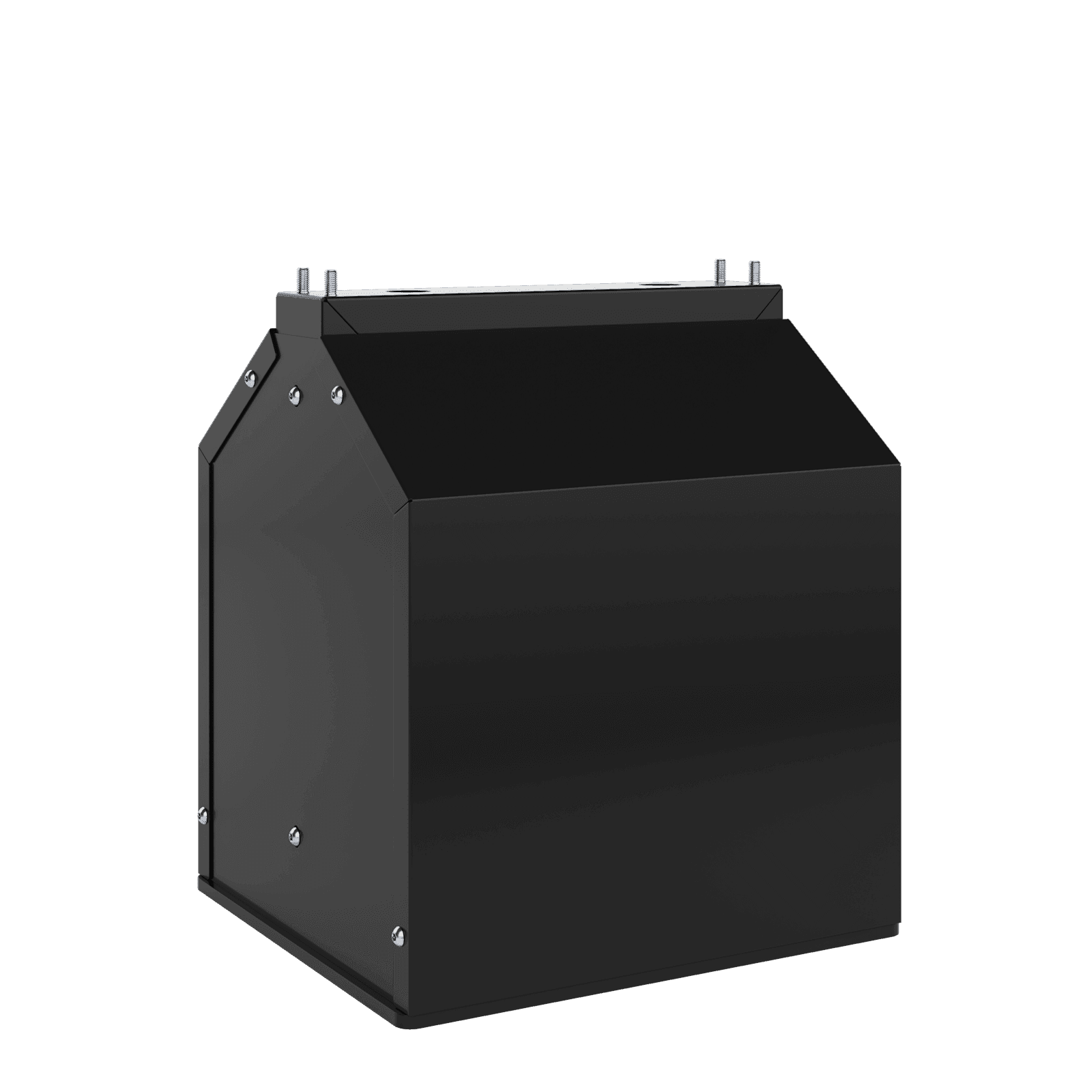

The Chief ODMPB1 is the modular base module of the Chief Velocity outdoor pedestal system - the weatherised, freestanding structure used for drive-through menu boards, outdoor wayfinding and other exterior digital signage. The base anchors the pedestal to its foundation and forms the sealed lower compartment that houses the media player, power and network hardware.

Full specifications Datasheet Compare alternatives

The enclosure measures 428.6 x 390.4 x 492.1 mm (16.875 x 15.371 x 19.375 in) overall, with an internal device mounting area of 390 x 416 x 451 mm (15.34 x 16.37 x 17.76 in). Each internal panel takes up to 9.07 kg (20 lb) of equipment, and the base is rated to a maximum structural load of 430 kg (948 lb), so it can carry a fully populated multi-display pedestal.

The ODMPB1 is a component of the Velocity system and is combined with the matching pedestal frames and display modules to make a complete pedestal. Supplied by TopAV. Manufacturer part number ODMPB1.

Call 01342 580255

Key features

Sealed equipment compartment

Forms the weatherised lower housing of the Velocity pedestal, with an internal mounting area of 390 x 416 x 451 mm for signage players, power and network hardware.

430 kg maximum structural load

Rated to a maximum load of 430 kg (948 lb), enough to carry a fully populated multi-display Velocity pedestal.

20 lb per internal panel

Each internal equipment panel takes up to 9.07 kg (20 lb), so components can be distributed across the compartment.

Anchor-template installation

Installs to a prepared foundation using the published Chief Velocity anchor template, with the studs visible on the top flange for the frame module.

Modular Velocity architecture

Pairs with Velocity pedestal frames and display modules so a single base can be configured for single or multi-display outdoor pedestals.

Technical specifications

Power & Physical
Overall dimensions428.6 x 390.4 x 492.1 mm
Internal device mounting dimensions390 x 416 x 451 mm
Weight capacity9.07 per panel, 430 maximum kg
ColourBlack
General
SeriesChief Velocity
Product typeOutdoor pedestal modular base
Product configurationModular Base
OrientationPortrait
ApplicationOutdoor freestanding pedestal
UPC841872178790
Call 01342 580255

Documents

Chief Velocity data sheet (PDF) - the manufacturer datasheet covering the Velocity outdoor pedestal system including the ODMPB1 base; no per-SKU cutsheet is published as a downloadable file
