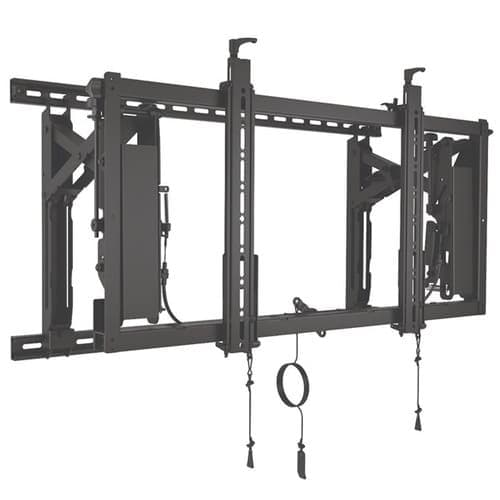

Chief LVSXUP ConnexSys Video Wall Portrait Mounting System without Rails

Name: Chief LVSXUP ConnexSys Video Wall Portrait Mounting System without Rails
Brand: Chief
SKU: LVSXUP
Price: 579.60 GBP
Availability: OutOfStock

£579.60inc. VAT

£483.00 ex. VAT

Out of stock

Seen it cheaper? We price-match genuine like-for-like quotes. How it works

Bought in the UK, backed in the UKWhy it matters →

Sourced through UK distribution
UK manufacturer warranty
UK-based engineers
No import duty or customs charges
GBP pricing, UK VAT invoices

Return within 14 days

Installation services available Purchase orders: education customers only

10 Years Warranty Included

Key specifications

OrientationPortrait

Number of displays1

ApplicationWall

Typical screen size40 - 80 in

Weight capacity68 kg

VESA mounting pattern200 x 100 mm - 800 x 400 mm

Tilt range+4 to -2.5 deg

AdjustabilityExtension, micro-adjustable, height adjustable, lateral shift

All 18 specifications

Description

The LVSXUP is the mount-only version of Chief's ConnexSys portrait video wall module. It is mechanically the same unit as the LVS1UP but ships without the strut-channel wall rails, which is the sensible option when the rails have already been specified for the array or are being cut and supplied separately.

Full specifications Datasheet Compare alternatives

It carries one portrait display of 40 to 80 inches at up to 68 kg, on a VESA pattern from 200 x 100 mm to 800 x 400 mm. Height, lateral shift, depth extension and micro-adjustment are all available, with tilt from +4 to -2.5 degrees, so screens in a multi-row array can be brought flush with even gaps. The mount extends forward to give access behind the panel without breaking up the wall.

Depth is 104 mm with a 101.6 mm minimum, height 826 mm and width 495 mm. The unit is UL Listed and TUV certified. Supplied by TopAV. Manufacturer part number LVSXUP.

Key features

68 kg per display

Rated to 150 lb (68 kg) for a single portrait display.

40 to 80 inch portrait displays

Typical screen size range of 40" to 80" (1016-2032 mm) in portrait orientation.

VESA 200x100 to 800x400 mm

Covers the mounting patterns used across commercial portrait panels in that size range.

Supplied without rails

Mount only. Specify ConnexSys strut-channel rails separately, or choose the LVS1UP if rails are needed.

Four-way alignment

Height, lateral shift, depth extension and micro-adjustment, with tilt from +4 to -2.5 degrees.

Extends for service access

The mount pulls the display forward so the rear of the panel can be reached without dismantling the array.

Technical specifications

Display

Number of displays1

Typical screen size40 - 80 in

Power & Physical

Weight capacity68 kg

VESA mounting pattern200 x 100 mm - 800 x 400 mm

Depth104 mm

Height826 mm

Width495 mm

Minimum depth101.6 mm

Shipping weight17.2 kg

ColourBlack

Certifications & Warranty

CertificationsUL Listed, TUV

General

OrientationPortrait

ApplicationWall

Tilt range+4 to -2.5 deg

AdjustabilityExtension, micro-adjustable, height adjustable, lateral shift

Wall rails includedNo

Solution typeUniversal

UPC841872161181

Documents

Chief LVS1UP / LVSXUP installation manual (PDF, Legrand AV). No cutsheet is published for this SKU.
